IslandPath Analysis: Geobacter sulfurreducens PCA

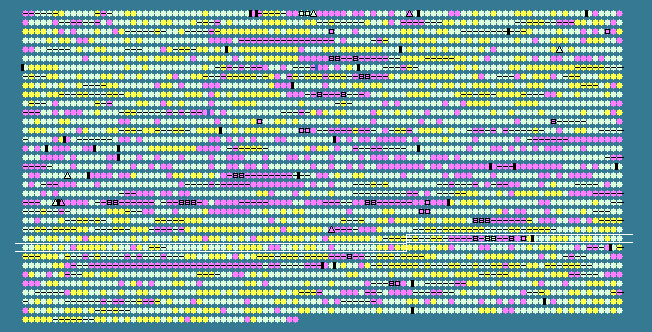

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2565	 60.44	0	2842215..2842487	-	90	39997675	-	GSU2580	-	hypothetical protein
2566	 67.40	+1	2842690..2844060	-	456	39997676	-	GSU2581	-	sigma-54 dependent transcriptional regulator
2567	 60.38	0	2844240..2845544	+	434	39997677	-	GSU2582	-	hypothetical protein
2568	 61.45	0	2846014..2846646	-	210	39997678	-	GSU2583	-	isochorismatase family protein
2569	 69.01	+1	2846785..2848278	-	497	39997679	-	GSU2584	-	putative lipoprotein
2570	 66.67	+1	2848269..2848505	-	78	39997680	-	GSU2585	-	hypothetical protein
2571	 58.83	0	2848699..2850447	-	582	39997681	-	GSU2586	-	hypothetical protein
2572	 55.71	0	2850867..2851295	+	142	39997682	-	GSU2587	-	MarR family transcriptional regulator
2573	 56.95	0	2851313..2852671	+	452	39997683	lpdA-2	GSU2588	-	alpha keto acid dehydrogenase complex, E3 component, lipoamide dehydrogenase
2574	 53.54	-1	2852695..2852793	+	32	39997684	-	GSU2589	-	hypothetical protein
2575	 40.29	-2	2854449..2855555	-	368	39997685	-	GSU2590	-	hypothetical protein
2576	 54.02	-1	2855722..2856504	+	260	39997686	-	GSU2591	-	ISGsu5, transposase
2577	 42.26	-2	2857020..2858330	-	436	39997687	-	GSU2592	-	hypothetical protein
2578	 58.77	0	2858365..2859390	+	341	39997688	-	GSU2593	-	ISGsu6, transposase OrfA
2579	 58.24	0	2859387..2860181	+	264	39997689	-	GSU2594	-	transposase/IS protein
2580	 48.25	-2	2861237..2861350	+	37	39997690	-	GSU2595	-	hypothetical protein
2581	 45.63	-2	2862308..2862982	-	224	39997691	-	GSU2596	-	putative lipoprotein
2582	 55.34	0	2863246..2864331	-	361	39997692	-	GSU2597	-	ISGsu2, transposase
2583	 48.48	-2	2865007..2865105	+	32	39997693	-	GSU2598	-	hypothetical protein
2584	 51.77	-1	2865265..2866311	-	348	39997694	-	GSU2599	-	ISGsu4, transposase
2585	 69.06	+1	2867897..2869654	-	585	39997695	-	GSU2601	-	TPR domain/SecC motif-containing domain protein
2586	 58.76	0	2869900..2870190	-	96	39997696	huP-1	GSU2602	-	DNA-binding protein HU
2587	 63.94	0	2870277..2872001	-	574	39997697	rpsA	GSU2603	-	30S ribosomal protein S1
2588	 62.54	0	2872104..2872952	-	282	39997698	lytB	GSU2604	-	penicillin tolerance protein LytB
2589	 69.23	+1	2872990..2873691	-	233	39997699	cmk	GSU2605	-	cytidylate kinase
2590	 69.77	+1	2873688..2874977	-	429	39997700	aroA	GSU2606	-	3-phosphoshikimate 1-carboxyvinyltransferase
2591	 68.84	+1	2874994..2875866	-	290	39997701	-	GSU2607	-	prephenate dehydrogenase
2592	 63.23	0	2875863..2876939	-	358	39997702	pheA	GSU2608	-	chorismate mutase/prephenate dehydratase
2593	 63.73	0	2877043..2878980	-	645	39997703	-	GSU2609	-	type IV pilus assembly protein, putative
2594	 65.24	0	2879012..2880550	-	512	39997704	-	GSU2610	-	LysM domain-containing protein
2595	 67.25	+1	2880625..2882007	-	460	39997705	-	GSU2611	-	hypothetical protein
2596	 63.31	0	2882323..2882829	-	168	39997706	-	GSU2612	-	rubrerythrin/rubredoxin protein, putative
2597	 61.62	0	2882887..2883777	-	296	39997707	-	GSU2613	-	cation efflux family protein
2598	 67.99	+1	2883767..2885503	-	578	39997708	recJ	GSU2614	-	single-stranded-DNA-specific exonuclease RecJ
2599	 60.58	0	2885565..2886155	-	196	39997709	-	GSU2615	-	TPR domain-containing protein
2600	 58.53	0	2886169..2887077	-	302	39997710	secF	GSU2616	-	preprotein translocase subunit SecF
2601	 62.23	0	2887086..2888687	-	533	39997711	secD	GSU2617	-	preprotein translocase subunit SecD
2602	 62.31	0	2888713..2889033	-	106	39997712	-	GSU2618	-	preprotein translocase, YajC subunit
2603	 64.71	0	2889104..2890225	-	373	39997713	tgt-2	GSU2619	-	queuine tRNA-ribosyltransferase
2604	 67.93	+1	2890299..2891330	-	343	39997714	queA	GSU2620	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2605	 64.29	0	2891317..2892282	-	321	39997715	-	GSU2621	-	stage II sporulation-related protein
2606	 59.79	0	2892888..2895026	+	712	39997716	-	GSU2622	-	HAMP domain/GAF domain/HD domain-containing protein
2607	 66.46	+1	2895130..2896092	+	320	39997717	-	GSU2623	-	peptide ABC transporter, ATP-binding protein
2608	 62.25	0	2896089..2897084	+	331	39997718	-	GSU2624	-	peptide ABC transporter, ATP-binding protein
2609	 55.56	0	2897198..2897476	+	92	39997719	-	GSU2625	-	ArsR family transcriptional regulator
2610	 64.32	0	2897545..2898735	+	396	39997720	-	GSU2626	-	hypothetical protein
2611	 67.79	+1	2898797..2899600	-	267	39997721	-	GSU2627	-	biotin synthesis protein, putative
2612	 66.06	0	2899593..2900414	-	273	39997722	-	GSU2628	-	non-heme peroxidase, putative
2613	 68.54	+1	2900426..2901601	-	391	39997723	bioF	GSU2629	-	8-amino-7-oxononanoate synthase
2614	 65.64	0	2901768..2902451	+	227	39997724	-	GSU2630	-	serine/threonine protein phosphatase, putative
2615	 59.47	0	2902448..2902864	+	138	39997725	-	GSU2631	-	hypothetical protein
2616	 65.37	0	2902943..2904178	+	411	39997726	-	GSU2632	-	GGDEF domain-containing protein
2617	 62.46	0	2904304..2904921	+	205	39997727	-	GSU2633	-	putative lipoprotein
2618	 58.63	0	2905012..2905347	-	111	39997728	-	GSU2634	-	hypothetical protein
2619	 56.19	0	2905385..2905804	-	139	39997729	-	GSU2635	-	hypothetical protein
2620	 64.67	0	2905877..2907730	-	617	39997730	-	GSU2636	-	alpha-amylase family protein
2621	 61.70	0	2907815..2908801	-	328	39997731	-	GSU2637	-	alcohol dehydrogenase, zinc-containing
2622	 67.50	+1	2908915..2909394	-	159	39997732	-	GSU2638	-	hypothetical protein
2623	 67.57	+1	2909401..2911500	-	699	39997733	-	GSU2639	-	hypothetical protein
2624	 61.52	0	2911658..2912356	-	232	39997734	-	GSU2640	-	hypothetical protein
2625	 59.18	0	2912401..2913135	-	244	39997735	-	GSU2641	-	hypothetical protein
2626	 62.46	0	2913384..2914073	-	229	39997736	-	GSU2642	-	cytochrome c family protein
2627	 60.42	0	2914105..2914536	-	143	39997737	-	GSU2643	-	cytochrome c family protein
2628	 61.69	0	2914617..2915861	-	414	39997738	-	GSU2644	-	hypothetical protein
2629	 62.44	0	2915960..2916835	-	291	39997739	-	GSU2645	-	cytochrome c family protein
2630	 57.96	0	2917145..2917477	+	110	39997740	-	GSU2646	-	hypothetical protein
2631	 65.86	0	2917553..2918422	-	289	39997741	-	GSU2647	-	hypothetical protein
2632	 57.28	0	2918536..2919057	-	173	39997742	-	GSU2648	-	hypothetical protein
2633	 60.86	0	2919433..2920242	+	269	39997743	-	GSU2649	-	amino acid ABC transporter, amino acid-binding protein
2634	 63.88	0	2920249..2921037	+	262	39997744	-	GSU2650	-	amino acid ABC transporter, permease protein, putative
2635	 66.53	+1	2921027..2921758	+	243	39997745	-	GSU2651	-	amino acid ABC transporter, ATP-binding protein
2636	 60.90	0	2921970..2923148	+	392	39997746	-	GSU2652	-	methyl-accepting chemotaxis protein
2637	 67.29	+1	2923302..2924756	+	484	39997747	-	GSU2653	-	MATE efflux family protein
2638	 68.46	+1	2924871..2925929	+	352	39997748	pdhA	GSU2654	-	pyruvate dehydrogenase complex E1 component, alpha subunit
2639	 69.57	+1	2925945..2926907	+	320	39997749	pdhB	GSU2655	-	pyruvate dehydrogenase complex E1 component, beta subunit
2640	 66.16	+1	2927243..2928421	+	392	39997750	aceF	GSU2656	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2641	 61.51	0	2928502..2931024	-	840	39997751	-	GSU2657	-	spore coat protein A
2642	 52.81	-1	2931002..2931232	+	76	39997752	-	GSU2658	-	putative lipoprotein
2643	 53.15	-1	2931410..2931631	+	73	39997753	-	GSU2659	-	hypothetical protein
2644	 62.28	0	2931669..2932124	+	151	39997754	-	GSU2660	-	hypothetical protein
2645	 63.49	0	2932127..2932693	+	188	39997755	-	GSU2661	-	hypothetical protein
2646	 64.83	0	2932790..2934262	-	490	39997756	-	GSU2662	-	hypothetical protein
2647	 58.79	0	2934433..2934597	-	54	39997757	-	GSU2663	-	putative lipoprotein
2648	 64.33	0	2934692..2939182	-	1496	39997758	-	GSU2664	-	outer membrane efflux protein
2649	 65.37	0	2939179..2940339	-	386	39997759	-	GSU2665	-	RND family efflux transporter MFP subunit
2650	 61.84	0	2940336..2940977	-	213	39997760	-	GSU2666	-	TetR family transcriptional regulator
2651	 62.32	0	2941214..2942710	+	498	39997761	-	GSU2667	-	sensory box histidine kinase
2652	 56.38	0	2942694..2942975	+	93	39997762	-	GSU2668	-	hypothetical protein
2653	 58.33	0	2942972..2944003	+	343	39997763	-	GSU2669	-	sensor histidine kinase
2654	 61.64	0	2944089..2945381	-	430	39997764	-	GSU2670	-	LuxR family transcriptional regulator
2655	 62.50	0	2945693..2947300	+	535	39997765	-	GSU2671	-	hypothetical protein
2656	 62.68	0	2947371..2947847	+	158	39997766	-	GSU2672	-	hypothetical protein
2657	 59.81	0	2947883..2949223	+	446	39997767	-	GSU2673	-	hypothetical protein
2658	 62.99	0	2949285..2953013	+	1242	39997768	-	GSU2674	-	hypothetical protein
2659	 64.15	0	2953225..2955291	-	688	39997769	-	GSU2675	-	hypothetical protein
2660	 69.78	+1	2955391..2956290	-	299	39997770	-	GSU2676	-	hypothetical protein
2661	 68.98	+1	2956339..2957247	-	302	39997771	-	GSU2677	-	hypothetical protein
2662	 57.02	0	2957582..2958037	+	151	39997772	-	GSU2678	-	HSP20 family protein
2663	 68.26	+1	2958166..2958603	+	145	39997773	-	GSU2679	-	hypothetical protein
2664	 65.80	0	2958626..2959087	+	153	39997774	-	GSU2680	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
