IslandPath Analysis: Geobacter sulfurreducens PCA

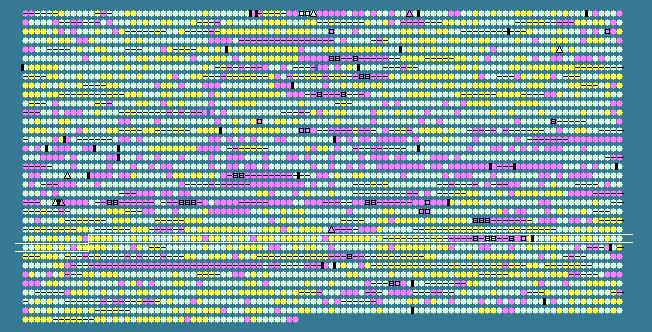

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2512	 68.20	+1	2784677..2785978	-	433	39997622	-	GSU2527	-	nitrite/sulfite reductase domain-containing protein
2513	 68.27	+1	2786069..2788183	-	704	39997623	-	GSU2528	-	hypothetical protein
2514	 67.83	+1	2788182..2790251	+	689	39997624	fusA-2	GSU2529	-	elongation factor G
2515	 70.29	+1	2790261..2791337	-	358	39997625	-	GSU2530	-	GTPase YjeQ
2516	 63.28	0	2791476..2794637	-	1053	39997626	-	GSU2531	-	sensory box histidine kinase
2517	 61.11	0	2794634..2795065	-	143	39997627	-	GSU2532	-	hypothetical protein
2518	 63.70	0	2795087..2796298	-	403	39997628	-	GSU2533	-	hypothetical protein
2519	 64.83	0	2796313..2797671	-	452	39997629	-	GSU2534	-	sensory box/response regulator
2520	 61.26	0	2797751..2798194	-	147	39997630	-	GSU2535	-	response regulator
2521	 65.31	0	2798512..2799324	-	270	39997631	-	GSU2536	-	dienelactone hydrolase family protein
2522	 59.38	0	2799433..2801340	-	635	39997632	speA	GSU2537	-	arginine decarboxylase
2523	 62.84	0	2801539..2802741	-	400	39997633	nspC	GSU2538	-	carboxynorspermidine decarboxylase
2524	 62.74	0	2802886..2804082	-	398	39997634	LYS1	GSU2539	-	saccharopine dehydrogenase
2525	 60.62	0	2804108..2804653	-	181	39997635	-	GSU2540	-	Cro/CI family transcriptional regulator
2526	 68.51	+1	2804942..2805754	+	270	39997636	proC	GSU2541	-	pyrroline-5-carboxylate reductase
2527	 59.26	0	2805847..2806035	-	62	39997637	-	GSU2542	-	hypothetical protein
2528	 61.52	0	2806022..2806798	-	258	39997638	-	GSU2543	-	polysaccharide deacetylase domain-containing protein
2529	 65.37	0	2806908..2807603	-	231	39997639	-	GSU2544	-	hypothetical protein
2530	 65.45	0	2807613..2808188	-	191	39997640	maf	GSU2545	-	maf protein
2531	 54.61	-1	2808175..2808456	-	93	39997641	-	GSU2546	-	hypothetical protein
2532	 66.51	+1	2808536..2809840	-	434	39997642	gid	GSU2547	-	tRNA (uracil-5-)-methyltransferase Gid
2533	 64.22	0	2809837..2810244	-	135	39997643	-	GSU2548	-	hypothetical protein
2534	 62.53	0	2810320..2812593	-	757	39997644	topA	GSU2549	-	DNA topoisomerase I
2535	 68.16	+1	2812608..2813678	-	356	39997645	drpA	GSU2550	-	DNA processing protein DprA
2536	 63.89	0	2813764..2814771	-	335	39997646	-	GSU2551	-	LysM domain-containing protein
2537	 66.39	+1	2814839..2815567	-	242	39997647	-	GSU2552	-	putative lipoprotein
2538	 62.04	0	2815761..2816474	+	237	39997648	-	GSU2553	-	glycosyl transferase, group 2 family protein
2539	 54.76	-1	2816467..2816760	+	97	39997649	-	GSU2554	-	hypothetical protein
2540	 64.44	0	2816750..2818363	+	537	39997650	-	GSU2555	-	melittin resistance protein, putative
2541	 67.16	+1	2818455..2819669	+	404	39997651	-	GSU2556	-	U32 family peptidase
2542	 69.34	+1	2819677..2820612	+	311	39997652	-	GSU2557	-	polysaccharide deacetylase family protein
2543	 62.25	0	2820654..2821469	+	271	39997653	-	GSU2558	-	hypothetical protein
2544	 65.95	0	2821751..2823292	-	513	39997654	-	GSU2559	-	exopolyphosphatase, putative
2545	 67.90	+1	2823289..2824179	-	296	39997655	-	GSU2560	-	hypothetical protein
2546	 65.71	0	2824228..2824752	-	174	39997656	-	GSU2561	-	hypothetical protein
2547	 71.40	+1	2824780..2825265	-	161	39997657	sixA	GSU2562	-	phosphohistidine phosphatase SixA
2548	 57.50	0	2825411..2825770	+	119	39997658	-	GSU2563	-	hypothetical protein
2549	 65.41	0	2825830..2827107	+	425	39997659	-	GSU2564	-	hypothetical protein
2550	 62.76	0	2827104..2827871	+	255	39997660	-	GSU2565	-	sensor histidine kinase
2551	 53.15	-1	2827850..2827960	-	36	39997661	-	GSU2566	-	hypothetical protein
2552	 64.61	0	2827974..2829725	+	583	39997662	-	GSU2567	-	sensor histidine kinase
2553	 67.97	+1	2829875..2831179	-	434	39997663	-	GSU2568	-	MiaB-like tRNA modifying enzyme
2554	 68.55	+1	2831179..2832240	-	353	39997664	trmU	GSU2569	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2555	 68.02	+1	2832260..2833444	-	394	39997665	-	GSU2570	-	cysteine desulfurase
2556	 67.35	+1	2833441..2833878	-	145	39997666	-	GSU2571	-	Rrf2 family protein
2557	 64.60	0	2833882..2834559	-	225	39997667	cysE	GSU2572	-	serine acetyltransferase
2558	 72.60	+2	2834710..2835063	-	117	39997668	-	GSU2573	-	hypothetical protein
2559	 63.23	0	2835091..2836197	-	368	39997669	-	GSU2574	-	response regulator
2560	 66.90	+1	2836201..2838753	-	850	39997670	-	GSU2575	-	sensor histidine kinase/response regulator
2561	 62.73	0	2838754..2839617	-	287	39997671	-	GSU2576	-	HD domain-containing protein
2562	 66.00	0	2839604..2839903	-	99	39997672	-	GSU2577	-	hypothetical protein
2563	 64.30	0	2840026..2840406	-	126	39997673	cheW-9	GSU2578	-	purine-binding chemotaxis protein CheW
2564	 65.93	0	2840564..2842195	-	543	39997674	-	GSU2579	-	methyl-accepting chemotaxis protein
2565	 60.44	0	2842215..2842487	-	90	39997675	-	GSU2580	-	hypothetical protein
2566	 67.40	+1	2842690..2844060	-	456	39997676	-	GSU2581	-	sigma-54 dependent transcriptional regulator
2567	 60.38	0	2844240..2845544	+	434	39997677	-	GSU2582	-	hypothetical protein
2568	 61.45	0	2846014..2846646	-	210	39997678	-	GSU2583	-	isochorismatase family protein
2569	 69.01	+1	2846785..2848278	-	497	39997679	-	GSU2584	-	putative lipoprotein
2570	 66.67	+1	2848269..2848505	-	78	39997680	-	GSU2585	-	hypothetical protein
2571	 58.83	0	2848699..2850447	-	582	39997681	-	GSU2586	-	hypothetical protein
2572	 55.71	0	2850867..2851295	+	142	39997682	-	GSU2587	-	MarR family transcriptional regulator
2573	 56.95	0	2851313..2852671	+	452	39997683	lpdA-2	GSU2588	-	alpha keto acid dehydrogenase complex, E3 component, lipoamide dehydrogenase
2574	 53.54	-1	2852695..2852793	+	32	39997684	-	GSU2589	-	hypothetical protein
2575	 40.29	-2	2854449..2855555	-	368	39997685	-	GSU2590	-	hypothetical protein
2576	 54.02	-1	2855722..2856504	+	260	39997686	-	GSU2591	-	ISGsu5, transposase
2577	 42.26	-2	2857020..2858330	-	436	39997687	-	GSU2592	-	hypothetical protein
2578	 58.77	0	2858365..2859390	+	341	39997688	-	GSU2593	-	ISGsu6, transposase OrfA
2579	 58.24	0	2859387..2860181	+	264	39997689	-	GSU2594	-	transposase/IS protein
2580	 48.25	-2	2861237..2861350	+	37	39997690	-	GSU2595	-	hypothetical protein
2581	 45.63	-2	2862308..2862982	-	224	39997691	-	GSU2596	-	putative lipoprotein
2582	 55.34	0	2863246..2864331	-	361	39997692	-	GSU2597	-	ISGsu2, transposase
2583	 48.48	-2	2865007..2865105	+	32	39997693	-	GSU2598	-	hypothetical protein
2584	 51.77	-1	2865265..2866311	-	348	39997694	-	GSU2599	-	ISGsu4, transposase
2585	 69.06	+1	2867897..2869654	-	585	39997695	-	GSU2601	-	TPR domain/SecC motif-containing domain protein
2586	 58.76	0	2869900..2870190	-	96	39997696	huP-1	GSU2602	-	DNA-binding protein HU
2587	 63.94	0	2870277..2872001	-	574	39997697	rpsA	GSU2603	-	30S ribosomal protein S1
2588	 62.54	0	2872104..2872952	-	282	39997698	lytB	GSU2604	-	penicillin tolerance protein LytB
2589	 69.23	+1	2872990..2873691	-	233	39997699	cmk	GSU2605	-	cytidylate kinase
2590	 69.77	+1	2873688..2874977	-	429	39997700	aroA	GSU2606	-	3-phosphoshikimate 1-carboxyvinyltransferase
2591	 68.84	+1	2874994..2875866	-	290	39997701	-	GSU2607	-	prephenate dehydrogenase
2592	 63.23	0	2875863..2876939	-	358	39997702	pheA	GSU2608	-	chorismate mutase/prephenate dehydratase
2593	 63.73	0	2877043..2878980	-	645	39997703	-	GSU2609	-	type IV pilus assembly protein, putative
2594	 65.24	0	2879012..2880550	-	512	39997704	-	GSU2610	-	LysM domain-containing protein
2595	 67.25	+1	2880625..2882007	-	460	39997705	-	GSU2611	-	hypothetical protein
2596	 63.31	0	2882323..2882829	-	168	39997706	-	GSU2612	-	rubrerythrin/rubredoxin protein, putative
2597	 61.62	0	2882887..2883777	-	296	39997707	-	GSU2613	-	cation efflux family protein
2598	 67.99	+1	2883767..2885503	-	578	39997708	recJ	GSU2614	-	single-stranded-DNA-specific exonuclease RecJ
2599	 60.58	0	2885565..2886155	-	196	39997709	-	GSU2615	-	TPR domain-containing protein
2600	 58.53	0	2886169..2887077	-	302	39997710	secF	GSU2616	-	preprotein translocase subunit SecF
2601	 62.23	0	2887086..2888687	-	533	39997711	secD	GSU2617	-	preprotein translocase subunit SecD
2602	 62.31	0	2888713..2889033	-	106	39997712	-	GSU2618	-	preprotein translocase, YajC subunit
2603	 64.71	0	2889104..2890225	-	373	39997713	tgt-2	GSU2619	-	queuine tRNA-ribosyltransferase
2604	 67.93	+1	2890299..2891330	-	343	39997714	queA	GSU2620	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2605	 64.29	0	2891317..2892282	-	321	39997715	-	GSU2621	-	stage II sporulation-related protein
2606	 59.79	0	2892888..2895026	+	712	39997716	-	GSU2622	-	HAMP domain/GAF domain/HD domain-containing protein
2607	 66.46	+1	2895130..2896092	+	320	39997717	-	GSU2623	-	peptide ABC transporter, ATP-binding protein
2608	 62.25	0	2896089..2897084	+	331	39997718	-	GSU2624	-	peptide ABC transporter, ATP-binding protein
2609	 55.56	0	2897198..2897476	+	92	39997719	-	GSU2625	-	ArsR family transcriptional regulator
2610	 64.32	0	2897545..2898735	+	396	39997720	-	GSU2626	-	hypothetical protein
2611	 67.79	+1	2898797..2899600	-	267	39997721	-	GSU2627	-	biotin synthesis protein, putative
60.71	MEAN

5.38	STD DEV
