IslandPath Analysis: Geobacter sulfurreducens PCA

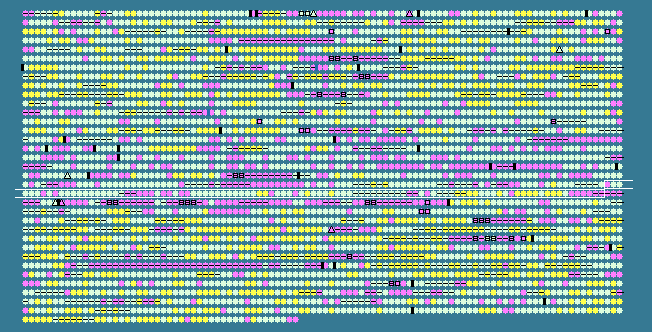

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1998	 54.71	-1	2203228..2203662	+	144	39997108	-	GSU2010	-	CBS domain-containing protein
1999	 60.46	0	2203783..2204958	-	391	39997109	-	GSU2011	-	cysteine desulfurase
2000	 57.69	0	2204955..2205812	-	285	39997110	-	GSU2012	-	NifU family protein
2001	 59.62	0	2205968..2207386	-	472	39997111	-	GSU2013	-	phosphoglucomutase/phosphomannomutase family protein
2002	 58.42	0	2207669..2207959	+	96	39997112	-	GSU2014	-	hypothetical protein
2003	 60.49	0	2208031..2208483	+	150	39997113	-	GSU2015	-	mutT/nudix family protein
2004	 56.75	0	2208461..2210860	-	799	39997114	-	GSU2016	-	sensory box/GGDEF family protein
2005	 59.98	0	2210896..2211717	-	273	39997115	-	GSU2017	-	hypothetical protein
2006	 56.64	0	2211797..2212195	-	132	39997116	gcvH-2	GSU2018	-	glycine cleavage system H protein
2007	 57.49	0	2212199..2213539	-	446	39997117	accC	GSU2019	-	acetyl-CoA carboxylase, biotin carboxylase
2008	 59.75	0	2213570..2214046	-	158	39997118	accB	GSU2020	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
2009	 60.21	0	2214096..2215163	-	355	39997119	pepQ-2	GSU2021	-	xaa-pro dipeptidase
2010	 58.94	0	2215167..2215619	-	150	39997120	aroQ	GSU2022	-	3-dehydroquinate dehydratase
2011	 60.33	0	2215648..2216010	-	120	39997121	-	GSU2023	-	hypothetical protein
2012	 58.29	0	2215989..2217110	-	373	39997122	-	GSU2024	-	hypothetical protein
2013	 60.79	0	2217113..2218201	-	362	39997123	aroB	GSU2025	-	3-dehydroquinate synthase
2014	 60.80	0	2218198..2218725	-	175	39997124	aroK	GSU2026	-	shikimate kinase
2015	 61.25	0	2218709..2219890	-	393	39997125	aroC	GSU2027	-	chorismate synthase
2016	 59.14	0	2219965..2222649	-	894	39997126	-	GSU2028	-	type IV pilus biogenesis protein PilQ
2017	 57.56	0	2222660..2223208	-	182	39997127	-	GSU2029	-	putative lipoprotein
2018	 53.60	-1	2223192..2223788	-	198	39997128	-	GSU2030	-	type IV pilus biogenesis protein PilO
2019	 53.47	-1	2223826..2224401	-	191	39997129	-	GSU2031	-	type IV pilus biogenesis protein PilN
2020	 55.68	0	2224395..2225450	-	351	39997130	-	GSU2032	-	type IV pilus biogenesis protein PilM
2021	 44.80	-2	2225471..2225845	-	124	39997131	-	GSU2033	-	transcriptional regulator, putative
2022	 55.89	0	2226192..2226785	-	197	39997132	-	GSU2034	-	hypothetical protein
2023	 57.96	0	2226863..2227861	-	332	39997133	-	GSU2035	-	hypothetical protein
2024	 56.15	0	2228053..2228442	-	129	39997134	-	GSU2036	-	hypothetical protein
2025	 55.14	-1	2228420..2228905	-	161	39997135	-	GSU2037	-	hypothetical protein
2026	 58.77	0	2228907..2234594	-	1895	39997136	-	GSU2038	-	hypothetical protein
2027	 52.81	-1	2234591..2234893	-	100	39997137	-	GSU2039	-	hypothetical protein
2028	 56.06	0	2235058..2235189	+	43	39997138	-	GSU2040	-	hypothetical protein
2029	 60.75	0	2235760..2237127	-	455	39997139	-	GSU2041	-	sigma-54 dependent DNA-binding response regulator
2030	 63.37	0	2237164..2238738	-	524	39997140	-	GSU2042	-	sensor histidine kinase
2031	 59.23	0	2238751..2239530	-	259	39997141	pilD	GSU2043	-	type 4 prepilin-like proteins leader peptide processing enzyme
2032	 60.81	0	2239587..2241875	-	762	39997142	-	GSU2044	-	sensory box/GGDEF family protein
2033	 61.90	0	2242180..2244843	-	887	39997143	valS	GSU2045	-	valyl-tRNA synthetase
2034	 61.98	0	2244947..2246161	-	404	39997144	-	GSU2046	-	response regulator
2035	 62.37	0	2246279..2247466	-	395	39997145	-	GSU2047	-	hypothetical protein
2036	 59.45	0	2247599..2248000	-	133	39997146	-	GSU2048	-	hypothetical protein
2037	 63.03	0	2248053..2249234	-	393	39997147	argJ	GSU2049	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2038	 60.50	0	2249292..2251985	-	897	39997148	secA	GSU2050	-	preprotein translocase subunit SecA
2039	 63.44	0	2252242..2253543	-	433	39997149	-	GSU2051	-	phenylacetate-coenzyme A ligase, putative
2040	 67.40	+1	2253583..2254131	-	182	39997150	-	GSU2052	-	indolepyruvate oxidoreductase subunit B
2041	 67.06	+1	2254128..2255909	-	593	39997151	-	GSU2053	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit, putative
2042	 38.99	-2	2255951..2256109	+	52	39997152	-	GSU2054	-	hypothetical protein
2043	 61.35	0	2256159..2257193	+	344	39997153	-	GSU2055	-	extracellular solute-binding protein
2044	 61.90	0	2257267..2257749	+	160	39997154	-	GSU2056	-	tripartite ATP-independent periplasmic transporters, DctQ component, putative
2045	 62.32	0	2257785..2259050	+	421	39997155	-	GSU2057	-	hypothetical protein
2046	 48.98	-2	2259039..2259185	-	48	39997156	-	GSU2058	-	hypothetical protein
2047	 58.13	0	2259172..2259651	+	159	39997157	-	GSU2059	-	hypothetical protein
2048	 64.21	0	2259760..2261100	-	446	39997158	-	GSU2060	-	pmbA protein, putative
2049	 58.44	0	2261110..2261559	-	149	39997159	-	GSU2061	-	acetyltransferase
2050	 58.74	0	2261604..2262524	-	306	39997160	-	GSU2062	-	GGDEF domain-containing protein
2051	 61.75	0	2262514..2263368	-	284	39997161	-	GSU2063	-	HD domain-containing protein
2052	 65.83	0	2263755..2265431	-	558	39997162	recN	GSU2064	-	DNA repair protein RecN
2053	 62.92	0	2265431..2266285	-	284	39997163	ppnK	GSU2065	-	ATP-NAD kinase
2054	 60.29	0	2266427..2268937	+	836	39997164	glgP	GSU2066	-	glycogen phosphorylase
2055	 61.07	0	2268975..2270297	+	440	39997165	-	GSU2067	-	recombination factor protein RarA
2056	 62.40	0	2270294..2271253	+	319	39997166	-	GSU2068	-	6-phosphofructokinase
2057	 63.54	0	2271279..2271917	-	212	39997167	-	GSU2069	-	HAD family hydrolase
2058	 59.80	0	2271901..2272206	-	101	39997168	-	GSU2070	-	HNH endonuclease family protein
2059	 62.67	0	2272223..2272672	-	149	39997169	rnhA	GSU2071	-	ribonuclease HI
2060	 58.81	0	2272656..2273279	-	207	39997170	-	GSU2072	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
2061	 61.14	0	2273510..2278849	-	1779	39997171	-	GSU2073	-	EF hand domain/PKD domain-containing protein
2062	 58.07	0	2278904..2279869	-	321	39997172	-	GSU2074	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
2063	 62.55	0	2279884..2281341	-	485	39997173	-	GSU2075	-	subtilisin
2064	 60.83	0	2281463..2282884	-	473	39997174	-	GSU2076	-	cytochrome c family protein
2065	 42.39	-2	2283949..2284191	+	80	39997175	-	GSU2077	-	hypothetical protein
2066	 56.68	0	2284208..2285308	-	366	39997176	rodA	GSU2078	-	rod shape-determining protein RodA
2067	 60.99	0	2285312..2287231	-	639	39997177	mrdA	GSU2079	-	penicillin-binding protein 2
2068	 57.00	0	2287228..2287713	-	161	39997178	-	GSU2080	-	rod shape-determining protein MreD, putative
2069	 60.00	0	2287706..2288530	-	274	39997179	mreC	GSU2081	-	rod shape-determining protein MreC
2070	 62.37	0	2288634..2289122	-	162	39997180	-	GSU2082	-	hypothetical protein
2071	 61.13	0	2289112..2290014	-	300	39997181	rfbA	GSU2083	-	glucose-1-phosphate thymidylyltransferase
2072	 63.54	0	2290096..2290671	-	191	39997182	-	GSU2084	-	HAD superfamily hydrolase
2073	 65.51	0	2290675..2292147	-	490	39997183	-	GSU2085	-	ADP-heptose synthase
2074	 64.56	0	2292155..2293105	-	316	39997184	-	GSU2086	-	hypothetical protein
2075	 64.21	0	2293102..2293671	-	189	39997185	gmhA	GSU2087	-	phosphoheptose isomerase
2076	 65.71	0	2293668..2294822	-	384	39997186	-	GSU2088	-	glycosyl transferase, group 2 family protein
2077	 62.64	0	2294930..2295973	-	347	39997187	mreB	GSU2089	-	rod shape-determining protein MreB
2078	 60.92	0	2296177..2297760	+	527	39997188	-	GSU2090	-	hypothetical protein
2079	 61.50	0	2297786..2298676	+	296	39997189	purC	GSU2091	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2080	 67.57	+1	2298770..2299324	-	184	39997190	-	GSU2092	-	hypothetical protein
2081	 64.04	0	2299353..2300990	-	545	39997191	-	GSU2093	-	ABC transporter, ATP-binding protein
2082	 55.76	0	2301233..2302222	-	329	39997192	-	GSU2094	-	response regulator
2083	 67.53	+1	2302816..2304084	-	422	39997193	-	GSU2095	-	NADH oxidase, putative
2084	 68.69	+1	2304084..2304677	-	197	39997194	-	GSU2096	-	iron-sulfur cluster-binding protein
2085	 68.89	+1	2304694..2305548	-	284	39997195	-	GSU2097	-	carbon monoxide dehydrogenase accessory protein, putative
2086	 67.50	+1	2305590..2307512	-	640	39997196	cooS	GSU2098	-	carbon monoxide dehydrogenase subunit
2087	 61.37	0	2307645..2308343	-	232	39997197	-	GSU2099	-	sensory box protein, putative
2088	 67.40	+1	2308644..2310827	+	727	39997198	katG	GSU2100	-	catalase/peroxidase
2089	 65.95	0	2311845..2314205	-	786	39997199	-	GSU2101	-	formate acetyltransferase
2090	 68.23	+1	2314210..2315106	-	298	39997200	-	GSU2102	-	pyruvate formate-lyase-activating enzyme, putative
2091	 63.33	0	2315286..2315405	+	39	39997201	-	GSU2103	-	hypothetical protein
2092	 51.73	-1	2315402..2315950	-	182	39997202	-	GSU2104	-	putative lipoprotein
2093	 56.38	0	2316573..2318603	-	676	39997203	-	GSU2105	-	hypothetical protein
2094	 56.70	0	2318612..2321209	-	865	39997204	-	GSU2106	-	hypothetical protein
2095	 52.53	-1	2321225..2325037	-	1270	39997205	-	GSU2107	-	hypothetical protein
2096	 56.84	0	2325896..2329540	-	1214	39997206	-	GSU2108	-	hypothetical protein
2097	 51.17	-1	2329537..2330136	-	199	39997207	-	GSU2109	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
