IslandPath Analysis: Geobacter sulfurreducens PCA

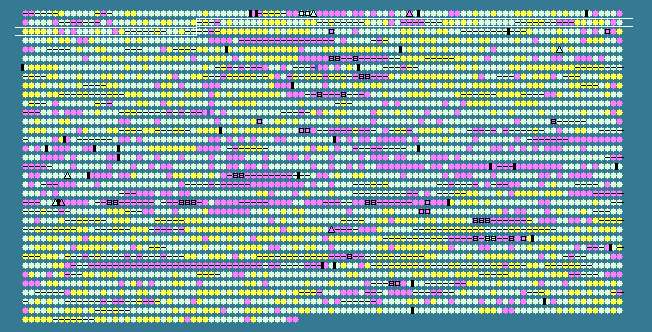

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.71   STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
130	 57.92	0	144291..144839	+	182	39995240	def-1	GSU0129	-	polypeptide deformylase
131	 64.47	0	144850..145803	+	317	39995241	fmt	GSU0130	-	methionyl-tRNA formyltransferase
132	 59.92	0	145806..146561	+	251	39995242	-	GSU0131	-	hypothetical protein
133	 56.02	0	146719..147225	-	168	39995243	-	GSU0132	-	hypothetical protein
134	 62.30	0	147502..148668	+	388	39995244	-	GSU0133	-	hypothetical protein
135	 64.21	0	148677..149777	-	366	39995245	-	GSU0134	-	ribonuclease Z
136	 62.78	0	149856..150833	-	325	39995246	hemB	GSU0135	-	delta-aminolevulinic acid dehydratase
137	 62.10	0	151068..151505	+	145	39995247	-	GSU0136	-	hypothetical protein
138	 58.66	0	151656..152354	-	232	39995248	-	GSU0137	-	hypothetical protein
139	 59.90	0	152504..154084	+	526	39995249	prfC	GSU0138	-	peptide chain release factor 3
140	 62.11	0	154312..154926	+	204	39995250	-	GSU0139	-	hypothetical protein
141	 65.60	0	155133..155882	+	249	39995251	-	GSU0140	-	hypothetical protein
142	 65.55	0	155890..157056	+	388	39995252	-	GSU0141	-	hypothetical protein
143	 65.07	0	157068..157505	+	145	39995253	pgpA	GSU0142	-	phosphatidylglycerophosphatase A
144	 68.92	+1	157502..158743	+	413	39995254	-	GSU0143	-	competence/damage-inducible protein CinA
145	 62.02	0	158787..160916	+	709	39995255	-	GSU0144	-	sensory box histidine kinase
146	 62.93	0	161049..162065	+	338	39995256	recA	GSU0145	-	recombinase A
147	 63.82	0	162069..163229	+	386	39995257	pilT-1	GSU0146	-	twitching motility protein PilT
148	 68.54	+1	163258..163737	+	159	39995258	recX	GSU0147	-	regulatory protein RecX
149	 64.88	0	163809..166436	+	875	39995259	alaS	GSU0148	-	alanyl-tRNA synthetase
150	 60.93	0	166459..167574	+	371	39995260	-	GSU0149	-	sensor histidine kinase/response regulator
151	 63.48	0	167708..168586	+	292	39995261	argB	GSU0150	-	acetylglutamate kinase
152	 64.33	0	168667..169866	+	399	39995262	argD	GSU0151	-	acetylornithine aminotransferase
153	 64.04	0	169863..170774	+	303	39995263	argF	GSU0152	-	ornithine carbamoyltransferase
154	 62.82	0	170807..172027	+	406	39995264	argG	GSU0153	-	argininosuccinate synthase
155	 60.59	0	172194..172637	+	147	39995265	-	GSU0154	-	mutT/nudix family protein
156	 63.57	0	172648..173811	+	387	39995266	-	GSU0155	-	hypothetical protein
157	 63.62	0	173833..175209	+	458	39995267	argH	GSU0156	-	argininosuccinate lyase
158	 68.86	+1	175248..176021	+	257	39995268	-	GSU0157	-	fibronectin type III domain-containing protein
159	 63.72	0	176159..177412	+	417	39995269	lysA	GSU0158	-	diaminopimelate decarboxylase
160	 63.69	0	177446..178318	+	290	39995270	dapA	GSU0159	-	dihydrodipicolinate synthase
161	 65.42	0	178340..179140	+	266	39995271	dapB	GSU0160	-	dihydrodipicolinate reductase
162	 45.74	-2	179230..179358	+	42	39995272	-	GSU0161	-	hypothetical protein
163	 62.77	0	179342..180574	+	410	39995273	-	GSU0162	-	L,L-diaminopimelate aminotransferase
164	 52.08	-1	180697..180984	+	95	39995274	-	GSU0163	-	hypothetical protein
165	 56.20	0	180981..181343	+	120	39995275	-	GSU0164	-	hypothetical protein
166	 39.23	-2	181411..182766	+	451	39995276	-	GSU0165	-	hypothetical protein
167	 39.39	-2	182895..182993	-	32	39995277	-	GSU0166	-	hypothetical protein
168	 59.15	0	183332..183637	+	101	39995278	-	GSU0167	-	hypothetical protein
169	 58.44	0	183883..185049	+	388	39995279	-	GSU0168	-	Fic family protein
170	 62.70	0	185171..186808	+	545	39995280	-	GSU0169	-	ABC transporter, ATP-binding protein
171	 64.60	0	186838..187320	+	160	39995281	-	GSU0170	-	hypothetical protein
172	 69.08	+1	187341..187796	+	151	39995282	-	GSU0171	-	YaiI/YqxD family protein
173	 58.47	0	188001..188378	+	125	39995283	-	GSU0172	-	hypothetical protein
174	 68.38	+1	188832..189356	+	174	39995284	-	GSU0173	-	hypothetical protein
175	 63.98	0	189553..191115	-	520	39995285	-	GSU0174	-	acetyl-CoA hydrolase/transferase family protein
176	 66.83	+1	191349..191960	+	203	39995286	-	GSU0175	-	TetR family transcriptional regulator
177	 62.40	0	192082..192456	+	124	39995287	-	GSU0176	-	hypothetical protein
178	 62.26	0	192466..192987	+	173	39995288	-	GSU0177	-	acetyltransferase
179	 58.84	0	193093..193437	-	114	39995289	-	GSU0178	-	hypothetical protein
180	 61.32	0	193592..194227	+	211	39995290	-	GSU0179	-	NADPH-dependent FMN reductase domain-containing protein
181	 59.22	0	194383..194892	+	169	39995291	-	GSU0180	-	hypothetical protein
182	 60.00	0	194938..195867	-	309	39995292	-	GSU0181	-	putative lipoprotein
183	 62.05	0	196023..196325	-	100	39995293	-	GSU0182	-	putative lipoprotein
184	 63.38	0	196424..197731	-	435	39995294	-	GSU0183	-	putative lipoprotein
185	 67.28	+1	198316..198963	+	215	39995295	-	GSU0184	-	HAD family hydrolase
186	 65.68	0	198989..200209	-	406	39995296	-	GSU0185	-	hypothetical protein
187	 64.66	0	200953..201300	-	115	39995297	-	GSU0187	-	hypothetical protein
188	 60.29	0	201297..201641	-	114	39995298	-	GSU0188	-	hypothetical protein
189	 63.92	0	201957..203339	+	460	39995299	dbpA	GSU0189	-	ATP-dependent RNA helicase DbpA
190	 51.28	-1	203317..203628	-	103	39995300	-	GSU0190	-	hypothetical protein
191	 47.26	-2	203766..203966	-	66	39995301	-	GSU0191	-	cold-shock domain-contain protein
192	 52.67	-1	204369..204611	+	80	39995302	-	GSU0192	-	hypothetical protein
193	 66.40	+1	204852..205991	-	379	39995303	-	GSU0193	-	L-sorbosone dehydrogenase, putative
194	 69.25	+1	206161..207243	+	360	39995304	-	GSU0194	-	hypothetical protein
195	 57.99	0	207298..207516	+	72	39995305	-	GSU0195	-	hypothetical protein
196	 66.05	0	207610..208098	-	162	39995306	-	GSU0196	-	thioesterase family protein
197	 67.71	+1	208179..208943	-	254	39995307	-	GSU0197	-	short chain dehydrogenase/reductase family oxidoreductase
198	 64.13	0	209066..209656	+	196	39995308	-	GSU0198	-	hypothetical protein
199	 53.11	-1	209939..210115	-	58	39995309	-	GSU0199	-	hypothetical protein
200	 64.12	0	210179..210649	+	156	39995310	iorA	GSU0200	-	isoquinoline 1-oxidoreductase, alpha subunit
201	 66.99	+1	210646..212817	+	723	39995311	iorB	GSU0201	-	isoquinoline 1-oxidoreductase, beta subunit
202	 68.56	+1	212880..213620	+	246	39995312	-	GSU0202	-	hypothetical protein
203	 69.44	+1	213617..214228	+	203	39995313	-	GSU0203	-	hypothetical protein
204	 64.39	0	214293..215651	+	452	39995314	-	GSU0204	-	radical SAM domain-containing protein
205	 60.93	0	215676..216302	+	208	39995315	-	GSU0205	-	TetR family transcriptional regulator
206	 64.89	0	216299..217201	+	300	39995316	-	GSU0206	-	zinc transporter ZupT
207	 53.23	-1	217397..217597	+	66	39995317	-	GSU0207	-	cold-shock domain-contain protein
208	 63.42	0	217769..218569	+	266	39995318	-	GSU0208	-	hypothetical protein
209	 52.82	-1	218729..218923	+	64	39995319	-	GSU0209	-	hypothetical protein
210	 61.16	0	219077..220039	+	320	39995320	-	GSU0210	-	hypothetical protein
211	 58.88	0	220056..220967	+	303	39995321	-	GSU0211	-	ABC transporter, permease protein, putative
212	 57.89	0	220960..221757	+	265	39995322	-	GSU0212	-	ABC transporter, ATP-binding protein
213	 68.37	+1	222018..223307	+	429	39995323	-	GSU0213	-	radical SAM domain-containing protein
214	 60.81	0	223673..224560	+	295	39995324	-	GSU0214	-	hypothetical protein
215	 58.65	0	224725..225597	+	290	39995325	folD-1	GSU0215	-	folD bifunctional protein
216	 56.48	0	225681..225896	-	71	39995326	-	GSU0216	-	hypothetical protein
217	 64.90	0	226424..226990	+	188	39995327	-	GSU0217	-	nitroreductase family protein
218	 63.44	0	227086..227922	+	278	39995328	-	GSU0218	-	hypothetical protein
219	 62.79	0	227919..229544	+	541	39995329	-	GSU0219	-	cytochrome c oxidase, subunit I
220	 63.52	0	229541..230143	+	200	39995330	-	GSU0220	-	cytochrome c oxidase, subunit III
221	 62.89	0	230160..230450	+	96	39995331	-	GSU0221	-	cytochrome c oxidase, subunit IV
222	 62.63	0	230508..231374	+	288	39995332	-	GSU0222	-	cytochrome c oxidase, subunit II
223	 70.60	+1	231371..232183	+	270	39995333	-	GSU0223	-	protoheme IX farnesyl transferase, putative
224	 63.36	0	232204..232536	-	110	39995334	-	GSU0224	-	hypothetical protein
225	 62.50	0	232553..232768	+	71	39995335	-	GSU0225	-	hypothetical protein
226	 63.78	0	232930..234558	+	542	39995336	-	GSU0226	-	L-lactate permease, putative
227	 69.50	+1	234575..235492	+	305	39995337	-	GSU0227	-	type II DNA modification methyltransferase, putative
228	 61.11	0	235556..236059	-	167	39995338	-	GSU0228	-	peptidyl-prolyl cis-trans isomerase, FKBP-type, putative
229	 63.64	0	236228..237880	+	550	39995339	alkK	GSU0229	-	acyl-CoA synthetase
60.71	MEAN

5.38	STD DEV
