IslandPath Analysis: Geobacter sulfurreducens PCA

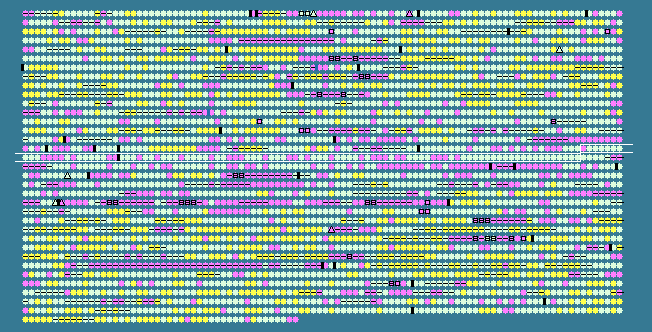

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1594	 50.43	-1	1755718..1755951	+	77	39996704	acpP-2	GSU1604	-	acyl carrier protein
1595	 58.07	0	1756090..1757322	+	410	39996705	fabF-2	GSU1605	-	3-oxoacyl-(acyl-carrier-protein) synthase II
1596	 61.52	0	1757333..1757779	+	148	39996706	-	GSU1606	-	ribose 5-phosphate isomerase B, putative
1597	 58.01	0	1757872..1759119	+	415	39996707	glyA	GSU1607	-	serine hydroxymethyltransferase
1598	 58.66	0	1759240..1760013	+	257	39996708	-	GSU1608	-	hypothetical protein
1599	 58.27	0	1760201..1761700	+	499	39996709	-	GSU1609	-	outer membrane efflux protein
1600	 61.77	0	1761729..1762913	+	394	39996710	-	GSU1610	-	RND family efflux transporter MFP subunit
1601	 59.79	0	1762910..1766008	+	1032	39996711	-	GSU1611	-	AcrB/AcrD/AcrF family protein
1602	 60.75	0	1766005..1766748	+	247	39996712	gpm	GSU1612	-	phosphoglycerate mutase
1603	 60.72	0	1766767..1767624	-	285	39996713	-	GSU1613	-	A/G-specific adenine glycosylase, putative
1604	 56.79	0	1767621..1768025	-	134	39996714	-	GSU1614	-	CoA-binding protein
1605	 54.38	-1	1768108..1769385	-	425	39996715	-	GSU1615	-	hypothetical protein
1606	 54.55	-1	1769602..1770831	-	409	39996716	-	GSU1616	-	ImpB/MucB/SamB family protein
1607	 57.03	0	1770881..1771492	-	203	39996717	lexA-2	GSU1617	-	LexA repressor
1608	 58.56	0	1771700..1772563	-	287	39996718	-	GSU1618	-	hypothetical protein
1609	 55.00	-1	1772610..1772969	-	119	39996719	cheY-4	GSU1619	-	chemotaxis protein CheY
1610	 59.61	0	1773123..1775249	-	708	39996720	-	GSU1620	-	iron-sulfur cluster binding protein, putative
1611	 58.53	0	1775253..1775891	-	212	39996721	-	GSU1621	-	hypothetical protein
1612	 58.41	0	1776004..1777953	+	649	39996722	-	GSU1622	-	L-lactate permease
1613	 62.08	0	1778047..1779420	+	457	39996723	-	GSU1623	-	glycolate oxidase subunit GlcD, putative
1614	 61.63	0	1779431..1780681	+	416	39996724	-	GSU1624	-	glycolate oxidase iron-sulfur subunit, putative
1615	 46.24	-2	1780730..1780822	-	30	39996725	-	GSU1625	-	hypothetical protein
1616	 55.37	0	1780852..1781577	+	241	39996726	-	GSU1626	-	GntR family transcriptional regulator
1617	 59.89	0	1781917..1782285	-	122	39996727	secG	GSU1627	-	preprotein translocase subunit SecG
1618	 57.71	0	1782373..1784337	-	654	39996728	-	GSU1628	-	phosphoglycerate kinase/triosephosphate isomerase
1619	 57.49	0	1784444..1785445	-	333	39996729	gap	GSU1629	-	glyceraldehyde 3-phosphate dehydrogenase 1
1620	 52.74	-1	1785617..1787749	+	710	39996730	-	GSU1630	-	sensory box histidine kinase
1621	 59.79	0	1787907..1788677	+	256	39996731	-	GSU1631	-	metallo-beta-lactamase family protein
1622	 58.87	0	1788897..1790192	+	431	39996732	purB	GSU1632	-	adenylosuccinate lyase
1623	 55.98	0	1790185..1791279	+	364	39996733	-	GSU1633	-	hypothetical protein
1624	 61.45	0	1791280..1794270	+	996	39996734	-	GSU1634	-	phosphoribosylformylglycinamidine synthase II, putative
1625	 59.78	0	1794274..1795101	+	275	39996735	-	GSU1635	-	phosphoribosylformylglycinamidine synthase I, putative
1626	 59.54	0	1795135..1796538	+	467	39996736	purF	GSU1636	-	amidophosphoribosyltransferase
1627	 57.19	0	1796556..1797104	+	182	39996737	pyrE	GSU1637	-	orotate phosphoribosyltransferase
1628	 60.09	0	1797177..1797875	+	232	39996738	-	GSU1638	-	hypothetical protein
1629	 59.37	0	1797963..1798373	+	136	39996739	-	GSU1639	-	Rrf2 family protein
1630	 58.24	0	1798517..1799869	+	450	39996740	cydA	GSU1640	-	cytochrome d ubiquinol oxidase, subunit I
1631	 58.50	0	1799871..1800899	+	342	39996741	cydB	GSU1641	-	cytochrome d ubiquinol oxidase, subunit II
1632	 53.13	-1	1801229..1801723	-	164	39996742	-	GSU1642	-	hypothetical protein
1633	 58.89	0	1801850..1802800	+	316	39996743	-	GSU1643	-	GGDEF/response regulator receiver domain-containing protein
1634	 59.11	0	1802943..1804622	+	559	39996744	-	GSU1644	-	putative ABC transporter ATP-binding protein
1635	 56.04	0	1804716..1805741	-	341	39996745	-	GSU1646	-	putative lipoprotein
1636	 41.41	-2	1804900..1804998	+	32	39996746	-	GSU1645	-	hypothetical protein
1637	 51.74	-1	1805933..1806133	-	66	39996747	-	GSU1647	-	hypothetical protein
1638	 57.56	0	1806404..1807216	-	270	39996748	-	GSU1648	-	cytochrome c family protein
1639	 58.51	0	1807213..1808316	-	367	39996749	-	GSU1649	-	cytochrome b/b6
1640	 62.38	0	1808325..1808744	-	139	39996750	-	GSU1650	-	cytochrome b/b6 complex, iron-sulfur subunit
1641	 56.48	0	1809102..1810043	+	313	39996751	fbP-1	GSU1651	-	fructose-1,6-bisphosphatase
1642	 57.41	0	1810079..1810348	+	89	39996752	-	GSU1652	-	hypothetical protein
1643	 59.01	0	1810491..1811927	+	478	39996753	-	GSU1653	-	sigma-54 dependent DNA-binding response regulator
1644	 57.24	0	1812034..1813083	-	349	39996754	-	GSU1654	-	response regulator, putative
1645	 56.40	0	1813112..1815586	-	824	39996755	-	GSU1655	-	sensory box histidine kinase/response regulator
1646	 53.44	-1	1815737..1816999	-	420	39996756	-	GSU1656	-	sensory box/response regulator
1647	 58.85	0	1817400..1819715	+	771	39996757	-	GSU1657	-	DNA internalization-related competence protein ComEC/Rec2
1648	 54.83	-1	1819776..1821152	+	458	39996758	-	GSU1658	-	response regulator/GGDEF domain-containing protein
1649	 58.29	0	1821195..1822436	+	413	39996759	hisS	GSU1659	-	histidyl-tRNA synthetase
1650	 60.89	0	1822673..1825216	+	847	39996760	acnB	GSU1660	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1651	 58.89	0	1825323..1825952	-	209	39996761	-	GSU1661	-	hypothetical protein
1652	 54.79	-1	1826052..1826969	-	305	39996762	-	GSU1662	-	hypothetical protein
1653	 60.08	0	1827286..1828257	+	323	39996763	-	GSU1663	-	phosphorylase family protein
1654	 62.32	0	1828327..1828740	+	137	39996764	-	GSU1664	-	hypothetical protein
1655	 62.50	0	1828742..1829557	-	271	39996765	-	GSU1665	-	rhomboid family protein
1656	 58.44	0	1829826..1830056	+	76	39996766	-	GSU1666	-	iron-sulfur cluster-binding protein
1657	 56.63	0	1830060..1830368	+	102	39996767	-	GSU1667	-	hypothetical protein
1658	 57.85	0	1830384..1830644	-	86	39996768	-	GSU1668	-	hypothetical protein
1659	 51.52	-1	1830814..1831077	+	87	39996769	-	GSU1669	-	hypothetical protein
1660	 55.74	0	1831077..1831433	+	118	39996770	-	GSU1670	-	putative lipoprotein
1661	 55.83	0	1831449..1832417	-	322	39996771	-	GSU1671	-	response regulator/GGDEF domain-containing protein
1662	 60.37	0	1832580..1833563	+	327	39996772	hprA	GSU1672	-	glycerate dehydrogenase
1663	 46.74	-2	1833619..1833879	-	86	39996773	-	GSU1673	-	hypothetical protein
1664	 56.46	0	1833869..1834162	+	97	39996774	-	GSU1674	-	hypothetical protein
1665	 57.49	0	1834264..1834710	-	148	39996775	-	GSU1675	-	hypothetical protein
1666	 57.63	0	1834279..1834743	+	154	39996776	-	GSU1676	-	hypothetical protein
1667	 61.05	0	1834912..1837386	+	824	39996777	-	GSU1677	-	AMP-binding enzyme/acyltransferase
1668	 61.74	0	1837387..1840002	+	871	39996778	-	GSU1678	-	cation transporter E1-E2 family ATPase
1669	 57.22	0	1840115..1841437	-	440	39996779	-	GSU1679	-	hypothetical protein
1670	 54.86	-1	1841476..1841907	-	143	39996780	-	GSU1680	-	hypothetical protein
1671	 56.68	0	1841919..1843010	-	363	39996781	-	GSU1681	-	cobyrinic acid a,c-diamide synthase family protein
1672	 58.95	0	1843258..1843620	+	120	39996782	-	GSU1682	-	putative lipoprotein
1673	 54.22	-1	1843617..1844066	+	149	39996783	-	GSU1683	-	hypothetical protein
1674	 62.41	0	1844111..1845568	-	485	39996784	-	GSU1684	-	hypothetical protein
1675	 62.64	0	1845619..1846164	-	181	39996785	-	GSU1685	-	HD domain-containing protein
1676	 59.35	0	1846331..1846795	+	154	39996786	-	GSU1686	-	cytidine/deoxycytidylate deaminase family protein
1677	 58.50	0	1846792..1847244	+	150	39996787	-	GSU1687	-	transcriptional regulator NrdR
1678	 59.91	0	1847264..1848373	+	369	39996788	ribD	GSU1688	-	riboflavin biosynthesis protein RibD
1679	 61.01	0	1848358..1849011	+	217	39996789	ribE	GSU1689	-	riboflavin synthase subunit alpha
1680	 59.93	0	1849051..1850253	+	400	39996790	ribA	GSU1690	-	3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II
1681	 60.04	0	1850264..1850731	+	155	39996791	ribH	GSU1691	-	riboflavin synthase, beta subunit
1682	 60.67	0	1850731..1851147	+	138	39996792	nusB	GSU1692	-	N utilization substance protein B
1683	 58.50	0	1851187..1852497	+	436	39996793	hom	GSU1693	-	homoserine dehydrogenase
1684	 57.78	0	1852555..1853229	-	224	39996794	-	GSU1694	-	HAD superfamily hydrolase
1685	 60.32	0	1853254..1854639	-	461	39996795	thrC	GSU1695	-	threonine synthase
1686	 62.21	0	1854801..1855742	+	313	39996796	-	GSU1696	-	MoxR family protein
1687	 60.88	0	1856595..1858529	+	644	39996797	-	GSU1697	-	hypothetical protein
1688	 57.74	0	1858610..1860490	+	626	39996798	-	GSU1698	-	TPR domain-containing protein
1689	 59.80	0	1860497..1861210	-	237	39996799	-	GSU1699	-	TonB-dependent receptor, putative
1690	 57.64	0	1861362..1863620	-	752	39996800	maeB	GSU1700	-	malic enzyme
1691	 61.15	0	1863910..1864398	+	162	39996801	-	GSU1701	-	HIT family protein
1692	 61.76	0	1864395..1865351	+	318	39996802	-	GSU1702	-	ROK family protein
1693	 61.08	0	1865397..1866488	+	363	39996803	pfk	GSU1703	-	6-phosphofructokinase
60.71	MEAN

5.38	STD DEV
