IslandPath Analysis: Geobacter sulfurreducens PCA

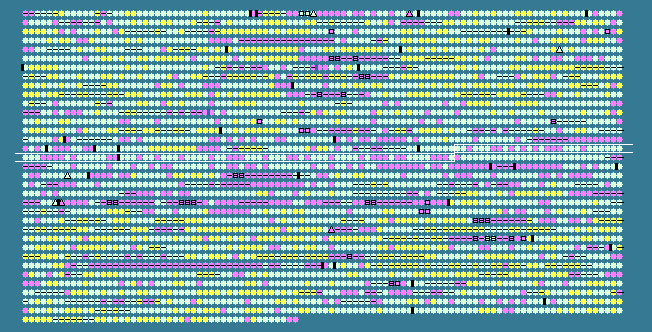

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1573	 61.96	0	1736253..1736975	-	240	39996683	bioD	GSU1583	-	dethiobiotin synthase
1574	 60.51	0	1736968..1737957	-	329	39996684	bioB	GSU1584	-	biotin synthetase
1575	 56.67	0	1738189..1738668	+	159	39996685	-	GSU1585	-	hypothetical protein
1576	 58.64	0	1738694..1739851	+	385	39996686	nusA	GSU1586	-	transcription elongation factor NusA
1577	 58.09	0	1739855..1740472	+	205	39996687	-	GSU1587	-	ribosomal protein L7Ae family protein
1578	 59.95	0	1740450..1743101	+	883	39996688	infB	GSU1588	-	translation initiation factor IF-2
1579	 53.78	-1	1743169..1743525	+	118	39996689	rbfA	GSU1589	-	ribosome-binding factor A
1580	 56.26	0	1743518..1744468	+	316	39996690	-	GSU1590	-	DHH domain-containing protein
1581	 58.47	0	1744474..1745388	+	304	39996691	truB	GSU1591	-	tRNA pseudouridine synthase B
1582	 52.43	-1	1745512..1745778	+	88	39996692	rpsO	GSU1592	-	30S ribosomal protein S15
1583	 58.26	0	1746052..1748145	+	697	39996693	pnp	GSU1593	-	polynucleotide phosphorylase/polyadenylase
1584	 53.38	-1	1748190..1749446	+	418	39996694	-	GSU1594	-	M16 family peptidase
1585	 59.11	0	1749458..1749907	+	149	39996695	dut	GSU1595	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1586	 54.41	-1	1749952..1750563	+	203	39996696	-	GSU1596	-	Sua5/YciO/YrdC/YwlC family protein
1587	 57.30	0	1750565..1750927	+	120	39996697	-	GSU1597	-	hypothetical protein
1588	 52.96	-1	1751112..1751651	+	179	39996698	-	GSU1598	-	hypothetical protein
1589	 55.19	-1	1751673..1751855	+	60	39996699	rpmF	GSU1599	-	50S ribosomal protein L32
1590	 54.56	-1	1751901..1752941	+	346	39996700	plsX	GSU1600	-	putative glycerol-3-phosphate acyltransferase PlsX
1591	 57.77	0	1752957..1753934	+	325	39996701	fabH-2	GSU1601	-	3-oxoacyl-(acyl-carrier-protein) synthase III
1592	 61.69	0	1753957..1754880	+	307	39996702	fabD	GSU1602	-	malonyl CoA-acyl carrier protein transacylase
1593	 58.84	0	1754891..1755631	+	246	39996703	fabG-2	GSU1603	-	3-oxoacyl-(acyl-carrier-protein) reductase
1594	 50.43	-1	1755718..1755951	+	77	39996704	acpP-2	GSU1604	-	acyl carrier protein
1595	 58.07	0	1756090..1757322	+	410	39996705	fabF-2	GSU1605	-	3-oxoacyl-(acyl-carrier-protein) synthase II
1596	 61.52	0	1757333..1757779	+	148	39996706	-	GSU1606	-	ribose 5-phosphate isomerase B, putative
1597	 58.01	0	1757872..1759119	+	415	39996707	glyA	GSU1607	-	serine hydroxymethyltransferase
1598	 58.66	0	1759240..1760013	+	257	39996708	-	GSU1608	-	hypothetical protein
1599	 58.27	0	1760201..1761700	+	499	39996709	-	GSU1609	-	outer membrane efflux protein
1600	 61.77	0	1761729..1762913	+	394	39996710	-	GSU1610	-	RND family efflux transporter MFP subunit
1601	 59.79	0	1762910..1766008	+	1032	39996711	-	GSU1611	-	AcrB/AcrD/AcrF family protein
1602	 60.75	0	1766005..1766748	+	247	39996712	gpm	GSU1612	-	phosphoglycerate mutase
1603	 60.72	0	1766767..1767624	-	285	39996713	-	GSU1613	-	A/G-specific adenine glycosylase, putative
1604	 56.79	0	1767621..1768025	-	134	39996714	-	GSU1614	-	CoA-binding protein
1605	 54.38	-1	1768108..1769385	-	425	39996715	-	GSU1615	-	hypothetical protein
1606	 54.55	-1	1769602..1770831	-	409	39996716	-	GSU1616	-	ImpB/MucB/SamB family protein
1607	 57.03	0	1770881..1771492	-	203	39996717	lexA-2	GSU1617	-	LexA repressor
1608	 58.56	0	1771700..1772563	-	287	39996718	-	GSU1618	-	hypothetical protein
1609	 55.00	-1	1772610..1772969	-	119	39996719	cheY-4	GSU1619	-	chemotaxis protein CheY
1610	 59.61	0	1773123..1775249	-	708	39996720	-	GSU1620	-	iron-sulfur cluster binding protein, putative
1611	 58.53	0	1775253..1775891	-	212	39996721	-	GSU1621	-	hypothetical protein
1612	 58.41	0	1776004..1777953	+	649	39996722	-	GSU1622	-	L-lactate permease
1613	 62.08	0	1778047..1779420	+	457	39996723	-	GSU1623	-	glycolate oxidase subunit GlcD, putative
1614	 61.63	0	1779431..1780681	+	416	39996724	-	GSU1624	-	glycolate oxidase iron-sulfur subunit, putative
1615	 46.24	-2	1780730..1780822	-	30	39996725	-	GSU1625	-	hypothetical protein
1616	 55.37	0	1780852..1781577	+	241	39996726	-	GSU1626	-	GntR family transcriptional regulator
1617	 59.89	0	1781917..1782285	-	122	39996727	secG	GSU1627	-	preprotein translocase subunit SecG
1618	 57.71	0	1782373..1784337	-	654	39996728	-	GSU1628	-	phosphoglycerate kinase/triosephosphate isomerase
1619	 57.49	0	1784444..1785445	-	333	39996729	gap	GSU1629	-	glyceraldehyde 3-phosphate dehydrogenase 1
1620	 52.74	-1	1785617..1787749	+	710	39996730	-	GSU1630	-	sensory box histidine kinase
1621	 59.79	0	1787907..1788677	+	256	39996731	-	GSU1631	-	metallo-beta-lactamase family protein
1622	 58.87	0	1788897..1790192	+	431	39996732	purB	GSU1632	-	adenylosuccinate lyase
1623	 55.98	0	1790185..1791279	+	364	39996733	-	GSU1633	-	hypothetical protein
1624	 61.45	0	1791280..1794270	+	996	39996734	-	GSU1634	-	phosphoribosylformylglycinamidine synthase II, putative
1625	 59.78	0	1794274..1795101	+	275	39996735	-	GSU1635	-	phosphoribosylformylglycinamidine synthase I, putative
1626	 59.54	0	1795135..1796538	+	467	39996736	purF	GSU1636	-	amidophosphoribosyltransferase
1627	 57.19	0	1796556..1797104	+	182	39996737	pyrE	GSU1637	-	orotate phosphoribosyltransferase
1628	 60.09	0	1797177..1797875	+	232	39996738	-	GSU1638	-	hypothetical protein
1629	 59.37	0	1797963..1798373	+	136	39996739	-	GSU1639	-	Rrf2 family protein
1630	 58.24	0	1798517..1799869	+	450	39996740	cydA	GSU1640	-	cytochrome d ubiquinol oxidase, subunit I
1631	 58.50	0	1799871..1800899	+	342	39996741	cydB	GSU1641	-	cytochrome d ubiquinol oxidase, subunit II
1632	 53.13	-1	1801229..1801723	-	164	39996742	-	GSU1642	-	hypothetical protein
1633	 58.89	0	1801850..1802800	+	316	39996743	-	GSU1643	-	GGDEF/response regulator receiver domain-containing protein
1634	 59.11	0	1802943..1804622	+	559	39996744	-	GSU1644	-	putative ABC transporter ATP-binding protein
1635	 56.04	0	1804716..1805741	-	341	39996745	-	GSU1646	-	putative lipoprotein
1636	 41.41	-2	1804900..1804998	+	32	39996746	-	GSU1645	-	hypothetical protein
1637	 51.74	-1	1805933..1806133	-	66	39996747	-	GSU1647	-	hypothetical protein
1638	 57.56	0	1806404..1807216	-	270	39996748	-	GSU1648	-	cytochrome c family protein
1639	 58.51	0	1807213..1808316	-	367	39996749	-	GSU1649	-	cytochrome b/b6
1640	 62.38	0	1808325..1808744	-	139	39996750	-	GSU1650	-	cytochrome b/b6 complex, iron-sulfur subunit
1641	 56.48	0	1809102..1810043	+	313	39996751	fbP-1	GSU1651	-	fructose-1,6-bisphosphatase
1642	 57.41	0	1810079..1810348	+	89	39996752	-	GSU1652	-	hypothetical protein
1643	 59.01	0	1810491..1811927	+	478	39996753	-	GSU1653	-	sigma-54 dependent DNA-binding response regulator
1644	 57.24	0	1812034..1813083	-	349	39996754	-	GSU1654	-	response regulator, putative
1645	 56.40	0	1813112..1815586	-	824	39996755	-	GSU1655	-	sensory box histidine kinase/response regulator
1646	 53.44	-1	1815737..1816999	-	420	39996756	-	GSU1656	-	sensory box/response regulator
1647	 58.85	0	1817400..1819715	+	771	39996757	-	GSU1657	-	DNA internalization-related competence protein ComEC/Rec2
1648	 54.83	-1	1819776..1821152	+	458	39996758	-	GSU1658	-	response regulator/GGDEF domain-containing protein
1649	 58.29	0	1821195..1822436	+	413	39996759	hisS	GSU1659	-	histidyl-tRNA synthetase
1650	 60.89	0	1822673..1825216	+	847	39996760	acnB	GSU1660	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1651	 58.89	0	1825323..1825952	-	209	39996761	-	GSU1661	-	hypothetical protein
1652	 54.79	-1	1826052..1826969	-	305	39996762	-	GSU1662	-	hypothetical protein
1653	 60.08	0	1827286..1828257	+	323	39996763	-	GSU1663	-	phosphorylase family protein
1654	 62.32	0	1828327..1828740	+	137	39996764	-	GSU1664	-	hypothetical protein
1655	 62.50	0	1828742..1829557	-	271	39996765	-	GSU1665	-	rhomboid family protein
1656	 58.44	0	1829826..1830056	+	76	39996766	-	GSU1666	-	iron-sulfur cluster-binding protein
1657	 56.63	0	1830060..1830368	+	102	39996767	-	GSU1667	-	hypothetical protein
1658	 57.85	0	1830384..1830644	-	86	39996768	-	GSU1668	-	hypothetical protein
1659	 51.52	-1	1830814..1831077	+	87	39996769	-	GSU1669	-	hypothetical protein
1660	 55.74	0	1831077..1831433	+	118	39996770	-	GSU1670	-	putative lipoprotein
1661	 55.83	0	1831449..1832417	-	322	39996771	-	GSU1671	-	response regulator/GGDEF domain-containing protein
1662	 60.37	0	1832580..1833563	+	327	39996772	hprA	GSU1672	-	glycerate dehydrogenase
1663	 46.74	-2	1833619..1833879	-	86	39996773	-	GSU1673	-	hypothetical protein
1664	 56.46	0	1833869..1834162	+	97	39996774	-	GSU1674	-	hypothetical protein
1665	 57.49	0	1834264..1834710	-	148	39996775	-	GSU1675	-	hypothetical protein
1666	 57.63	0	1834279..1834743	+	154	39996776	-	GSU1676	-	hypothetical protein
1667	 61.05	0	1834912..1837386	+	824	39996777	-	GSU1677	-	AMP-binding enzyme/acyltransferase
1668	 61.74	0	1837387..1840002	+	871	39996778	-	GSU1678	-	cation transporter E1-E2 family ATPase
1669	 57.22	0	1840115..1841437	-	440	39996779	-	GSU1679	-	hypothetical protein
1670	 54.86	-1	1841476..1841907	-	143	39996780	-	GSU1680	-	hypothetical protein
1671	 56.68	0	1841919..1843010	-	363	39996781	-	GSU1681	-	cobyrinic acid a,c-diamide synthase family protein
1672	 58.95	0	1843258..1843620	+	120	39996782	-	GSU1682	-	putative lipoprotein
60.71	MEAN

5.38	STD DEV
