IslandPath Analysis: Geobacter sulfurreducens PCA

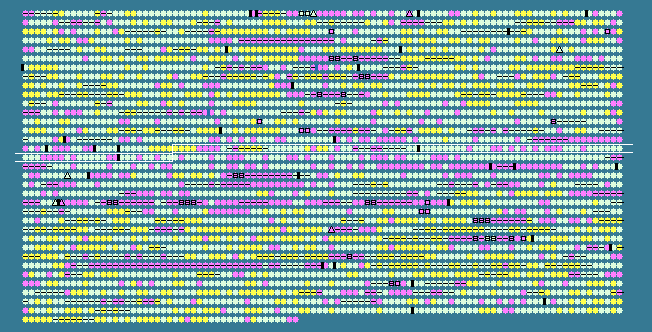

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1526	 72.58	+2	1688874..1689566	-	230	39996636	-	GSU1536	-	hypothetical protein
1527	 66.36	+1	1689563..1691185	-	540	39996637	-	GSU1537	-	general secretion pathway protein-related protein
1528	 65.08	0	1691494..1692753	+	419	39996638	-	GSU1538	-	methylamine utilization protein MauG, putative
1529	 67.65	+1	1692893..1693708	+	271	39996639	xth	GSU1539	-	exonuclease III
1530	 42.72	-2	1694228..1695442	+	404	39996640	-	GSU1540	-	putative lipoprotein
1531	 53.23	-1	1695669..1696472	+	267	39996641	-	GSU1541	-	hypothetical protein
1532	 54.76	-1	1696510..1696803	-	97	39996642	-	GSU1542	-	Cro/CI family transcriptional regulator
1533	 51.95	-1	1696802..1697134	+	110	39996643	-	GSU1543	-	hypothetical protein
1534	 63.31	0	1697206..1697652	+	148	39996644	-	GSU1544	-	hypothetical protein
1535	 62.28	0	1697747..1698361	+	204	39996645	-	GSU1545	-	amino acid transporter LysE
1536	 56.75	0	1698540..1699406	+	288	39996646	-	GSU1546	-	hypothetical protein
1537	 67.44	+1	1699486..1700907	+	473	39996647	-	GSU1547	-	TPR domain-containing protein
1538	 65.78	0	1701044..1701493	+	149	39996648	-	GSU1548	-	hypothetical protein
1539	 66.34	+1	1701521..1702129	+	202	39996649	-	GSU1549	-	putative lipoprotein
1540	 65.69	0	1702101..1702304	-	67	39996650	-	GSU1550	-	4-oxalocrotonate tautomerase family protein
1541	 63.44	0	1702598..1704583	+	661	39996651	-	GSU1551	-	signal domain-containing protein
1542	 62.71	0	1704642..1705172	+	176	39996652	-	GSU1552	-	hypothetical protein
1543	 60.10	0	1705183..1705563	+	126	39996653	-	GSU1553	-	hypothetical protein
1544	 63.85	0	1705571..1706740	+	389	39996654	-	GSU1554	-	GGDEF domain-containing protein
1545	 59.96	0	1706780..1710118	-	1112	39996655	-	GSU1555	-	sensory box histidine kinase/response regulator
1546	 60.32	0	1710355..1711284	-	309	39996656	-	GSU1556	-	hypothetical protein
1547	 60.24	0	1711580..1712404	+	274	39996657	-	GSU1557	-	mechanosensitive ion channel family protein
1548	 67.59	+1	1712555..1712662	+	35	39996658	-	GSU1558	-	hypothetical protein
1549	 53.51	-1	1712798..1712911	+	37	39996659	-	GSU1559	-	hypothetical protein
1550	 66.18	+1	1713165..1714403	+	412	39996660	-	GSU1560	-	radical SAM domain-containing protein
1551	 64.35	0	1714573..1716561	+	662	39996661	-	GSU1561	-	1A family penicillin-binding protein
1552	 63.33	0	1716575..1716874	+	99	39996662	-	GSU1562	-	hypothetical protein
1553	 56.25	0	1716856..1716951	-	31	39996663	-	GSU1563	-	hypothetical protein
1554	 63.51	0	1717831..1719891	+	686	39996664	-	GSU1564	-	Glu/Leu/Phe/Val dehydrogenase family protein
1555	 58.85	0	1719920..1720111	+	63	39996665	-	GSU1565	-	hypothetical protein
1556	 54.47	-1	1720220..1720678	+	152	39996666	-	GSU1566	-	hypothetical protein
1557	 61.44	0	1721015..1721875	+	286	39996667	-	GSU1567	-	M48 family peptidase
1558	 58.84	0	1721898..1722191	+	97	39996668	-	GSU1568	-	hypothetical protein
1559	 49.54	-2	1722264..1722479	+	71	39996669	-	GSU1569	-	CopG family transcriptional regulator
1560	 53.33	-1	1722702..1723646	+	314	39996670	-	GSU1570	-	TerC family membrane protein
1561	 61.20	0	1723859..1724956	+	365	39996671	-	GSU1571	-	hypothetical protein
1562	 58.71	0	1725013..1725540	+	175	39996672	-	GSU1572	-	riboflavin biosynthesis protein RibD domain-containing protein
1563	 57.94	0	1725783..1726538	+	251	39996673	-	GSU1573	-	CAAX amino terminal protease family protein
1564	 57.68	0	1726535..1726801	+	88	39996674	-	GSU1574	-	hypothetical protein
1565	 62.14	0	1726864..1727592	+	242	39996675	-	GSU1575	-	hypothetical protein
1566	 58.98	0	1727617..1728423	+	268	39996676	-	GSU1576	-	short chain dehydrogenase/reductase family oxidoreductase
1567	 61.96	0	1729228..1729758	+	176	39996677	cobO	GSU1577	-	cob(I)alamin adenosyltransferase
1568	 62.22	0	1729770..1730174	+	134	39996678	-	GSU1578	-	B12-binding protein
1569	 62.81	0	1730261..1731220	+	319	39996679	-	GSU1579	-	LAO/AO transport system ATPase
1570	 59.14	0	1731236..1732165	+	309	39996680	-	GSU1580	-	ErfK/YbiS/YcfS/YnhG family protein
1571	 60.84	0	1732220..1734862	+	880	39996681	-	GSU1581	-	polyA polymerase family protein
1572	 60.65	0	1734899..1736260	-	453	39996682	bioA	GSU1582	-	adenosylmethionine--8-amino-7-oxononanoate aminotransferase
1573	 61.96	0	1736253..1736975	-	240	39996683	bioD	GSU1583	-	dethiobiotin synthase
1574	 60.51	0	1736968..1737957	-	329	39996684	bioB	GSU1584	-	biotin synthetase
1575	 56.67	0	1738189..1738668	+	159	39996685	-	GSU1585	-	hypothetical protein
1576	 58.64	0	1738694..1739851	+	385	39996686	nusA	GSU1586	-	transcription elongation factor NusA
1577	 58.09	0	1739855..1740472	+	205	39996687	-	GSU1587	-	ribosomal protein L7Ae family protein
1578	 59.95	0	1740450..1743101	+	883	39996688	infB	GSU1588	-	translation initiation factor IF-2
1579	 53.78	-1	1743169..1743525	+	118	39996689	rbfA	GSU1589	-	ribosome-binding factor A
1580	 56.26	0	1743518..1744468	+	316	39996690	-	GSU1590	-	DHH domain-containing protein
1581	 58.47	0	1744474..1745388	+	304	39996691	truB	GSU1591	-	tRNA pseudouridine synthase B
1582	 52.43	-1	1745512..1745778	+	88	39996692	rpsO	GSU1592	-	30S ribosomal protein S15
1583	 58.26	0	1746052..1748145	+	697	39996693	pnp	GSU1593	-	polynucleotide phosphorylase/polyadenylase
1584	 53.38	-1	1748190..1749446	+	418	39996694	-	GSU1594	-	M16 family peptidase
1585	 59.11	0	1749458..1749907	+	149	39996695	dut	GSU1595	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1586	 54.41	-1	1749952..1750563	+	203	39996696	-	GSU1596	-	Sua5/YciO/YrdC/YwlC family protein
1587	 57.30	0	1750565..1750927	+	120	39996697	-	GSU1597	-	hypothetical protein
1588	 52.96	-1	1751112..1751651	+	179	39996698	-	GSU1598	-	hypothetical protein
1589	 55.19	-1	1751673..1751855	+	60	39996699	rpmF	GSU1599	-	50S ribosomal protein L32
1590	 54.56	-1	1751901..1752941	+	346	39996700	plsX	GSU1600	-	putative glycerol-3-phosphate acyltransferase PlsX
1591	 57.77	0	1752957..1753934	+	325	39996701	fabH-2	GSU1601	-	3-oxoacyl-(acyl-carrier-protein) synthase III
1592	 61.69	0	1753957..1754880	+	307	39996702	fabD	GSU1602	-	malonyl CoA-acyl carrier protein transacylase
1593	 58.84	0	1754891..1755631	+	246	39996703	fabG-2	GSU1603	-	3-oxoacyl-(acyl-carrier-protein) reductase
1594	 50.43	-1	1755718..1755951	+	77	39996704	acpP-2	GSU1604	-	acyl carrier protein
1595	 58.07	0	1756090..1757322	+	410	39996705	fabF-2	GSU1605	-	3-oxoacyl-(acyl-carrier-protein) synthase II
1596	 61.52	0	1757333..1757779	+	148	39996706	-	GSU1606	-	ribose 5-phosphate isomerase B, putative
1597	 58.01	0	1757872..1759119	+	415	39996707	glyA	GSU1607	-	serine hydroxymethyltransferase
1598	 58.66	0	1759240..1760013	+	257	39996708	-	GSU1608	-	hypothetical protein
1599	 58.27	0	1760201..1761700	+	499	39996709	-	GSU1609	-	outer membrane efflux protein
1600	 61.77	0	1761729..1762913	+	394	39996710	-	GSU1610	-	RND family efflux transporter MFP subunit
1601	 59.79	0	1762910..1766008	+	1032	39996711	-	GSU1611	-	AcrB/AcrD/AcrF family protein
1602	 60.75	0	1766005..1766748	+	247	39996712	gpm	GSU1612	-	phosphoglycerate mutase
1603	 60.72	0	1766767..1767624	-	285	39996713	-	GSU1613	-	A/G-specific adenine glycosylase, putative
1604	 56.79	0	1767621..1768025	-	134	39996714	-	GSU1614	-	CoA-binding protein
1605	 54.38	-1	1768108..1769385	-	425	39996715	-	GSU1615	-	hypothetical protein
1606	 54.55	-1	1769602..1770831	-	409	39996716	-	GSU1616	-	ImpB/MucB/SamB family protein
1607	 57.03	0	1770881..1771492	-	203	39996717	lexA-2	GSU1617	-	LexA repressor
1608	 58.56	0	1771700..1772563	-	287	39996718	-	GSU1618	-	hypothetical protein
1609	 55.00	-1	1772610..1772969	-	119	39996719	cheY-4	GSU1619	-	chemotaxis protein CheY
1610	 59.61	0	1773123..1775249	-	708	39996720	-	GSU1620	-	iron-sulfur cluster binding protein, putative
1611	 58.53	0	1775253..1775891	-	212	39996721	-	GSU1621	-	hypothetical protein
1612	 58.41	0	1776004..1777953	+	649	39996722	-	GSU1622	-	L-lactate permease
1613	 62.08	0	1778047..1779420	+	457	39996723	-	GSU1623	-	glycolate oxidase subunit GlcD, putative
1614	 61.63	0	1779431..1780681	+	416	39996724	-	GSU1624	-	glycolate oxidase iron-sulfur subunit, putative
1615	 46.24	-2	1780730..1780822	-	30	39996725	-	GSU1625	-	hypothetical protein
1616	 55.37	0	1780852..1781577	+	241	39996726	-	GSU1626	-	GntR family transcriptional regulator
1617	 59.89	0	1781917..1782285	-	122	39996727	secG	GSU1627	-	preprotein translocase subunit SecG
1618	 57.71	0	1782373..1784337	-	654	39996728	-	GSU1628	-	phosphoglycerate kinase/triosephosphate isomerase
1619	 57.49	0	1784444..1785445	-	333	39996729	gap	GSU1629	-	glyceraldehyde 3-phosphate dehydrogenase 1
1620	 52.74	-1	1785617..1787749	+	710	39996730	-	GSU1630	-	sensory box histidine kinase
1621	 59.79	0	1787907..1788677	+	256	39996731	-	GSU1631	-	metallo-beta-lactamase family protein
1622	 58.87	0	1788897..1790192	+	431	39996732	purB	GSU1632	-	adenylosuccinate lyase
1623	 55.98	0	1790185..1791279	+	364	39996733	-	GSU1633	-	hypothetical protein
1624	 61.45	0	1791280..1794270	+	996	39996734	-	GSU1634	-	phosphoribosylformylglycinamidine synthase II, putative
1625	 59.78	0	1794274..1795101	+	275	39996735	-	GSU1635	-	phosphoribosylformylglycinamidine synthase I, putative
60.71	MEAN

5.38	STD DEV
