IslandPath Analysis: Geobacter sulfurreducens PCA

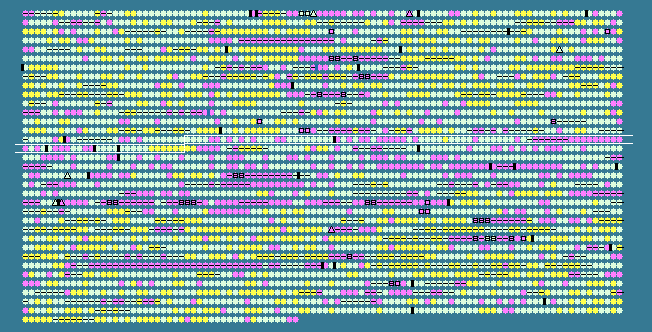

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1428	 60.07	0	1576188..1577066	+	292	39996538	-	GSU1438	-	hypothetical protein
1429	 62.64	0	1577012..1578055	-	347	39996539	-	GSU1439	-	hypothetical protein
1430	 62.99	0	1577267..1578244	+	325	39996540	-	GSU1440	-	hypothetical protein
1431	 58.60	0	1578257..1578541	+	94	39996541	-	GSU1441	-	ferredoxin family protein
1432	 54.70	-1	1578631..1579332	+	233	39996542	-	GSU1442	-	carbonic anhydrase family protein
1433	 55.17	-1	1579416..1581380	-	654	39996543	-	GSU1443	-	sensor histidine kinase/response regulator
1434	 59.73	0	1581389..1582282	-	297	39996544	-	GSU1444	-	hypothetical protein
1435	 55.72	0	1582943..1584724	+	593	39996545	-	GSU1445	-	TonB-dependent receptor, putative
1436	 60.44	0	1585073..1586404	+	443	39996546	-	GSU1446	-	radical SAM domain-containing protein
1437	 55.25	-1	1586465..1586683	-	72	39996547	-	GSU1447	-	hypothetical protein
1438	 62.17	0	1586708..1587574	-	288	39996548	-	GSU1448	-	phosphotransferase domain-containing protein
1439	 55.56	0	1587690..1587968	+	92	39996549	-	GSU1449	-	hypothetical protein
1440	 57.46	0	1587992..1588621	+	209	39996550	-	GSU1450	-	endonuclease III, putative
1441	 59.40	0	1588799..1589665	+	288	39996551	-	GSU1451	-	3-hydroxyisobutyrate dehydrogenase family protein
1442	 60.42	0	1589716..1591203	-	495	39996552	-	GSU1452	-	RNA methyltransferase
1443	 56.60	0	1591350..1592462	+	370	39996553	-	GSU1453	-	hypothetical protein
1444	 56.45	0	1592452..1593870	+	472	39996554	-	GSU1454	-	glycosyl transferase, group 2 family protein
1445	 60.61	0	1593842..1594039	+	65	39996555	-	GSU1455	-	hypothetical protein
1446	 63.94	0	1594036..1596453	+	805	39996556	-	GSU1456	-	hypothetical protein
1447	 61.34	0	1596512..1597225	+	237	39996557	-	GSU1457	-	polysaccharide deacetylase domain-containing protein
1448	 62.22	0	1597229..1598803	+	524	39996558	-	GSU1458	-	TPR domain-containing protein
1449	 61.49	0	1598892..1599953	+	353	39996559	ispG	GSU1459	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate
1450	 61.76	0	1599970..1601682	+	570	39996560	proS	GSU1460	-	prolyl-tRNA synthetase
1451	 63.19	0	1601706..1602425	+	239	39996561	pyrF	GSU1461	-	orotidine 5`-phosphate decarboxylase
1452	 60.57	0	1602445..1603182	+	245	39996562	-	GSU1462	-	RNA methyltransferase
1453	 56.36	0	1603748..1605532	+	594	39996563	aspS	GSU1463	-	aspartyl-tRNA synthetase
1454	 57.39	0	1605546..1606235	+	229	39996564	-	GSU1464	-	LysM domain-containing protein
1455	 54.43	-1	1606538..1608760	+	740	39996565	icd	GSU1465	-	isocitrate dehydrogenase, NADP-dependent
1456	 58.07	0	1608804..1609757	+	317	39996566	mdh	GSU1466	-	malate dehydrogenase
1457	 48.72	-2	1609952..1610146	+	64	39996567	-	GSU1467	-	iron-sulfur cluster-binding protein
1458	 56.70	0	1610170..1611303	+	377	39996568	-	GSU1468	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1459	 57.42	0	1611306..1612127	+	273	39996569	-	GSU1469	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1460	 56.47	0	1612153..1612701	+	182	39996570	-	GSU1470	-	keto/oxoacid ferredoxin oxidoreductase, gamma subunit
1461	 55.36	0	1612857..1614032	+	391	39996571	-	GSU1471	-	HD domain-containing protein
1462	 51.92	-1	1614107..1615069	+	320	39996572	-	GSU1472	-	hypothetical protein
1463	 51.90	-1	1615103..1615840	+	245	39996573	-	GSU1473	-	hypothetical protein
1464	 55.28	-1	1615949..1616563	+	204	39996574	-	GSU1474	-	DedA family protein
1465	 59.90	0	1616582..1617349	+	255	39996575	-	GSU1475	-	RNA methyltransferase
1466	 56.80	0	1617346..1617639	+	97	39996576	-	GSU1476	-	hypothetical protein
1467	 57.61	0	1617666..1618250	+	194	39996577	-	GSU1477	-	LemA family protein
1468	 62.56	0	1618247..1619146	+	299	39996578	-	GSU1478	-	hypothetical protein
1469	 62.20	0	1619163..1619789	+	208	39996579	-	GSU1479	-	hypothetical protein
1470	 59.97	0	1619796..1621349	-	517	39996580	-	GSU1480	-	EmrB/QacA family drug resistance transporter
1471	 64.25	0	1621362..1622480	-	372	39996581	-	GSU1481	-	multidrug resistance protein, putative
1472	 61.90	0	1622483..1623763	-	426	39996582	-	GSU1482	-	outer membrane efflux protein
1473	 58.22	0	1623741..1624190	-	149	39996583	-	GSU1483	-	MarR family transcriptional regulator
1474	 61.76	0	1624300..1626543	-	747	39996584	-	GSU1484	-	soluble lytic murein transglycosylase, putative
1475	 62.52	0	1626769..1629060	+	763	39996585	-	GSU1485	-	ribonuclease R, putative
1476	 55.71	0	1629155..1630021	+	288	39996586	-	GSU1486	-	MttB family protein
1477	 59.96	0	1630018..1630986	+	322	39996587	ribF	GSU1487	-	riboflavin biosynthesis protein RibF
1478	 62.73	0	1631034..1632023	+	329	39996588	-	GSU1488	-	hypothetical protein
1479	 57.59	0	1632043..1633914	+	623	39996589	-	GSU1489	-	hypothetical protein
1480	 61.44	0	1633917..1634777	+	286	39996590	aroE	GSU1490	-	shikimate 5-dehydrogenase
1481	 58.64	0	1634843..1636549	+	568	39996591	-	GSU1491	-	type IV pilus biogenesis protein PilB
1482	 59.84	0	1636677..1637774	+	365	39996592	pilT-4	GSU1492	-	twitching motility protein PilT
1483	 55.09	-1	1637811..1639028	+	405	39996593	-	GSU1493	-	type IV pilus biogenesis protein PilC
1484	 59.35	0	1639032..1640684	+	550	39996594	-	GSU1494	-	sensory box histidine kinase
1485	 58.46	0	1640718..1642094	+	458	39996595	-	GSU1495	-	sigma-54 dependent DNA-binding response regulator
1486	 49.08	-2	1642257..1642529	+	90	39996596	-	GSU1496	-	pilin domain-containing protein
1487	 44.80	-2	1642557..1642931	+	124	39996597	-	GSU1497	-	hypothetical protein
1488	 43.80	-2	1642999..1644747	+	582	39996598	-	GSU1498	-	hypothetical protein
1489	 49.12	-2	1644744..1645535	+	263	39996599	-	GSU1499	-	hypothetical protein
1490	 50.81	-1	1645589..1646389	+	266	39996600	-	GSU1500	-	hypothetical protein
1491	 49.23	-2	1646403..1647314	+	303	39996601	-	GSU1501	-	ABC transporter, ATP-binding protein
1492	 53.92	-1	1647311..1648165	+	284	39996602	-	GSU1502	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
1493	 56.48	0	1648173..1649075	+	300	39996603	-	GSU1503	-	glycosyl transferase, group 2 family protein
1494	 56.10	0	1649079..1649930	+	283	39996604	-	GSU1504	-	ABC transporter permease
1495	 53.11	-1	1649937..1651205	+	422	39996605	-	GSU1505	-	ABC transporter, ATP-binding protein
1496	 53.54	-1	1651202..1652161	+	319	39996606	-	GSU1506	-	hypothetical protein
1497	 49.64	-2	1652233..1653195	+	320	39996607	-	GSU1507	-	heptosyltransferase family protein, putative
1498	 39.09	-2	1653235..1654380	+	381	39996608	-	GSU1508	-	hypothetical protein
1499	 37.55	-2	1654388..1655383	+	331	39996609	-	GSU1509	-	glycosyl transferase, group 2 family protein
1500	 46.41	-2	1655522..1656454	+	310	39996610	-	GSU1510	-	glycosyl transferase, group 2 family protein
1501	 41.60	-2	1657352..1658500	+	382	39996611	-	GSU1511	-	glycosyl transferase, group 1 family protein
1502	 57.80	0	1658573..1659937	+	454	39996612	-	GSU1512	-	amine oxidase, flavin-containing
1503	 50.59	-1	1659934..1660860	+	308	39996613	-	GSU1513	-	hypothetical protein
1504	 59.89	0	1660857..1661948	+	363	39996614	-	GSU1514	-	heptosyltransferase family protein
1505	 59.08	0	1662153..1664063	+	636	39996615	thrS	GSU1515	-	threonyl-tRNA synthetase
1506	 54.72	-1	1664075..1664593	+	172	39996616	infC	GSU1516	-	translation initiation factor IF-3
1507	 53.54	-1	1664631..1664828	+	65	39996617	rpmI	GSU1517	-	50S ribosomal protein L35
1508	 57.06	0	1664918..1665271	+	117	39996618	rplT	GSU1518	-	50S ribosomal protein L20
1509	 59.22	0	1665346..1666365	+	339	39996619	pheS	GSU1519	-	phenylalanyl-tRNA synthetase, alpha subunit
1510	 60.39	0	1666433..1668838	+	801	39996620	pheT	GSU1520	-	phenylalanyl-tRNA synthetase, beta subunit
1511	 50.72	-1	1668933..1669208	+	91	39996621	ihfA-1	GSU1521	-	integration host factor, alpha subunit
1512	 54.80	-1	1669226..1669579	+	117	39996622	-	GSU1522	-	transcriptional regulator, putative
1513	 59.82	0	1669765..1670553	+	262	39996623	surE	GSU1523	-	stationary-phase survival protein SurE
1514	 60.22	0	1670581..1671231	+	216	39996624	pcM	GSU1524	-	protein-L-isoaspartate O-methyltransferase
1515	 57.35	0	1671264..1672250	+	328	39996625	-	GSU1525	-	sigma-70 family RNA polymerase sigma factor
1516	 57.95	0	1672285..1672800	+	171	39996626	apt	GSU1526	-	adenine phosphoribosyltransferase
1517	 59.84	0	1673198..1674487	+	429	39996627	-	GSU1527	-	hypothetical protein
1518	 58.19	0	1674735..1675631	+	298	39996628	-	GSU1528	-	ABC transporter, periplasmic substrate-binding protein
1519	 58.75	0	1675821..1678232	+	803	39996629	-	GSU1529	-	sensory box histidine kinase/response regulator
1520	 62.67	0	1678319..1679194	-	291	39996630	hisG	GSU1530	-	ATP phosphoribosyltransferase
1521	 59.26	0	1679191..1679568	-	125	39996631	hisI	GSU1531	-	phosphoribosyl-AMP cyclohydrolase
1522	 69.88	+1	1679914..1680255	+	113	39996632	-	GSU1532	-	hypothetical protein
1523	 70.52	+1	1680276..1683440	+	1054	39996633	recC	GSU1533	-	exodeoxyribonuclease V, gamma subunit
1524	 71.18	+1	1683437..1687051	+	1204	39996634	recB	GSU1534	-	exodeoxyribonuclease V, beta subunit
1525	 69.74	+1	1687048..1688835	+	595	39996635	recD	GSU1535	-	exodeoxyribonuclease V, alpha subunit
1526	 72.58	+2	1688874..1689566	-	230	39996636	-	GSU1536	-	hypothetical protein
1527	 66.36	+1	1689563..1691185	-	540	39996637	-	GSU1537	-	general secretion pathway protein-related protein
60.71	MEAN

5.38	STD DEV
