IslandPath Analysis: Geobacter sulfurreducens PCA

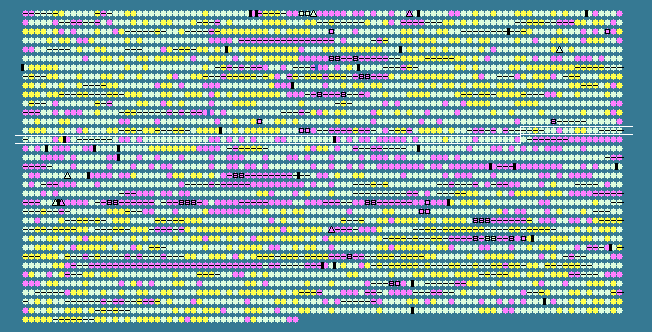

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1384	 63.41	0	1520569..1521489	+	306	39996494	-	GSU1392	-	CRISPR-associated Cas1 family protein
1385	 59.80	0	1521470..1521775	+	101	39996495	-	GSU1393	-	hypothetical protein
1386	 64.42	0	1530745..1534656	-	1303	39996496	-	GSU1394	-	spore coat protein-related protein
1387	 59.30	0	1534748..1535005	-	85	39996497	-	GSU1395	-	hypothetical protein
1388	 58.76	0	1535268..1535621	-	117	39996498	-	GSU1396	-	hypothetical protein
1389	 63.50	0	1535639..1537342	-	567	39996499	-	GSU1397	-	cytochrome c family protein, putative
1390	 56.70	0	1537339..1537920	-	193	39996500	-	GSU1398	-	SCO1/SenC family protein
1391	 59.53	0	1538072..1539136	-	354	39996501	corA-1	GSU1399	-	magnesium and cobalt transport protein CorA
1392	 63.87	0	1540372..1543839	+	1155	39996502	dnaE	GSU1401	-	DNA polymerase III, alpha subunit
1393	 64.97	0	1543895..1544836	+	313	39996503	accA	GSU1402	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
1394	 66.67	+1	1544951..1545694	+	247	39996504	rluB	GSU1403	-	ribosomal large subunit pseudouridine synthase B
1395	 60.96	0	1545736..1546698	-	320	39996505	-	GSU1404	-	radical SAM domain-containing protein
1396	 60.61	0	1546808..1547104	+	98	39996506	-	GSU1405	-	hypothetical protein
1397	 62.00	0	1547086..1547235	-	49	39996507	-	GSU1406	-	hypothetical protein
1398	 59.26	0	1547222..1547356	+	44	39996508	-	GSU1407	-	hypothetical protein
1399	 63.29	0	1547328..1548215	-	295	39996509	-	GSU1408	-	ParA family protein
1400	 59.85	0	1548282..1548677	-	131	39996510	-	GSU1409	-	NifU-like domain-containing protein
1401	 60.22	0	1548670..1549026	-	118	39996511	-	GSU1410	-	hypothetical protein
1402	 61.75	0	1549047..1550042	-	331	39996512	-	GSU1411	-	sodium/bile acid symporter family protein
1403	 60.10	0	1550065..1550475	-	136	39996513	-	GSU1412	-	hypothetical protein
1404	 62.88	0	1550474..1550605	+	43	39996514	-	GSU1413	-	hypothetical protein
1405	 58.46	0	1551250..1553784	+	844	39996515	-	GSU1414	-	sensory box histidine kinase/response regulator
1406	 56.57	0	1554011..1554406	+	131	39996516	-	GSU1415	-	response regulator
1407	 64.33	0	1554933..1555232	+	99	39996517	-	GSU1416	-	iron-sulfur cluster-binding protein
1408	 56.81	0	1555521..1555946	-	141	39996518	-	GSU1417	-	response regulator
1409	 59.83	0	1555933..1556283	-	116	39996519	-	GSU1418	-	hypothetical protein
1410	 61.07	0	1556494..1556922	+	142	39996520	-	GSU1419	-	Cro/CI family transcriptional regulator
1411	 61.99	0	1557042..1557725	+	227	39996521	tylA	GSU1420	-	hemolysin A
1412	 62.60	0	1557739..1558869	+	376	39996522	-	GSU1421	-	nuclease SbcCD, D subunit, putative
1413	 63.17	0	1558869..1561043	+	724	39996523	-	GSU1422	-	nuclease SbcCD, C subunit, putative
1414	 57.97	0	1561021..1561365	+	114	39996524	-	GSU1423	-	HIT family protein
1415	 57.45	0	1561390..1561953	+	187	39996525	-	GSU1424	-	hypothetical protein
1416	 60.15	0	1562603..1563385	+	260	39996526	lgt	GSU1425	-	prolipoprotein diacylglyceryl transferase
1417	 56.67	0	1563394..1563843	-	149	39996527	-	GSU1426	-	rsbW protein, putative
1418	 53.27	-1	1563855..1564190	-	111	39996528	-	GSU1427	-	anti-anti-sigma factor
1419	 58.87	0	1564814..1567546	-	910	39996529	-	GSU1429	-	hypothetical protein
1420	 50.78	-1	1567543..1567800	-	85	39996530	-	GSU1430	-	hypothetical protein
1421	 61.43	0	1567785..1569368	-	527	39996531	-	GSU1431	-	hypothetical protein
1422	 57.32	0	1569651..1571372	+	573	39996532	-	GSU1432	-	TPR domain-containing protein
1423	 62.15	0	1571369..1572985	+	538	39996533	-	GSU1433	-	peptide ABC transporter, periplasmic peptide-binding protein
1424	 61.06	0	1572987..1573967	+	326	39996534	-	GSU1434	-	peptide ABC transporter, permease protein
1425	 63.02	0	1573971..1574819	+	282	39996535	-	GSU1435	-	peptide ABC transporter, permease protein
1426	 58.10	0	1574846..1575370	+	174	39996536	-	GSU1436	-	hypothetical protein
1427	 57.99	0	1575391..1576185	+	264	39996537	-	GSU1437	-	M48 family peptidase
1428	 60.07	0	1576188..1577066	+	292	39996538	-	GSU1438	-	hypothetical protein
1429	 62.64	0	1577012..1578055	-	347	39996539	-	GSU1439	-	hypothetical protein
1430	 62.99	0	1577267..1578244	+	325	39996540	-	GSU1440	-	hypothetical protein
1431	 58.60	0	1578257..1578541	+	94	39996541	-	GSU1441	-	ferredoxin family protein
1432	 54.70	-1	1578631..1579332	+	233	39996542	-	GSU1442	-	carbonic anhydrase family protein
1433	 55.17	-1	1579416..1581380	-	654	39996543	-	GSU1443	-	sensor histidine kinase/response regulator
1434	 59.73	0	1581389..1582282	-	297	39996544	-	GSU1444	-	hypothetical protein
1435	 55.72	0	1582943..1584724	+	593	39996545	-	GSU1445	-	TonB-dependent receptor, putative
1436	 60.44	0	1585073..1586404	+	443	39996546	-	GSU1446	-	radical SAM domain-containing protein
1437	 55.25	-1	1586465..1586683	-	72	39996547	-	GSU1447	-	hypothetical protein
1438	 62.17	0	1586708..1587574	-	288	39996548	-	GSU1448	-	phosphotransferase domain-containing protein
1439	 55.56	0	1587690..1587968	+	92	39996549	-	GSU1449	-	hypothetical protein
1440	 57.46	0	1587992..1588621	+	209	39996550	-	GSU1450	-	endonuclease III, putative
1441	 59.40	0	1588799..1589665	+	288	39996551	-	GSU1451	-	3-hydroxyisobutyrate dehydrogenase family protein
1442	 60.42	0	1589716..1591203	-	495	39996552	-	GSU1452	-	RNA methyltransferase
1443	 56.60	0	1591350..1592462	+	370	39996553	-	GSU1453	-	hypothetical protein
1444	 56.45	0	1592452..1593870	+	472	39996554	-	GSU1454	-	glycosyl transferase, group 2 family protein
1445	 60.61	0	1593842..1594039	+	65	39996555	-	GSU1455	-	hypothetical protein
1446	 63.94	0	1594036..1596453	+	805	39996556	-	GSU1456	-	hypothetical protein
1447	 61.34	0	1596512..1597225	+	237	39996557	-	GSU1457	-	polysaccharide deacetylase domain-containing protein
1448	 62.22	0	1597229..1598803	+	524	39996558	-	GSU1458	-	TPR domain-containing protein
1449	 61.49	0	1598892..1599953	+	353	39996559	ispG	GSU1459	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate
1450	 61.76	0	1599970..1601682	+	570	39996560	proS	GSU1460	-	prolyl-tRNA synthetase
1451	 63.19	0	1601706..1602425	+	239	39996561	pyrF	GSU1461	-	orotidine 5`-phosphate decarboxylase
1452	 60.57	0	1602445..1603182	+	245	39996562	-	GSU1462	-	RNA methyltransferase
1453	 56.36	0	1603748..1605532	+	594	39996563	aspS	GSU1463	-	aspartyl-tRNA synthetase
1454	 57.39	0	1605546..1606235	+	229	39996564	-	GSU1464	-	LysM domain-containing protein
1455	 54.43	-1	1606538..1608760	+	740	39996565	icd	GSU1465	-	isocitrate dehydrogenase, NADP-dependent
1456	 58.07	0	1608804..1609757	+	317	39996566	mdh	GSU1466	-	malate dehydrogenase
1457	 48.72	-2	1609952..1610146	+	64	39996567	-	GSU1467	-	iron-sulfur cluster-binding protein
1458	 56.70	0	1610170..1611303	+	377	39996568	-	GSU1468	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1459	 57.42	0	1611306..1612127	+	273	39996569	-	GSU1469	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1460	 56.47	0	1612153..1612701	+	182	39996570	-	GSU1470	-	keto/oxoacid ferredoxin oxidoreductase, gamma subunit
1461	 55.36	0	1612857..1614032	+	391	39996571	-	GSU1471	-	HD domain-containing protein
1462	 51.92	-1	1614107..1615069	+	320	39996572	-	GSU1472	-	hypothetical protein
1463	 51.90	-1	1615103..1615840	+	245	39996573	-	GSU1473	-	hypothetical protein
1464	 55.28	-1	1615949..1616563	+	204	39996574	-	GSU1474	-	DedA family protein
1465	 59.90	0	1616582..1617349	+	255	39996575	-	GSU1475	-	RNA methyltransferase
1466	 56.80	0	1617346..1617639	+	97	39996576	-	GSU1476	-	hypothetical protein
1467	 57.61	0	1617666..1618250	+	194	39996577	-	GSU1477	-	LemA family protein
1468	 62.56	0	1618247..1619146	+	299	39996578	-	GSU1478	-	hypothetical protein
1469	 62.20	0	1619163..1619789	+	208	39996579	-	GSU1479	-	hypothetical protein
1470	 59.97	0	1619796..1621349	-	517	39996580	-	GSU1480	-	EmrB/QacA family drug resistance transporter
1471	 64.25	0	1621362..1622480	-	372	39996581	-	GSU1481	-	multidrug resistance protein, putative
1472	 61.90	0	1622483..1623763	-	426	39996582	-	GSU1482	-	outer membrane efflux protein
1473	 58.22	0	1623741..1624190	-	149	39996583	-	GSU1483	-	MarR family transcriptional regulator
1474	 61.76	0	1624300..1626543	-	747	39996584	-	GSU1484	-	soluble lytic murein transglycosylase, putative
1475	 62.52	0	1626769..1629060	+	763	39996585	-	GSU1485	-	ribonuclease R, putative
1476	 55.71	0	1629155..1630021	+	288	39996586	-	GSU1486	-	MttB family protein
1477	 59.96	0	1630018..1630986	+	322	39996587	ribF	GSU1487	-	riboflavin biosynthesis protein RibF
1478	 62.73	0	1631034..1632023	+	329	39996588	-	GSU1488	-	hypothetical protein
1479	 57.59	0	1632043..1633914	+	623	39996589	-	GSU1489	-	hypothetical protein
1480	 61.44	0	1633917..1634777	+	286	39996590	aroE	GSU1490	-	shikimate 5-dehydrogenase
1481	 58.64	0	1634843..1636549	+	568	39996591	-	GSU1491	-	type IV pilus biogenesis protein PilB
1482	 59.84	0	1636677..1637774	+	365	39996592	pilT-4	GSU1492	-	twitching motility protein PilT
1483	 55.09	-1	1637811..1639028	+	405	39996593	-	GSU1493	-	type IV pilus biogenesis protein PilC
60.71	MEAN

5.38	STD DEV
