IslandPath Analysis: Geobacter sulfurreducens PCA

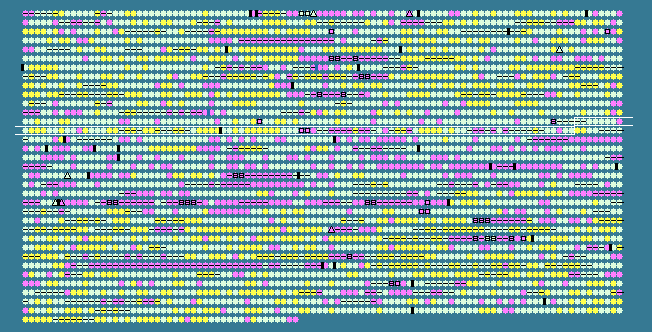

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1293	 60.00	0	1422879..1423373	+	164	39996403	cheW-5	GSU1301	-	purine-binding chemotaxis protein CheW
1294	 61.32	0	1423689..1426196	+	835	39996404	-	GSU1302	-	sensor histidine kinase/response regulator
1295	 60.74	0	1426553..1428037	+	494	39996405	-	GSU1303	-	methyl-accepting chemotaxis protein
1296	 62.08	0	1428274..1429974	+	566	39996406	-	GSU1304	-	methyl-accepting chemotaxis protein
1297	 61.64	0	1430144..1431496	-	450	39996407	-	GSU1305	-	glutamate dehydrogenase
1298	 62.85	0	1431807..1433351	+	514	39996408	-	GSU1306	-	phosphotransferase domain-containing protein
1299	 57.85	0	1433423..1433944	+	173	39996409	ftn	GSU1307	-	ferritin
1300	 52.05	-1	1434028..1434246	+	72	39996410	-	GSU1308	-	hypothetical protein
1301	 62.11	0	1434527..1435756	+	409	39996411	-	GSU1309	-	hypothetical protein
1302	 68.76	+1	1435797..1436897	-	366	39996412	-	GSU1310	-	pyridine nucleotide-disulphide oxidoreductase family protein
1303	 65.97	0	1436894..1438483	-	529	39996413	pgi	GSU1311	-	glucose-6-phosphate isomerase
1304	 68.06	+1	1438500..1439507	-	335	39996414	-	GSU1312	-	radical SAM domain-containing protein
1305	 62.46	0	1439519..1439851	-	110	39996415	-	GSU1313	-	carboxymuconolactone decarboxylase
1306	 62.85	0	1439851..1440531	-	226	39996416	-	GSU1314	-	hypothetical protein
1307	 70.82	+1	1440620..1442137	-	505	39996417	merA-1	GSU1315	-	mercuric reductase
1308	 60.92	0	1442251..1443225	-	324	39996418	-	GSU1316	-	response regulator
1309	 58.31	0	1443412..1444380	+	322	39996419	ispB	GSU1317	-	octaprenyl-diphosphate synthase
1310	 57.09	0	1444534..1444794	+	86	39996420	-	GSU1318	-	hypothetical protein
1311	 64.31	0	1444965..1446068	+	367	39996421	-	GSU1319	-	sensor histidine kinase
1312	 64.06	0	1446088..1447470	+	460	39996422	-	GSU1320	-	sigma-54 dependent DNA-binding response regulator
1313	 61.34	0	1447467..1447973	+	168	39996423	-	GSU1321	-	thioredoxin family protein
1314	 59.53	0	1447999..1448727	+	242	39996424	ccdA	GSU1322	-	cytochrome c biogenesis protein CcdA
1315	 64.41	0	1448729..1449172	+	147	39996425	-	GSU1323	-	hypothetical protein
1316	 65.12	0	1449605..1449928	-	107	39996426	-	GSU1324	-	RNA-binding protein
1317	 58.43	0	1449947..1450213	-	88	39996427	-	GSU1325	-	hypothetical protein
1318	 68.25	+1	1450443..1452587	+	714	39996428	recG	GSU1326	-	ATP-dependent DNA helicase RecG
1319	 70.53	+1	1452599..1453555	+	318	39996429	-	GSU1327	-	homocysteine S-methyltransferase domain-containing protein
1320	 61.59	0	1453592..1453906	+	104	39996430	-	GSU1328	-	hypothetical protein
1321	 71.96	+2	1453943..1454887	+	314	39996431	-	GSU1329	-	tRNA synthetase class I domain-containing protein
1322	 65.52	0	1454915..1456396	+	493	39996432	-	GSU1330	-	metal ion efflux outer membrane protein family protein, putative
1323	 65.34	0	1456420..1457775	+	451	39996433	-	GSU1331	-	RND family efflux transporter MFP subunit
1324	 63.67	0	1457786..1460923	+	1045	39996434	-	GSU1332	-	CzcA family heavy metal efflux protein
1325	 58.02	0	1460959..1461432	+	157	39996435	-	GSU1333	-	hypothetical protein
1326	 66.74	+1	1461505..1462944	-	479	39996436	-	GSU1334	-	cytochrome c family protein
1327	 65.74	0	1462919..1463026	+	35	39996437	-	GSU1335	-	hypothetical protein
1328	 60.70	0	1463178..1463915	-	245	39996438	-	GSU1336	-	TerC family membrane protein
1329	 62.63	0	1463922..1465109	+	395	39996439	-	GSU1337	-	hypothetical protein
1330	 67.16	+1	1465350..1465754	+	134	39996440	-	GSU1338	-	heavy metal-binding domain-containing protein
1331	 65.41	0	1465871..1466347	+	158	39996441	-	GSU1339	-	hypothetical protein
1332	 65.12	0	1466389..1467549	+	386	39996442	-	GSU1340	-	ABC transporter, permease protein
1333	 65.96	0	1467582..1468286	+	234	39996443	-	GSU1341	-	ABC transporter, ATP-binding protein
1334	 63.37	0	1468634..1469542	-	302	39996444	-	GSU1342	-	LysR family transcriptional regulator
1335	 61.93	0	1469681..1470334	+	217	39996445	-	GSU1343	-	isochorismatase family protein
1336	 66.67	+1	1470445..1472256	+	603	39996446	-	GSU1344	-	hypothetical protein
1337	 63.42	0	1472572..1473033	+	153	39996447	-	GSU1345	-	Rrf2 family protein
1338	 65.78	0	1473101..1474114	+	337	39996448	cysP	GSU1346	-	sulfate ABC transporter, periplasmic sulfate-binding protein
1339	 67.33	+1	1474119..1475021	+	300	39996449	cysT	GSU1347	-	sulfate ABC transporter, permease protein
1340	 67.39	+1	1475038..1475868	+	276	39996450	cysW	GSU1348	-	sulfate ABC transporter, permease protein
1341	 69.28	+1	1475903..1476934	+	343	39996451	cysA	GSU1349	-	sulfate ABC transporter, ATP-binding protein
1342	 67.17	+1	1476972..1477766	+	264	39996452	-	GSU1350	-	thiF family protein
1343	 66.25	+1	1477837..1478805	+	322	39996453	-	GSU1351	-	iron-sulfur cluster-binding protein
1344	 61.78	0	1478792..1479016	+	74	39996454	-	GSU1352	-	hypothetical protein
1345	 61.23	0	1479360..1479635	+	91	39996455	-	GSU1353	-	prevent-host-death family protein
1346	 59.94	0	1479640..1479951	+	103	39996456	-	GSU1354	-	plasmid stabilization system protein family protein
1347	 56.20	0	1480115..1480477	+	120	39996457	-	GSU1355	-	ISGsu7, transposase OrfA
1348	 56.79	0	1480474..1481364	+	296	39996458	-	GSU1356	-	ISGsu7, transposase OrfB
1349	 45.66	-2	1481427..1481783	+	118	39996459	-	GSU1357	-	hypothetical protein
1350	 58.22	0	1481813..1484215	+	800	39996460	-	GSU1358	-	hypothetical protein
1351	 62.70	0	1484238..1487363	+	1041	39996461	-	GSU1359	-	helicase, putative
1352	 44.56	-2	1487423..1489186	+	587	39996462	-	GSU1360	-	hypothetical protein
1353	 46.34	-2	1489176..1490597	+	473	39996463	-	GSU1361	-	piwi domain-containing protein
1354	 39.17	-2	1490654..1491835	+	393	39996464	-	GSU1362	-	hypothetical protein
1355	 38.15	-2	1491977..1493119	+	380	39996465	-	GSU1363	-	RNA-directed DNA polymerase
1356	 65.65	0	1493171..1494151	+	326	39996466	-	GSU1364	-	HNH endonuclease family protein
1357	 51.10	-1	1494206..1495252	+	348	39996467	-	GSU1365	-	Mrr restriction system protein, putative
1358	 54.17	-1	1495607..1495750	+	47	39996468	-	GSU1366	-	hypothetical protein
1359	 60.70	0	1495968..1496621	+	217	39996469	-	GSU1367	-	hypothetical protein
1360	 58.65	0	1496621..1497493	+	290	39996470	-	GSU1368	-	hypothetical protein
1361	 54.55	-1	1497512..1498039	+	175	39996471	-	GSU1369	-	hypothetical protein
1362	 64.01	0	1498229..1499281	-	350	39996472	-	GSU1370	-	aldo/keto reductase family oxidoreductase
1363	 70.22	+1	1499442..1500539	-	365	39996473	-	GSU1371	-	oxidoreductase, FAD/FMN-binding
1364	 69.22	+1	1500642..1501502	-	286	39996474	-	GSU1372	-	3-hydroxyisobutyrate dehydrogenase family protein
1365	 53.51	-1	1501493..1501606	+	37	39996475	-	GSU1373	-	hypothetical protein
1366	 63.90	0	1501915..1503540	-	541	39996476	hylB	GSU1374	-	methyl-accepting chemotaxis protein
1367	 72.15	+2	1504128..1504802	+	224	39996477	-	GSU1375	-	hypothetical protein
1368	 65.57	0	1504786..1505607	-	273	39996478	-	GSU1376	-	hypothetical protein
1369	 66.67	+1	1505701..1506483	-	260	39996479	-	GSU1377	-	3-hydroxybutyryl-CoA dehydratase
1370	 70.02	+1	1506745..1507758	+	337	39996480	-	GSU1378	-	beta-lactamase
1371	 59.49	0	1507920..1508351	+	143	39996481	fur	GSU1379	-	ferric uptake regulation protein Fur
1372	 64.36	0	1508595..1510586	+	663	39996482	feoB-1	GSU1380	-	ferrous iron transport protein B
1373	 57.92	0	1510583..1510765	+	60	39996483	-	GSU1381	-	hypothetical protein
1374	 63.57	0	1510799..1511443	+	214	39996484	-	GSU1382	-	iron-dependent repressor, putative
1375	 63.37	0	1511698..1512243	+	181	39996485	-	GSU1383	-	exonuclease
1376	 56.41	0	1512324..1514975	+	883	39996486	cas3	GSU1384	-	hypothetical protein
1377	 56.87	0	1514972..1516492	+	506	39996487	-	GSU1385	-	hypothetical protein
1378	 58.78	0	1516476..1516919	+	147	39996488	-	GSU1386	-	hypothetical protein
1379	 54.61	-1	1516947..1518041	+	364	39996489	-	GSU1387	-	CRISPR-associated Cse4 family protein
1380	 57.27	0	1518044..1518724	+	226	39996490	-	GSU1388	-	CRISPR-associated Cas5e family protein
1381	 53.04	-1	1518711..1519319	+	202	39996491	-	GSU1389	-	CRISPR-associated Cse3 family protein
1382	 60.51	0	1519490..1519960	+	156	39996492	-	GSU1390	-	DNA-binding protein
1383	 58.63	0	1519957..1520541	+	194	39996493	-	GSU1391	-	Fic family protein
1384	 63.41	0	1520569..1521489	+	306	39996494	-	GSU1392	-	CRISPR-associated Cas1 family protein
1385	 59.80	0	1521470..1521775	+	101	39996495	-	GSU1393	-	hypothetical protein
1386	 64.42	0	1530745..1534656	-	1303	39996496	-	GSU1394	-	spore coat protein-related protein
1387	 59.30	0	1534748..1535005	-	85	39996497	-	GSU1395	-	hypothetical protein
1388	 58.76	0	1535268..1535621	-	117	39996498	-	GSU1396	-	hypothetical protein
1389	 63.50	0	1535639..1537342	-	567	39996499	-	GSU1397	-	cytochrome c family protein, putative
1390	 56.70	0	1537339..1537920	-	193	39996500	-	GSU1398	-	SCO1/SenC family protein
1391	 59.53	0	1538072..1539136	-	354	39996501	corA-1	GSU1399	-	magnesium and cobalt transport protein CorA
1392	 63.87	0	1540372..1543839	+	1155	39996502	dnaE	GSU1401	-	DNA polymerase III, alpha subunit
60.71	MEAN

5.38	STD DEV
