IslandPath Analysis: Geobacter sulfurreducens PCA

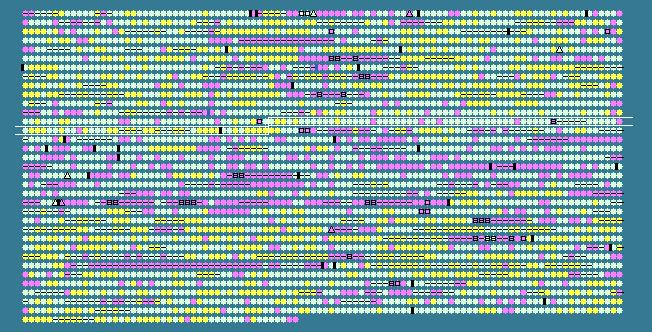

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1242	 61.35	0	1352057..1353466	+	469	39996352	-	GSU1250	-	sigma-54 dependent DNA-binding response regulator
1243	 65.23	0	1353842..1360090	+	2082	39996353	-	GSU1251	-	BNR repeat-containing protein
1244	 64.41	0	1360117..1365075	+	1652	39996354	-	GSU1252	-	hypothetical protein
1245	 63.92	0	1365114..1367153	+	679	39996355	-	GSU1253	-	hypothetical protein
1246	 67.41	+1	1367157..1368500	+	447	39996356	-	GSU1254	-	hypothetical protein
1247	 58.46	0	1368521..1369105	+	194	39996357	-	GSU1255	-	hypothetical protein
1248	 59.13	0	1369123..1369746	+	207	39996358	-	GSU1256	-	hypothetical protein
1249	 62.73	0	1369743..1371368	+	541	39996359	-	GSU1257	-	ABC transporter, periplasmic-substrate binding protein, putative
1250	 59.83	0	1371459..1371941	+	160	39996360	nosL	GSU1258	-	nosL protein
1251	 61.11	0	1372001..1372252	+	83	39996361	-	GSU1259	-	hypothetical protein
1252	 62.33	0	1372290..1373372	+	360	39996362	-	GSU1260	-	ABC transporter, permease protein
1253	 64.47	0	1373374..1374057	+	227	39996363	-	GSU1261	-	ABC transporter, ATP-binding protein
1254	 62.15	0	1374054..1375049	+	331	39996364	-	GSU1262	-	hypothetical protein
1255	 60.61	0	1375122..1375418	-	98	39996365	-	GSU1263	-	hypothetical protein
1256	 63.17	0	1375498..1375812	-	104	39996366	-	GSU1264	-	hypothetical protein
1257	 61.73	0	1375825..1377162	-	445	39996367	-	GSU1265	-	sensor histidine kinase/response regulator
1258	 60.23	0	1377368..1379170	+	600	39996368	lepA	GSU1266	-	GTP-binding protein LepA
1259	 56.05	0	1379195..1379863	+	222	39996369	lepB	GSU1267	-	signal peptidase I
1260	 57.64	0	1379856..1380863	-	335	39996370	-	GSU1268	-	LysR family transcriptional regulator
1261	 62.29	0	1381020..1384445	-	1141	39996371	-	GSU1269	-	hypothetical protein
1262	 62.92	0	1385037..1385570	+	177	39996372	pyrR	GSU1270	-	pyrimidine regulatory protein PyrR
1263	 63.46	0	1385636..1386571	+	311	39996373	pyrB	GSU1271	-	aspartate carbamoyltransferase catalytic subunit
1264	 64.16	0	1386623..1387900	+	425	39996374	pyrC	GSU1272	-	dihydroorotase, multifunctional complex type
1265	 62.58	0	1387991..1389115	+	374	39996375	carA	GSU1273	-	carbamoyl phosphate synthase small subunit
1266	 62.81	0	1389118..1390077	+	319	39996376	-	GSU1274	-	radical SAM domain-containing protein
1267	 56.06	0	1390079..1390408	+	109	39996377	-	GSU1275	-	hypothetical protein
1268	 61.61	0	1390449..1393694	+	1081	39996378	carB	GSU1276	-	carbamoyl-phosphate synthase, large subunit
1269	 58.91	0	1393780..1394256	+	158	39996379	greA	GSU1277	-	transcription elongation factor GreA
1270	 55.05	-1	1394329..1394526	+	65	39996380	-	GSU1278	-	hypothetical protein
1271	 64.05	0	1394709..1395740	+	343	39996381	-	GSU1279	-	cobalamin biosynthesis protein CbiM, putative
1272	 63.71	0	1395768..1396580	+	270	39996382	-	GSU1280	-	cobalt ABC transporter, permease protein
1273	 61.07	0	1396577..1397326	+	249	39996383	-	GSU1281	-	cobalt ABC transporter, ATP-binding protein
1274	 59.01	0	1397350..1398942	+	530	39996384	-	GSU1282	-	hypothetical protein
1275	 58.78	0	1399078..1399635	+	185	39996385	-	GSU1283	-	hypothetical protein
1276	 57.48	0	1399684..1400151	+	155	39996386	-	GSU1284	-	cytochrome c, putative
1277	 62.40	0	1400351..1402669	+	772	39996387	-	GSU1285	-	sensory box sensor histidine kinase/response regulator
1278	 57.83	0	1402706..1403101	+	131	39996388	cheY-2	GSU1286	-	chemotaxis protein CheY
1279	 61.89	0	1403232..1405115	+	627	39996389	-	GSU1287	-	methyl accepting chemotaxis protein, putative
1280	 58.79	0	1405120..1405500	-	126	39996390	-	GSU1288	-	hypothetical protein
1281	 59.02	0	1405494..1405859	+	121	39996391	cheY-3	GSU1289	-	chemotaxis protein CheY
1282	 62.16	0	1405859..1407964	+	701	39996392	cheA-1	GSU1290	-	chemotaxis protein CheA
1283	 54.57	-1	1408182..1408553	+	123	39996393	-	GSU1291	-	response regulator
1284	 58.79	0	1408577..1409731	+	384	39996394	-	GSU1292	-	sensory box histidine kinase
1285	 58.22	0	1409987..1410637	+	216	39996395	-	GSU1293	-	LuxR family DNA-binding response regulator
1286	 59.40	0	1410931..1413819	+	962	39996396	-	GSU1294	-	methyl-accepting chemotaxis protein
1287	 58.75	0	1414022..1414741	+	239	39996397	-	GSU1295	-	hypothetical protein
1288	 61.07	0	1414746..1416926	+	726	39996398	-	GSU1296	-	sensory box histidine kinase/response regulator
1289	 55.34	0	1416989..1418074	+	361	39996399	-	GSU1297	-	ISGsu2, transposase
1290	 57.35	0	1418548..1420254	+	568	39996400	-	GSU1298	-	methyl-accepting chemotaxis protein
1291	 61.01	0	1420264..1420758	+	164	39996401	cheW	GSU1299	-	purine-binding chemotaxis protein CheW
1292	 57.86	0	1421178..1422869	+	563	39996402	-	GSU1300	-	methyl-accepting chemotaxis protein
1293	 60.00	0	1422879..1423373	+	164	39996403	cheW-5	GSU1301	-	purine-binding chemotaxis protein CheW
1294	 61.32	0	1423689..1426196	+	835	39996404	-	GSU1302	-	sensor histidine kinase/response regulator
1295	 60.74	0	1426553..1428037	+	494	39996405	-	GSU1303	-	methyl-accepting chemotaxis protein
1296	 62.08	0	1428274..1429974	+	566	39996406	-	GSU1304	-	methyl-accepting chemotaxis protein
1297	 61.64	0	1430144..1431496	-	450	39996407	-	GSU1305	-	glutamate dehydrogenase
1298	 62.85	0	1431807..1433351	+	514	39996408	-	GSU1306	-	phosphotransferase domain-containing protein
1299	 57.85	0	1433423..1433944	+	173	39996409	ftn	GSU1307	-	ferritin
1300	 52.05	-1	1434028..1434246	+	72	39996410	-	GSU1308	-	hypothetical protein
1301	 62.11	0	1434527..1435756	+	409	39996411	-	GSU1309	-	hypothetical protein
1302	 68.76	+1	1435797..1436897	-	366	39996412	-	GSU1310	-	pyridine nucleotide-disulphide oxidoreductase family protein
1303	 65.97	0	1436894..1438483	-	529	39996413	pgi	GSU1311	-	glucose-6-phosphate isomerase
1304	 68.06	+1	1438500..1439507	-	335	39996414	-	GSU1312	-	radical SAM domain-containing protein
1305	 62.46	0	1439519..1439851	-	110	39996415	-	GSU1313	-	carboxymuconolactone decarboxylase
1306	 62.85	0	1439851..1440531	-	226	39996416	-	GSU1314	-	hypothetical protein
1307	 70.82	+1	1440620..1442137	-	505	39996417	merA-1	GSU1315	-	mercuric reductase
1308	 60.92	0	1442251..1443225	-	324	39996418	-	GSU1316	-	response regulator
1309	 58.31	0	1443412..1444380	+	322	39996419	ispB	GSU1317	-	octaprenyl-diphosphate synthase
1310	 57.09	0	1444534..1444794	+	86	39996420	-	GSU1318	-	hypothetical protein
1311	 64.31	0	1444965..1446068	+	367	39996421	-	GSU1319	-	sensor histidine kinase
1312	 64.06	0	1446088..1447470	+	460	39996422	-	GSU1320	-	sigma-54 dependent DNA-binding response regulator
1313	 61.34	0	1447467..1447973	+	168	39996423	-	GSU1321	-	thioredoxin family protein
1314	 59.53	0	1447999..1448727	+	242	39996424	ccdA	GSU1322	-	cytochrome c biogenesis protein CcdA
1315	 64.41	0	1448729..1449172	+	147	39996425	-	GSU1323	-	hypothetical protein
1316	 65.12	0	1449605..1449928	-	107	39996426	-	GSU1324	-	RNA-binding protein
1317	 58.43	0	1449947..1450213	-	88	39996427	-	GSU1325	-	hypothetical protein
1318	 68.25	+1	1450443..1452587	+	714	39996428	recG	GSU1326	-	ATP-dependent DNA helicase RecG
1319	 70.53	+1	1452599..1453555	+	318	39996429	-	GSU1327	-	homocysteine S-methyltransferase domain-containing protein
1320	 61.59	0	1453592..1453906	+	104	39996430	-	GSU1328	-	hypothetical protein
1321	 71.96	+2	1453943..1454887	+	314	39996431	-	GSU1329	-	tRNA synthetase class I domain-containing protein
1322	 65.52	0	1454915..1456396	+	493	39996432	-	GSU1330	-	metal ion efflux outer membrane protein family protein, putative
1323	 65.34	0	1456420..1457775	+	451	39996433	-	GSU1331	-	RND family efflux transporter MFP subunit
1324	 63.67	0	1457786..1460923	+	1045	39996434	-	GSU1332	-	CzcA family heavy metal efflux protein
1325	 58.02	0	1460959..1461432	+	157	39996435	-	GSU1333	-	hypothetical protein
1326	 66.74	+1	1461505..1462944	-	479	39996436	-	GSU1334	-	cytochrome c family protein
1327	 65.74	0	1462919..1463026	+	35	39996437	-	GSU1335	-	hypothetical protein
1328	 60.70	0	1463178..1463915	-	245	39996438	-	GSU1336	-	TerC family membrane protein
1329	 62.63	0	1463922..1465109	+	395	39996439	-	GSU1337	-	hypothetical protein
1330	 67.16	+1	1465350..1465754	+	134	39996440	-	GSU1338	-	heavy metal-binding domain-containing protein
1331	 65.41	0	1465871..1466347	+	158	39996441	-	GSU1339	-	hypothetical protein
1332	 65.12	0	1466389..1467549	+	386	39996442	-	GSU1340	-	ABC transporter, permease protein
1333	 65.96	0	1467582..1468286	+	234	39996443	-	GSU1341	-	ABC transporter, ATP-binding protein
1334	 63.37	0	1468634..1469542	-	302	39996444	-	GSU1342	-	LysR family transcriptional regulator
1335	 61.93	0	1469681..1470334	+	217	39996445	-	GSU1343	-	isochorismatase family protein
1336	 66.67	+1	1470445..1472256	+	603	39996446	-	GSU1344	-	hypothetical protein
1337	 63.42	0	1472572..1473033	+	153	39996447	-	GSU1345	-	Rrf2 family protein
1338	 65.78	0	1473101..1474114	+	337	39996448	cysP	GSU1346	-	sulfate ABC transporter, periplasmic sulfate-binding protein
1339	 67.33	+1	1474119..1475021	+	300	39996449	cysT	GSU1347	-	sulfate ABC transporter, permease protein
1340	 67.39	+1	1475038..1475868	+	276	39996450	cysW	GSU1348	-	sulfate ABC transporter, permease protein
1341	 69.28	+1	1475903..1476934	+	343	39996451	cysA	GSU1349	-	sulfate ABC transporter, ATP-binding protein
60.71	MEAN

5.38	STD DEV
