IslandPath Analysis: Geobacter sulfurreducens PCA

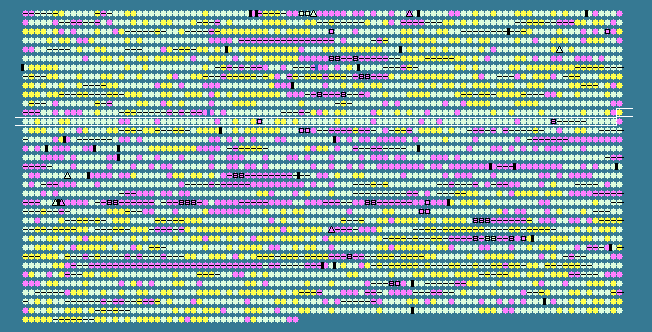

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1200	 66.82	+1	1311551..1312195	+	214	39996310	-	GSU1208	-	hypothetical protein
1201	 63.66	0	1312215..1312946	-	243	39996311	-	GSU1209	-	hypothetical protein
1202	 63.00	0	1312970..1313977	+	335	39996312	-	GSU1210	-	metallo-beta-lactamase family protein
1203	 64.42	0	1314048..1314314	+	88	39996313	-	GSU1211	-	hypothetical protein
1204	 59.41	0	1314408..1315385	-	325	39996314	-	GSU1212	-	hypothetical protein
1205	 62.87	0	1315449..1316765	-	438	39996315	-	GSU1213	-	hypothetical protein
1206	 63.97	0	1317073..1318074	+	333	39996316	-	GSU1214	-	tetracenomycin polyketide synthesis 8-o-methyltransferase, putative
1207	 69.80	+1	1318089..1319810	+	573	39996317	cydD	GSU1215	-	transport ATP-binding protein CydD
1208	 67.70	+1	1319807..1321453	+	548	39996318	cydC	GSU1216	-	transport ATP-binding protein CydC
1209	 57.74	0	1321513..1321680	+	55	39996319	-	GSU1217	-	hypothetical protein
1210	 63.44	0	1321804..1321989	+	61	39996320	-	GSU1218	-	hypothetical protein
1211	 61.74	0	1322000..1323400	+	466	39996321	gltX	GSU1219	-	glutamyl-tRNA synthetase
1212	 58.87	0	1323513..1324346	-	277	39996322	-	GSU1220	-	response regulator
1213	 60.52	0	1324618..1325838	-	406	39996323	-	GSU1221	-	ammonium transporter, putative
1214	 61.49	0	1326135..1327292	+	385	39996324	-	GSU1222	-	histone deacetylase/AcuC/AphA family protein
1215	 62.62	0	1327300..1328139	+	279	39996325	-	GSU1223	-	hypothetical protein
1216	 62.81	0	1328136..1329095	+	319	39996326	-	GSU1224	-	TPR domain-containing protein
1217	 54.36	-1	1329216..1329743	-	175	39996327	-	GSU1226	-	hypothetical protein
1218	 53.43	-1	1329261..1329683	+	140	39996328	-	GSU1225	-	hypothetical protein
1219	 57.88	0	1329835..1330653	+	272	39996329	-	GSU1227	-	ABC transporter, ATP-binding protein
1220	 60.55	0	1330696..1331709	+	337	39996330	-	GSU1228	-	cytochrome c family protein
1221	 59.24	0	1331753..1333852	+	699	39996331	-	GSU1229	-	putative lipoprotein
1222	 61.89	0	1333874..1334836	+	320	39996332	-	GSU1230	-	hypothetical protein
1223	 55.56	0	1334870..1335265	+	131	39996333	-	GSU1231	-	response regulator
1224	 59.29	0	1335282..1335674	+	130	39996334	-	GSU1232	-	hypothetical protein
1225	 60.49	0	1335685..1336170	-	161	39996335	-	GSU1233	-	phosphoesterase, putative
1226	 62.84	0	1336399..1337181	+	260	39996336	sppA-2	GSU1234	-	signal peptide peptidase SppA, 36K type
1227	 60.64	0	1337263..1338009	-	248	39996337	-	GSU1235	-	hypothetical protein
1228	 60.78	0	1338075..1339094	-	339	39996338	-	GSU1236	-	hypothetical protein
1229	 62.78	0	1339247..1340557	-	436	39996339	-	GSU1237	-	pyridine nucleotide-disulphide oxidoreductase family protein
1230	 62.67	0	1340554..1341003	-	149	39996340	-	GSU1238	-	iron-sulfur cluster-binding protein
1231	 63.46	0	1341008..1342537	-	509	39996341	-	GSU1239	-	glutamate synthase-related protein
1232	 59.76	0	1342846..1343844	-	332	39996342	-	GSU1240	-	hypothetical protein
1233	 52.45	-1	1343841..1344044	-	67	39996343	-	GSU1241	-	hypothetical protein
1234	 60.25	0	1344212..1345411	-	399	39996344	-	GSU1242	-	aspartate aminotransferase
1235	 59.80	0	1345453..1345947	-	164	39996345	coaD	GSU1243	-	pantetheine-phosphate adenylyltransferase
1236	 64.36	0	1345954..1346517	-	187	39996346	-	GSU1244	-	methyltransferase, putative
1237	 61.10	0	1346505..1347599	-	364	39996347	-	GSU1245	-	fructose-bisphosphate aldolase, class-II, putative
1238	 61.67	0	1347775..1348914	+	379	39996348	-	GSU1246	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1239	 64.20	0	1349165..1349731	+	188	39996349	-	GSU1247	-	hypothetical protein
1240	 54.73	-1	1349931..1350332	-	133	39996350	-	GSU1248	-	ISL3 family transposase truncation
1241	 59.37	0	1350455..1352029	+	524	39996351	-	GSU1249	-	sensory box histidine kinase
1242	 61.35	0	1352057..1353466	+	469	39996352	-	GSU1250	-	sigma-54 dependent DNA-binding response regulator
1243	 65.23	0	1353842..1360090	+	2082	39996353	-	GSU1251	-	BNR repeat-containing protein
1244	 64.41	0	1360117..1365075	+	1652	39996354	-	GSU1252	-	hypothetical protein
1245	 63.92	0	1365114..1367153	+	679	39996355	-	GSU1253	-	hypothetical protein
1246	 67.41	+1	1367157..1368500	+	447	39996356	-	GSU1254	-	hypothetical protein
1247	 58.46	0	1368521..1369105	+	194	39996357	-	GSU1255	-	hypothetical protein
1248	 59.13	0	1369123..1369746	+	207	39996358	-	GSU1256	-	hypothetical protein
1249	 62.73	0	1369743..1371368	+	541	39996359	-	GSU1257	-	ABC transporter, periplasmic-substrate binding protein, putative
1250	 59.83	0	1371459..1371941	+	160	39996360	nosL	GSU1258	-	nosL protein
1251	 61.11	0	1372001..1372252	+	83	39996361	-	GSU1259	-	hypothetical protein
1252	 62.33	0	1372290..1373372	+	360	39996362	-	GSU1260	-	ABC transporter, permease protein
1253	 64.47	0	1373374..1374057	+	227	39996363	-	GSU1261	-	ABC transporter, ATP-binding protein
1254	 62.15	0	1374054..1375049	+	331	39996364	-	GSU1262	-	hypothetical protein
1255	 60.61	0	1375122..1375418	-	98	39996365	-	GSU1263	-	hypothetical protein
1256	 63.17	0	1375498..1375812	-	104	39996366	-	GSU1264	-	hypothetical protein
1257	 61.73	0	1375825..1377162	-	445	39996367	-	GSU1265	-	sensor histidine kinase/response regulator
1258	 60.23	0	1377368..1379170	+	600	39996368	lepA	GSU1266	-	GTP-binding protein LepA
1259	 56.05	0	1379195..1379863	+	222	39996369	lepB	GSU1267	-	signal peptidase I
1260	 57.64	0	1379856..1380863	-	335	39996370	-	GSU1268	-	LysR family transcriptional regulator
1261	 62.29	0	1381020..1384445	-	1141	39996371	-	GSU1269	-	hypothetical protein
1262	 62.92	0	1385037..1385570	+	177	39996372	pyrR	GSU1270	-	pyrimidine regulatory protein PyrR
1263	 63.46	0	1385636..1386571	+	311	39996373	pyrB	GSU1271	-	aspartate carbamoyltransferase catalytic subunit
1264	 64.16	0	1386623..1387900	+	425	39996374	pyrC	GSU1272	-	dihydroorotase, multifunctional complex type
1265	 62.58	0	1387991..1389115	+	374	39996375	carA	GSU1273	-	carbamoyl phosphate synthase small subunit
1266	 62.81	0	1389118..1390077	+	319	39996376	-	GSU1274	-	radical SAM domain-containing protein
1267	 56.06	0	1390079..1390408	+	109	39996377	-	GSU1275	-	hypothetical protein
1268	 61.61	0	1390449..1393694	+	1081	39996378	carB	GSU1276	-	carbamoyl-phosphate synthase, large subunit
1269	 58.91	0	1393780..1394256	+	158	39996379	greA	GSU1277	-	transcription elongation factor GreA
1270	 55.05	-1	1394329..1394526	+	65	39996380	-	GSU1278	-	hypothetical protein
1271	 64.05	0	1394709..1395740	+	343	39996381	-	GSU1279	-	cobalamin biosynthesis protein CbiM, putative
1272	 63.71	0	1395768..1396580	+	270	39996382	-	GSU1280	-	cobalt ABC transporter, permease protein
1273	 61.07	0	1396577..1397326	+	249	39996383	-	GSU1281	-	cobalt ABC transporter, ATP-binding protein
1274	 59.01	0	1397350..1398942	+	530	39996384	-	GSU1282	-	hypothetical protein
1275	 58.78	0	1399078..1399635	+	185	39996385	-	GSU1283	-	hypothetical protein
1276	 57.48	0	1399684..1400151	+	155	39996386	-	GSU1284	-	cytochrome c, putative
1277	 62.40	0	1400351..1402669	+	772	39996387	-	GSU1285	-	sensory box sensor histidine kinase/response regulator
1278	 57.83	0	1402706..1403101	+	131	39996388	cheY-2	GSU1286	-	chemotaxis protein CheY
1279	 61.89	0	1403232..1405115	+	627	39996389	-	GSU1287	-	methyl accepting chemotaxis protein, putative
1280	 58.79	0	1405120..1405500	-	126	39996390	-	GSU1288	-	hypothetical protein
1281	 59.02	0	1405494..1405859	+	121	39996391	cheY-3	GSU1289	-	chemotaxis protein CheY
1282	 62.16	0	1405859..1407964	+	701	39996392	cheA-1	GSU1290	-	chemotaxis protein CheA
1283	 54.57	-1	1408182..1408553	+	123	39996393	-	GSU1291	-	response regulator
1284	 58.79	0	1408577..1409731	+	384	39996394	-	GSU1292	-	sensory box histidine kinase
1285	 58.22	0	1409987..1410637	+	216	39996395	-	GSU1293	-	LuxR family DNA-binding response regulator
1286	 59.40	0	1410931..1413819	+	962	39996396	-	GSU1294	-	methyl-accepting chemotaxis protein
1287	 58.75	0	1414022..1414741	+	239	39996397	-	GSU1295	-	hypothetical protein
1288	 61.07	0	1414746..1416926	+	726	39996398	-	GSU1296	-	sensory box histidine kinase/response regulator
1289	 55.34	0	1416989..1418074	+	361	39996399	-	GSU1297	-	ISGsu2, transposase
1290	 57.35	0	1418548..1420254	+	568	39996400	-	GSU1298	-	methyl-accepting chemotaxis protein
1291	 61.01	0	1420264..1420758	+	164	39996401	cheW	GSU1299	-	purine-binding chemotaxis protein CheW
1292	 57.86	0	1421178..1422869	+	563	39996402	-	GSU1300	-	methyl-accepting chemotaxis protein
1293	 60.00	0	1422879..1423373	+	164	39996403	cheW-5	GSU1301	-	purine-binding chemotaxis protein CheW
1294	 61.32	0	1423689..1426196	+	835	39996404	-	GSU1302	-	sensor histidine kinase/response regulator
1295	 60.74	0	1426553..1428037	+	494	39996405	-	GSU1303	-	methyl-accepting chemotaxis protein
1296	 62.08	0	1428274..1429974	+	566	39996406	-	GSU1304	-	methyl-accepting chemotaxis protein
1297	 61.64	0	1430144..1431496	-	450	39996407	-	GSU1305	-	glutamate dehydrogenase
1298	 62.85	0	1431807..1433351	+	514	39996408	-	GSU1306	-	phosphotransferase domain-containing protein
1299	 57.85	0	1433423..1433944	+	173	39996409	ftn	GSU1307	-	ferritin
60.71	MEAN

5.38	STD DEV
