IslandPath Analysis: Geobacter sulfurreducens PCA

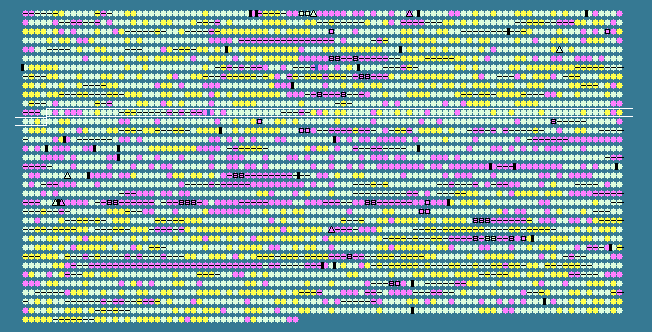

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1105	 57.86	0	1198708..1199649	+	313	39996215	-	GSU1113	-	carbohydrate kinase
1106	 55.33	0	1199618..1200517	+	299	39996216	-	GSU1114	-	TPR domain-containing protein
1107	 60.47	0	1200527..1201381	+	284	39996217	-	GSU1115	-	transcriptional regulator, putative
1108	 55.15	-1	1201440..1202177	+	245	39996218	-	GSU1116	-	hypothetical protein
1109	 48.44	-2	1202241..1202624	+	127	39996219	-	GSU1117	-	response regulator
1110	 53.78	-1	1202650..1203099	+	149	39996220	-	GSU1118	-	universal stress protein
1111	 57.64	0	1203159..1204421	+	420	39996221	-	GSU1119	-	sensor histidine kinase/response regulator
1112	 59.26	0	1204498..1204902	+	134	39996222	-	GSU1120	-	response regulator
1113	 64.36	0	1204912..1206513	+	533	39996223	-	GSU1121	-	hypothetical protein
1114	 59.22	0	1206510..1207637	+	375	39996224	-	GSU1122	-	HD domain-containing protein
1115	 63.17	0	1207667..1208296	+	209	39996225	-	GSU1123	-	metallo-beta-lactamase family protein
1116	 62.67	0	1208341..1209540	+	399	39996226	coaBC	GSU1124	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
1117	 58.72	0	1209557..1210462	-	301	39996227	-	GSU1125	-	hypothetical protein
1118	 66.53	+1	1210532..1211239	+	235	39996228	-	GSU1126	-	phage SPO1 DNA polymerase-related protein
1119	 64.30	0	1211246..1211626	+	126	39996229	-	GSU1127	-	hypothetical protein
1120	 61.94	0	1211690..1212133	+	147	39996230	-	GSU1128	-	hypothetical protein
1121	 59.40	0	1212287..1213648	-	453	39996231	-	GSU1129	-	sigma-54 dependent DNA-binding response regulator
1122	 62.73	0	1213798..1217325	+	1175	39996232	-	GSU1130	-	chromosome segregation SMC protein, putative
1123	 60.00	0	1217345..1217704	+	119	39996233	-	GSU1131	-	hypothetical protein
1124	 60.97	0	1217706..1218758	+	350	39996234	ftsY	GSU1132	-	cell division protein FtsY
1125	 55.93	0	1218820..1218996	+	58	39996235	-	GSU1133	-	hypothetical protein
1126	 59.03	0	1218996..1219283	+	95	39996236	-	GSU1134	-	hypothetical protein
1127	 45.71	-2	1219381..1219485	+	34	39996237	-	GSU1135	-	hypothetical protein
1128	 60.11	0	1219665..1220228	+	187	39996238	-	GSU1136	-	5-formyltetrahydrofolate cyclo-ligase family protein
1129	 56.24	0	1220256..1221818	+	520	39996239	-	GSU1137	-	KH domain-containing protein
1130	 55.64	0	1221808..1222596	+	262	39996240	-	GSU1138	-	Ser/Thr protein phosphatase family protein
1131	 55.69	0	1222614..1223825	+	403	39996241	tyrS	GSU1139	-	tyrosyl-tRNA synthetase
1132	 55.36	0	1229730..1231913	+	727	39996242	-	GSU1140	-	methyl-accepting chemotaxis protein
1133	 59.50	0	1231999..1233588	+	529	39996243	-	GSU1141	-	methyl-accepting chemotaxis protein
1134	 55.76	0	1233727..1234221	+	164	39996244	cheW-3	GSU1142	-	purine-binding chemotaxis protein CheW
1135	 57.45	0	1234240..1235118	+	292	39996245	cheR-2	GSU1143	-	chemotaxis protein methyltransferase CheR
1136	 59.60	0	1235202..1235597	+	131	39996246	-	GSU1144	-	chemotaxis protein CheD, putative
1137	 59.34	0	1235626..1236690	+	354	39996247	cheB-2	GSU1145	-	protein-glutamate methylesterase
1138	 58.76	0	1236842..1237903	+	353	39996248	-	GSU1146	-	hypothetical protein
1139	 60.98	0	1237961..1238998	+	345	39996249	-	GSU1147	-	hypothetical protein
1140	 58.84	0	1239159..1240973	+	604	39996250	-	GSU1148	-	sensor histidine kinase
1141	 57.77	0	1241046..1242281	+	411	39996251	-	GSU1149	-	EAL domain-containing protein
1142	 60.22	0	1242391..1243818	+	475	39996252	-	GSU1150	-	oxidative cyclase-related protein
1143	 62.05	0	1243829..1244695	+	288	39996253	-	GSU1151	-	hypothetical protein
1144	 57.74	0	1244688..1245068	+	126	39996254	-	GSU1152	-	hypothetical protein
1145	 61.12	0	1245146..1246822	-	558	39996255	-	GSU1153	-	OMP85 family outer membrane protein
1146	 63.13	0	1246831..1260972	-	4713	39996256	-	GSU1154	-	surface protein
1147	 54.84	-1	1261184..1261555	-	123	39996257	-	GSU1155	-	glutaredoxin family protein
1148	 63.56	0	1261648..1263033	+	461	39996258	asnC	GSU1156	-	asparaginyl-tRNA synthetase
1149	 65.25	0	1263068..1263349	+	93	39996259	-	GSU1157	-	hypothetical protein
1150	 56.99	0	1263496..1264074	+	192	39996260	sodA	GSU1158	-	superoxide dismutase
1151	 64.48	0	1264180..1264683	+	167	39996261	-	GSU1159	-	PfpI family intracellular peptidase
1152	 57.73	0	1264695..1265108	+	137	39996262	-	GSU1160	-	hypothetical protein
1153	 66.83	+1	1265187..1266401	+	404	39996263	-	GSU1161	-	RND family efflux transporter MFP subunit
1154	 64.51	0	1266402..1267097	+	231	39996264	-	GSU1162	-	ABC transporter, ATP-binding protein
1155	 61.74	0	1267101..1268258	+	385	39996265	-	GSU1163	-	ABC transporter, permease protein
1156	 63.32	0	1268258..1269421	+	387	39996266	-	GSU1164	-	ABC transporter, permease protein
1157	 62.46	0	1269431..1271140	-	569	39996267	ptsP	GSU1165	-	phosphoenolpyruvate-protein phosphotransferase PtsP
1158	 63.17	0	1271943..1272743	+	266	39996268	-	GSU1166	-	TPR domain-containing protein
1159	 56.41	0	1272827..1273177	+	116	39996269	-	GSU1167	-	hypothetical protein
1160	 64.37	0	1273277..1273930	+	217	39996270	-	GSU1168	-	hypothetical protein
1161	 61.97	0	1273947..1274585	-	212	39996271	-	GSU1169	-	hypothetical protein
1162	 64.05	0	1274698..1274850	-	50	39996272	-	GSU1170	-	hypothetical protein
1163	 65.81	0	1274908..1276890	+	660	39996273	-	GSU1171	-	hypothetical protein
1164	 62.01	0	1276965..1278530	+	521	39996274	mviN	GSU1172	-	virulence factor mviN protein
1165	 65.21	0	1278520..1279068	+	182	39996275	-	GSU1173	-	methylated-DNA--protein-cysteine methyltransferase, putative
1166	 61.24	0	1279352..1280143	-	263	39996276	mazG	GSU1174	-	nucleoside triphosphate pyrophosphohydrolase
1167	 59.62	0	1280212..1281318	-	368	39996277	tgt-1	GSU1175	-	queuine tRNA-ribosyltransferase
1168	 55.20	-1	1281852..1282514	+	220	39996278	-	GSU1176	-	fumarate reductase, cytochrome b subunit, putative
1169	 59.35	0	1282525..1284438	+	637	39996279	sdhA	GSU1177	-	succinate dehydrogenase flavoprotein subunit
1170	 58.66	0	1284438..1285199	+	253	39996280	frdB	GSU1178	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
1171	 60.02	0	1285504..1286421	+	305	39996281	-	GSU1179	-	hypothetical protein
1172	 60.09	0	1286588..1288441	+	617	39996282	ftsH-1	GSU1180	-	cell division protein FtsH
1173	 51.57	-1	1288446..1288763	-	105	39996283	-	GSU1181	-	hypothetical protein
1174	 60.26	0	1288728..1290209	+	493	39996284	malQ	GSU1182	-	4-alpha-glucanotransferase
1175	 60.61	0	1290337..1291623	+	428	39996285	-	GSU1183	-	O-acetyl-L-homoserine sulfhydrylase
1176	 61.37	0	1291708..1292292	+	194	39996286	-	GSU1184	-	hypothetical protein
1177	 59.71	0	1292703..1293191	-	162	39996287	-	GSU1185	-	hypothetical protein
1178	 63.74	0	1293361..1293531	-	56	39996288	-	GSU1186	-	hypothetical protein
1179	 67.57	+1	1293780..1293890	+	36	39996289	-	GSU1187	-	hypothetical protein
1180	 61.90	0	1294073..1294618	+	181	39996290	-	GSU1188	-	rhomboid family protein
1181	 63.51	0	1294633..1295583	-	316	39996291	-	GSU1189	-	M48 family peptidase
1182	 64.54	0	1295588..1296622	-	344	39996292	-	GSU1190	-	tRNA 2-selenouridine synthase
1183	 58.82	0	1296679..1296780	+	33	39996293	-	GSU1191	-	hypothetical protein
1184	 57.33	0	1296898..1297272	+	124	39996294	-	GSU1192	-	hypothetical protein
1185	 60.76	0	1297385..1298671	+	428	39996295	-	GSU1193	-	ketose-bisphosphate aldolase family protein
1186	 63.93	0	1298743..1299363	+	206	39996296	-	GSU1194	-	amino acid transporter LysE
1187	 65.28	0	1299515..1300162	+	215	39996297	-	GSU1195	-	HD domain-containing protein
1188	 60.16	0	1300159..1300542	-	127	39996298	-	GSU1196	-	hypothetical protein
1189	 62.63	0	1300548..1301042	-	164	39996299	-	GSU1197	-	RNA methyltransferase
1190	 61.33	0	1301218..1302846	+	542	39996300	serA	GSU1198	-	D-3-phosphoglycerate dehydrogenase
1191	 63.48	0	1302927..1303490	+	187	39996301	-	GSU1199	-	nuclease, putative
1192	 63.44	0	1303580..1304788	+	402	39996302	rpsA	GSU1200	-	30S ribosomal protein S1
1193	 62.76	0	1304794..1305279	+	161	39996303	greB	GSU1201	-	transcription elongation factor GreB
1194	 64.99	0	1305384..1306457	+	357	39996304	-	GSU1202	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase, truncation
1195	 58.86	0	1306518..1307978	+	486	39996305	-	GSU1203	-	potassium/proton antiporter
1196	 62.18	0	1308090..1310183	+	697	39996306	-	GSU1204	-	sodium/hydrogen exchanger family protein
1197	 58.65	0	1310180..1310653	+	157	39996307	-	GSU1205	-	flavodoxin family protein
1198	 66.33	+1	1310650..1311246	+	198	39996308	-	GSU1206	-	HDIG domain-containing protein
1199	 56.94	0	1311248..1311535	+	95	39996309	-	GSU1207	-	HesB/YadR/YfhF family protein, selenocysteine-containing
1200	 66.82	+1	1311551..1312195	+	214	39996310	-	GSU1208	-	hypothetical protein
1201	 63.66	0	1312215..1312946	-	243	39996311	-	GSU1209	-	hypothetical protein
1202	 63.00	0	1312970..1313977	+	335	39996312	-	GSU1210	-	metallo-beta-lactamase family protein
1203	 64.42	0	1314048..1314314	+	88	39996313	-	GSU1211	-	hypothetical protein
1204	 59.41	0	1314408..1315385	-	325	39996314	-	GSU1212	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
