IslandPath Analysis: Geobacter sulfurreducens PCA

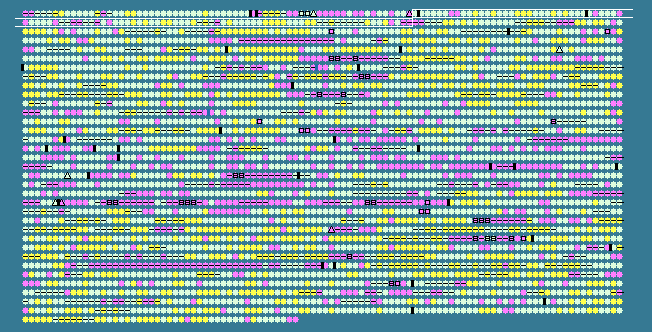

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.71   STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
66	 58.15	0	81425..81964	+	179	39995176	-	GSU0065	-	cytidine/deoxycytidylate deaminase family protein
67	 59.04	0	82566..83273	+	235	39995177	-	GSU0066	-	AhpC/Tsa family protein, selenocysteine-containing
68	 57.87	0	83254..83901	+	215	39995178	-	GSU0067	-	carbonic anhydrase
69	 60.46	0	84006..84488	+	160	39995179	-	GSU0068	-	cytochrome c family protein
70	 61.63	0	84481..85254	+	257	39995180	-	GSU0069	-	oxidoreductase, iron-sulfur cluster-binding subunit
71	 58.93	0	85257..86510	+	417	39995181	-	GSU0070	-	oxidoreductase, membrane subunit
72	 54.89	-1	86581..87030	-	149	39995182	-	GSU0071	-	hypothetical protein
73	 48.96	-2	87371..87466	-	31	39995183	-	GSU0072	-	hypothetical protein
74	 60.70	0	87476..88078	-	200	39995184	-	GSU0073	-	outer membrane protein, putative
75	 62.84	0	88132..88785	-	217	39995185	elbB	GSU0074	-	isoprenoid biosynthesis protein
76	 64.81	0	88858..89775	-	305	39995186	-	GSU0075	-	hypothetical protein
77	 63.50	0	89887..90486	+	199	39995187	-	GSU0076	-	hypothetical protein
78	 59.00	0	90505..90765	+	86	39995188	-	GSU0077	-	hypothetical protein
79	 65.50	0	90775..91116	+	113	39995189	-	GSU0078	-	hypothetical protein
80	 58.54	0	91135..91725	-	196	39995190	-	GSU0079	-	Cro/CI family transcriptional regulator
81	 63.06	0	91907..93322	+	471	39995191	degQ	GSU0080	-	protease degQ
82	 61.36	0	93366..93629	+	87	39995192	-	GSU0081	-	hypothetical protein
83	 65.43	0	93714..94682	+	322	39995193	rluD	GSU0082	-	ribosomal large subunit pseudouridine synthase D
84	 64.92	0	94685..95485	+	266	39995194	-	GSU0083	-	hypothetical protein
85	 67.43	+1	95499..96674	+	391	39995195	-	GSU0084	-	hypothetical protein
86	 64.06	0	96773..97615	-	280	39995196	-	GSU0085	-	heterodisulfide reductase, cytochrome reductase subunit
87	 57.35	0	97614..98021	+	135	39995197	-	GSU0086	-	hypothetical protein
88	 63.38	0	98008..99012	-	334	39995198	-	GSU0087	-	heterodisulfide reductase, iron-sulfur binding subunit, putative
89	 65.70	0	99056..99985	-	309	39995199	-	GSU0088	-	heterodisulfide reductase subunit
90	 62.28	0	100019..100519	-	166	39995200	-	GSU0089	-	heterodisulfide reductase subunit
91	 64.26	0	100519..102516	-	665	39995201	-	GSU0090	-	heterodisulfide reductase subunit
92	 64.09	0	102517..103407	-	296	39995202	-	GSU0091	-	heterodisulfide reductase subunit
93	 59.74	0	103404..103952	-	182	39995203	-	GSU0092	-	heterodisulfide reductase subunit
94	 61.92	0	104580..106412	+	610	39995204	-	GSU0093	-	ABC transporter, ATP-binding/permease protein
95	 63.51	0	106783..108522	+	579	39995205	dnaX	GSU0094	-	DNA polymerase III, gamma and tau subunits
96	 56.19	0	108593..108907	+	104	39995206	-	GSU0095	-	hypothetical protein
97	 62.63	0	109096..109689	+	197	39995207	recR	GSU0096	-	recombination protein RecR
98	 62.90	0	109754..113341	+	1195	39995208	-	GSU0097	-	pyruvate ferredoxin/flavodoxin oxidoreductase
99	 57.93	0	113608..114099	+	163	39995209	-	GSU0098	-	MglB protein
100	 56.29	0	114118..114705	+	195	39995210	-	GSU0099	-	MglA protein
101	 53.33	-1	114689..114793	-	34	39995211	-	GSU0100	-	hypothetical protein
102	 62.45	0	114856..116634	+	592	39995212	-	GSU0101	-	ABC transporter, ATP-binding/permease protein
103	 63.79	0	116665..118575	+	636	39995213	selB	GSU0102	-	selenocysteine-specific translation elongation factor
104	 58.24	0	118723..120834	+	703	39995214	-	GSU0103	-	sensory box histidine kinase
105	 61.03	0	120852..121241	+	129	39995215	-	GSU0104	-	response regulator, putative
106	 56.09	0	121302..121613	-	103	39995216	-	GSU0105	-	cytochrome c family protein, putative
107	 59.69	0	121771..122544	+	257	39995217	-	GSU0106	-	soj protein
108	 60.86	0	122567..123376	+	269	39995218	-	GSU0107	-	ParB-like nuclease domain-containing protein
109	 56.10	0	123555..123980	+	141	39995219	-	GSU0108	-	ATP synthase F0, B' subunit, putative
110	 56.16	0	124109..124603	+	164	39995220	atpF	GSU0109	-	ATP synthase F0, B subunit
111	 58.38	0	124600..125142	+	180	39995221	atpH	GSU0110	-	F0F1 ATP synthase subunit delta
112	 59.85	0	125151..126662	+	503	39995222	atpA	GSU0111	-	F0F1 ATP synthase subunit alpha
113	 55.44	0	126684..127547	+	287	39995223	atpG	GSU0112	-	F0F1 ATP synthase subunit gamma
114	 60.86	0	127605..129017	+	470	39995224	atpD	GSU0113	-	F0F1 ATP synthase subunit beta
115	 53.96	-1	129078..129494	+	138	39995225	atpC	GSU0114	-	F0F1 ATP synthase subunit epsilon
116	 60.26	0	129587..130600	+	337	39995226	pdxA	GSU0115	-	pyridoxal phosphate biosynthetic protein PdxA
117	 58.81	0	130603..131556	+	317	39995227	-	GSU0116	-	transglycosylase
118	 57.47	0	131671..132975	-	434	39995228	-	GSU0117	-	aminotransferase
119	 65.02	0	133254..133859	-	201	39995229	-	GSU0118	-	hypothetical protein
120	 60.77	0	133877..134215	-	112	39995230	-	GSU0119	-	glyoxalase family protein
121	 66.67	+1	134385..134819	-	144	39995231	-	GSU0120	-	hydrogenase maturation protease
122	 61.88	0	134859..135527	-	222	39995232	-	GSU0121	-	nickel-iron hydrogenase, b-type cytochrome subunit
123	 63.30	0	135537..137231	-	564	39995233	-	GSU0122	-	nickel-dependent hydrogenase, large subunit
124	 66.21	+1	137241..138326	-	361	39995234	-	GSU0123	-	nickel-dependent hydrogenase, small subunit
125	 69.46	+1	138515..139231	-	238	39995235	-	GSU0124	-	competence protein F, putative
126	 63.15	0	139235..139888	-	217	39995236	-	GSU0125	-	hypothetical protein
127	 62.17	0	139913..140890	-	325	39995237	-	GSU0126	-	iron-sulfur cluster-binding protein
128	 62.07	0	141097..141945	-	282	39995238	-	GSU0127	-	hypothetical protein
129	 67.38	+1	141993..144248	+	751	39995239	priA	GSU0128	-	primosomal protein n`
130	 57.92	0	144291..144839	+	182	39995240	def-1	GSU0129	-	polypeptide deformylase
131	 64.47	0	144850..145803	+	317	39995241	fmt	GSU0130	-	methionyl-tRNA formyltransferase
132	 59.92	0	145806..146561	+	251	39995242	-	GSU0131	-	hypothetical protein
133	 56.02	0	146719..147225	-	168	39995243	-	GSU0132	-	hypothetical protein
134	 62.30	0	147502..148668	+	388	39995244	-	GSU0133	-	hypothetical protein
135	 64.21	0	148677..149777	-	366	39995245	-	GSU0134	-	ribonuclease Z
136	 62.78	0	149856..150833	-	325	39995246	hemB	GSU0135	-	delta-aminolevulinic acid dehydratase
137	 62.10	0	151068..151505	+	145	39995247	-	GSU0136	-	hypothetical protein
138	 58.66	0	151656..152354	-	232	39995248	-	GSU0137	-	hypothetical protein
139	 59.90	0	152504..154084	+	526	39995249	prfC	GSU0138	-	peptide chain release factor 3
140	 62.11	0	154312..154926	+	204	39995250	-	GSU0139	-	hypothetical protein
141	 65.60	0	155133..155882	+	249	39995251	-	GSU0140	-	hypothetical protein
142	 65.55	0	155890..157056	+	388	39995252	-	GSU0141	-	hypothetical protein
143	 65.07	0	157068..157505	+	145	39995253	pgpA	GSU0142	-	phosphatidylglycerophosphatase A
144	 68.92	+1	157502..158743	+	413	39995254	-	GSU0143	-	competence/damage-inducible protein CinA
145	 62.02	0	158787..160916	+	709	39995255	-	GSU0144	-	sensory box histidine kinase
146	 62.93	0	161049..162065	+	338	39995256	recA	GSU0145	-	recombinase A
147	 63.82	0	162069..163229	+	386	39995257	pilT-1	GSU0146	-	twitching motility protein PilT
148	 68.54	+1	163258..163737	+	159	39995258	recX	GSU0147	-	regulatory protein RecX
149	 64.88	0	163809..166436	+	875	39995259	alaS	GSU0148	-	alanyl-tRNA synthetase
150	 60.93	0	166459..167574	+	371	39995260	-	GSU0149	-	sensor histidine kinase/response regulator
151	 63.48	0	167708..168586	+	292	39995261	argB	GSU0150	-	acetylglutamate kinase
152	 64.33	0	168667..169866	+	399	39995262	argD	GSU0151	-	acetylornithine aminotransferase
153	 64.04	0	169863..170774	+	303	39995263	argF	GSU0152	-	ornithine carbamoyltransferase
154	 62.82	0	170807..172027	+	406	39995264	argG	GSU0153	-	argininosuccinate synthase
155	 60.59	0	172194..172637	+	147	39995265	-	GSU0154	-	mutT/nudix family protein
156	 63.57	0	172648..173811	+	387	39995266	-	GSU0155	-	hypothetical protein
157	 63.62	0	173833..175209	+	458	39995267	argH	GSU0156	-	argininosuccinate lyase
158	 68.86	+1	175248..176021	+	257	39995268	-	GSU0157	-	fibronectin type III domain-containing protein
159	 63.72	0	176159..177412	+	417	39995269	lysA	GSU0158	-	diaminopimelate decarboxylase
160	 63.69	0	177446..178318	+	290	39995270	dapA	GSU0159	-	dihydrodipicolinate synthase
161	 65.42	0	178340..179140	+	266	39995271	dapB	GSU0160	-	dihydrodipicolinate reductase
162	 45.74	-2	179230..179358	+	42	39995272	-	GSU0161	-	hypothetical protein
163	 62.77	0	179342..180574	+	410	39995273	-	GSU0162	-	L,L-diaminopimelate aminotransferase
164	 52.08	-1	180697..180984	+	95	39995274	-	GSU0163	-	hypothetical protein
165	 56.20	0	180981..181343	+	120	39995275	-	GSU0164	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
