IslandPath Analysis: Geobacter metallireducens GS-15

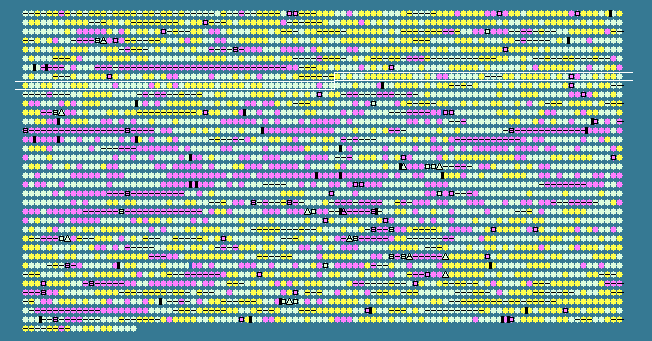

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
753	 63.69	0	834001..835107	-	368	78221981	-	Gmet_0761	-	4Fe-4S ferredoxin, iron-sulfur binding protein
754	 60.70	0	835271..836008	+	245	78221982	-	Gmet_0762	-	response regulator receiver domain-containing protein
755	 63.79	0	836233..839043	-	936	78221983	-	Gmet_0763	-	putative GAF sensor protein
756	 60.60	0	839242..841086	-	614	78221984	-	Gmet_0764	-	hypothetical protein
757	 61.01	0	841121..841915	-	264	78221985	-	Gmet_0765	-	Beta-lactamase-like
758	 65.78	+1	842006..843025	+	339	78221986	-	Gmet_0766	-	glycosyl transferase, group 1
759	 67.63	+1	843112..844560	+	482	78221987	-	Gmet_0767	-	protein of unknown function DUF853, NPT hydrolase putative
760	 65.04	0	844638..844883	-	81	78221988	-	Gmet_0768	-	hypothetical protein
761	 68.02	+1	845100..845543	-	147	78221989	-	Gmet_0769	-	thioesterase superfamily protein
762	 66.21	+1	845540..847942	-	800	78221990	-	Gmet_0770	-	phosphoenolpyruvate synthase
763	 65.69	+1	848051..848662	-	203	78221991	-	Gmet_0771	-	TrpR binding protein WrbA
764	 63.36	0	848755..849147	-	130	78221992	-	Gmet_0772	-	FxsA cytoplasmic membrane protein
765	 68.13	+1	849171..850127	-	318	78221993	-	Gmet_0773	-	cyclic nucleotide-binding domain-containing protein
766	 62.82	0	850145..850690	-	181	78221994	-	Gmet_0774	-	carbonic anhydrase
767	 60.19	0	850874..852247	+	457	78221995	-	Gmet_0775	-	OmpA/MotB
768	 63.88	0	852328..853692	-	454	78221996	-	Gmet_0776	-	two component, sigma54 specific, Fis family transcriptional regulator
769	 62.08	0	853853..856099	-	748	78221997	-	Gmet_0777	-	PAS/PAC sensor signal transduction histidine kinase
770	 51.05	-1	856284..856712	-	142	78221998	-	Gmet_0778	-	response regulator receiver domain-containing protein
771	 54.87	0	856714..858018	-	434	78221999	-	Gmet_0779	-	PAS/PAC sensor signal transduction histidine kinase
772	 58.75	0	858077..860740	-	887	78222000	-	Gmet_0780	-	MCP methyltransferase/methylesterase, CheR/CheB with PAS/PAC sensor
773	 60.76	0	861062..861907	+	281	78222001	-	Gmet_0781	-	extracellular solute-binding protein
774	 59.57	0	861917..864127	+	736	78222002	-	Gmet_0782	-	diguanylate cyclase/phosphodiesterase
775	 57.57	0	864251..865327	-	358	78222003	-	Gmet_0783	-	hypothetical protein
776	 58.87	0	865751..866353	-	200	78222004	-	Gmet_0784	-	toluene tolerance
777	 64.68	0	866372..867733	-	453	78222005	-	Gmet_0785	-	Outer membrane efflux protein
778	 60.26	0	867761..868213	-	150	78222006	-	Gmet_0786	-	virulence factor MCE-like protein-related protein
779	 61.85	0	868232..868978	-	248	78222007	-	Gmet_0787	-	ABC transporter-related protein
780	 62.02	0	868982..869755	-	257	78222008	-	Gmet_0788	-	hypothetical protein
781	 65.87	+1	869826..871451	-	541	78222009	-	Gmet_0789	-	aldehyde dehydrogenase
782	 64.69	0	871620..872429	+	269	78222010	-	Gmet_0790	-	dienelactone hydrolase
783	 62.24	0	872481..872999	+	172	78222011	-	Gmet_0791	-	hypothetical protein
784	 63.29	0	872996..873499	-	167	78222012	-	Gmet_0792	-	hypothetical protein
785	 64.29	0	873771..874526	+	251	78222013	-	Gmet_0793	-	hypothetical protein
786	 69.92	+1	874669..875745	+	358	78222014	-	Gmet_0794	-	GTPase EngC
787	 66.40	+1	875753..876505	-	250	78222015	-	Gmet_0795	-	hypothetical protein
788	 66.67	+1	876513..877151	-	212	78222016	-	Gmet_0796	-	Allergen V5/Tpx-1 related protein
789	 58.20	0	877148..878092	-	314	78222017	-	Gmet_0797	-	hypothetical protein
790	 65.54	+1	878243..878863	-	206	78222018	-	Gmet_0798	-	lysine exporter protein LysE/YggA
791	 58.87	0	879101..880267	-	388	78222019	-	Gmet_0799	-	methyl-accepting chemotaxis sensory transducer
792	 55.31	0	880277..881500	-	407	78222020	-	Gmet_0800	-	IS204/IS1001/IS1096/IS1165 transposase
793	 53.80	0	881801..882142	+	113	78222021	-	Gmet_0801	-	PhnA protein
794	 60.00	0	882241..882900	+	219	78222022	-	Gmet_0802	-	tia invasion determinant-related protein
795	 62.61	0	883023..883613	+	196	78222023	-	Gmet_0803	-	TetR family transcriptional regulator
796	 68.66	+1	883667..884671	+	334	78222024	-	Gmet_0804	-	alcohol dehydrogenase
797	 60.14	0	884699..885265	+	188	78222025	-	Gmet_0805	-	flavin reductase-like, FMN-binding
798	 65.74	+1	885298..886488	+	396	78222026	-	Gmet_0806	-	major facilitator transporter
799	 66.79	+1	886500..887312	+	270	78222027	-	Gmet_0807	-	4Fe-4S ferredoxin, iron-sulfur binding protein
800	 58.33	0	887394..887969	+	191	78222028	-	Gmet_0808	-	TetR family transcriptional regulator
801	 63.95	0	888033..889211	+	392	78222029	-	Gmet_0809	-	secretion protein HlyD
802	 62.84	0	889352..892513	+	1053	78222030	-	Gmet_0810	-	hydrophobe/amphiphile efflux-1 HAE1
803	 62.93	0	892515..894068	+	517	78222031	-	Gmet_0811	-	RND efflux system, outer membrane lipoprotein, NodT
804	 63.07	0	894240..895601	-	453	78222032	-	Gmet_0812	-	two component, sigma54 specific, Fis family transcriptional regulator
805	 64.35	0	895706..897046	+	446	78222033	-	Gmet_0813	-	nodulation efficiency protein NfeD
806	 62.40	0	897120..897893	+	257	78222034	-	Gmet_0814	-	SPFH domain-containing protein/band 7 family protein
807	 59.71	0	897972..898991	-	339	78222035	-	Gmet_0815	-	PpiC-type peptidyl-prolyl cis-trans isomerase
808	 62.63	0	899262..902708	+	1148	78222036	-	Gmet_0816	-	pyruvate carboxylase
809	 65.89	+1	902866..903252	+	128	78222037	-	Gmet_0817	-	hypothetical protein
810	 63.49	0	903342..904190	+	282	78222038	-	Gmet_0818	-	nitroreductase
811	 65.50	+1	904271..905554	-	427	78222039	-	Gmet_0819	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
812	 62.88	0	905624..905887	-	87	78222040	-	Gmet_0820	-	hypothetical protein
813	 60.32	0	905950..907587	-	545	78222041	-	Gmet_0821	-	methyl-accepting chemotaxis sensory transducer
814	 59.97	0	907831..908427	+	198	78222042	-	Gmet_0822	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
815	 62.78	0	908533..909432	+	299	78222043	-	Gmet_0823	-	3-beta hydroxysteroid dehydrogenase/isomerase
816	 52.94	-1	909457..909864	-	135	78222044	-	Gmet_0824	-	hypothetical protein
817	 61.66	0	910059..910976	+	305	78222045	-	Gmet_0825	-	cytochrome c family protein
818	 62.31	0	911064..912347	+	427	78222046	-	Gmet_0826	-	hypothetical protein
819	 61.78	0	912372..912842	+	156	78222047	-	Gmet_0827	-	cytochrome c family protein
820	 57.07	0	912854..913603	+	249	78222048	-	Gmet_0828	-	cytochrome c family protein
821	 60.36	0	913666..914379	+	237	78222049	-	Gmet_0829	-	hypothetical protein
822	 54.67	0	914407..915081	+	224	78222050	-	Gmet_0830	-	roadblock/LC7 domain-contain protein
823	 65.22	0	915283..917355	+	690	78222051	-	Gmet_0831	-	hypothetical protein
824	 61.60	0	917464..918450	+	328	78222052	-	Gmet_0832	-	alcohol dehydrogenase
825	 63.92	0	918513..920366	+	617	78222053	-	Gmet_0833	-	Alpha amylase, catalytic region
826	 54.91	0	920404..920871	+	155	78222054	-	Gmet_0834	-	hemerythrin-like, metal-binding protein
827	 60.71	0	920928..921263	+	111	78222055	-	Gmet_0835	-	hypothetical protein
828	 66.50	+1	921351..921941	-	196	78222056	-	Gmet_0836	-	hypothetical protein
829	 66.44	+1	921938..924112	-	724	78222057	-	Gmet_0837	-	twin-arginine translocation pathway signal
830	 66.88	+1	924109..924573	-	154	78222058	-	Gmet_0838	-	ferredoxin:(2Fe-2S)-binding protein
831	 63.27	0	924607..925224	-	205	78222059	-	Gmet_0839	-	putative lipoprotein
832	 63.92	0	925363..926598	-	411	78222060	-	Gmet_0840	-	diguanylate cyclase
833	 61.67	0	926669..927349	-	226	78222061	-	Gmet_0841	-	metallophosphoesterase
834	 67.67	+1	927499..928689	+	396	78222062	-	Gmet_0842	-	8-amino-7-oxononanoate synthase
835	 66.54	+1	928693..929511	+	272	78222063	-	Gmet_0843	-	Alpha/beta hydrolase fold
836	 69.26	+1	929504..930313	+	269	78222064	-	Gmet_0844	-	UbiE/COQ5 methyltransferase
837	 64.32	0	930371..931564	-	397	78222065	-	Gmet_0845	-	SAM-dependent methyltransferase
838	 57.97	0	931626..931901	-	91	78222066	-	Gmet_0846	-	ArsR family transcriptional regulator
839	 63.91	0	932026..933003	-	325	78222067	-	Gmet_0847	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein-like
840	 65.42	+1	933000..933962	-	320	78222068	-	Gmet_0848	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein-like
841	 57.38	0	934081..936213	-	710	78222069	-	Gmet_0849	-	metal dependent phosphohydrolase
842	 59.95	0	936592..937722	+	376	78222070	-	Gmet_0850	-	stage II sporulation-related protein
843	 60.76	0	937712..938743	+	343	78222071	-	Gmet_0851	-	queuosine biosynthesis protein
844	 61.01	0	938789..939901	+	370	78222072	-	Gmet_0852	-	queuine tRNA-ribosyltransferase
845	 58.26	0	939968..940288	+	106	78222073	-	Gmet_0853	-	protein translocase subunit yajC
846	 61.17	0	940320..941921	+	533	78222074	secD	Gmet_0854	-	preprotein translocase subunit SecD
847	 56.99	0	941931..942839	+	302	78222075	secF	Gmet_0855	-	preprotein translocase subunit SecF
848	 57.96	0	942858..943454	+	198	78222076	-	Gmet_0856	-	sugar transporter superfamily protein
849	 60.33	0	943526..945262	+	578	78222077	-	Gmet_0857	-	RecJ exonuclease
850	 54.89	0	945256..946155	+	299	78222078	-	Gmet_0858	-	cation efflux protein
851	 59.46	0	946272..947756	+	494	78222079	-	Gmet_0859	-	response regulator receiver domain-containing protein
852	 61.64	0	947902..949491	+	529	78222080	-	Gmet_0860	-	peptidoglycan-binding LysM
59.54	MEAN

5.81	STD DEV
