IslandPath Analysis: Geobacter metallireducens GS-15

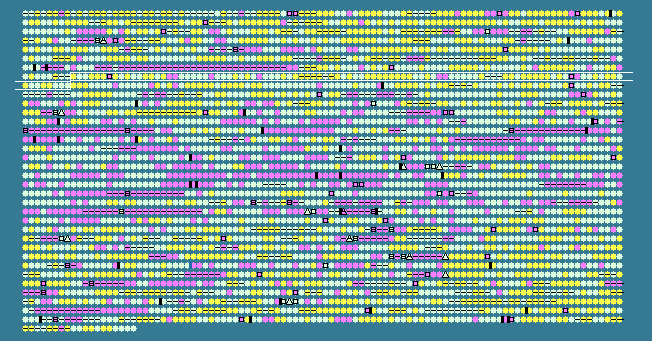

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 59.54   STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
709	 64.04	0	790278..791039	+	253	78221937	-	Gmet_0717	-	hypothetical protein
710	 59.34	0	791057..791329	+	90	78221938	-	Gmet_0718	-	hypothetical protein
711	 58.83	0	791718..793682	+	654	78221939	-	Gmet_0719	-	hypothetical protein
712	 64.87	0	793857..794747	+	296	78221940	-	Gmet_0720	-	hypothetical protein
713	 67.31	+1	794753..795835	+	360	78221941	-	Gmet_0721	-	hypothetical protein
714	 64.81	0	795965..796450	+	161	78221942	-	Gmet_0722	-	SecC motif-containing protein
715	 52.87	-1	796780..797736	+	318	78221943	-	Gmet_0723	-	IS111A/IS1328/IS1533/IS116/IS110/IS902 transposase
716	 63.87	0	797717..798787	-	356	78221944	-	Gmet_0724	-	ribonuclease Z
717	 59.43	0	798923..799309	+	128	78221945	-	Gmet_0725	-	hypothetical protein
718	 66.22	+1	799236..800129	-	297	78221946	-	Gmet_0726	-	Alpha/beta hydrolase fold
719	 61.57	0	800137..800568	-	143	78221947	-	Gmet_0727	-	hypothetical protein
720	 57.66	0	800565..801008	-	147	78221948	-	Gmet_0728	-	TPR repeat-containing protein
721	 64.51	0	801189..802346	+	385	78221949	-	Gmet_0729	-	succinyl-CoA synthetase (ADP-forming) beta subunit
722	 65.75	+1	802382..803257	+	291	78221950	-	Gmet_0730	-	succinyl-CoA synthetase (ADP-forming) alpha subunit
723	 61.27	0	803398..805008	+	536	78221951	-	Gmet_0731	-	PAS/PAC sensor signal transduction histidine kinase
724	 64.57	0	805086..806279	-	397	78221952	-	Gmet_0732	-	aspartate aminotransferase
725	 54.02	0	806545..807240	+	231	78221953	-	Gmet_0733	-	cytochrome c, putative
726	 54.64	0	807268..807666	+	132	78221954	-	Gmet_0734	-	N-terminal methylation
727	 56.55	0	807670..808707	+	345	78221955	-	Gmet_0735	-	N-terminal methylation
728	 58.54	0	808712..809203	+	163	78221956	-	Gmet_0736	-	hypothetical protein
729	 56.52	0	809210..812185	+	991	78221957	-	Gmet_0737	-	type IV pilus assembly protein PilY1
730	 60.73	0	812209..813420	-	403	78221958	-	Gmet_0738	-	protein of unknown function DUF294, nucleotidyltransferase putative
731	 62.91	0	813505..815259	-	584	78221959	-	Gmet_0739	-	Na+/solute symporter
732	 55.02	0	815503..815811	-	102	78221960	-	Gmet_0740	-	hypothetical protein
733	 60.55	0	815945..816712	-	255	78221961	-	Gmet_0741	-	IclR family transcriptional regulator
734	 59.40	0	817074..817472	-	132	78221962	-	Gmet_0742	-	hypothetical protein
735	 59.81	0	817626..818369	+	247	78221963	-	Gmet_0743	-	hypothetical protein
736	 63.23	0	818496..818990	+	164	78221964	-	Gmet_0744	-	Holliday junction endonuclease RuvC
737	 61.50	0	818987..819586	+	199	78221965	-	Gmet_0745	-	Holliday junction DNA helicase subunit RuvA
738	 64.41	0	819634..820650	+	338	78221966	ruvB	Gmet_0746	-	Holliday junction DNA helicase B
739	 62.70	0	820657..821388	+	243	78221967	-	Gmet_0747	-	regulatory inactivation of DnaA Hda protein
740	 52.68	-1	821669..822376	+	235	78221968	-	Gmet_0748	-	hypothetical protein
741	 62.41	0	822514..824277	-	587	78221969	-	Gmet_0749	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
742	 56.21	0	824509..825225	-	238	78221970	-	Gmet_0750	-	Crp/FNR family transcriptional regulator
743	 60.49	0	825369..827132	-	587	78221971	-	Gmet_0751	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
744	 63.17	0	827507..828049	+	180	78221972	-	Gmet_0752	-	hypothetical protein
745	 59.15	0	828049..828261	+	70	78221973	-	Gmet_0753	-	hypothetical protein
746	 67.61	+1	828358..829419	+	353	78221974	-	Gmet_0754	-	hypothetical protein
747	 69.14	+1	829423..829908	+	161	78221975	-	Gmet_0755	-	hypothetical protein
748	 63.06	0	829919..830140	+	73	78221976	-	Gmet_0756	-	hypothetical protein
749	 70.76	+1	830141..831118	+	325	78221977	-	Gmet_0757	-	hypothetical protein
750	 68.65	+1	831111..831764	+	217	78221978	-	Gmet_0758	-	hypothetical protein
751	 61.37	0	831841..832161	+	106	78221979	-	Gmet_0759	-	hypothetical protein
752	 64.06	0	832155..833840	+	561	78221980	-	Gmet_0760	-	2-octaprenylphenol hydroxylase
753	 63.69	0	834001..835107	-	368	78221981	-	Gmet_0761	-	4Fe-4S ferredoxin, iron-sulfur binding protein
754	 60.70	0	835271..836008	+	245	78221982	-	Gmet_0762	-	response regulator receiver domain-containing protein
755	 63.79	0	836233..839043	-	936	78221983	-	Gmet_0763	-	putative GAF sensor protein
756	 60.60	0	839242..841086	-	614	78221984	-	Gmet_0764	-	hypothetical protein
757	 61.01	0	841121..841915	-	264	78221985	-	Gmet_0765	-	Beta-lactamase-like
758	 65.78	+1	842006..843025	+	339	78221986	-	Gmet_0766	-	glycosyl transferase, group 1
759	 67.63	+1	843112..844560	+	482	78221987	-	Gmet_0767	-	protein of unknown function DUF853, NPT hydrolase putative
760	 65.04	0	844638..844883	-	81	78221988	-	Gmet_0768	-	hypothetical protein
761	 68.02	+1	845100..845543	-	147	78221989	-	Gmet_0769	-	thioesterase superfamily protein
762	 66.21	+1	845540..847942	-	800	78221990	-	Gmet_0770	-	phosphoenolpyruvate synthase
763	 65.69	+1	848051..848662	-	203	78221991	-	Gmet_0771	-	TrpR binding protein WrbA
764	 63.36	0	848755..849147	-	130	78221992	-	Gmet_0772	-	FxsA cytoplasmic membrane protein
765	 68.13	+1	849171..850127	-	318	78221993	-	Gmet_0773	-	cyclic nucleotide-binding domain-containing protein
766	 62.82	0	850145..850690	-	181	78221994	-	Gmet_0774	-	carbonic anhydrase
767	 60.19	0	850874..852247	+	457	78221995	-	Gmet_0775	-	OmpA/MotB
768	 63.88	0	852328..853692	-	454	78221996	-	Gmet_0776	-	two component, sigma54 specific, Fis family transcriptional regulator
769	 62.08	0	853853..856099	-	748	78221997	-	Gmet_0777	-	PAS/PAC sensor signal transduction histidine kinase
770	 51.05	-1	856284..856712	-	142	78221998	-	Gmet_0778	-	response regulator receiver domain-containing protein
771	 54.87	0	856714..858018	-	434	78221999	-	Gmet_0779	-	PAS/PAC sensor signal transduction histidine kinase
772	 58.75	0	858077..860740	-	887	78222000	-	Gmet_0780	-	MCP methyltransferase/methylesterase, CheR/CheB with PAS/PAC sensor
773	 60.76	0	861062..861907	+	281	78222001	-	Gmet_0781	-	extracellular solute-binding protein
774	 59.57	0	861917..864127	+	736	78222002	-	Gmet_0782	-	diguanylate cyclase/phosphodiesterase
775	 57.57	0	864251..865327	-	358	78222003	-	Gmet_0783	-	hypothetical protein
776	 58.87	0	865751..866353	-	200	78222004	-	Gmet_0784	-	toluene tolerance
777	 64.68	0	866372..867733	-	453	78222005	-	Gmet_0785	-	Outer membrane efflux protein
778	 60.26	0	867761..868213	-	150	78222006	-	Gmet_0786	-	virulence factor MCE-like protein-related protein
779	 61.85	0	868232..868978	-	248	78222007	-	Gmet_0787	-	ABC transporter-related protein
780	 62.02	0	868982..869755	-	257	78222008	-	Gmet_0788	-	hypothetical protein
781	 65.87	+1	869826..871451	-	541	78222009	-	Gmet_0789	-	aldehyde dehydrogenase
782	 64.69	0	871620..872429	+	269	78222010	-	Gmet_0790	-	dienelactone hydrolase
783	 62.24	0	872481..872999	+	172	78222011	-	Gmet_0791	-	hypothetical protein
784	 63.29	0	872996..873499	-	167	78222012	-	Gmet_0792	-	hypothetical protein
785	 64.29	0	873771..874526	+	251	78222013	-	Gmet_0793	-	hypothetical protein
786	 69.92	+1	874669..875745	+	358	78222014	-	Gmet_0794	-	GTPase EngC
787	 66.40	+1	875753..876505	-	250	78222015	-	Gmet_0795	-	hypothetical protein
788	 66.67	+1	876513..877151	-	212	78222016	-	Gmet_0796	-	Allergen V5/Tpx-1 related protein
789	 58.20	0	877148..878092	-	314	78222017	-	Gmet_0797	-	hypothetical protein
790	 65.54	+1	878243..878863	-	206	78222018	-	Gmet_0798	-	lysine exporter protein LysE/YggA
791	 58.87	0	879101..880267	-	388	78222019	-	Gmet_0799	-	methyl-accepting chemotaxis sensory transducer
792	 55.31	0	880277..881500	-	407	78222020	-	Gmet_0800	-	IS204/IS1001/IS1096/IS1165 transposase
793	 53.80	0	881801..882142	+	113	78222021	-	Gmet_0801	-	PhnA protein
794	 60.00	0	882241..882900	+	219	78222022	-	Gmet_0802	-	tia invasion determinant-related protein
795	 62.61	0	883023..883613	+	196	78222023	-	Gmet_0803	-	TetR family transcriptional regulator
796	 68.66	+1	883667..884671	+	334	78222024	-	Gmet_0804	-	alcohol dehydrogenase
797	 60.14	0	884699..885265	+	188	78222025	-	Gmet_0805	-	flavin reductase-like, FMN-binding
798	 65.74	+1	885298..886488	+	396	78222026	-	Gmet_0806	-	major facilitator transporter
799	 66.79	+1	886500..887312	+	270	78222027	-	Gmet_0807	-	4Fe-4S ferredoxin, iron-sulfur binding protein
800	 58.33	0	887394..887969	+	191	78222028	-	Gmet_0808	-	TetR family transcriptional regulator
801	 63.95	0	888033..889211	+	392	78222029	-	Gmet_0809	-	secretion protein HlyD
802	 62.84	0	889352..892513	+	1053	78222030	-	Gmet_0810	-	hydrophobe/amphiphile efflux-1 HAE1
803	 62.93	0	892515..894068	+	517	78222031	-	Gmet_0811	-	RND efflux system, outer membrane lipoprotein, NodT
804	 63.07	0	894240..895601	-	453	78222032	-	Gmet_0812	-	two component, sigma54 specific, Fis family transcriptional regulator
805	 64.35	0	895706..897046	+	446	78222033	-	Gmet_0813	-	nodulation efficiency protein NfeD
806	 62.40	0	897120..897893	+	257	78222034	-	Gmet_0814	-	SPFH domain-containing protein/band 7 family protein
807	 59.71	0	897972..898991	-	339	78222035	-	Gmet_0815	-	PpiC-type peptidyl-prolyl cis-trans isomerase
808	 62.63	0	899262..902708	+	1148	78222036	-	Gmet_0816	-	pyruvate carboxylase
59.54	MEAN

5.81	STD DEV
