IslandPath Analysis: Geobacter metallireducens GS-15

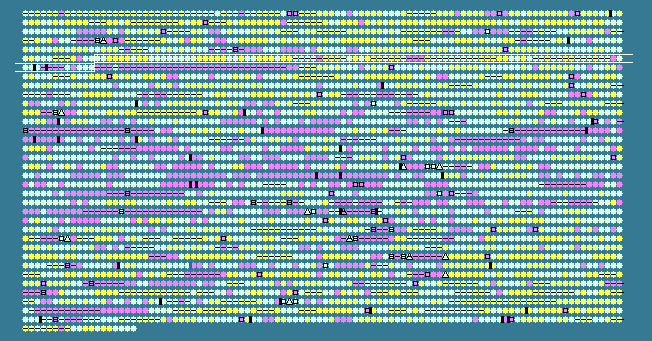

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
513	 61.35	0	557767..558819	-	350	78221741	-	Gmet_0520	-	arsenical-resistance protein ACR3
514	 60.05	0	558812..559234	-	140	78221742	-	Gmet_0521	-	protein tyrosine phosphatase
515	 64.33	0	559290..559631	-	113	78221743	-	Gmet_0522	-	ArsR family transcriptional regulator
516	 67.58	+1	559682..560989	-	435	78221744	-	Gmet_0523	-	ABC transporter-related protein
517	 65.63	+1	560999..562738	-	579	78221745	-	Gmet_0524	-	binding-protein dependent transport system inner membrane protein
518	 65.11	0	562814..563584	-	256	78221746	-	Gmet_0525	-	PAP2 family protein
519	 61.72	0	563587..565488	-	633	78221747	-	Gmet_0526	-	sulfatase
520	 64.09	0	565591..567024	-	477	78221748	-	Gmet_0527	-	heavy metal sensor signal transduction histidine kinase
521	 65.48	+1	567005..567676	-	223	78221749	-	Gmet_0528	-	two component heavy metal response transcriptional regulator
522	 58.78	0	567810..569444	-	544	78221750	-	Gmet_0529	-	methyl-accepting chemotaxis sensory transducer
523	 56.53	0	569585..570541	-	318	78221751	-	Gmet_0530	-	LysR family transcriptional regulator
524	 58.74	0	570801..572138	+	445	78221752	-	Gmet_0531	-	rhodanese-like protein
525	 56.97	0	572210..573457	+	415	78221753	-	Gmet_0532	-	phosphate-selective porin O and P
526	 58.10	0	573496..573810	+	104	78221754	-	Gmet_0533	-	hypothetical protein
527	 59.69	0	573924..574898	+	324	78221755	-	Gmet_0534	-	cytochrome c family protein
528	 57.63	0	574956..575276	+	106	78221756	-	Gmet_0535	-	hypothetical protein
529	 62.76	0	575370..577265	+	631	78221757	-	Gmet_0536	-	cytochrome c family protein
530	 66.99	+1	577213..578457	+	414	78221758	-	Gmet_0537	-	cytochrome c family protein
531	 63.38	0	578412..578807	+	131	78221759	-	Gmet_0538	-	Rieske (2Fe-2S) region
532	 63.77	0	578804..579424	+	206	78221760	-	Gmet_0539	-	cytochrome b/b6-like
533	 64.78	0	579122..579970	-	282	78221761	-	Gmet_0540	-	hypothetical protein
534	 63.48	0	580097..580660	+	187	78221762	-	Gmet_0541	-	hypothetical protein
535	 61.42	0	580657..581247	-	196	78221763	-	Gmet_0542	-	hypothetical protein
536	 57.73	0	581260..581550	-	96	78221764	-	Gmet_0543	-	cytochrome c, putative
537	 63.64	0	581669..582460	-	263	78221765	-	Gmet_0544	-	CoA enzyme activase
538	 61.35	0	582467..583444	-	325	78221766	-	Gmet_0545	-	hypothetical protein
539	 56.73	0	583449..583790	-	113	78221767	-	Gmet_0546	-	hypothetical protein
540	 66.19	+1	583981..584811	+	276	78221768	-	Gmet_0547	-	glutamate racemase
541	 63.61	0	584817..585404	+	195	78221769	-	Gmet_0548	-	hypothetical protein
542	 68.24	+1	585401..587815	+	804	78221770	-	Gmet_0549	-	methionine synthase (B12-dependent)
543	 58.81	0	587916..588335	+	139	78221771	-	Gmet_0550	-	hypothetical protein
544	 63.88	0	588332..589192	+	286	78221772	-	Gmet_0551	-	transketolase subunit A
545	 64.97	0	589383..590327	+	314	78221773	-	Gmet_0552	-	transketolase subunit B
546	 60.94	0	590335..590910	+	191	78221774	-	Gmet_0553	-	hypothetical protein
547	 59.20	0	591018..592517	+	499	78221775	-	Gmet_0554	-	histidine kinase
548	 59.32	0	592626..593999	+	457	78221776	-	Gmet_0555	-	two component, sigma54 specific, Fis family transcriptional regulator
549	 62.22	0	594359..597058	+	899	78221777	-	Gmet_0556	-	NHL repeat-containing protein
550	 54.57	0	597124..597966	+	280	78221778	-	Gmet_0557	-	cytochrome c family protein
551	 63.52	0	597996..601106	+	1036	78221779	-	Gmet_0558	-	cytochrome c family protein
552	 64.07	0	601354..603852	+	832	78221780	-	Gmet_0559	-	parallel beta-helix repeat-containing protein
553	 65.94	+1	603849..604538	+	229	78221781	-	Gmet_0560	-	hypothetical protein
554	 60.78	0	604598..605158	+	186	78221782	-	Gmet_0561	-	putative lipoprotein
555	 62.54	0	605166..606110	+	314	78221783	-	Gmet_0562	-	hypothetical protein
556	 64.67	0	606130..608031	+	633	78221784	-	Gmet_0563	-	permease
557	 58.57	0	608095..608415	+	106	78221785	-	Gmet_0564	-	hypothetical protein
558	 66.03	+1	608602..608916	+	104	78221786	-	Gmet_0565	-	hypothetical protein
559	 66.17	+1	608906..609904	+	332	78221787	-	Gmet_0566	-	radical SAM family protein
560	 66.90	+1	609941..610810	+	289	78221788	-	Gmet_0567	-	hypothetical protein
561	 62.14	0	610848..611753	+	301	78221789	-	Gmet_0568	-	hypothetical protein
562	 66.85	+1	611904..612458	+	184	78221790	-	Gmet_0569	-	TPR repeat-containing protein
563	 68.93	+1	612458..613519	+	353	78221791	-	Gmet_0570	-	hypothetical protein
564	 61.76	0	613780..619326	+	1848	78221792	-	Gmet_0571	-	cytochrome c family protein
565	 55.93	0	619357..620679	+	440	78221793	-	Gmet_0572	-	hypothetical protein
566	 52.09	-1	620728..621564	+	278	78221794	-	Gmet_0573	-	cytochrome c assembly protein
567	 49.03	-1	621561..622076	+	171	78221795	-	Gmet_0574	-	hypothetical protein
568	 63.74	0	622606..625989	+	1127	78221796	-	Gmet_0575	-	cytochrome c family protein
569	 61.82	0	626056..629910	+	1284	78221797	-	Gmet_0576	-	hypothetical protein
570	 61.47	0	629945..630733	+	262	78221798	-	Gmet_0577	-	parallel beta-helix repeat-containing protein
571	 61.05	0	630833..632149	+	438	78221799	-	Gmet_0578	-	hypothetical protein
572	 59.75	0	632149..632958	+	269	78221800	-	Gmet_0579	-	cytochrome c assembly protein
573	 62.03	0	633445..636054	+	869	78221801	-	Gmet_0580	-	high-molecular-weight cytochrome c
574	 62.08	0	636065..644803	+	2912	78221802	-	Gmet_0581	-	high-molecular-weight cytochrome c
575	 59.71	0	645133..646167	+	344	78221803	-	Gmet_0582	-	ankyrin
576	 62.41	0	646169..648682	+	837	78221804	-	Gmet_0583	-	spermine synthase
577	 63.68	0	648685..650325	+	546	78221805	-	Gmet_0584	-	hypothetical protein
578	 64.62	0	650373..651593	+	406	78221806	-	Gmet_0585	-	glycosyl transferase family protein
579	 65.62	+1	651593..652645	+	350	78221807	-	Gmet_0586	-	radical SAM family protein
580	 65.25	0	652645..653775	+	376	78221808	-	Gmet_0587	-	radical SAM family protein
581	 63.08	0	653772..655613	+	613	78221809	-	Gmet_0588	-	TPR repeat-containing protein
582	 56.68	0	655692..656372	+	226	78221810	-	Gmet_0589	-	glycosyl transferase family protein
583	 61.73	0	656467..657216	+	249	78221811	-	Gmet_0590	-	hypothetical protein
584	 65.27	0	657213..659216	+	667	78221812	-	Gmet_0591	-	hypothetical protein
585	 61.74	0	659273..660592	+	439	78221813	-	Gmet_0592	-	hypothetical protein
586	 62.62	0	660621..661139	+	172	78221814	-	Gmet_0593	-	hypothetical protein
587	 59.90	0	661203..662030	+	275	78221815	-	Gmet_0594	-	cytochrome c assembly protein
588	 64.02	0	662073..663320	+	415	78221816	-	Gmet_0595	-	hypothetical protein
589	 56.67	0	663322..663681	+	119	78221817	-	Gmet_0596	-	hypothetical protein
590	 60.09	0	663892..665397	+	501	78221818	-	Gmet_0597	-	radical SAM family protein
591	 63.16	0	665619..668039	+	806	78221819	-	Gmet_0598	-	PKD
592	 63.65	0	665889..669140	-	1083	78221820	-	Gmet_0599	-	hypothetical protein
593	 61.01	0	669424..671562	+	712	78221821	-	Gmet_0600	-	PKD
594	 59.43	0	671608..672657	+	349	78221822	-	Gmet_0601	-	hypothetical protein
595	 62.72	0	672920..674008	+	362	78221823	-	Gmet_0602	-	3-isopropylmalate dehydrogenase
596	 63.31	0	674045..675145	+	366	78221824	-	Gmet_0603	-	aspartate-semialdehyde dehydrogenase
597	 61.08	0	675149..676168	+	339	78221825	-	Gmet_0604	-	aspartate semialdehyde dehydrogenase
598	 60.83	0	676216..676986	+	256	78221826	truA	Gmet_0605	-	tRNA pseudouridine synthase A
599	 53.94	0	677088..677519	+	143	78221827	rplM	Gmet_0606	-	50S ribosomal protein L13
600	 58.27	0	677555..677947	+	130	78221828	rpsI	Gmet_0607	-	30S ribosomal protein S9
601	 59.75	0	678076..679116	+	346	78221829	argC	Gmet_0608	-	N-acetyl-gamma-glutamyl-phosphate reductase
602	 61.20	0	679126..680937	+	603	78221830	-	Gmet_0609	-	radical SAM family protein
603	 58.86	0	682481..683671	+	396	78221831	-	Gmet_0611	-	elongation factor Tu
604	 44.00	-2	683739..683888	+	49	78221832	rpmG	Gmet_0612	-	50S ribosomal protein L33
605	 51.61	-1	684038..684223	+	61	78221833	secE	Gmet_0613	-	preprotein translocase subunit SecE
606	 48.11	-1	684239..684766	+	175	78221834	-	Gmet_0614	-	transcription antitermination protein nusG
607	 55.08	0	684831..685253	+	140	78221835	rplK	Gmet_0615	-	50S ribosomal protein L11
608	 58.87	0	685276..685980	+	234	78221836	rplA	Gmet_0616	-	50S ribosomal protein L1
609	 52.57	-1	686156..686680	+	174	78221837	rplJ	Gmet_0617	-	50S ribosomal protein L10
610	 56.77	0	686730..687113	+	127	78221838	rplL	Gmet_0618	-	50S ribosomal protein L7/L12
611	 56.43	0	687276..691388	+	1370	78221839	rpoB	Gmet_0619	-	DNA-directed RNA polymerase subunit beta
612	 56.88	0	691466..695644	+	1392	78221840	-	Gmet_0620	-	DNA-directed RNA polymerase, subunit beta-prime
59.54	MEAN

5.81	STD DEV
