IslandPath Analysis: Geobacter metallireducens GS-15

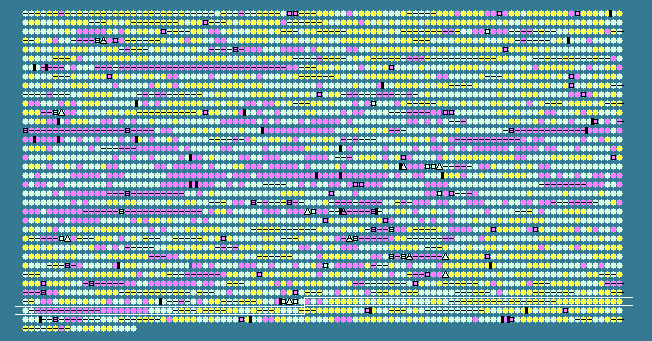

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3248	 55.03	0	3694914..3696743	+	609	78224476	-	Gmet_3285	-	sigma-54 dependent trancsriptional regulator
3249	 58.47	0	3697191..3697946	+	251	78224477	-	Gmet_3286	-	IclR family transcriptional regulator
3250	 53.07	-1	3698032..3698340	+	102	78224478	-	Gmet_3287	-	hypothetical protein
3251	 61.38	0	3698350..3700317	+	655	78224479	-	Gmet_3288	-	Na+/solute symporter
3252	 63.17	0	3700810..3701982	+	390	78224480	-	Gmet_3289	-	isovaleryl-CoA dehydrogenase
3253	 64.43	0	3702037..3703644	+	535	78224481	-	Gmet_3290	-	carboxyl transferase
3254	 68.81	+1	3703790..3704581	+	263	78224482	-	Gmet_3291	-	enoyl-CoA hydratase/isomerase
3255	 66.87	+1	3704587..3706593	+	668	78224483	-	Gmet_3292	-	3-methylcrotonoyl-CoA carboxylase, alpha subunit
3256	 65.81	+1	3706595..3707524	+	309	78224484	-	Gmet_3293	-	hydroxymethylglutaryl-CoA lyase
3257	 60.81	0	3707551..3708864	+	437	78224485	-	Gmet_3294	-	Acetyl-CoA hydrolase/transferase
3258	 63.04	0	3709007..3709585	+	192	78224486	-	Gmet_3295	-	hypothetical protein
3259	 61.88	0	3709618..3710307	+	229	78224487	-	Gmet_3296	-	3-oxoacid CoA-transferase, subunit A
3260	 63.32	0	3710325..3710981	+	218	78224488	-	Gmet_3297	-	butyryl-CoA:acetate CoA transferase
3261	 62.71	0	3711015..3711545	+	176	78224489	-	Gmet_3298	-	hypothetical protein
3262	 62.58	0	3711681..3713027	+	448	78224490	-	Gmet_3299	-	hypothetical protein
3263	 60.62	0	3713109..3713885	+	258	78224491	-	Gmet_3300	-	electron transfer flavoprotein subunit beta
3264	 61.86	0	3713948..3714862	+	304	78224492	-	Gmet_3301	-	electron transfer flavoprotein subunit alpha
3265	 64.97	0	3714912..3716087	+	391	78224493	-	Gmet_3302	-	thiolase
3266	 58.87	0	3716370..3717716	-	448	78224494	-	Gmet_3303	-	hypothetical protein
3267	 59.59	0	3717764..3719077	-	437	78224495	-	Gmet_3304	-	Acetyl-CoA hydrolase/transferase
3268	 62.58	0	3719175..3720299	-	374	78224496	-	Gmet_3305	-	enoyl-CoA hydratase/isomerase
3269	 63.78	0	3720361..3721503	-	380	78224497	-	Gmet_3306	-	Acyl-CoA dehydrogenase-like
3270	 63.78	0	3721550..3722692	-	380	78224498	-	Gmet_3307	-	Acyl-CoA dehydrogenase-like
3271	 60.96	0	3722946..3724592	+	548	78224499	-	Gmet_3308	-	sigma-54 dependent trancsriptional regulator
3272	 59.52	0	3724596..3725057	-	153	78224500	-	Gmet_3309	-	NUDIX hydrolase
3273	 61.26	0	3725357..3725911	+	184	78224501	-	Gmet_3310	-	putative lipoprotein
3274	 67.53	+1	3725908..3727299	+	463	78224502	-	Gmet_3311	-	hypothetical protein
3275	 67.88	+1	3727303..3727713	+	136	78224503	-	Gmet_3312	-	hypothetical protein
3276	 70.31	+1	3727743..3729473	+	576	78224504	-	Gmet_3313	-	hypothetical protein
3277	 68.89	+1	3729437..3730426	+	329	78224505	-	Gmet_3314	-	hypothetical protein
3278	 68.22	+1	3730457..3733093	+	878	78224506	-	Gmet_3315	-	AAA ATPase
3279	 64.88	0	3733090..3733536	+	148	78224507	-	Gmet_3316	-	putative lipoprotein
3280	 63.27	0	3733840..3734340	+	166	78224508	-	Gmet_3317	-	CheW protein
3281	 61.99	0	3734343..3734855	+	170	78224509	-	Gmet_3318	-	hypothetical protein
3282	 63.62	0	3734852..3735802	+	316	78224510	-	Gmet_3319	-	F420-non-reducing hydrogenase subunit G
3283	 66.74	+1	3735780..3737201	+	473	78224511	-	Gmet_3320	-	nickel-dependent hydrogenase, large subunit
3284	 59.92	0	3737201..3737452	+	83	78224512	-	Gmet_3321	-	ferredoxin family protein
3285	 64.49	0	3737449..3737907	+	152	78224513	-	Gmet_3322	-	hypothetical protein
3286	 66.67	+1	3737925..3738389	+	154	78224514	-	Gmet_3323	-	peptidase M52, hydrogen uptake protein
3287	 66.17	+1	3738391..3739995	+	534	78224515	-	Gmet_3324	-	methyl-accepting chemotaxis sensory transducer
3288	 61.46	0	3740078..3741382	-	434	78224516	-	Gmet_3325	-	aminotransferase
3289	 64.81	0	3741635..3742225	-	196	78224517	-	Gmet_3326	-	hypothetical protein
3290	 66.24	+1	3742228..3742692	-	154	78224518	-	Gmet_3327	-	hypothetical protein
3291	 64.39	0	3742700..3743050	-	116	78224519	-	Gmet_3328	-	glyoxalase/bleomycin resistance protein/dioxygenase
3292	 66.47	+1	3743266..3743784	-	172	78224520	-	Gmet_3329	-	peptidase M52, hydrogenase maturation peptidase
3293	 63.08	0	3743786..3744454	-	222	78224521	-	Gmet_3330	-	nickel-dependent hydrogenase b-type cytochrome subunit
3294	 64.90	0	3744464..3746164	-	566	78224522	-	Gmet_3331	-	nickel-dependent hydrogenase, large subunit
3295	 67.11	+1	3746145..3747284	-	379	78224523	-	Gmet_3332	-	Ni-Fe hydrogenase, small subunit:twin-arginine translocation pathway signal
3296	 69.41	+1	3747516..3748244	-	242	78224524	-	Gmet_3333	-	phosphoribosyltransferase
3297	 63.61	0	3748244..3748897	-	217	78224525	-	Gmet_3334	-	hypothetical protein
3298	 63.85	0	3749011..3750075	-	354	78224526	-	Gmet_3335	-	Iron-sulfur cluster-binding protein
3299	 63.65	0	3750195..3750989	-	264	78224527	-	Gmet_3336	-	PP-loop protein
3300	 65.19	0	3751107..3753347	+	746	78224528	-	Gmet_3337	-	primosomal protein n
3301	 56.94	0	3753435..3753938	+	167	78224529	-	Gmet_3338	-	peptide deformylase
3302	 59.29	0	3753948..3754883	+	311	78224530	-	Gmet_3339	-	methionyl-tRNA formyltransferase
3303	 53.97	0	3754885..3755640	+	251	78224531	-	Gmet_3340	-	hypothetical protein
3304	 49.14	-1	3757549..3759003	-	484	78224532	-	Gmet_3342	-	proton-translocating NADH-quinone oxidoreductase, chain N
3305	 50.64	-1	3759037..3760596	-	519	78224533	-	Gmet_3343	-	proton-translocating NADH-quinone oxidoreductase, chain M
3306	 49.90	-1	3760632..3762641	-	669	78224534	-	Gmet_3344	-	NADH-plastoquinone oxidoreductase, chain 5
3307	 42.90	-2	3762699..3763001	-	100	78224535	-	Gmet_3345	-	NADH-ubiquinone oxidoreductase, chain 4L
3308	 49.01	-1	3763020..3763523	-	167	78224536	-	Gmet_3346	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 6
3309	 45.71	-2	3763537..3763932	-	131	78224537	-	Gmet_3347	-	NADH-quinone oxidoreductase, chain I
3310	 49.70	-1	3763960..3764973	-	337	78224538	-	Gmet_3348	-	respiratory-chain NADH dehydrogenase, subunit 1
3311	 49.54	-1	3765060..3767546	-	828	78224539	-	Gmet_3349	-	NADH dehydrogenase I, G subunit, putative
3312	 52.87	-1	3767589..3769364	-	591	78224540	-	Gmet_3350	-	NADH dehydrogenase I, F subunit
3313	 51.15	-1	3769402..3769923	-	173	78224541	-	Gmet_3351	-	NADH dehydrogenase (ubiquinone), 24 kDa subunit
3314	 52.17	-1	3769951..3771123	-	390	78224542	-	Gmet_3352	-	NADH dehydrogenase I, D subunit
3315	 51.12	-1	3771184..3771672	-	162	78224543	-	Gmet_3353	-	NADH (or F420H2) dehydrogenase, subunit C
3316	 53.61	-1	3771704..3772216	-	170	78224544	-	Gmet_3354	-	NADH dehydrogenase (ubiquinone), 20 kDa subunit
3317	 47.62	-2	3772207..3772563	-	118	78224545	-	Gmet_3355	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 3
3318	 53.50	-1	3772882..3774165	+	427	78224546	-	Gmet_3356	-	glutamate-1-semialdehyde 2,1-aminomutase
3319	 48.89	-1	3774221..3774490	+	89	78224547	-	Gmet_3357	-	hypothetical protein
3320	 48.44	-1	3774465..3774848	+	127	78224548	-	Gmet_3358	-	hypothetical protein
3321	 53.33	-1	3774852..3775541	+	229	78224549	-	Gmet_3359	-	H+-transporting two-sector ATPase, A subunit
3322	 56.16	0	3775596..3775871	+	91	78224550	-	Gmet_3360	-	ATP synthase F0, C subunit
3323	 61.10	0	3775958..3777448	-	496	78224551	-	Gmet_3361	-	peptidase M17, leucyl aminopeptidase-like
3324	 57.35	0	3777508..3778902	-	464	78224552	-	Gmet_3362	-	peptidase S1C, Do
3325	 60.02	0	3779067..3779939	+	290	78224553	-	Gmet_3363	-	PDZ/DHR/GLGF
3326	 60.81	0	3779990..3781900	+	636	78224554	-	Gmet_3364	-	type II and III secretion system protein:NolW-like
3327	 66.28	+1	3781897..3783459	+	520	78224555	-	Gmet_3365	-	type II secretion system protein E
3328	 66.25	+1	3783440..3784651	+	403	78224556	-	Gmet_3366	-	general secretion pathway protein F
3329	 61.94	0	3784674..3785117	+	147	78224557	-	Gmet_3367	-	general secretion pathway protein G
3330	 67.04	+1	3785086..3785622	+	178	78224558	-	Gmet_3368	-	general secretion pathway protein H
3331	 63.44	0	3785622..3785993	+	123	78224559	-	Gmet_3369	-	N-terminal methylation
3332	 64.62	0	3785971..3786606	+	211	78224560	-	Gmet_3370	-	N-terminal methylation
3333	 64.56	0	3786603..3787502	+	299	78224561	-	Gmet_3371	-	general secretion pathway protein K
3334	 67.37	+1	3787502..3788785	+	427	78224562	-	Gmet_3372	-	general secretion pathway protein L, putative
3335	 65.02	0	3788782..3789327	+	181	78224563	-	Gmet_3373	-	hypothetical protein
3336	 66.90	+1	3789324..3790166	+	280	78224564	-	Gmet_3374	-	hypothetical protein
3337	 58.21	0	3790194..3790607	-	137	78224565	-	Gmet_3375	-	hypothetical protein
3338	 57.88	0	3790704..3791363	-	219	78224566	-	Gmet_3376	-	hypothetical protein
3339	 63.23	0	3791603..3792619	+	338	78224567	-	Gmet_3377	-	ADP-ribosylation/crystallin J1
3340	 63.58	0	3792746..3793489	+	247	78224568	-	Gmet_3378	-	putative lipoprotein
3341	 56.29	0	3793569..3794021	-	150	78224569	-	Gmet_3379	-	rare lipoprotein A
3342	 66.31	+1	3794128..3794973	-	281	78224570	-	Gmet_3380	-	hypothetical protein
3343	 64.34	0	3794963..3795694	-	243	78224571	-	Gmet_3381	-	purine phosphorylase family protein 1
3344	 62.92	0	3795711..3797123	-	470	78224572	-	Gmet_3382	-	heavy metal sensor signal transduction histidine kinase
3345	 59.11	0	3797128..3797802	-	224	78224573	-	Gmet_3383	-	two component transcriptional regulator
3346	 59.88	0	3797852..3798661	-	269	78224574	-	Gmet_3384	-	hypothetical protein
3347	 65.64	+1	3798740..3799903	-	387	78224575	-	Gmet_3385	-	peptidase M20D, amidohydrolase
59.54	MEAN

5.81	STD DEV
