IslandPath Analysis: Geobacter metallireducens GS-15

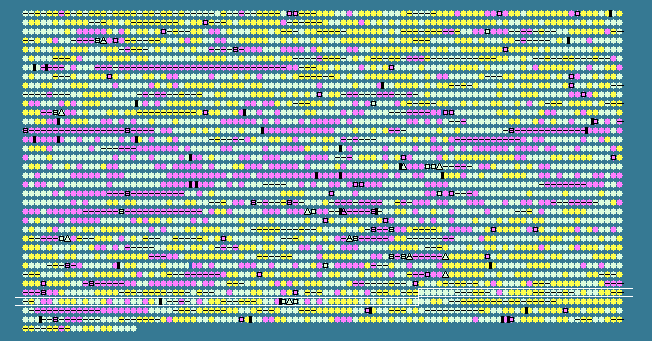

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3167	 61.43	0	3604335..3604754	-	139	78224395	-	Gmet_3204	-	TraR/DksA family transcriptional regulator
3168	 62.93	0	3604842..3606179	-	445	78224396	-	Gmet_3205	-	hypothetical protein
3169	 58.23	0	3606213..3606698	-	161	78224397	-	Gmet_3206	-	nucleotide-binding protein
3170	 61.73	0	3606730..3607458	-	242	78224398	-	Gmet_3207	-	Outer membrane lipoprotein carrier protein LolA
3171	 59.58	0	3607551..3608369	-	272	78224399	-	Gmet_3208	-	Outer membrane lipoprotein carrier protein LolA
3172	 62.37	0	3608388..3608876	-	162	78224400	-	Gmet_3209	-	CheD, stimulates methylation of MCP proteins
3173	 58.21	0	3608873..3609487	-	204	78224401	-	Gmet_3210	-	CheC, inhibitor of MCP methylation
3174	 59.89	0	3609549..3609917	-	122	78224402	-	Gmet_3211	-	response regulator receiver domain-containing protein
3175	 57.65	0	3610020..3610895	-	291	78224403	-	Gmet_3212	-	MCP methyltransferase, CheR-type
3176	 64.55	0	3610982..3611971	-	329	78224404	-	Gmet_3213	-	thiamine-monophosphate kinase
3177	 63.07	0	3611968..3614439	-	823	78224405	-	Gmet_3214	-	Lon-A peptidase
3178	 60.71	0	3614439..3614891	-	150	78224406	-	Gmet_3215	-	heat shock protein Hsp20
3179	 60.09	0	3615370..3617301	+	643	78224407	-	Gmet_3216	-	TPR repeat-containing protein
3180	 54.84	0	3617404..3617589	-	61	78224408	-	Gmet_3217	-	twin-arginine translocation protein TatA/E
3181	 59.60	0	3617851..3618303	+	150	78224409	-	Gmet_3218	-	response regulator receiver domain-containing protein
3182	 63.11	0	3618425..3620422	+	665	78224410	-	Gmet_3219	-	excinuclease ABC subunit B
3183	 64.53	0	3620439..3621140	+	233	78224411	-	Gmet_3220	-	response regulator receiver domain-containing protein
3184	 66.35	+1	3621151..3622401	+	416	78224412	-	Gmet_3221	-	major facilitator transporter
3185	 63.21	0	3622483..3623148	+	221	78224413	-	Gmet_3222	-	nitrite and sulphite reductase 4Fe-4S region
3186	 68.28	+1	3623160..3626387	-	1075	78224414	-	Gmet_3223	-	UvrD/REP helicase
3187	 65.58	+1	3626592..3627977	+	461	78224415	-	Gmet_3224	-	hypothetical protein
3188	 61.85	0	3628008..3629708	+	566	78224416	-	Gmet_3225	-	peptidoglycan-binding LysM
3189	 61.33	0	3629874..3630566	-	230	78224417	-	Gmet_3226	-	peptidoglycan-binding LysM
3190	 62.45	0	3630568..3633558	-	996	78224418	-	Gmet_3227	-	hypothetical protein
3191	 63.25	0	3633756..3635600	+	614	78224419	-	Gmet_3228	-	excinuclease ABC subunit C
3192	 58.87	0	3635640..3636152	-	170	78224420	-	Gmet_3229	-	thioredoxin-related protein
3193	 59.70	0	3636182..3636511	-	109	78224421	-	Gmet_3230	-	thioredoxin
3194	 64.15	0	3636672..3637346	+	224	78224422	-	Gmet_3231	-	precorrin-2 dehydrogenase
3195	 58.46	0	3637343..3638158	+	271	78224423	-	Gmet_3232	-	cytochrome c assembly protein
3196	 61.84	0	3638175..3639479	+	434	78224424	hemA	Gmet_3233	-	glutamyl-tRNA reductase
3197	 66.77	+1	3639530..3640486	+	318	78224425	-	Gmet_3234	-	porphobilinogen deaminase
3198	 66.73	+1	3640496..3642037	+	513	78224426	-	Gmet_3235	-	uroporphyrinogen-III synthase / uroporphyrinogen-III C-methyltransferase
3199	 67.33	+1	3642090..3642848	+	252	78224427	-	Gmet_3236	-	TatD-related deoxyribonuclease:amidohydrolase 2
3200	 63.80	0	3643065..3643832	+	255	78224428	-	Gmet_3237	-	UBA/THIF-type NAD/FAD binding fold
3201	 58.03	0	3643911..3644408	+	165	78224429	-	Gmet_3238	-	rubrerythrin
3202	 64.91	0	3644496..3646550	-	684	78224430	hppA	Gmet_3239	-	membrane-bound proton-translocating pyrophosphatase
3203	 60.40	0	3646784..3647230	+	148	78224431	-	Gmet_3240	-	ferric uptake regulator family protein
3204	 53.15	-1	3647255..3647365	+	36	78224432	-	Gmet_3241	-	hypothetical protein
3205	 55.89	0	3647381..3647872	+	163	78224433	-	Gmet_3242	-	rubrerythrin
3206	 59.84	0	3647981..3649195	+	404	78224434	-	Gmet_3243	-	Beta-lactamase-like:flavodoxin/nitric oxide synthase
3207	 66.43	+1	3649202..3650464	+	420	78224435	-	Gmet_3244	-	hypothetical protein
3208	 63.55	0	3650590..3651969	+	459	78224436	-	Gmet_3245	-	FAD linked oxidase-like
3209	 66.35	+1	3652167..3653432	+	421	78224437	-	Gmet_3246	-	hypothetical protein
3210	 57.27	0	3653676..3654239	+	187	78224438	-	Gmet_3247	-	XRE family transcriptional regulator
3211	 63.77	0	3654378..3656102	+	574	78224439	-	Gmet_3248	-	carboxyl transferase
3212	 62.88	0	3656275..3659154	+	959	78224440	-	Gmet_3249	-	biotin/lipoyl attachment
3213	 58.33	0	3659261..3659896	+	211	78224441	-	Gmet_3250	-	thymidylate kinase
3214	 63.35	0	3659989..3661647	+	552	78224442	-	Gmet_3251	-	methylmalonyl-CoA mutase
3215	 45.50	-2	3661619..3662062	+	147	78224443	-	Gmet_3252	-	hypothetical protein
3216	 62.47	0	3662111..3662515	+	134	78224444	-	Gmet_3253	-	methylmalonyl-CoA epimerase
3217	 59.69	0	3663042..3664460	+	472	78224445	-	Gmet_3254	-	LamB porin family protein, putative
3218	 52.48	-1	3664590..3664871	+	93	78224446	-	Gmet_3255	-	hypothetical protein
3219	 62.75	0	3665060..3666592	+	510	78224447	-	Gmet_3256	-	hypothetical protein
3220	 57.89	0	3666618..3667016	+	132	78224448	-	Gmet_3257	-	DNA polymerase, beta-like region
3221	 51.90	-1	3667009..3667428	+	139	78224449	-	Gmet_3258	-	hypothetical protein
3222	 63.37	0	3667602..3668906	+	434	78224450	hisZ	Gmet_3259	-	ATP phosphoribosyltransferase regulatory subunit
3223	 60.87	0	3668920..3670212	+	430	78224451	-	Gmet_3260	-	adenylosuccinate synthetase
3224	 59.25	0	3670633..3671427	-	264	78224452	-	Gmet_3261	-	hypothetical protein
3225	 61.14	0	3671554..3672150	-	198	78224453	-	Gmet_3262	-	lytic transglycosylase, catalytic
3226	 58.14	0	3672337..3673731	-	464	78224454	-	Gmet_3263	-	two component, sigma54 specific, Fis family transcriptional regulator
3227	 47.04	-2	3673828..3674148	+	106	78224455	-	Gmet_3264	-	hypothetical protein
3228	 58.79	0	3674187..3674681	+	164	78224456	-	Gmet_3265	-	CheW protein
3229	 62.55	0	3674719..3676542	+	607	78224457	-	Gmet_3266	-	CheA signal transduction histidine kinase
3230	 54.08	0	3676587..3677420	+	277	78224458	-	Gmet_3267	-	MCP methyltransferase, CheR-type
3231	 61.41	0	3677438..3678331	+	297	78224459	-	Gmet_3268	-	metal dependent phosphohydrolase
3232	 64.06	0	3678338..3679411	+	357	78224460	-	Gmet_3269	-	response regulator receiver (CheY-like) modulated CheB methylesterase
3233	 65.08	0	3679408..3679722	-	104	78224461	-	Gmet_3270	-	hypothetical protein
3234	 66.48	+1	3679823..3680914	+	363	78224462	-	Gmet_3271	-	MCP methyltransferase, CheR-type
3235	 62.49	0	3680901..3681881	-	326	78224463	-	Gmet_3272	-	3-oxoacyl-[acyl-carrier-protein] synthase III
3236	 61.68	0	3681999..3682319	-	106	78224464	-	Gmet_3273	-	hypothetical protein
3237	 65.12	0	3682438..3683085	+	215	78224465	-	Gmet_3274	-	HEAT repeat-containing PBS lyase
3238	 63.55	0	3683108..3684454	-	448	78224466	-	Gmet_3275	-	metal dependent phosphohydrolase
3239	 66.31	+1	3684447..3686120	-	557	78224467	-	Gmet_3276	-	HEAT repeat-containing PBS lyase
3240	 67.11	+1	3686289..3687638	+	449	78224468	-	Gmet_3277	-	DNA repair protein RadA
3241	 58.82	0	3687740..3688096	+	118	78224469	-	Gmet_3278	-	TraR/DksA family transcriptional regulator
3242	 59.17	0	3688154..3689980	+	608	78224470	-	Gmet_3279	-	GAF sensor signal transduction histidine kinase
3243	 46.95	-2	3690128..3690619	-	163	78224471	-	Gmet_3280	-	hypothetical protein
3244	 58.49	0	3690629..3691423	-	264	78224472	-	Gmet_3281	-	transposase/IS protein
3245	 58.09	0	3691420..3692445	-	341	78224473	-	Gmet_3282	-	integrase catalytic subunit
3246	 58.58	0	3692527..3693540	-	337	78224474	-	Gmet_3283	-	transposase IS4
3247	 58.24	0	3694109..3694927	+	272	78224475	-	Gmet_3284	-	enoyl-CoA hydratase/isomerase
3248	 55.03	0	3694914..3696743	+	609	78224476	-	Gmet_3285	-	sigma-54 dependent trancsriptional regulator
3249	 58.47	0	3697191..3697946	+	251	78224477	-	Gmet_3286	-	IclR family transcriptional regulator
3250	 53.07	-1	3698032..3698340	+	102	78224478	-	Gmet_3287	-	hypothetical protein
3251	 61.38	0	3698350..3700317	+	655	78224479	-	Gmet_3288	-	Na+/solute symporter
3252	 63.17	0	3700810..3701982	+	390	78224480	-	Gmet_3289	-	isovaleryl-CoA dehydrogenase
3253	 64.43	0	3702037..3703644	+	535	78224481	-	Gmet_3290	-	carboxyl transferase
3254	 68.81	+1	3703790..3704581	+	263	78224482	-	Gmet_3291	-	enoyl-CoA hydratase/isomerase
3255	 66.87	+1	3704587..3706593	+	668	78224483	-	Gmet_3292	-	3-methylcrotonoyl-CoA carboxylase, alpha subunit
3256	 65.81	+1	3706595..3707524	+	309	78224484	-	Gmet_3293	-	hydroxymethylglutaryl-CoA lyase
3257	 60.81	0	3707551..3708864	+	437	78224485	-	Gmet_3294	-	Acetyl-CoA hydrolase/transferase
3258	 63.04	0	3709007..3709585	+	192	78224486	-	Gmet_3295	-	hypothetical protein
3259	 61.88	0	3709618..3710307	+	229	78224487	-	Gmet_3296	-	3-oxoacid CoA-transferase, subunit A
3260	 63.32	0	3710325..3710981	+	218	78224488	-	Gmet_3297	-	butyryl-CoA:acetate CoA transferase
3261	 62.71	0	3711015..3711545	+	176	78224489	-	Gmet_3298	-	hypothetical protein
3262	 62.58	0	3711681..3713027	+	448	78224490	-	Gmet_3299	-	hypothetical protein
3263	 60.62	0	3713109..3713885	+	258	78224491	-	Gmet_3300	-	electron transfer flavoprotein subunit beta
3264	 61.86	0	3713948..3714862	+	304	78224492	-	Gmet_3301	-	electron transfer flavoprotein subunit alpha
3265	 64.97	0	3714912..3716087	+	391	78224493	-	Gmet_3302	-	thiolase
3266	 58.87	0	3716370..3717716	-	448	78224494	-	Gmet_3303	-	hypothetical protein
59.54	MEAN

5.81	STD DEV
