IslandPath Analysis: Geobacter metallireducens GS-15

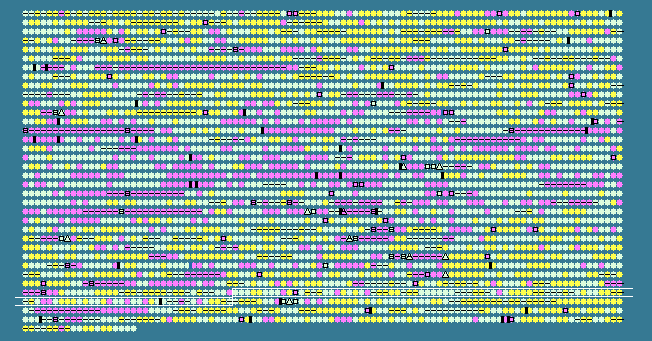

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3136	 60.34	0	3569777..3570850	-	357	78224364	-	Gmet_3173	-	aminotransferase, class V
3137	 59.74	0	3571193..3572707	+	504	78224365	-	Gmet_3174	-	cytochrome c family protein
3138	 63.02	0	3572960..3574414	-	484	78224366	-	Gmet_3175	-	glycogen/starch synthase, ADP-glucose type
3139	 63.47	0	3574468..3575529	-	353	78224367	-	Gmet_3176	-	galactose-1-phosphate uridyl transferase, class I
3140	 65.90	+1	3575507..3577711	-	734	78224368	-	Gmet_3177	-	glycoside hydrolase family protein
3141	 61.81	0	3577708..3580218	-	836	78224369	-	Gmet_3178	-	phosphoglucomutase/phosphomannomutase family protein
3142	 58.40	0	3580316..3580678	-	120	78224370	-	Gmet_3179	-	response regulator receiver domain-containing protein
3143	 60.20	0	3580680..3582302	-	540	78224371	-	Gmet_3180	-	GAF sensor signal transduction histidine kinase
3144	 51.77	-1	3582394..3582675	-	93	78224372	-	Gmet_3181	-	hypothetical protein
3145	 66.38	+1	3582804..3584177	-	457	78224373	-	Gmet_3182	-	Poly(A) polymerase, PcnB
3146	 53.25	-1	3584328..3585497	+	389	78224374	-	Gmet_3183	-	transposase IS4
3147	 58.52	0	3585558..3585962	+	134	78224375	-	Gmet_3184	-	hypothetical protein
3148	 66.11	+1	3586014..3586727	+	237	78224376	-	Gmet_3185	-	Iron-sulfur cluster-binding protein
3149	 60.07	0	3586850..3587455	+	201	78224377	-	Gmet_3186	-	Alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
3150	 65.77	+1	3587525..3589759	+	744	78224378	-	Gmet_3187	-	DNA polymerase B, exonuclease
3151	 59.47	0	3589836..3590252	+	138	78224379	-	Gmet_3188	-	hypothetical protein
3152	 62.43	0	3590249..3590626	+	125	78224380	-	Gmet_3189	-	hypothetical protein
3153	 51.76	-1	3590611..3591093	+	160	78224381	-	Gmet_3190	-	hypothetical protein
3154	 64.85	0	3591280..3593808	+	842	78224382	-	Gmet_3191	-	radical SAM family protein
3155	 62.21	0	3593798..3595300	+	500	78224383	-	Gmet_3192	-	ribonuclease G
3156	 64.89	0	3595319..3596497	+	392	78224384	purT	Gmet_3193	-	phosphoribosylglycinamide formyltransferase 2
3157	 59.08	0	3596522..3596824	+	100	78224385	-	Gmet_3194	-	Rieske (2Fe-2S) region
3158	 54.37	0	3596902..3597210	+	102	78224386	rplU	Gmet_3195	-	50S ribosomal protein L21
3159	 62.79	0	3597292..3597549	+	85	78224387	rpmA	Gmet_3196	-	50S ribosomal protein L27
3160	 64.60	0	3597639..3598655	+	338	78224388	obgE	Gmet_3197	-	GTPase ObgE
3161	 66.31	+1	3598666..3599787	+	373	78224389	-	Gmet_3198	-	gamma-glutamyl kinase
3162	 64.92	0	3599883..3601139	+	418	78224390	-	Gmet_3199	-	glutamate-5-semialdehyde dehydrogenase
3163	 63.75	0	3601171..3601821	+	216	78224391	-	Gmet_3200	-	nicotinate-nucleotide adenylyltransferase
3164	 61.36	0	3601811..3602206	+	131	78224392	-	Gmet_3201	-	Iojap-related protein
3165	 64.73	0	3602203..3602667	+	154	78224393	-	Gmet_3202	-	hypothetical protein
3166	 65.56	+1	3602698..3604236	+	512	78224394	-	Gmet_3203	-	phosphoglyceromutase
3167	 61.43	0	3604335..3604754	-	139	78224395	-	Gmet_3204	-	TraR/DksA family transcriptional regulator
3168	 62.93	0	3604842..3606179	-	445	78224396	-	Gmet_3205	-	hypothetical protein
3169	 58.23	0	3606213..3606698	-	161	78224397	-	Gmet_3206	-	nucleotide-binding protein
3170	 61.73	0	3606730..3607458	-	242	78224398	-	Gmet_3207	-	Outer membrane lipoprotein carrier protein LolA
3171	 59.58	0	3607551..3608369	-	272	78224399	-	Gmet_3208	-	Outer membrane lipoprotein carrier protein LolA
3172	 62.37	0	3608388..3608876	-	162	78224400	-	Gmet_3209	-	CheD, stimulates methylation of MCP proteins
3173	 58.21	0	3608873..3609487	-	204	78224401	-	Gmet_3210	-	CheC, inhibitor of MCP methylation
3174	 59.89	0	3609549..3609917	-	122	78224402	-	Gmet_3211	-	response regulator receiver domain-containing protein
3175	 57.65	0	3610020..3610895	-	291	78224403	-	Gmet_3212	-	MCP methyltransferase, CheR-type
3176	 64.55	0	3610982..3611971	-	329	78224404	-	Gmet_3213	-	thiamine-monophosphate kinase
3177	 63.07	0	3611968..3614439	-	823	78224405	-	Gmet_3214	-	Lon-A peptidase
3178	 60.71	0	3614439..3614891	-	150	78224406	-	Gmet_3215	-	heat shock protein Hsp20
3179	 60.09	0	3615370..3617301	+	643	78224407	-	Gmet_3216	-	TPR repeat-containing protein
3180	 54.84	0	3617404..3617589	-	61	78224408	-	Gmet_3217	-	twin-arginine translocation protein TatA/E
3181	 59.60	0	3617851..3618303	+	150	78224409	-	Gmet_3218	-	response regulator receiver domain-containing protein
3182	 63.11	0	3618425..3620422	+	665	78224410	-	Gmet_3219	-	excinuclease ABC subunit B
3183	 64.53	0	3620439..3621140	+	233	78224411	-	Gmet_3220	-	response regulator receiver domain-containing protein
3184	 66.35	+1	3621151..3622401	+	416	78224412	-	Gmet_3221	-	major facilitator transporter
3185	 63.21	0	3622483..3623148	+	221	78224413	-	Gmet_3222	-	nitrite and sulphite reductase 4Fe-4S region
3186	 68.28	+1	3623160..3626387	-	1075	78224414	-	Gmet_3223	-	UvrD/REP helicase
3187	 65.58	+1	3626592..3627977	+	461	78224415	-	Gmet_3224	-	hypothetical protein
3188	 61.85	0	3628008..3629708	+	566	78224416	-	Gmet_3225	-	peptidoglycan-binding LysM
3189	 61.33	0	3629874..3630566	-	230	78224417	-	Gmet_3226	-	peptidoglycan-binding LysM
3190	 62.45	0	3630568..3633558	-	996	78224418	-	Gmet_3227	-	hypothetical protein
3191	 63.25	0	3633756..3635600	+	614	78224419	-	Gmet_3228	-	excinuclease ABC subunit C
3192	 58.87	0	3635640..3636152	-	170	78224420	-	Gmet_3229	-	thioredoxin-related protein
3193	 59.70	0	3636182..3636511	-	109	78224421	-	Gmet_3230	-	thioredoxin
3194	 64.15	0	3636672..3637346	+	224	78224422	-	Gmet_3231	-	precorrin-2 dehydrogenase
3195	 58.46	0	3637343..3638158	+	271	78224423	-	Gmet_3232	-	cytochrome c assembly protein
3196	 61.84	0	3638175..3639479	+	434	78224424	hemA	Gmet_3233	-	glutamyl-tRNA reductase
3197	 66.77	+1	3639530..3640486	+	318	78224425	-	Gmet_3234	-	porphobilinogen deaminase
3198	 66.73	+1	3640496..3642037	+	513	78224426	-	Gmet_3235	-	uroporphyrinogen-III synthase / uroporphyrinogen-III C-methyltransferase
3199	 67.33	+1	3642090..3642848	+	252	78224427	-	Gmet_3236	-	TatD-related deoxyribonuclease:amidohydrolase 2
3200	 63.80	0	3643065..3643832	+	255	78224428	-	Gmet_3237	-	UBA/THIF-type NAD/FAD binding fold
3201	 58.03	0	3643911..3644408	+	165	78224429	-	Gmet_3238	-	rubrerythrin
3202	 64.91	0	3644496..3646550	-	684	78224430	hppA	Gmet_3239	-	membrane-bound proton-translocating pyrophosphatase
3203	 60.40	0	3646784..3647230	+	148	78224431	-	Gmet_3240	-	ferric uptake regulator family protein
3204	 53.15	-1	3647255..3647365	+	36	78224432	-	Gmet_3241	-	hypothetical protein
3205	 55.89	0	3647381..3647872	+	163	78224433	-	Gmet_3242	-	rubrerythrin
3206	 59.84	0	3647981..3649195	+	404	78224434	-	Gmet_3243	-	Beta-lactamase-like:flavodoxin/nitric oxide synthase
3207	 66.43	+1	3649202..3650464	+	420	78224435	-	Gmet_3244	-	hypothetical protein
3208	 63.55	0	3650590..3651969	+	459	78224436	-	Gmet_3245	-	FAD linked oxidase-like
3209	 66.35	+1	3652167..3653432	+	421	78224437	-	Gmet_3246	-	hypothetical protein
3210	 57.27	0	3653676..3654239	+	187	78224438	-	Gmet_3247	-	XRE family transcriptional regulator
3211	 63.77	0	3654378..3656102	+	574	78224439	-	Gmet_3248	-	carboxyl transferase
3212	 62.88	0	3656275..3659154	+	959	78224440	-	Gmet_3249	-	biotin/lipoyl attachment
3213	 58.33	0	3659261..3659896	+	211	78224441	-	Gmet_3250	-	thymidylate kinase
3214	 63.35	0	3659989..3661647	+	552	78224442	-	Gmet_3251	-	methylmalonyl-CoA mutase
3215	 45.50	-2	3661619..3662062	+	147	78224443	-	Gmet_3252	-	hypothetical protein
3216	 62.47	0	3662111..3662515	+	134	78224444	-	Gmet_3253	-	methylmalonyl-CoA epimerase
3217	 59.69	0	3663042..3664460	+	472	78224445	-	Gmet_3254	-	LamB porin family protein, putative
3218	 52.48	-1	3664590..3664871	+	93	78224446	-	Gmet_3255	-	hypothetical protein
3219	 62.75	0	3665060..3666592	+	510	78224447	-	Gmet_3256	-	hypothetical protein
3220	 57.89	0	3666618..3667016	+	132	78224448	-	Gmet_3257	-	DNA polymerase, beta-like region
3221	 51.90	-1	3667009..3667428	+	139	78224449	-	Gmet_3258	-	hypothetical protein
3222	 63.37	0	3667602..3668906	+	434	78224450	hisZ	Gmet_3259	-	ATP phosphoribosyltransferase regulatory subunit
3223	 60.87	0	3668920..3670212	+	430	78224451	-	Gmet_3260	-	adenylosuccinate synthetase
3224	 59.25	0	3670633..3671427	-	264	78224452	-	Gmet_3261	-	hypothetical protein
3225	 61.14	0	3671554..3672150	-	198	78224453	-	Gmet_3262	-	lytic transglycosylase, catalytic
3226	 58.14	0	3672337..3673731	-	464	78224454	-	Gmet_3263	-	two component, sigma54 specific, Fis family transcriptional regulator
3227	 47.04	-2	3673828..3674148	+	106	78224455	-	Gmet_3264	-	hypothetical protein
3228	 58.79	0	3674187..3674681	+	164	78224456	-	Gmet_3265	-	CheW protein
3229	 62.55	0	3674719..3676542	+	607	78224457	-	Gmet_3266	-	CheA signal transduction histidine kinase
3230	 54.08	0	3676587..3677420	+	277	78224458	-	Gmet_3267	-	MCP methyltransferase, CheR-type
3231	 61.41	0	3677438..3678331	+	297	78224459	-	Gmet_3268	-	metal dependent phosphohydrolase
3232	 64.06	0	3678338..3679411	+	357	78224460	-	Gmet_3269	-	response regulator receiver (CheY-like) modulated CheB methylesterase
3233	 65.08	0	3679408..3679722	-	104	78224461	-	Gmet_3270	-	hypothetical protein
3234	 66.48	+1	3679823..3680914	+	363	78224462	-	Gmet_3271	-	MCP methyltransferase, CheR-type
3235	 62.49	0	3680901..3681881	-	326	78224463	-	Gmet_3272	-	3-oxoacyl-[acyl-carrier-protein] synthase III
59.54	MEAN

5.81	STD DEV
