IslandPath Analysis: Geobacter metallireducens GS-15

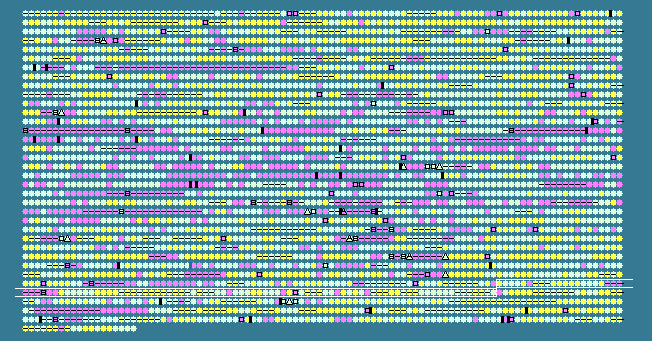

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3080	 65.00	0	3513711..3515813	-	700	78224308	-	Gmet_3116	-	tetratricopeptide TPR_4
3081	 62.20	0	3515997..3517094	-	365	78224309	-	Gmet_3117	-	response regulator receiver domain-containing protein
3082	 59.17	0	3517119..3517625	-	168	78224310	-	Gmet_3118	-	hypothetical protein
3083	 59.23	0	3517622..3517984	-	120	78224311	-	Gmet_3119	-	response regulator receiver domain-containing protein
3084	 65.56	+1	3518063..3518332	-	89	78224312	-	Gmet_3120	-	hypothetical protein
3085	 55.15	0	3518392..3518799	-	135	78224313	-	Gmet_3121	-	hemerythrin-like, metal-binding protein
3086	 63.28	0	3518914..3519297	-	127	78224314	-	Gmet_3122	-	rhodanese-like protein
3087	 68.35	+1	3519319..3520149	-	276	78224315	-	Gmet_3123	-	Beta-lactamase-like
3088	 56.81	0	3520146..3520358	-	70	78224316	-	Gmet_3124	-	hypothetical protein
3089	 65.41	+1	3520380..3520778	-	132	78224317	-	Gmet_3125	-	hypothetical protein
3090	 65.03	0	3520827..3521255	-	142	78224318	-	Gmet_3126	-	hypothetical protein
3091	 64.86	0	3521317..3524532	-	1071	78224319	-	Gmet_3127	-	acriflavin resistance protein
3092	 68.82	+1	3524715..3525827	-	370	78224320	-	Gmet_3128	-	secretion protein HlyD
3093	 65.70	+1	3525824..3527164	-	446	78224321	-	Gmet_3129	-	Outer membrane efflux protein
3094	 62.32	0	3527406..3527888	+	160	78224322	-	Gmet_3130	-	hypothetical protein
3095	 60.98	0	3527965..3528966	-	333	78224323	-	Gmet_3131	-	phosphate transporter
3096	 56.96	0	3528959..3529576	-	205	78224324	-	Gmet_3132	-	hypothetical protein
3097	 64.07	0	3529781..3530590	+	269	78224325	-	Gmet_3133	-	undecaprenyl-diphosphatase
3098	 38.89	-2	3531498..3532037	+	179	78224326	-	Gmet_3135	-	hypothetical protein
3099	 34.96	-2	3532259..3532504	-	81	78224327	-	Gmet_3136	-	hypothetical protein
3100	 51.93	-1	3532561..3532845	+	94	78224328	-	Gmet_3137	-	hypothetical protein
3101	 52.41	-1	3532906..3534624	-	572	78224329	-	Gmet_3138	-	type IIs restriction endonuclease
3102	 35.43	-2	3534831..3535832	-	333	78224330	-	Gmet_3139	-	hypothetical protein
3103	 49.45	-1	3535829..3537745	-	638	78224331	-	Gmet_3140	-	DNA adenine methylase
3104	 53.25	-1	3538011..3539180	+	389	78224332	-	Gmet_3141	-	transposase IS4
3105	 41.18	-2	3539364..3539975	-	203	78224333	-	Gmet_3142	-	resolvase-like protein
3106	 37.24	-2	3540161..3542029	-	622	78224334	-	Gmet_3143	-	resolvase-like:recombinase
3107	 63.16	0	3542348..3543232	-	294	78224335	-	Gmet_3144	-	NAD-dependent epimerase/dehydratase
3108	 58.91	0	3543391..3543867	+	158	78224336	-	Gmet_3145	-	rubrerythrin
3109	 61.61	0	3544071..3544505	-	144	78224337	-	Gmet_3146	-	peptidylprolyl isomerase, FKBP-type
3110	 58.11	0	3544556..3544777	-	73	78224338	-	Gmet_3147	-	hypothetical protein
3111	 60.22	0	3544862..3545047	-	61	78224339	-	Gmet_3148	-	putative lipoprotein
3112	 61.20	0	3545209..3545574	-	121	78224340	-	Gmet_3149	-	hypothetical protein
3113	 67.14	+1	3545635..3546486	-	283	78224341	-	Gmet_3150	-	lipoyl synthase
3114	 65.60	+1	3546483..3547325	-	280	78224342	-	Gmet_3151	-	biotin/lipoate A/B protein ligase
3115	 65.49	+1	3547303..3548748	-	481	78224343	-	Gmet_3152	-	glycine dehydrogenase subunit 2
3116	 67.04	+1	3548739..3550085	-	448	78224344	-	Gmet_3153	-	glycine dehydrogenase subunit 1
3117	 60.53	0	3550082..3550456	-	124	78224345	-	Gmet_3154	-	glycine cleavage system H protein
3118	 63.64	0	3550507..3551595	-	362	78224346	-	Gmet_3155	-	glycine cleavage system T protein
3119	 64.86	0	3551732..3552064	-	110	78224347	-	Gmet_3156	-	hydrogenase expression/synthesis, HypA
3120	 61.72	0	3552237..3553691	+	484	78224348	-	Gmet_3157	-	histidine kinase
3121	 64.65	0	3553803..3555191	+	462	78224349	-	Gmet_3158	-	two component, sigma54 specific, Fis family transcriptional regulator
3122	 64.91	0	3555314..3557878	+	854	78224350	-	Gmet_3159	-	Alpha-glucan phosphorylase
3123	 68.35	+1	3557975..3559693	+	572	78224351	-	Gmet_3160	-	hypothetical protein
3124	 66.32	+1	3559680..3559964	+	94	78224352	-	Gmet_3161	-	FlhB domain-containing protein
3125	 61.61	0	3560059..3561303	+	414	78224353	-	Gmet_3162	-	surface antigen (D15)
3126	 65.70	+1	3561300..3562232	-	310	78224354	-	Gmet_3163	-	hypothetical protein
3127	 63.61	0	3562229..3563176	-	315	78224355	-	Gmet_3164	-	XRE family transcriptional regulator
3128	 61.11	0	3563325..3563612	+	95	78224356	-	Gmet_3165	-	cytochrome c3
3129	 61.17	0	3563744..3564016	+	90	78224357	-	Gmet_3166	-	cytochrome c3
3130	 66.63	+1	3563997..3566627	+	876	78224358	-	Gmet_3167	-	helicase c2
3131	 57.89	0	3566608..3567063	-	151	78224359	-	Gmet_3168	-	hypothetical protein
3132	 61.77	0	3567233..3568825	-	530	78224360	-	Gmet_3169	-	phosphoenolpyruvate carboxykinase
3133	 61.46	0	3569039..3569230	+	63	78224361	-	Gmet_3170	-	4Fe-4S ferredoxin, iron-sulfur binding protein
3134	 59.12	0	3569267..3569425	+	52	78224362	-	Gmet_3171	-	rubredoxin-type Fe(Cys)4 protein
3135	 53.33	-1	3569486..3569665	-	59	78224363	-	Gmet_3172	-	hypothetical protein
3136	 60.34	0	3569777..3570850	-	357	78224364	-	Gmet_3173	-	aminotransferase, class V
3137	 59.74	0	3571193..3572707	+	504	78224365	-	Gmet_3174	-	cytochrome c family protein
3138	 63.02	0	3572960..3574414	-	484	78224366	-	Gmet_3175	-	glycogen/starch synthase, ADP-glucose type
3139	 63.47	0	3574468..3575529	-	353	78224367	-	Gmet_3176	-	galactose-1-phosphate uridyl transferase, class I
3140	 65.90	+1	3575507..3577711	-	734	78224368	-	Gmet_3177	-	glycoside hydrolase family protein
3141	 61.81	0	3577708..3580218	-	836	78224369	-	Gmet_3178	-	phosphoglucomutase/phosphomannomutase family protein
3142	 58.40	0	3580316..3580678	-	120	78224370	-	Gmet_3179	-	response regulator receiver domain-containing protein
3143	 60.20	0	3580680..3582302	-	540	78224371	-	Gmet_3180	-	GAF sensor signal transduction histidine kinase
3144	 51.77	-1	3582394..3582675	-	93	78224372	-	Gmet_3181	-	hypothetical protein
3145	 66.38	+1	3582804..3584177	-	457	78224373	-	Gmet_3182	-	Poly(A) polymerase, PcnB
3146	 53.25	-1	3584328..3585497	+	389	78224374	-	Gmet_3183	-	transposase IS4
3147	 58.52	0	3585558..3585962	+	134	78224375	-	Gmet_3184	-	hypothetical protein
3148	 66.11	+1	3586014..3586727	+	237	78224376	-	Gmet_3185	-	Iron-sulfur cluster-binding protein
3149	 60.07	0	3586850..3587455	+	201	78224377	-	Gmet_3186	-	Alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
3150	 65.77	+1	3587525..3589759	+	744	78224378	-	Gmet_3187	-	DNA polymerase B, exonuclease
3151	 59.47	0	3589836..3590252	+	138	78224379	-	Gmet_3188	-	hypothetical protein
3152	 62.43	0	3590249..3590626	+	125	78224380	-	Gmet_3189	-	hypothetical protein
3153	 51.76	-1	3590611..3591093	+	160	78224381	-	Gmet_3190	-	hypothetical protein
3154	 64.85	0	3591280..3593808	+	842	78224382	-	Gmet_3191	-	radical SAM family protein
3155	 62.21	0	3593798..3595300	+	500	78224383	-	Gmet_3192	-	ribonuclease G
3156	 64.89	0	3595319..3596497	+	392	78224384	purT	Gmet_3193	-	phosphoribosylglycinamide formyltransferase 2
3157	 59.08	0	3596522..3596824	+	100	78224385	-	Gmet_3194	-	Rieske (2Fe-2S) region
3158	 54.37	0	3596902..3597210	+	102	78224386	rplU	Gmet_3195	-	50S ribosomal protein L21
3159	 62.79	0	3597292..3597549	+	85	78224387	rpmA	Gmet_3196	-	50S ribosomal protein L27
3160	 64.60	0	3597639..3598655	+	338	78224388	obgE	Gmet_3197	-	GTPase ObgE
3161	 66.31	+1	3598666..3599787	+	373	78224389	-	Gmet_3198	-	gamma-glutamyl kinase
3162	 64.92	0	3599883..3601139	+	418	78224390	-	Gmet_3199	-	glutamate-5-semialdehyde dehydrogenase
3163	 63.75	0	3601171..3601821	+	216	78224391	-	Gmet_3200	-	nicotinate-nucleotide adenylyltransferase
3164	 61.36	0	3601811..3602206	+	131	78224392	-	Gmet_3201	-	Iojap-related protein
3165	 64.73	0	3602203..3602667	+	154	78224393	-	Gmet_3202	-	hypothetical protein
3166	 65.56	+1	3602698..3604236	+	512	78224394	-	Gmet_3203	-	phosphoglyceromutase
3167	 61.43	0	3604335..3604754	-	139	78224395	-	Gmet_3204	-	TraR/DksA family transcriptional regulator
3168	 62.93	0	3604842..3606179	-	445	78224396	-	Gmet_3205	-	hypothetical protein
3169	 58.23	0	3606213..3606698	-	161	78224397	-	Gmet_3206	-	nucleotide-binding protein
3170	 61.73	0	3606730..3607458	-	242	78224398	-	Gmet_3207	-	Outer membrane lipoprotein carrier protein LolA
3171	 59.58	0	3607551..3608369	-	272	78224399	-	Gmet_3208	-	Outer membrane lipoprotein carrier protein LolA
3172	 62.37	0	3608388..3608876	-	162	78224400	-	Gmet_3209	-	CheD, stimulates methylation of MCP proteins
3173	 58.21	0	3608873..3609487	-	204	78224401	-	Gmet_3210	-	CheC, inhibitor of MCP methylation
3174	 59.89	0	3609549..3609917	-	122	78224402	-	Gmet_3211	-	response regulator receiver domain-containing protein
3175	 57.65	0	3610020..3610895	-	291	78224403	-	Gmet_3212	-	MCP methyltransferase, CheR-type
3176	 64.55	0	3610982..3611971	-	329	78224404	-	Gmet_3213	-	thiamine-monophosphate kinase
3177	 63.07	0	3611968..3614439	-	823	78224405	-	Gmet_3214	-	Lon-A peptidase
3178	 60.71	0	3614439..3614891	-	150	78224406	-	Gmet_3215	-	heat shock protein Hsp20
3179	 60.09	0	3615370..3617301	+	643	78224407	-	Gmet_3216	-	TPR repeat-containing protein
59.54	MEAN

5.81	STD DEV
