IslandPath Analysis: Geobacter metallireducens GS-15

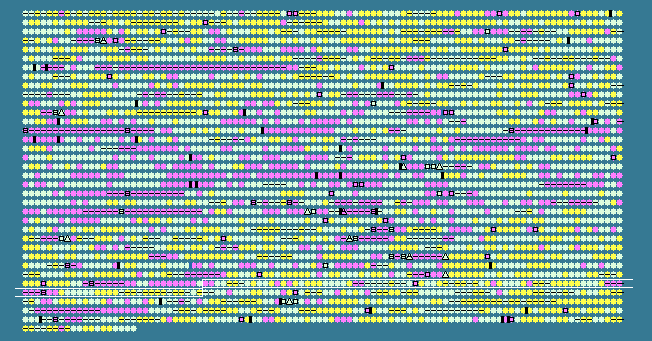

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3031	 48.89	-1	3465157..3465516	-	119	78224259	-	Gmet_3066	-	hypothetical protein
3032	 48.86	-1	3465911..3467617	-	568	78224260	-	Gmet_3068	-	hypothetical protein
3033	 62.78	0	3467607..3468533	-	308	78224261	-	Gmet_3069	-	magnesium chelatase, ChlI subunit
3034	 62.78	0	3468586..3469536	-	316	78224262	-	Gmet_3070	-	thioredoxin reductase
3035	 65.97	+1	3469679..3470683	+	334	78224263	-	Gmet_3071	-	cation efflux protein
3036	 65.18	0	3470702..3471910	+	402	78224264	-	Gmet_3072	-	threonine dehydratase
3037	 62.74	0	3471861..3472547	-	228	78224265	-	Gmet_3073	-	hypothetical protein
3038	 59.41	0	3472706..3473491	-	261	78224266	-	Gmet_3074	-	putative GTP cyclohydrolase
3039	 65.13	0	3473550..3474263	-	237	78224267	-	Gmet_3075	-	ExsB
3040	 60.37	0	3474292..3474720	-	142	78224268	-	Gmet_3076	-	hypothetical protein
3041	 62.07	0	3474717..3474977	-	86	78224269	-	Gmet_3077	-	prevent-host-death protein
3042	 64.06	0	3475062..3476252	-	396	78224270	-	Gmet_3078	-	phospholipase D/transphosphatidylase
3043	 55.22	0	3476377..3476577	-	66	78224271	-	Gmet_3079	-	hypothetical protein
3044	 63.56	0	3476630..3476854	-	74	78224272	-	Gmet_3080	-	nitrogen-fixing NifU-like
3045	 51.97	-1	3477079..3478248	-	389	78224273	-	Gmet_3081	-	hypothetical protein
3046	 68.30	+1	3478370..3479779	-	469	78224274	aspA	Gmet_3082	-	aspartate ammonia-lyase
3047	 61.90	0	3479819..3480910	-	363	78224275	-	Gmet_3083	-	HAD family hydrolase
3048	 65.80	+1	3480960..3482117	-	385	78224276	-	Gmet_3084	-	hypothetical protein
3049	 64.13	0	3482224..3484941	-	905	78224277	-	Gmet_3085	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
3050	 66.67	+1	3485051..3486055	-	334	78224278	-	Gmet_3086	-	transcriptional regulator, putative
3051	 60.60	0	3486132..3488555	-	807	78224279	-	Gmet_3087	-	methyl-accepting chemotaxis sensory transducer
3052	 61.32	0	3488747..3490111	-	454	78224280	-	Gmet_3088	-	cytochrome c family protein
3053	 56.23	0	3490259..3490555	-	98	78224281	-	Gmet_3089	-	hypothetical protein
3054	 59.06	0	3490637..3492253	-	538	78224282	-	Gmet_3090	-	hypothetical protein
3055	 64.36	0	3492846..3493886	+	346	78224283	-	Gmet_3091	-	di-haem cytochrome c peroxidase
3056	 51.88	-1	3493964..3494308	+	114	78224284	-	Gmet_3092	-	hypothetical protein
3057	 52.25	-1	3494305..3494526	+	73	78224285	-	Gmet_3093	-	hypothetical protein
3058	 59.51	0	3494880..3495941	-	353	78224286	flhB	Gmet_3094	-	flagellar biosynthesis protein FlhB
3059	 59.12	0	3495941..3496735	-	264	78224287	-	Gmet_3095	-	flagellar biosynthesis protein FliR
3060	 58.15	0	3496819..3497088	-	89	78224288	-	Gmet_3096	-	flagellar biosynthesis protein FliQ
3061	 61.49	0	3497167..3497919	-	250	78224289	fliP	Gmet_3097	-	flagellar biosynthesis protein FliP
3062	 64.15	0	3497939..3498415	-	158	78224290	-	Gmet_3098	-	hypothetical protein
3063	 60.13	0	3498427..3498732	-	101	78224291	-	Gmet_3099	-	flagellar motor switch FliN
3064	 58.74	0	3498729..3499712	-	327	78224292	-	Gmet_3100	-	flagellar motor switch protein FliM
3065	 59.24	0	3499758..3500282	-	174	78224293	-	Gmet_3101	-	flagellar basal body-associated protein FliL
3066	 55.31	0	3500752..3501975	+	407	78224294	-	Gmet_3102	-	IS204/IS1001/IS1096/IS1165 transposase
3067	 63.57	0	3502023..3503282	-	419	78224295	-	Gmet_3103	-	hypothetical protein
3068	 60.51	0	3503441..3503830	-	129	78224296	-	Gmet_3104	-	hypothetical protein
3069	 61.49	0	3503838..3504494	-	218	78224297	-	Gmet_3105	-	flagellar hook capping protein
3070	 66.18	+1	3504557..3505996	-	479	78224298	-	Gmet_3106	-	flagellar hook-length control protein
3071	 65.03	0	3506211..3506759	-	182	78224299	-	Gmet_3107	-	hypothetical protein
3072	 62.64	0	3506763..3507209	-	148	78224300	-	Gmet_3108	-	flagellar export FliJ
3073	 63.81	0	3507269..3508600	-	443	78224301	-	Gmet_3109	-	ATPase FliI/YscN
3074	 67.21	+1	3508587..3509501	-	304	78224302	-	Gmet_3110	-	flagellar assembly protein fliH, putative
3075	 60.42	0	3509488..3510480	-	330	78224303	-	Gmet_3111	-	flagellar motor switch protein FliG
3076	 64.02	0	3510531..3512114	-	527	78224304	-	Gmet_3112	-	flagellar FliF M-ring protein
3077	 60.46	0	3512284..3512589	-	101	78224305	-	Gmet_3113	-	flagellar hook-basal body complex protein FliE
3078	 65.77	+1	3512694..3513137	-	147	78224306	-	Gmet_3114	-	flagellar basal-body rod protein FlgC
3079	 54.85	0	3513137..3513559	-	140	78224307	-	Gmet_3115	-	flagellar basal-body rod protein FlgB
3080	 65.00	0	3513711..3515813	-	700	78224308	-	Gmet_3116	-	tetratricopeptide TPR_4
3081	 62.20	0	3515997..3517094	-	365	78224309	-	Gmet_3117	-	response regulator receiver domain-containing protein
3082	 59.17	0	3517119..3517625	-	168	78224310	-	Gmet_3118	-	hypothetical protein
3083	 59.23	0	3517622..3517984	-	120	78224311	-	Gmet_3119	-	response regulator receiver domain-containing protein
3084	 65.56	+1	3518063..3518332	-	89	78224312	-	Gmet_3120	-	hypothetical protein
3085	 55.15	0	3518392..3518799	-	135	78224313	-	Gmet_3121	-	hemerythrin-like, metal-binding protein
3086	 63.28	0	3518914..3519297	-	127	78224314	-	Gmet_3122	-	rhodanese-like protein
3087	 68.35	+1	3519319..3520149	-	276	78224315	-	Gmet_3123	-	Beta-lactamase-like
3088	 56.81	0	3520146..3520358	-	70	78224316	-	Gmet_3124	-	hypothetical protein
3089	 65.41	+1	3520380..3520778	-	132	78224317	-	Gmet_3125	-	hypothetical protein
3090	 65.03	0	3520827..3521255	-	142	78224318	-	Gmet_3126	-	hypothetical protein
3091	 64.86	0	3521317..3524532	-	1071	78224319	-	Gmet_3127	-	acriflavin resistance protein
3092	 68.82	+1	3524715..3525827	-	370	78224320	-	Gmet_3128	-	secretion protein HlyD
3093	 65.70	+1	3525824..3527164	-	446	78224321	-	Gmet_3129	-	Outer membrane efflux protein
3094	 62.32	0	3527406..3527888	+	160	78224322	-	Gmet_3130	-	hypothetical protein
3095	 60.98	0	3527965..3528966	-	333	78224323	-	Gmet_3131	-	phosphate transporter
3096	 56.96	0	3528959..3529576	-	205	78224324	-	Gmet_3132	-	hypothetical protein
3097	 64.07	0	3529781..3530590	+	269	78224325	-	Gmet_3133	-	undecaprenyl-diphosphatase
3098	 38.89	-2	3531498..3532037	+	179	78224326	-	Gmet_3135	-	hypothetical protein
3099	 34.96	-2	3532259..3532504	-	81	78224327	-	Gmet_3136	-	hypothetical protein
3100	 51.93	-1	3532561..3532845	+	94	78224328	-	Gmet_3137	-	hypothetical protein
3101	 52.41	-1	3532906..3534624	-	572	78224329	-	Gmet_3138	-	type IIs restriction endonuclease
3102	 35.43	-2	3534831..3535832	-	333	78224330	-	Gmet_3139	-	hypothetical protein
3103	 49.45	-1	3535829..3537745	-	638	78224331	-	Gmet_3140	-	DNA adenine methylase
3104	 53.25	-1	3538011..3539180	+	389	78224332	-	Gmet_3141	-	transposase IS4
3105	 41.18	-2	3539364..3539975	-	203	78224333	-	Gmet_3142	-	resolvase-like protein
3106	 37.24	-2	3540161..3542029	-	622	78224334	-	Gmet_3143	-	resolvase-like:recombinase
3107	 63.16	0	3542348..3543232	-	294	78224335	-	Gmet_3144	-	NAD-dependent epimerase/dehydratase
3108	 58.91	0	3543391..3543867	+	158	78224336	-	Gmet_3145	-	rubrerythrin
3109	 61.61	0	3544071..3544505	-	144	78224337	-	Gmet_3146	-	peptidylprolyl isomerase, FKBP-type
3110	 58.11	0	3544556..3544777	-	73	78224338	-	Gmet_3147	-	hypothetical protein
3111	 60.22	0	3544862..3545047	-	61	78224339	-	Gmet_3148	-	putative lipoprotein
3112	 61.20	0	3545209..3545574	-	121	78224340	-	Gmet_3149	-	hypothetical protein
3113	 67.14	+1	3545635..3546486	-	283	78224341	-	Gmet_3150	-	lipoyl synthase
3114	 65.60	+1	3546483..3547325	-	280	78224342	-	Gmet_3151	-	biotin/lipoate A/B protein ligase
3115	 65.49	+1	3547303..3548748	-	481	78224343	-	Gmet_3152	-	glycine dehydrogenase subunit 2
3116	 67.04	+1	3548739..3550085	-	448	78224344	-	Gmet_3153	-	glycine dehydrogenase subunit 1
3117	 60.53	0	3550082..3550456	-	124	78224345	-	Gmet_3154	-	glycine cleavage system H protein
3118	 63.64	0	3550507..3551595	-	362	78224346	-	Gmet_3155	-	glycine cleavage system T protein
3119	 64.86	0	3551732..3552064	-	110	78224347	-	Gmet_3156	-	hydrogenase expression/synthesis, HypA
3120	 61.72	0	3552237..3553691	+	484	78224348	-	Gmet_3157	-	histidine kinase
3121	 64.65	0	3553803..3555191	+	462	78224349	-	Gmet_3158	-	two component, sigma54 specific, Fis family transcriptional regulator
3122	 64.91	0	3555314..3557878	+	854	78224350	-	Gmet_3159	-	Alpha-glucan phosphorylase
3123	 68.35	+1	3557975..3559693	+	572	78224351	-	Gmet_3160	-	hypothetical protein
3124	 66.32	+1	3559680..3559964	+	94	78224352	-	Gmet_3161	-	FlhB domain-containing protein
3125	 61.61	0	3560059..3561303	+	414	78224353	-	Gmet_3162	-	surface antigen (D15)
3126	 65.70	+1	3561300..3562232	-	310	78224354	-	Gmet_3163	-	hypothetical protein
3127	 63.61	0	3562229..3563176	-	315	78224355	-	Gmet_3164	-	XRE family transcriptional regulator
3128	 61.11	0	3563325..3563612	+	95	78224356	-	Gmet_3165	-	cytochrome c3
3129	 61.17	0	3563744..3564016	+	90	78224357	-	Gmet_3166	-	cytochrome c3
3130	 66.63	+1	3563997..3566627	+	876	78224358	-	Gmet_3167	-	helicase c2
59.54	MEAN

5.81	STD DEV
