IslandPath Analysis: Geobacter metallireducens GS-15

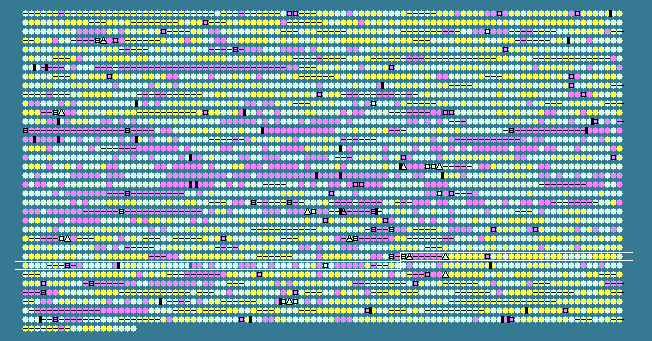

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2764	 58.49	0	3159674..3160468	-	264	78223992	-	Gmet_2796	-	transposase/IS protein
2765	 58.09	0	3160465..3161490	-	341	78223993	-	Gmet_2797	-	integrase catalytic subunit
2766	 46.32	-2	3161538..3161822	-	94	78223994	-	Gmet_2798	-	hypothetical protein
2767	 46.19	-2	3161871..3162632	-	253	78223995	-	Gmet_2799	-	hypothetical protein
2768	 39.01	-2	3162675..3164840	-	721	78223996	-	Gmet_2800	-	hypothetical protein
2769	 39.22	-2	3164856..3165314	-	152	78223997	-	Gmet_2801	-	hypothetical protein
2770	 50.26	-1	3165428..3165811	-	127	78223998	-	Gmet_2802	-	hypothetical protein
2771	 56.74	0	3165949..3167298	+	449	78223999	-	Gmet_2803	-	integron integrase
2772	 67.70	+1	3167300..3167881	-	193	78224000	-	Gmet_2804	-	hypothetical protein
2773	 68.90	+1	3167886..3168779	-	297	78224001	-	Gmet_2805	-	N-acetylglucosamine kinase
2774	 68.85	+1	3168852..3169217	-	121	78224002	-	Gmet_2806	-	translation initiation factor Sui1
2775	 68.74	+1	3169234..3169668	-	144	78224003	-	Gmet_2807	-	hypothetical protein
2776	 66.23	+1	3169835..3171646	+	603	78224004	-	Gmet_2808	-	surface antigen (D15)
2777	 71.41	+2	3171643..3175776	+	1377	78224005	-	Gmet_2809	-	hypothetical protein
2778	 52.87	-1	3176072..3177028	+	318	78224006	-	Gmet_2810	-	IS111A/IS1328/IS1533/IS116/IS110/IS902 transposase
2779	 61.57	0	3177061..3179277	-	738	78224007	-	Gmet_2811	-	PAS/PAC sensor signal transduction histidine kinase
2780	 67.70	+1	3179274..3180239	-	321	78224008	-	Gmet_2812	-	PfkB
2781	 58.67	0	3180375..3180749	+	124	78224009	-	Gmet_2813	-	hypothetical protein
2782	 67.82	+1	3180756..3181364	-	202	78224010	-	Gmet_2814	-	HAD family hydrolase
2783	 66.41	+1	3181621..3182796	-	391	78224011	-	Gmet_2815	-	ceramide glucosyltransferase, putative
2784	 66.85	+1	3182955..3185117	+	720	78224012	-	Gmet_2816	-	HEAT repeat-containing PBS lyase
2785	 65.42	+1	3185114..3186232	+	372	78224013	-	Gmet_2817	-	metal dependent phosphohydrolase
2786	 65.08	0	3186189..3188138	-	649	78224014	-	Gmet_2818	-	putative PAS/PAC sensor protein
2787	 64.72	0	3188220..3191606	-	1128	78224015	-	Gmet_2819	-	putative rRNA methylase
2788	 62.70	0	3191839..3193878	+	679	78224016	-	Gmet_2820	-	Terpene synthase:squalene cyclase
2789	 64.44	0	3193957..3194943	+	328	78224017	-	Gmet_2821	-	NAD-dependent epimerase/dehydratase
2790	 66.14	+1	3195019..3196926	+	635	78224018	-	Gmet_2822	-	1-deoxy-D-xylulose-5-phosphate synthase
2791	 59.06	0	3196987..3197985	+	332	78224019	-	Gmet_2823	-	radical SAM family protein
2792	 59.08	0	3198090..3201146	-	1018	78224020	-	Gmet_2824	-	multi-sensor hybrid histidine kinase
2793	 59.25	0	3201197..3202909	-	570	78224021	-	Gmet_2825	-	methyl-accepting chemotaxis sensory transducer
2794	 61.35	0	3202945..3203508	-	187	78224022	-	Gmet_2826	-	CheB methylesterase
2795	 58.39	0	3203512..3203922	-	136	78224023	-	Gmet_2827	-	response regulator receiver domain-containing protein
2796	 63.22	0	3204285..3205937	-	550	78224024	-	Gmet_2828	-	methyl-accepting chemotaxis sensory transducer
2797	 64.97	0	3206079..3209681	-	1200	78224025	-	Gmet_2829	-	hypothetical protein
2798	 63.53	0	3209805..3210377	-	190	78224026	-	Gmet_2830	-	tellurite resistance protein TehB
2799	 63.30	0	3210695..3212062	-	455	78224027	-	Gmet_2831	-	hypothetical protein
2800	 61.72	0	3212062..3212364	-	100	78224028	-	Gmet_2832	-	hypothetical protein
2801	 68.30	+1	3212399..3213073	-	224	78224029	-	Gmet_2833	-	hypothetical protein
2802	 62.47	0	3213321..3214964	+	547	161723102	-	Gmet_2834	-	hydroxylamine reductase
2803	 60.07	0	3215048..3215608	-	186	78224031	-	Gmet_2835	-	nitroreductase
2804	 61.20	0	3215694..3216407	-	237	78224032	-	Gmet_2836	-	hypothetical protein
2805	 57.67	0	3216592..3217302	+	236	78224033	-	Gmet_2837	-	hypothetical protein
2806	 64.31	0	3217388..3218278	+	296	78224034	-	Gmet_2838	-	pseudouridine synthase, RluD
2807	 61.38	0	3218583..3219452	+	289	78224035	-	Gmet_2839	-	cytochrome c family protein
2808	 55.31	0	3219511..3220734	-	407	78224036	-	Gmet_2840	-	IS204/IS1001/IS1096/IS1165 transposase
2809	 55.70	0	3221129..3221575	-	148	78224037	rplI	Gmet_2841	-	50S ribosomal protein L9
2810	 53.69	-1	3221600..3222547	-	315	78224038	-	Gmet_2842	-	hypothetical protein
2811	 58.88	0	3222563..3222883	-	106	78224039	rpsR	Gmet_2843	-	30S ribosomal protein S18
2812	 59.94	0	3222905..3223261	-	118	78224040	rpsF	Gmet_2844	-	30S ribosomal protein S6
2813	 58.81	0	3223418..3224512	-	364	78224041	-	Gmet_2845	-	translation-associated GTPase
2814	 57.61	0	3224555..3225139	-	194	78224042	-	Gmet_2846	-	peptidyl-tRNA hydrolase
2815	 58.33	0	3225163..3225750	-	195	78224043	-	Gmet_2847	-	50S ribosomal protein L25/general stress protein Ctc
2816	 55.66	0	3225810..3226754	-	314	78224044	-	Gmet_2848	-	ribose-phosphate pyrophosphokinase
2817	 60.28	0	3226921..3227766	-	281	78224045	-	Gmet_2849	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2818	 64.34	0	3227845..3228660	-	271	78224046	-	Gmet_2850	-	polysaccharide deacetylase
2819	 64.62	0	3228780..3231374	-	864	78224047	-	Gmet_2851	-	AAA ATPase
2820	 61.82	0	3231461..3231625	-	54	78224048	-	Gmet_2852	-	hypothetical protein
2821	 61.17	0	3231731..3232804	-	357	78224049	-	Gmet_2853	-	branched-chain amino acid aminotransferase
2822	 58.45	0	3233085..3233924	+	279	78224050	-	Gmet_2854	-	sigma 32 (RpoH)
2823	 62.12	0	3234034..3234780	+	248	78224051	-	Gmet_2855	-	UBA/THIF-type NAD/FAD binding fold:MoeZ/MoeB
2824	 63.74	0	3235040..3235825	+	261	78224052	-	Gmet_2856	-	hypothetical protein
2825	 61.49	0	3235828..3237276	+	482	78224053	-	Gmet_2857	-	Sodium/sulphate symporter
2826	 62.43	0	3237331..3238038	+	235	78224054	-	Gmet_2858	-	phosphoadenylylsulfate reductase (thioredoxin)
2827	 60.60	0	3238071..3238976	+	301	78224055	-	Gmet_2859	-	sulfate adenylyltransferase subunit 2
2828	 60.07	0	3238976..3240643	+	555	78224056	-	Gmet_2860	-	sulfate adenylyltransferase subunit 1
2829	 54.42	0	3246398..3247246	-	282	78224057	-	Gmet_2861	-	hypothetical protein
2830	 54.53	0	3247243..3248058	-	271	78224058	nadE	Gmet_2862	-	NAD synthetase
2831	 56.08	0	3248058..3248945	-	295	78224059	-	Gmet_2863	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
2832	 54.20	0	3248978..3249346	-	122	78224060	-	Gmet_2864	-	hypothetical protein
2833	 56.39	0	3249333..3249974	-	213	78224061	-	Gmet_2865	-	RNase HII
2834	 57.14	0	3250021..3250377	-	118	78224062	rplS	Gmet_2866	-	50S ribosomal protein L19
2835	 57.39	0	3250442..3251023	-	193	78224063	-	Gmet_2867	-	hypothetical protein
2836	 59.21	0	3251020..3251757	-	245	78224064	-	Gmet_2868	-	tRNA (Guanine37-N1) methyltransferase
2837	 54.60	0	3251754..3252275	-	173	78224065	-	Gmet_2869	-	16S rRNA processing protein RimM
2838	 54.55	0	3252275..3252505	-	76	78224066	-	Gmet_2870	-	KH, type 1
2839	 55.81	0	3252571..3252837	-	88	78224067	rpsP	Gmet_2871	-	30S ribosomal protein S16
2840	 60.12	0	3252941..3254299	-	452	78224068	-	Gmet_2872	-	signal recognition particle subunit FFH/SRP54 (srp54)
2841	 57.65	0	3254454..3254708	-	84	78224069	-	Gmet_2873	-	hypothetical protein
2842	 51.94	-1	3254826..3255083	+	85	78224070	-	Gmet_2874	-	hypothetical protein
2843	 62.99	0	3255076..3255564	+	162	78224071	-	Gmet_2875	-	hypothetical protein
2844	 59.90	0	3255570..3256337	-	255	78224072	-	Gmet_2876	-	putative RNA methylase:methyltransferase small
2845	 57.28	0	3256327..3258786	-	819	78224073	-	Gmet_2877	-	hypothetical protein
2846	 55.29	0	3258847..3259989	-	380	78224074	-	Gmet_2878	-	glycosyl transferase, group 1
2847	 61.09	0	3260063..3261049	-	328	78224075	-	Gmet_2879	-	glycosyl transferase family protein
2848	 61.73	0	3261046..3262221	-	391	78224076	-	Gmet_2880	-	glycosyl transferase, group 1
2849	 64.15	0	3262218..3263330	-	370	78224077	-	Gmet_2881	-	ADP-heptose:LPS heptosyltransferase-like
2850	 48.51	-1	3263345..3264016	-	223	78224078	-	Gmet_2882	-	hypothetical protein
2851	 58.40	0	3264165..3265241	+	358	78224079	-	Gmet_2883	-	transposase IS4
2852	 61.98	0	3265436..3266332	-	298	78224080	-	Gmet_2884	-	glycosyl transferase family protein
2853	 39.47	-2	3266329..3267192	-	287	78224081	-	Gmet_2885	-	glycosyl transferase family protein
2854	 46.76	-2	3267189..3268022	-	277	78224082	-	Gmet_2886	-	2-polyprenyl-3-methyl-5-hydroxy-6-metoxy-1 4-benzoquinol methylase-like
2855	 45.66	-2	3267979..3268692	-	237	78224083	-	Gmet_2887	-	SAM-binding motif-containing protein
2856	 55.69	0	3268686..3270170	-	494	78224084	-	Gmet_2888	-	polysaccharide biosynthesis protein
2857	 55.50	0	3270172..3270780	-	202	78224085	-	Gmet_2889	-	hypothetical protein
2858	 63.98	0	3270846..3272075	-	409	78224086	-	Gmet_2890	-	glycosyl transferase, group 1
2859	 51.37	-1	3272068..3272433	-	121	78224087	-	Gmet_2891	-	hypothetical protein
2860	 60.71	0	3272449..3273438	-	329	78224088	-	Gmet_2892	-	glycosyl transferase family protein
2861	 58.84	0	3273447..3274940	-	497	78224089	-	Gmet_2893	-	hypothetical protein
2862	 63.30	0	3274949..3275899	-	316	78224090	-	Gmet_2894	-	hypothetical protein
2863	 57.48	0	3276043..3278349	-	768	78224091	-	Gmet_2895	-	hypothetical protein
59.54	MEAN

5.81	STD DEV
