IslandPathversion 1.0

IslandPath Analysis: Geobacter metallireducens GS-15

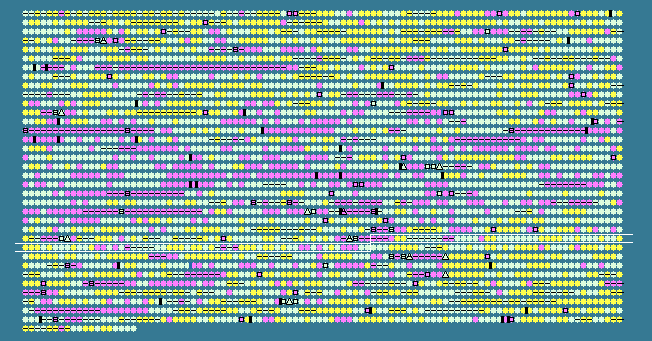

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2559	 41.90	-2	2941200..2941724	+	174	78223787	-	Gmet_2590	-	hypothetical protein
2560	 50.15	-1	2941871..2942209	-	112	78223788	-	Gmet_2591	-	HicB
2561	 49.26	-1	2942206..2942475	-	89	78223789	-	Gmet_2592	-	HicA-related protein
2562	 51.97	-1	2942698..2943867	-	389	78223790	-	Gmet_2593	-	hypothetical protein
2563	 63.45	0	2944016..2944978	+	320	78223791	-	Gmet_2594	-	lipolytic protein
2564	 70.18	+1	2945175..2945687	+	170	78223792	-	Gmet_2595	-	hypothetical protein
2565	 61.22	0	2945688..2946422	-	244	78223793	-	Gmet_2596	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
2566	 62.06	0	2946438..2947958	-	506	78223794	-	Gmet_2597	-	NADH-ubiquinone oxidoreductase, chain 49kDa
2567	 62.84	0	2947955..2949391	-	478	78223795	-	Gmet_2598	-	NADH/ubiquinone/plastoquinone (complex I)
2568	 59.19	0	2949398..2950039	-	213	78223796	-	Gmet_2599	-	NAD-dependent dehydrogenase subunit
2569	 58.20	0	2950044..2950952	-	302	78223797	-	Gmet_2600	-	respiratory-chain NADH dehydrogenase, subunit 1
2570	 60.56	0	2950996..2952978	-	660	78223798	-	Gmet_2601	-	NADH/ubiquinone/plastoquinone (complex I)
2571	 50.63	-1	2953173..2953409	+	78	78223799	-	Gmet_2602	-	hypothetical protein
2572	 54.37	0	2953402..2953767	+	121	78223800	-	Gmet_2603	-	transcriptional modulator of MazE/toxin, MazF
2573	 60.55	0	2953773..2954459	+	228	78223801	-	Gmet_2604	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
2574	 61.48	0	2954562..2954831	-	89	78223802	-	Gmet_2605	-	hypothetical protein
2575	 58.97	0	2955207..2955635	+	142	78223803	-	Gmet_2606	-	GreA/GreB family elongation factor
2576	 61.59	0	2955707..2956534	-	275	78223804	lpxC	Gmet_2607	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
2577	 53.14	-1	2956735..2957451	-	238	78223805	-	Gmet_2608	-	hypothetical protein
2578	 63.84	0	2957711..2958418	+	235	78223806	-	Gmet_2609	-	hypothetical protein
2579	 66.46	+1	2958469..2958957	-	162	78223807	-	Gmet_2610	-	hypothetical protein
2580	 62.50	0	2958968..2959327	-	119	78223808	-	Gmet_2611	-	hypothetical protein
2581	 62.03	0	2959324..2959884	-	186	78223809	-	Gmet_2612	-	RNA polymerase factor sigma-70
2582	 62.35	0	2960020..2960505	+	161	78223810	-	Gmet_2613	-	twin-arginine translocation pathway signal
2583	 62.63	0	2960558..2961349	+	263	78223811	-	Gmet_2614	-	putative GAF sensor protein
2584	 60.57	0	2961359..2961637	-	92	78223812	-	Gmet_2615	-	hypothetical protein
2585	 62.34	0	2961941..2962471	+	176	78223813	-	Gmet_2616	-	guanine-specific ribonuclease N1 and T1
2586	 60.42	0	2962462..2962749	+	95	78223814	-	Gmet_2617	-	hypothetical protein
2587	 63.64	0	2962760..2963485	-	241	78223815	-	Gmet_2618	-	6-phosphogluconolactonase
2588	 64.39	0	2963482..2965020	-	512	78223816	-	Gmet_2619	-	glucose-6-phosphate 1-dehydrogenase
2589	 63.20	0	2965052..2966062	-	336	78223817	-	Gmet_2620	-	6-phosphogluconate dehydrogenase-like protein
2590	 66.67	+1	2966066..2966518	-	150	78223818	-	Gmet_2621	-	ribose/galactose isomerase
2591	 59.04	0	2966568..2967026	-	152	78223819	-	Gmet_2622	-	hypothetical protein
2592	 58.18	0	2967639..2968133	+	164	78223820	-	Gmet_2623	-	glyoxalase/bleomycin resistance protein/dioxygenase
2593	 63.82	0	2968218..2969480	-	420	78223821	-	Gmet_2624	-	hypothetical protein
2594	 57.20	0	2969745..2969987	-	80	78223822	-	Gmet_2625	-	hypothetical protein
2595	 59.96	0	2970099..2970590	+	163	78223823	-	Gmet_2626	-	cytochrome p460, putative
2596	 61.48	0	2970642..2971934	+	430	78223824	-	Gmet_2627	-	esterase/lipase/thioesterase family lipase
2597	 63.19	0	2971960..2974230	+	756	78223825	-	Gmet_2628	-	phospholipase D/transphosphatidylase
2598	 59.53	0	2974275..2976740	-	821	78223826	-	Gmet_2629	-	diguanylate cyclase/phosphodiesterase
2599	 61.72	0	2977012..2978649	-	545	78223827	-	Gmet_2630	-	ABC transporter-related protein
2600	 66.42	+1	2978842..2979246	+	134	78223828	-	Gmet_2631	-	RNA-binding region RNP-1
2601	 63.64	0	2979283..2979711	-	142	78223829	-	Gmet_2632	-	hypothetical protein
2602	 71.65	+2	2979735..2981378	-	547	78223830	-	Gmet_2633	-	ABC transporter-related protein
2603	 71.09	+1	2981375..2983093	-	572	78223831	-	Gmet_2634	-	ABC transporter-related protein
2604	 56.12	0	2983225..2983812	+	195	78223832	-	Gmet_2635	-	heat shock protein Hsp20
2605	 66.89	+1	2983943..2984380	+	145	78223833	-	Gmet_2636	-	hypothetical protein
2606	 62.50	0	2984388..2984867	+	159	78223834	-	Gmet_2637	-	membrane protein-like
2607	 62.73	0	2985002..2986855	+	617	78223835	-	Gmet_2638	-	phosphoenolpyruvate carboxykinase
2608	 60.03	0	2986940..2988130	-	396	78223836	-	Gmet_2639	-	response regulator receiver sensor signal transduction histidine kinase
2609	 66.67	+1	2988228..2988812	-	194	78223837	-	Gmet_2640	-	CheB methylesterase
2610	 56.11	0	2988790..2989632	-	280	78223838	-	Gmet_2641	-	MCP methyltransferase, CheR-type
2611	 61.08	0	2989635..2993285	-	1216	78223839	-	Gmet_2642	-	GAF sensor hybrid histidine kinase
2612	 63.48	0	2993460..2994368	-	302	78223840	-	Gmet_2643	-	2-dehydropantoate 2-reductase
2613	 54.02	0	2995013..2995597	+	194	78223841	-	Gmet_2645	-	TetR family transcriptional regulator
2614	 53.86	0	2995683..2996213	+	176	78223842	-	Gmet_2646	-	alkylhydroperoxidase AhpD core
2615	 57.30	0	2996326..2996955	+	209	78223843	-	Gmet_2647	-	NADPH-dependent FMN reductase
2616	 50.57	-1	2997171..2997431	+	86	78223844	-	Gmet_2648	-	hypothetical protein
2617	 56.69	0	2997490..2997870	+	126	78223845	-	Gmet_2649	-	glyoxalase/bleomycin resistance protein/dioxygenase
2618	 54.84	0	2997897..2998268	+	123	78223846	-	Gmet_2650	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding protein
2619	 57.50	0	2998475..2999347	-	290	78223847	-	Gmet_2651	-	metallophosphoesterase
2620	 62.06	0	2999607..3000647	-	346	78223848	-	Gmet_2652	-	thioredoxin-related protein
2621	 58.16	0	3000691..3001818	-	375	78223849	-	Gmet_2653	-	hypothetical protein
2622	 62.17	0	3001831..3002943	-	370	78223850	-	Gmet_2654	-	thioredoxin-related protein
2623	 61.96	0	3002940..3004001	-	353	78223851	-	Gmet_2655	-	hypothetical protein
2624	 59.18	0	3004013..3004279	-	88	78223852	-	Gmet_2656	-	hypothetical protein
2625	 67.54	+1	3004299..3004643	-	114	78223853	-	Gmet_2657	-	hypothetical protein
2626	 63.71	0	3004695..3007706	-	1003	78223854	-	Gmet_2658	-	PDZ/DHR/GLGF:ankyrin
2627	 63.92	0	3007685..3009070	-	461	78223855	-	Gmet_2659	-	hypothetical protein
2628	 60.25	0	3009045..3009854	-	269	78223856	-	Gmet_2660	-	hypothetical protein
2629	 63.19	0	3009851..3010714	-	287	78223857	-	Gmet_2661	-	ankyrin
2630	 64.55	0	3010751..3013021	-	756	78223858	-	Gmet_2662	-	ankyrin
2631	 62.96	0	3013018..3014259	-	413	78223859	-	Gmet_2663	-	hypothetical protein
2632	 64.06	0	3014263..3015414	-	383	78223860	-	Gmet_2664	-	radical SAM family protein
2633	 59.40	0	3015427..3015894	-	155	78223861	-	Gmet_2665	-	proteinase inhibitor I2
2634	 53.20	-1	3016025..3016321	-	98	78223862	-	Gmet_2666	-	hypothetical protein
2635	 59.29	0	3016492..3017928	+	478	78223863	-	Gmet_2667	-	DUF234 DEXX-box ATPase
2636	 53.70	-1	3017970..3018185	+	71	78223864	-	Gmet_2668	-	hypothetical protein
2637	 63.51	0	3018244..3018687	-	147	78223865	-	Gmet_2669	-	phenylacetic acid degradation-related protein
2638	 66.14	+1	3018713..3019090	-	125	78223866	-	Gmet_2670	-	hypothetical protein
2639	 67.45	+1	3019102..3019863	-	253	78223867	-	Gmet_2671	-	Phage SPO1 DNA polymerase-related protein
2640	 62.27	0	3019913..3020821	+	302	78223868	-	Gmet_2672	-	hypothetical protein
2641	 65.10	0	3020942..3022153	-	403	78223869	-	Gmet_2673	-	phosphopantothenoylcysteine decarboxylase / phosphopantothenate-cysteine ligase
2642	 64.44	0	3022164..3022793	-	209	78223870	-	Gmet_2674	-	Beta-lactamase-like
2643	 62.42	0	3022986..3024140	-	384	78223871	-	Gmet_2675	-	metal dependent phosphohydrolase
2644	 67.85	+1	3024137..3025738	-	533	78223872	-	Gmet_2676	-	FAD dependent oxidoreductase
2645	 58.33	0	3025823..3027010	-	395	78223873	-	Gmet_2677	-	response regulator receiver sensor signal transduction histidine kinase
2646	 56.22	0	3027100..3027549	-	149	78223874	-	Gmet_2678	-	hypothetical protein
2647	 48.97	-1	3027590..3027979	-	129	78223875	-	Gmet_2679	-	response regulator receiver domain-containing protein
2648	 54.61	0	3028043..3028780	-	245	78223876	-	Gmet_2680	-	putative GAF sensor protein
2649	 62.28	0	3028832..3029674	-	280	78223877	-	Gmet_2681	-	transcriptional regulator, putative
2650	 54.97	0	3029684..3030427	-	247	78223878	-	Gmet_2682	-	TPR repeat-containing protein
2651	 58.93	0	3030560..3031477	-	305	78223879	-	Gmet_2683	-	PfkB
2652	 63.54	0	3031508..3032371	-	287	78223880	-	Gmet_2684	-	methylthioadenosine phosphorylase
2653	 56.29	0	3032398..3033438	-	346	78223881	-	Gmet_2685	-	hypothetical protein
2654	 53.62	-1	3033502..3033915	-	137	78223882	-	Gmet_2686	-	nucleoside diphosphate kinase
2655	 54.44	0	3034065..3034334	-	89	78223883	-	Gmet_2687	-	hypothetical protein
2656	 51.20	-1	3034650..3035192	+	180	78223884	-	Gmet_2688	-	AMMECR1
2657	 57.54	0	3035314..3036639	-	441	78223885	-	Gmet_2689	-	type I citrate synthase
2658	 57.04	0	3037032..3038225	-	397	78223886	-	Gmet_2690	-	peptidase M24
59.54	MEAN

5.81	STD DEV
