IslandPath Analysis: Geobacter metallireducens GS-15

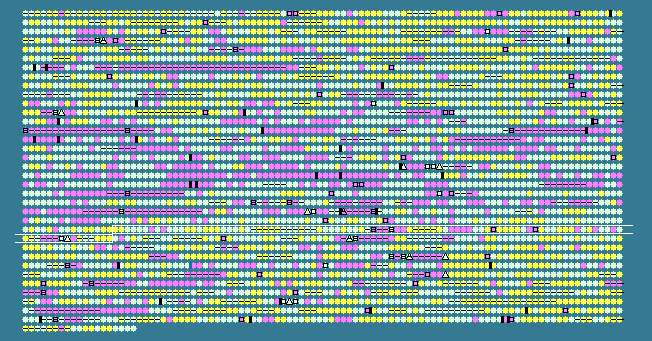

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2416	 65.99	+1	2764934..2765974	-	346	78223644	-	Gmet_2441	-	cobalamin (vitamin B12) biosynthesis CbiM protein
2417	 63.26	0	2766516..2767160	-	214	78223645	-	Gmet_2442	-	Iron dependent repressor:FeoA
2418	 57.38	0	2767202..2767384	-	60	78223646	-	Gmet_2443	-	hypothetical protein
2419	 62.25	0	2767381..2769372	-	663	78223647	-	Gmet_2444	-	ferrous iron transport protein B
2420	 58.56	0	2769472..2769903	-	143	78223648	-	Gmet_2445	-	ferric uptake regulator family protein
2421	 61.90	0	2770019..2771572	-	517	78223649	-	Gmet_2446	-	twin-arginine translocation pathway signal
2422	 50.00	-1	2771878..2772213	-	111	78223650	-	Gmet_2447	-	hypothetical protein
2423	 59.76	0	2772278..2773450	-	390	78223651	-	Gmet_2448	-	hypothetical protein
2424	 46.45	-2	2773465..2773746	-	93	78223652	-	Gmet_2449	-	hypothetical protein
2425	 60.58	0	2773838..2774248	-	136	78223653	-	Gmet_2450	-	glyoxalase/bleomycin resistance protein/dioxygenase
2426	 57.75	0	2774253..2774981	-	242	78223654	-	Gmet_2451	-	cytochrome c biogenesis protein, transmembrane region
2427	 58.87	0	2775127..2775639	-	170	78223655	-	Gmet_2452	-	thioredoxin family protein
2428	 63.56	0	2775636..2777021	-	461	78223656	-	Gmet_2453	-	two component, sigma54 specific, Fis family transcriptional regulator
2429	 63.50	0	2777032..2778135	-	367	78223657	-	Gmet_2454	-	histidine kinase
2430	 62.64	0	2778262..2779230	-	322	78223658	-	Gmet_2455	-	polyprenyl synthetase
2431	 63.26	0	2779523..2780197	+	224	78223659	-	Gmet_2456	-	hypothetical protein
2432	 63.53	0	2780198..2781154	+	318	78223660	-	Gmet_2457	-	radical SAM family protein
2433	 67.67	+1	2781173..2782762	+	529	78223661	pgi	Gmet_2458	-	glucose-6-phosphate isomerase
2434	 57.58	0	2782825..2784045	-	406	78223662	-	Gmet_2459	-	hypothetical protein
2435	 59.75	0	2784467..2786287	+	606	78223663	-	Gmet_2460	-	histidine kinase
2436	 62.82	0	2786373..2786606	-	77	78223664	-	Gmet_2461	-	hypothetical protein
2437	 64.84	0	2786669..2786887	-	72	78223665	-	Gmet_2462	-	hypothetical protein
2438	 56.24	0	2787216..2788097	-	293	78223666	-	Gmet_2463	-	peptidoglycan-binding LysM:ErfK/YbiS/YcfS/YnhG
2439	 62.60	0	2788435..2790255	+	606	78223667	-	Gmet_2464	-	TatD-related deoxyribonuclease:radical SAM family protein
2440	 64.91	0	2790657..2792021	+	454	78223668	-	Gmet_2465	-	major facilitator transporter
2441	 65.96	+1	2792209..2793897	+	562	78223669	-	Gmet_2466	-	peptidoglycan binding domain-containing protein
2442	 66.21	+1	2793894..2794550	+	218	78223670	-	Gmet_2467	-	hypothetical protein
2443	 63.43	0	2794574..2795377	-	267	78223671	-	Gmet_2468	-	hypothetical protein
2444	 62.59	0	2795421..2805944	-	3507	78223672	-	Gmet_2469	-	fibronectin, type III
2445	 63.01	0	2805938..2810503	-	1521	78223673	-	Gmet_2470	-	high-molecular-weight cytochrome c
2446	 58.53	0	2810956..2811336	-	126	78223674	-	Gmet_2471	-	mannose-6-phosphate isomerase, type II:cupin region
2447	 64.06	0	2811352..2812194	-	280	78223675	-	Gmet_2472	-	dTDP-4-dehydrorhamnose reductase
2448	 61.28	0	2812191..2813267	-	358	78223676	-	Gmet_2473	-	dTDP-glucose 4,6-dehydratase
2449	 60.60	0	2813316..2815409	-	697	78223677	-	Gmet_2474	-	organic solvent tolerance protein, putative
2450	 65.18	0	2815423..2816697	-	424	78223678	-	Gmet_2475	-	folylpolyglutamate synthetase
2451	 61.68	0	2816816..2817658	-	280	78223679	-	Gmet_2476	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
2452	 61.36	0	2817743..2818552	-	269	78223680	-	Gmet_2477	-	tryptophan synthase subunit alpha
2453	 60.54	0	2818594..2820795	-	733	78223681	-	Gmet_2478	-	methyl-accepting chemotaxis sensory transducer
2454	 65.72	+1	2820909..2822813	-	634	78223682	-	Gmet_2479	-	ABC transporter-related protein
2455	 56.75	0	2822810..2823313	-	167	78223683	-	Gmet_2480	-	putative lipoprotein
2456	 60.41	0	2823456..2824190	-	244	78223684	-	Gmet_2481	-	hypothetical protein
2457	 65.07	0	2824488..2825678	-	396	78223685	-	Gmet_2482	-	tryptophan synthase subunit beta
2458	 60.91	0	2825811..2826296	-	161	78223686	-	Gmet_2483	-	3-demethylubiquinone-9 3-methyltransferase
2459	 53.59	-1	2826935..2828188	+	417	78223687	-	Gmet_2484	-	IS204/IS1001/IS1096/IS1165 transposase
2460	 51.78	-1	2828112..2828870	-	252	78223688	-	Gmet_2485	-	hypothetical protein
2461	 40.75	-2	2829240..2830196	-	318	78223689	-	Gmet_2486	-	hypothetical protein
2462	 58.40	0	2830722..2831798	+	358	78223690	-	Gmet_2488	-	transposase IS4
2463	 42.10	-2	2831957..2832709	-	250	78223691	-	Gmet_2489	-	hypothetical protein
2464	 41.73	-2	2832925..2833722	-	265	78223692	-	Gmet_2490	-	hypothetical protein
2465	 66.17	+1	2834485..2835093	-	202	78223693	-	Gmet_2492	-	N-(5'-phosphoribosyl)anthranilate isomerase
2466	 66.52	+1	2835098..2836453	-	451	78223694	-	Gmet_2493	-	tryptophan synthase subunit beta
2467	 66.67	+1	2836618..2837418	-	266	78223695	-	Gmet_2494	-	indole-3-glycerol-phosphate synthase
2468	 65.62	+1	2837470..2838522	-	350	78223696	-	Gmet_2495	-	anthranilate phosphoribosyltransferase
2469	 63.51	0	2838519..2839088	-	189	78223697	-	Gmet_2496	-	anthranilate synthase component II
2470	 66.33	+1	2839090..2840565	-	491	78223698	-	Gmet_2497	-	anthranilate synthase, component I
2471	 60.93	0	2840812..2842764	+	650	78223699	-	Gmet_2498	-	heat shock protein 90
2472	 48.15	-1	2842903..2843172	+	89	78223700	-	Gmet_2499	-	hypothetical protein
2473	 44.57	-2	2843184..2843441	+	85	78223701	-	Gmet_2500	-	hypothetical protein
2474	 55.69	0	2843788..2844042	+	84	78223702	-	Gmet_2502	-	transcriptional regulator/antitoxin, MazE
2475	 53.94	0	2844030..2844359	+	109	78223703	-	Gmet_2503	-	transcriptional modulator of MazE/toxin, MazF
2476	 61.31	0	2844507..2844674	+	55	78223704	-	Gmet_2504	-	hypothetical protein
2477	 61.93	0	2844932..2845459	+	175	78223705	-	Gmet_2505	-	ErfK/YbiS/YcfS/YnhG
2478	 63.62	0	2845490..2846440	-	316	78223706	-	Gmet_2506	-	rhomboid-like protein
2479	 53.25	-1	2846500..2847669	-	389	78223707	-	Gmet_2507	-	transposase IS4
2480	 64.94	0	2847872..2849263	+	463	78223708	-	Gmet_2508	-	multi anti extrusion protein MatE
2481	 66.48	+1	2849294..2850352	+	352	78223709	-	Gmet_2509	-	dehydrogenase, E1 component
2482	 68.33	+1	2850522..2851484	+	320	78223710	-	Gmet_2510	-	transketolase-like
2483	 66.24	+1	2851495..2852658	+	387	78223711	-	Gmet_2511	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2484	 60.67	0	2852852..2853418	+	188	78223712	-	Gmet_2512	-	hypothetical protein
2485	 55.41	0	2853706..2853927	+	73	78223713	-	Gmet_2513	-	hypothetical protein
2486	 55.23	0	2854168..2855391	-	407	78223714	-	Gmet_2515	-	IS204/IS1001/IS1096/IS1165 transposase
2487	 66.31	+1	2855783..2856349	+	188	78223715	-	Gmet_2516	-	hemerythrin HHE cation binding region
2488	 61.99	0	2856706..2858073	-	455	78223716	-	Gmet_2517	-	Outer membrane efflux protein
2489	 62.57	0	2858070..2861195	-	1041	78223717	-	Gmet_2518	-	acriflavin resistance protein
2490	 65.01	0	2861199..2862347	-	382	78223718	-	Gmet_2519	-	secretion protein HlyD
2491	 64.14	0	2862590..2863897	-	435	78223719	-	Gmet_2520	-	nitrite and sulphite reductase 4Fe-4S region
2492	 65.94	+1	2864109..2866175	+	688	78223720	-	Gmet_2521	-	elongation factor G
2493	 54.57	0	2866289..2866726	+	145	78223721	mscL	Gmet_2522	-	large-conductance mechanosensitive channel
2494	 56.64	0	2866861..2867229	+	122	78223722	-	Gmet_2523	-	hypothetical protein
2495	 65.20	0	2867337..2868971	+	544	78223723	-	Gmet_2524	-	ABC transporter-related protein
2496	 53.44	-1	2869102..2869290	+	62	78223724	-	Gmet_2525	-	hypothetical protein
2497	 57.95	0	2869419..2869934	-	171	78223725	-	Gmet_2526	-	SNase-like nuclease
2498	 56.10	0	2870081..2870326	-	81	78223726	-	Gmet_2527	-	hypothetical protein
2499	 54.63	0	2870550..2870657	-	35	78223727	-	Gmet_2528	-	hypothetical protein
2500	 62.71	0	2870657..2872096	-	479	78223728	-	Gmet_2529	-	peptidase M16-like
2501	 63.11	0	2872115..2873605	-	496	78223729	-	Gmet_2530	-	peptidase M16-like
2502	 64.71	0	2873755..2874726	-	323	78223730	-	Gmet_2531	-	methyltransferase, putative
2503	 58.71	0	2874723..2875526	-	267	78223731	-	Gmet_2532	-	methyltransferase
2504	 49.48	-1	2875653..2875943	+	96	78223732	-	Gmet_2533	-	hypothetical protein
2505	 48.82	-1	2875953..2876249	+	98	78223733	-	Gmet_2534	-	putative transcriptional regulator
2506	 42.10	-2	2876660..2878267	-	535	78223734	-	Gmet_2535	-	hypothetical protein
2507	 58.49	0	2879045..2879839	-	264	78223735	-	Gmet_2538	-	transposase/IS protein
2508	 58.09	0	2879836..2880861	-	341	78223736	-	Gmet_2539	-	integrase catalytic subunit
2509	 40.04	-2	2881714..2882742	-	342	78223737	-	Gmet_2540	-	ATP-binding region, ATPase-like
2510	 63.43	0	2883085..2884167	-	360	78223738	-	Gmet_2541	-	virulence factor MCE-like protein-related protein
2511	 61.47	0	2884164..2884952	-	262	78223739	-	Gmet_2542	-	ABC transporter-related protein
2512	 61.94	0	2884957..2885718	-	253	78223740	-	Gmet_2543	-	hypothetical protein
2513	 64.13	0	2885715..2888039	-	774	78223741	-	Gmet_2544	-	peptidase S16, ATP-dependent protease La
2514	 65.47	+1	2888176..2890101	-	641	78223742	-	Gmet_2545	-	ABC transporter-related protein
2515	 64.02	0	2890391..2892811	+	806	78223743	-	Gmet_2546	-	ribonuclease E
59.54	MEAN

5.81	STD DEV
