IslandPath Analysis: Geobacter metallireducens GS-15

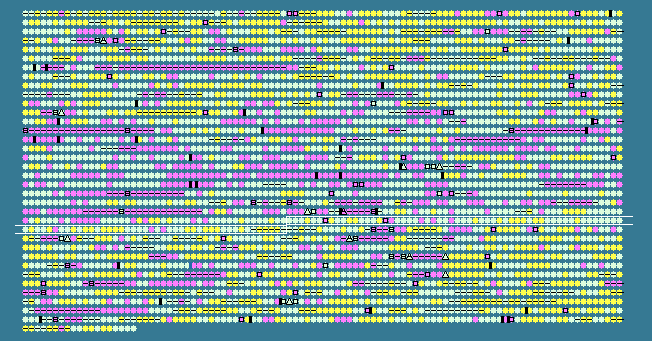

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2345	 62.91	0	2678069..2678521	-	150	78223573	-	Gmet_2370	-	hypothetical protein
2346	 59.40	0	2678418..2680826	-	802	78223574	-	Gmet_2371	-	metal dependent phosphohydrolase
2347	 60.85	0	2681086..2682375	+	429	78223575	-	Gmet_2372	-	enolase
2348	 63.24	0	2682523..2683953	+	476	78223576	-	Gmet_2373	-	nicotinate phosphoribosyltransferase
2349	 61.83	0	2683974..2684573	+	199	78223577	-	Gmet_2374	-	isochorismatase hydrolase
2350	 61.24	0	2684673..2685740	+	355	78223578	-	Gmet_2375	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2351	 55.31	0	2685798..2687021	-	407	78223579	-	Gmet_2376	-	IS204/IS1001/IS1096/IS1165 transposase
2352	 64.34	0	2687129..2687686	-	185	78223580	-	Gmet_2377	-	SNase-like nuclease
2353	 59.53	0	2687765..2689390	-	541	78223581	-	Gmet_2378	-	D-3-phosphoglycerate dehydrogenase
2354	 59.33	0	2689561..2690037	+	158	78223582	-	Gmet_2379	-	tRNA/rRNA methyltransferase (SpoU)
2355	 63.57	0	2690031..2690417	+	128	78223583	-	Gmet_2380	-	hypothetical protein
2356	 63.39	0	2690401..2692110	-	569	78223584	-	Gmet_2381	-	transmembrane protein
2357	 59.82	0	2692119..2692907	-	262	78223585	-	Gmet_2382	-	metal dependent phosphohydrolase
2358	 61.06	0	2693036..2694319	-	427	78223586	-	Gmet_2383	-	fructose-bisphosphate aldolase
2359	 60.89	0	2694617..2695654	+	345	78223587	-	Gmet_2384	-	tRNA 2-selenouridine synthase
2360	 63.03	0	2695691..2696542	-	283	78223588	-	Gmet_2385	-	rhomboid-like protein
2361	 53.25	-1	2696877..2698046	+	389	78223589	-	Gmet_2386	-	transposase IS4
2362	 54.10	0	2698398..2698580	+	60	78223590	-	Gmet_2387	-	hypothetical protein
2363	 58.69	0	2698613..2699101	+	162	78223591	-	Gmet_2388	-	hypothetical protein
2364	 62.33	0	2699173..2699841	-	222	78223592	-	Gmet_2389	-	hypothetical protein
2365	 60.92	0	2699868..2701154	-	428	78223593	-	Gmet_2390	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
2366	 60.16	0	2701272..2702762	-	496	78223594	-	Gmet_2391	-	glycoside hydrolase family protein
2367	 52.73	-1	2702904..2703068	+	54	78223595	-	Gmet_2392	-	hypothetical protein
2368	 57.96	0	2703062..2704921	-	619	78223596	-	Gmet_2393	-	FtsH peptidase
2369	 53.98	0	2705027..2705956	-	309	78223597	-	Gmet_2394	-	hypothetical protein
2370	 57.14	0	2706051..2706806	-	251	78223598	-	Gmet_2395	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
2371	 59.61	0	2706806..2708719	-	637	78223599	sdhA	Gmet_2396	-	succinate dehydrogenase flavoprotein subunit
2372	 51.58	-1	2708729..2709391	-	220	78223600	-	Gmet_2397	-	succinate dehydrogenase subunit C
2373	 57.00	0	2709976..2711082	+	368	78223601	-	Gmet_2398	-	queuine tRNA-ribosyltransferase
2374	 58.36	0	2711163..2711957	+	264	78223602	mazG	Gmet_2399	-	nucleoside triphosphate pyrophosphohydrolase
2375	 61.81	0	2712288..2713853	-	521	78223603	-	Gmet_2400	-	virulence factor MVIN-like
2376	 65.44	+1	2713913..2716033	-	706	78223604	-	Gmet_2401	-	hypothetical protein
2377	 58.69	0	2716126..2716476	-	116	78223605	-	Gmet_2402	-	hypothetical protein
2378	 60.57	0	2716531..2717334	-	267	78223606	-	Gmet_2403	-	tetratricopeptide TPR_4
2379	 62.63	0	2717497..2719851	+	784	78223607	-	Gmet_2404	-	phosphoenolpyruvate--protein phosphotransferase
2380	 63.06	0	2719888..2721051	-	387	78223608	-	Gmet_2405	-	hypothetical protein
2381	 61.92	0	2721052..2722209	-	385	78223609	-	Gmet_2406	-	hypothetical protein
2382	 67.67	+1	2722213..2722908	-	231	78223610	-	Gmet_2407	-	ABC transporter-related protein
2383	 65.43	+1	2722909..2724123	-	404	78223611	-	Gmet_2408	-	secretion protein HlyD
2384	 63.49	0	2724289..2724792	-	167	78223612	-	Gmet_2409	-	peptidase C56, PfpI
2385	 61.49	0	2724867..2725445	-	192	78223613	-	Gmet_2410	-	manganese and iron superoxide dismutase
2386	 63.48	0	2725567..2725848	-	93	78223614	-	Gmet_2411	-	hypothetical protein
2387	 64.14	0	2725889..2727274	-	461	78223615	asnC	Gmet_2412	-	asparaginyl-tRNA synthetase
2388	 57.74	0	2727370..2727750	+	126	78223616	-	Gmet_2413	-	glutaredoxin-like protein, YruB
2389	 61.42	0	2727843..2728223	-	126	78223617	-	Gmet_2414	-	hypothetical protein
2390	 62.17	0	2728216..2729082	-	288	78223618	-	Gmet_2415	-	YdjC-like protein
2391	 61.97	0	2729096..2730523	-	475	78223619	-	Gmet_2416	-	radical SAM family protein
2392	 59.47	0	2730634..2731869	-	411	78223620	-	Gmet_2417	-	diguanylate phosphodiesterase
2393	 65.54	+1	2732018..2733085	-	355	78223621	-	Gmet_2418	-	response regulator receiver (CheY-like) modulated CheB methylesterase
2394	 62.32	0	2733121..2733603	-	160	78223622	-	Gmet_2419	-	CheD, stimulates methylation of MCP proteins
2395	 61.03	0	2733600..2734469	-	289	78223623	-	Gmet_2420	-	MCP methyltransferase, CheR-type
2396	 59.03	0	2734499..2735035	-	178	78223624	-	Gmet_2421	-	CheW protein
2397	 59.47	0	2735356..2738496	-	1046	78223625	-	Gmet_2422	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
2398	 57.71	0	2738791..2741013	-	740	78223626	-	Gmet_2423	-	methyl-accepting chemotaxis sensory transducer
2399	 57.39	0	2741239..2742984	-	581	78223627	-	Gmet_2424	-	methyl-accepting chemotaxis sensory transducer
2400	 60.26	0	2743282..2744343	-	353	78223628	-	Gmet_2425	-	diguanylate cyclase
2401	 60.55	0	2744770..2747253	-	827	78223629	-	Gmet_2426	-	Hpt sensor hybrid histidine kinase
2402	 63.63	0	2747417..2749525	-	702	78223630	-	Gmet_2427	-	CheA signal transduction histidine kinase
2403	 60.47	0	2749525..2749911	-	128	78223631	-	Gmet_2428	-	response regulator receiver domain-containing protein
2404	 59.23	0	2749890..2750252	-	120	78223632	-	Gmet_2429	-	anti-sigma-factor antagonist domain-containing protein
2405	 64.32	0	2750302..2752179	-	625	78223633	-	Gmet_2430	-	methyl-accepting chemotaxis sensory transducer
2406	 56.06	0	2752334..2752729	-	131	78223634	-	Gmet_2431	-	response regulator receiver domain-containing protein
2407	 57.17	0	2752888..2753361	-	157	78223635	-	Gmet_2432	-	hypothetical protein
2408	 61.67	0	2753856..2755616	+	586	78223636	-	Gmet_2433	-	potassium-transporting ATPase subunit A
2409	 63.24	0	2755620..2757689	+	689	78223637	-	Gmet_2434	-	potassium-translocating P-type ATPase, B subunit
2410	 59.47	0	2757704..2758273	+	189	78223638	-	Gmet_2435	-	K+ transporting ATPase, KdpC subunit
2411	 63.44	0	2758270..2760936	+	888	78223639	-	Gmet_2436	-	osmosensitive K+ channel signal transduction histidine kinase
2412	 64.67	0	2760947..2761648	+	233	78223640	-	Gmet_2437	-	two component transcriptional regulator
2413	 61.18	0	2761676..2763280	-	534	78223641	-	Gmet_2438	-	hypothetical protein
2414	 67.98	+1	2763330..2764088	-	252	78223642	-	Gmet_2439	-	cobalt transport protein ATP-binding subunit
2415	 65.07	0	2764085..2764897	-	270	78223643	-	Gmet_2440	-	cobalt ABC transporter CbiQ, permease subunit
2416	 65.99	+1	2764934..2765974	-	346	78223644	-	Gmet_2441	-	cobalamin (vitamin B12) biosynthesis CbiM protein
2417	 63.26	0	2766516..2767160	-	214	78223645	-	Gmet_2442	-	Iron dependent repressor:FeoA
2418	 57.38	0	2767202..2767384	-	60	78223646	-	Gmet_2443	-	hypothetical protein
2419	 62.25	0	2767381..2769372	-	663	78223647	-	Gmet_2444	-	ferrous iron transport protein B
2420	 58.56	0	2769472..2769903	-	143	78223648	-	Gmet_2445	-	ferric uptake regulator family protein
2421	 61.90	0	2770019..2771572	-	517	78223649	-	Gmet_2446	-	twin-arginine translocation pathway signal
2422	 50.00	-1	2771878..2772213	-	111	78223650	-	Gmet_2447	-	hypothetical protein
2423	 59.76	0	2772278..2773450	-	390	78223651	-	Gmet_2448	-	hypothetical protein
2424	 46.45	-2	2773465..2773746	-	93	78223652	-	Gmet_2449	-	hypothetical protein
2425	 60.58	0	2773838..2774248	-	136	78223653	-	Gmet_2450	-	glyoxalase/bleomycin resistance protein/dioxygenase
2426	 57.75	0	2774253..2774981	-	242	78223654	-	Gmet_2451	-	cytochrome c biogenesis protein, transmembrane region
2427	 58.87	0	2775127..2775639	-	170	78223655	-	Gmet_2452	-	thioredoxin family protein
2428	 63.56	0	2775636..2777021	-	461	78223656	-	Gmet_2453	-	two component, sigma54 specific, Fis family transcriptional regulator
2429	 63.50	0	2777032..2778135	-	367	78223657	-	Gmet_2454	-	histidine kinase
2430	 62.64	0	2778262..2779230	-	322	78223658	-	Gmet_2455	-	polyprenyl synthetase
2431	 63.26	0	2779523..2780197	+	224	78223659	-	Gmet_2456	-	hypothetical protein
2432	 63.53	0	2780198..2781154	+	318	78223660	-	Gmet_2457	-	radical SAM family protein
2433	 67.67	+1	2781173..2782762	+	529	78223661	pgi	Gmet_2458	-	glucose-6-phosphate isomerase
2434	 57.58	0	2782825..2784045	-	406	78223662	-	Gmet_2459	-	hypothetical protein
2435	 59.75	0	2784467..2786287	+	606	78223663	-	Gmet_2460	-	histidine kinase
2436	 62.82	0	2786373..2786606	-	77	78223664	-	Gmet_2461	-	hypothetical protein
2437	 64.84	0	2786669..2786887	-	72	78223665	-	Gmet_2462	-	hypothetical protein
2438	 56.24	0	2787216..2788097	-	293	78223666	-	Gmet_2463	-	peptidoglycan-binding LysM:ErfK/YbiS/YcfS/YnhG
2439	 62.60	0	2788435..2790255	+	606	78223667	-	Gmet_2464	-	TatD-related deoxyribonuclease:radical SAM family protein
2440	 64.91	0	2790657..2792021	+	454	78223668	-	Gmet_2465	-	major facilitator transporter
2441	 65.96	+1	2792209..2793897	+	562	78223669	-	Gmet_2466	-	peptidoglycan binding domain-containing protein
2442	 66.21	+1	2793894..2794550	+	218	78223670	-	Gmet_2467	-	hypothetical protein
2443	 63.43	0	2794574..2795377	-	267	78223671	-	Gmet_2468	-	hypothetical protein
2444	 62.59	0	2795421..2805944	-	3507	78223672	-	Gmet_2469	-	fibronectin, type III
59.54	MEAN

5.81	STD DEV
