IslandPathversion 1.0

IslandPath Analysis: Geobacter metallireducens GS-15

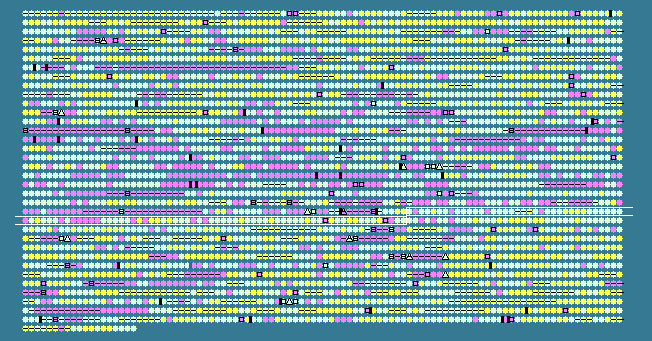

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2265	 58.18	0	2596353..2597024	-	223	78223493	-	Gmet_2290	-	HAD family hydrolase
2266	 53.91	0	2597141..2597626	-	161	78223494	-	Gmet_2291	-	rubrerythrin
2267	 62.32	0	2597752..2599314	-	520	78223495	guaA	Gmet_2292	-	bifunctional GMP synthase/glutamine amidotransferase protein
2268	 62.47	0	2599311..2600786	-	491	78223496	-	Gmet_2293	-	inosine-5'-monophosphate dehydrogenase
2269	 63.12	0	2600934..2602004	-	356	78223497	-	Gmet_2294	-	peptidase M42
2270	 60.28	0	2602055..2602555	-	166	78223498	-	Gmet_2295	-	hypothetical protein
2271	 62.37	0	2602571..2603896	-	441	78223499	-	Gmet_2296	-	tRNA-i(6)A37 modification enzyme MiaB
2272	 54.92	0	2604170..2604433	+	87	78223500	rpsT	Gmet_2297	-	30S ribosomal protein S20
2273	 58.51	0	2604542..2605546	-	334	78223501	-	Gmet_2298	-	DNA polymerase III, delta subunit
2274	 57.95	0	2605583..2606110	-	175	78223502	-	Gmet_2299	-	putative lipoprotein
2275	 60.97	0	2606118..2608592	-	824	78223503	leuS	Gmet_2300	-	leucyl-tRNA synthetase
2276	 61.50	0	2608733..2610862	-	709	78223504	-	Gmet_2301	-	cytochrome c family protein
2277	 57.29	0	2610881..2611264	-	127	78223505	-	Gmet_2302	-	response regulator receiver domain-containing protein
2278	 56.00	0	2611284..2612117	-	277	78223506	-	Gmet_2303	-	putative GAF sensor protein
2279	 60.39	0	2612182..2613264	-	360	78223507	-	Gmet_2304	-	response regulator receiver (CheY-like) modulated CheB methylesterase
2280	 56.39	0	2613261..2614136	-	291	78223508	-	Gmet_2305	-	MCP methyltransferase, CheR-type
2281	 62.97	0	2614136..2616136	-	666	78223509	-	Gmet_2306	-	HEAT repeat-containing PBS lyase
2282	 57.17	0	2616202..2616696	-	164	78223510	-	Gmet_2307	-	CheW protein
2283	 56.18	0	2616748..2617119	-	123	78223511	-	Gmet_2308	-	response regulator receiver protein
2284	 57.04	0	2617158..2617874	-	238	78223512	-	Gmet_2309	-	CheW protein
2285	 63.43	0	2617894..2618697	-	267	78223513	-	Gmet_2310	-	ATPase
2286	 61.07	0	2618698..2620770	-	690	78223514	-	Gmet_2311	-	CheA signal transduction histidine kinase
2287	 55.74	0	2620780..2621145	-	121	78223515	-	Gmet_2312	-	response regulator receiver domain-containing protein
2288	 60.76	0	2621142..2622326	-	394	78223516	-	Gmet_2313	-	hypothetical protein
2289	 61.67	0	2622411..2623730	-	439	78223517	engA	Gmet_2314	-	GTP-binding protein EngA
2290	 60.76	0	2623727..2624623	-	298	78223518	era	Gmet_2315	-	GTP-binding protein Era
2291	 66.57	+1	2624653..2625693	-	346	78223519	-	Gmet_2316	-	radical SAM family protein
2292	 65.86	+1	2625690..2626430	-	246	78223520	-	Gmet_2317	-	ribonuclease III:double-stranded RNA binding
2293	 66.97	+1	2626564..2627217	+	217	78223521	-	Gmet_2318	-	thymidylate kinase
2294	 66.25	+1	2627221..2628177	+	318	78223522	-	Gmet_2319	-	DNA polymerase III, delta prime subunit
2295	 60.55	0	2628208..2629254	+	348	78223523	-	Gmet_2320	-	PSP1
2296	 61.18	0	2629251..2630780	+	509	78223524	-	Gmet_2321	-	methionyl-tRNA synthetase
2297	 56.72	0	2630843..2631445	-	200	78223525	-	Gmet_2322	-	hypothetical protein
2298	 56.77	0	2631537..2631728	+	63	78223526	rpmB	Gmet_2323	-	50S ribosomal protein L28
2299	 60.32	0	2631842..2632219	-	125	78223527	-	Gmet_2324	-	endoribonuclease L-PSP
2300	 59.65	0	2632233..2634383	-	716	78223528	-	Gmet_2325	-	(p)ppGpp synthetase I (GTP pyrophosphokinase), SpoT/RelA
2301	 52.38	-1	2634443..2634652	-	69	78223529	-	Gmet_2326	-	RNA polymerase, omega subunit
2302	 56.54	0	2634731..2635342	-	203	78223530	-	Gmet_2327	-	guanylate kinase
2303	 64.05	0	2635430..2636308	-	292	78223531	-	Gmet_2328	-	hypothetical protein
2304	 62.70	0	2636313..2637320	-	335	78223532	-	Gmet_2329	-	UDP-galactose 4-epimerase
2305	 61.23	0	2637313..2638323	-	336	78223533	-	Gmet_2330	-	NAD-dependent epimerase/dehydratase
2306	 62.13	0	2638378..2639478	-	366	78223534	-	Gmet_2331	-	lipopolysaccharide heptosyltransferase I
2307	 54.24	0	2639462..2640676	-	404	78223535	-	Gmet_2332	-	DegT/DnrJ/EryC1/StrS aminotransferase
2308	 57.92	0	2640676..2641338	-	220	78223536	-	Gmet_2333	-	hexapaptide repeat-containing transferase
2309	 33.44	-2	2641353..2642306	-	317	78223537	-	Gmet_2334	-	glycosyl transferase family protein
2310	 34.62	-2	2642433..2643134	-	233	78223538	-	Gmet_2335	-	methyltransferase FkbM
2311	 50.23	-1	2643150..2644007	-	285	78223539	-	Gmet_2336	-	glycosyl transferase family protein
2312	 53.31	-1	2644026..2645066	-	346	78223540	-	Gmet_2337	-	hypothetical protein
2313	 54.88	0	2645075..2646550	-	491	78223541	-	Gmet_2338	-	membrane bound O-acyl transferase, MBOAT
2314	 56.25	0	2646565..2646804	-	79	78223542	-	Gmet_2339	-	putative acyl carrier protein
2315	 59.75	0	2646808..2648427	-	539	78223543	-	Gmet_2340	-	AMP-dependent synthetase and ligase
2316	 59.68	0	2648447..2649619	-	390	78223544	-	Gmet_2341	-	glycosyl transferase family protein
2317	 60.64	0	2649531..2650343	-	270	78223545	-	Gmet_2342	-	glycosyl transferase family protein
2318	 57.85	0	2650399..2651328	-	309	78223546	-	Gmet_2343	-	hypothetical protein
2319	 55.47	0	2651369..2652118	-	249	78223547	-	Gmet_2344	-	beta-1,4-glucosyltransferase
2320	 63.52	0	2652115..2653194	-	359	78223548	-	Gmet_2345	-	lipopolysaccharide heptosyltransferase II
2321	 55.03	0	2653194..2653382	-	62	78223549	-	Gmet_2346	-	hypothetical protein
2322	 63.67	0	2653398..2654465	-	355	78223550	-	Gmet_2347	-	lipid-A-disaccharide synthase
2323	 64.68	0	2654504..2655814	-	436	78223551	-	Gmet_2348	-	three-deoxy-D-manno-octulosonic-acid transferase-like
2324	 61.07	0	2655873..2657588	-	571	78223552	-	Gmet_2349	-	ABC transporter-related protein
2325	 63.64	0	2657588..2658742	-	384	78223553	lpxB	Gmet_2350	-	lipid-A-disaccharide synthase
2326	 62.22	0	2658808..2659908	-	366	78223554	-	Gmet_2351	-	DegT/DnrJ/EryC1/StrS aminotransferase
2327	 60.66	0	2659917..2660849	-	310	78223555	-	Gmet_2352	-	oxidoreductase-like
2328	 62.78	0	2660846..2661616	-	256	78223556	-	Gmet_2353	-	UDP-N-acetylglucosamine acyltransferase
2329	 55.41	0	2661619..2662071	-	150	78223557	-	Gmet_2354	-	3-hydroxyacyl-[acyl-carrier-protein] dehydratase
2330	 62.43	0	2662074..2663111	-	345	78223558	-	Gmet_2355	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
2331	 52.87	-1	2663115..2663636	-	173	78223559	-	Gmet_2356	-	Outer membrane chaperone Skp (OmpH)
2332	 57.55	0	2663700..2665958	-	752	78223560	-	Gmet_2357	-	surface antigen (D15)
2333	 59.88	0	2666007..2666684	-	225	78223561	-	Gmet_2358	-	ABC transporter-related protein
2334	 57.08	0	2666677..2667948	-	423	78223562	-	Gmet_2359	-	LolC/E family lipoprotein releasing system, transmembrane protein
2335	 59.69	0	2668026..2669501	-	491	78223563	-	Gmet_2360	-	lysyl-tRNA synthetase, class-2
2336	 59.63	0	2669624..2670604	-	326	78223564	-	Gmet_2361	-	hypothetical protein
2337	 63.71	0	2670647..2671120	-	157	78223565	-	Gmet_2362	-	peptidylprolyl isomerase, FKBP-type
2338	 60.59	0	2671136..2671612	-	158	78223566	-	Gmet_2363	-	hypothetical protein
2339	 61.76	0	2671623..2672864	-	413	78223567	-	Gmet_2364	-	hypothetical protein
2340	 60.67	0	2672897..2673697	-	266	78223568	-	Gmet_2365	-	NLP/P60:sporulation-related protein
2341	 61.28	0	2673697..2674791	-	364	78223569	-	Gmet_2366	-	peptide chain release factor 2
2342	 63.22	0	2674828..2676393	-	521	78223570	lnt	Gmet_2367	-	apolipoprotein N-acyltransferase
2343	 59.65	0	2676393..2677247	-	284	78223571	-	Gmet_2368	-	CBS:transporter-associated region
2344	 62.47	0	2677291..2678076	-	261	78223572	-	Gmet_2369	-	phosphoesterase, PA-phosphatase related
2345	 62.91	0	2678069..2678521	-	150	78223573	-	Gmet_2370	-	hypothetical protein
2346	 59.40	0	2678418..2680826	-	802	78223574	-	Gmet_2371	-	metal dependent phosphohydrolase
2347	 60.85	0	2681086..2682375	+	429	78223575	-	Gmet_2372	-	enolase
2348	 63.24	0	2682523..2683953	+	476	78223576	-	Gmet_2373	-	nicotinate phosphoribosyltransferase
2349	 61.83	0	2683974..2684573	+	199	78223577	-	Gmet_2374	-	isochorismatase hydrolase
2350	 61.24	0	2684673..2685740	+	355	78223578	-	Gmet_2375	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2351	 55.31	0	2685798..2687021	-	407	78223579	-	Gmet_2376	-	IS204/IS1001/IS1096/IS1165 transposase
2352	 64.34	0	2687129..2687686	-	185	78223580	-	Gmet_2377	-	SNase-like nuclease
2353	 59.53	0	2687765..2689390	-	541	78223581	-	Gmet_2378	-	D-3-phosphoglycerate dehydrogenase
2354	 59.33	0	2689561..2690037	+	158	78223582	-	Gmet_2379	-	tRNA/rRNA methyltransferase (SpoU)
2355	 63.57	0	2690031..2690417	+	128	78223583	-	Gmet_2380	-	hypothetical protein
2356	 63.39	0	2690401..2692110	-	569	78223584	-	Gmet_2381	-	transmembrane protein
2357	 59.82	0	2692119..2692907	-	262	78223585	-	Gmet_2382	-	metal dependent phosphohydrolase
2358	 61.06	0	2693036..2694319	-	427	78223586	-	Gmet_2383	-	fructose-bisphosphate aldolase
2359	 60.89	0	2694617..2695654	+	345	78223587	-	Gmet_2384	-	tRNA 2-selenouridine synthase
2360	 63.03	0	2695691..2696542	-	283	78223588	-	Gmet_2385	-	rhomboid-like protein
2361	 53.25	-1	2696877..2698046	+	389	78223589	-	Gmet_2386	-	transposase IS4
2362	 54.10	0	2698398..2698580	+	60	78223590	-	Gmet_2387	-	hypothetical protein
2363	 58.69	0	2698613..2699101	+	162	78223591	-	Gmet_2388	-	hypothetical protein
2364	 62.33	0	2699173..2699841	-	222	78223592	-	Gmet_2389	-	hypothetical protein
59.54	MEAN

5.81	STD DEV
