IslandPathversion 1.0

IslandPath Analysis: Geobacter metallireducens GS-15

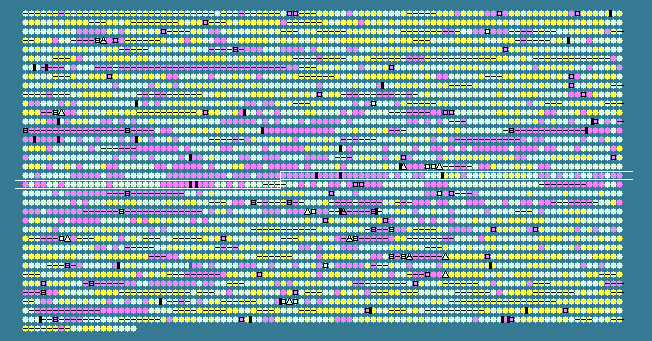

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1844	 51.78	-1	2078196..2079404	-	402	78223072	-	Gmet_1865	-	type II secretion system protein
1845	 53.61	-1	2079506..2079934	-	142	78223073	-	Gmet_1866	-	hypothetical protein
1846	 47.92	-2	2079955..2081058	-	367	78223074	-	Gmet_1867	-	cytochrome c family protein
1847	 49.15	-1	2081069..2081833	-	254	78223075	-	Gmet_1868	-	cytochrome c family protein
1848	 51.88	-1	2081830..2082891	-	353	78223076	-	Gmet_1869	-	NHL repeat-containing protein
1849	 51.69	-1	2083063..2083803	-	246	78223077	-	Gmet_1870	-	glycosyl transferase family protein
1850	 51.74	-1	2084434..2086851	-	805	78223078	-	Gmet_1871	-	Lon-A peptidase
1851	 50.88	-1	2086865..2088118	-	417	78223079	clpX	Gmet_1872	-	ATP-dependent protease ATP-binding subunit
1852	 51.67	-1	2088115..2088714	-	199	78223080	-	Gmet_1873	-	ATP-dependent Clp protease proteolytic subunit ClpP
1853	 50.61	-1	2088739..2090040	-	433	78223081	-	Gmet_1874	-	trigger factor
1854	 50.76	-1	2090602..2091192	-	196	78223082	-	Gmet_1875	-	Ham1-like protein
1855	 53.84	0	2091189..2091905	-	238	78223083	-	Gmet_1876	-	ribonuclease PH
1856	 49.49	-1	2091990..2093072	-	360	78223084	-	Gmet_1877	-	phosphoesterase, RecJ-like
1857	 49.05	-1	2093445..2094023	-	192	78223085	-	Gmet_1878	-	DNA uptake protein and related DNA-binding proteins-like
1858	 53.81	0	2094020..2095606	-	528	78223086	-	Gmet_1879	-	alpha-isopropylmalate/homocitrate synthase family transferase
1859	 54.27	0	2095712..2096929	-	405	78223087	-	Gmet_1880	-	aspartate kinase
1860	 49.69	-1	2096987..2097469	-	160	78223088	-	Gmet_1881	-	hypothetical protein
1861	 51.11	-1	2097476..2097925	-	149	78223089	-	Gmet_1882	-	CBS domain-containing protein
1862	 59.81	0	2097946..2099490	-	514	78223090	-	Gmet_1883	-	hypothetical protein
1863	 54.86	0	2099487..2099867	-	126	78223091	-	Gmet_1884	-	phosphopantethiene-protein transferase
1864	 58.75	0	2099875..2100594	-	239	78223092	-	Gmet_1885	-	pyridoxal phosphate biosynthetic protein PdxJ
1865	 58.41	0	2100595..2101950	-	451	78223093	-	Gmet_1886	-	phosphoglucosamine mutase
1866	 55.39	0	2101974..2102381	-	135	78223094	-	Gmet_1887	-	hypothetical protein
1867	 54.95	0	2102366..2103133	-	255	78223095	-	Gmet_1888	-	hypothetical protein
1868	 58.88	0	2103196..2104068	-	290	78223096	-	Gmet_1889	-	dihydropteroate synthase
1869	 58.46	0	2104068..2105894	-	608	78223097	-	Gmet_1890	-	FtsH peptidase
1870	 60.20	0	2105996..2107402	-	468	78223098	-	Gmet_1891	-	tRNA(Ile)-lysidine synthetase-like
1871	 63.47	0	2107631..2109415	-	594	78223099	-	Gmet_1892	-	DNA helicase/exodeoxyribonuclease V, alpha subunit
1872	 63.78	0	2109402..2113004	-	1200	78223100	-	Gmet_1893	-	DNA helicase/exodeoxyribonuclease V, beta subunit
1873	 66.95	+1	2113008..2116190	-	1060	78223101	-	Gmet_1894	-	exodeoxyribonuclease V, RecC subunit
1874	 51.21	-1	2116507..2116959	+	150	78223102	-	Gmet_1895	-	MarR family transcriptional regulator
1875	 56.51	0	2116956..2118314	+	452	78223103	-	Gmet_1896	-	dihydrolipoamide dehydrogenase
1876	 57.67	0	2118509..2118886	+	125	78223104	-	Gmet_1897	-	phosphoribosyl-AMP cyclohydrolase
1877	 63.24	0	2118883..2119758	+	291	78223105	hisG	Gmet_1898	-	ATP phosphoribosyltransferase
1878	 58.36	0	2119820..2120614	-	264	78223106	-	Gmet_1899	-	ABC transporter-related protein
1879	 59.29	0	2120611..2121369	-	252	78223107	-	Gmet_1900	-	binding-protein dependent transport system inner membrane protein
1880	 57.45	0	2121374..2122339	-	321	78223108	-	Gmet_1901	-	twin-arginine translocation pathway signal
1881	 65.47	+1	2122357..2124366	-	669	78223109	-	Gmet_1902	-	carbon-monoxide dehydrogenase, catalytic subunit
1882	 66.28	+1	2124732..2125763	-	343	78223110	-	Gmet_1903	-	sulphate transport system permease protein 1
1883	 64.28	0	2125799..2126635	-	278	78223111	-	Gmet_1904	-	Sulfate ABC transporter, permease protein CysW
1884	 66.07	+1	2126651..2127487	-	278	78223112	-	Gmet_1905	-	Sulfate ABC transporter, permease protein CysT
1885	 62.82	0	2127648..2128661	-	337	78223113	-	Gmet_1906	-	thiosulphate-binding protein
1886	 59.31	0	2128730..2129191	-	153	78223114	-	Gmet_1907	-	BadM/Rrf2 family transcriptional regulator
1887	 52.99	-1	2129505..2129972	-	155	78223115	-	Gmet_1908	-	bacterioferritin
1888	 55.47	0	2130203..2130595	+	130	78223116	-	Gmet_1909	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1889	 56.07	0	2130608..2131447	-	279	78223117	-	Gmet_1910	-	ribonucleotide reductase large subunit
1890	 55.65	0	2131606..2132304	-	232	78223118	-	Gmet_1911	-	ribonucleotide reductase large subunit
1891	 60.73	0	2132484..2135027	-	847	78223119	-	Gmet_1912	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1892	 60.06	0	2135237..2136478	-	413	78223120	hisS	Gmet_1913	-	histidyl-tRNA synthetase
1893	 52.97	-1	2136521..2137900	-	459	78223121	-	Gmet_1914	-	response regulator receiver modulated diguanylate cyclase
1894	 58.91	0	2137982..2140378	-	798	78223122	-	Gmet_1915	-	DNA internalization-related competence protein ComEC/Rec2
1895	 57.39	0	2140387..2141583	-	398	78223123	-	Gmet_1916	-	hypothetical protein
1896	 54.21	0	2141788..2143047	+	419	78223124	-	Gmet_1917	-	response regulator receiver /GGDEF/PAS/PAC domain-containing protein
1897	 53.61	-1	2143212..2145164	+	650	78223125	-	Gmet_1918	-	PAS/PAC sensor hybrid histidine kinase
1898	 56.41	0	2145182..2146234	+	350	78223126	-	Gmet_1919	-	response regulator receiver (CheY-like) modulated metal dependent phosphohydrolase
1899	 54.81	0	2146376..2146645	-	89	78223127	-	Gmet_1920	-	hypothetical protein
1900	 54.07	0	2146675..2147619	-	314	78223128	-	Gmet_1921	-	fructose-1,6-bisphosphatase
1901	 55.00	0	2147788..2148207	+	139	78223129	-	Gmet_1922	-	Rieske (2Fe-2S) region
1902	 56.61	0	2148215..2149318	+	367	78223130	-	Gmet_1923	-	cytochrome b/b6-like
1903	 54.37	0	2149315..2150127	+	270	78223131	-	Gmet_1924	-	cytochrome c family protein
1904	 52.83	-1	2150280..2150597	+	105	78223132	-	Gmet_1925	-	hypothetical protein
1905	 59.58	0	2150730..2152409	-	559	78223133	-	Gmet_1926	-	putative ABC transporter ATP-binding protein
1906	 61.20	0	2152560..2153528	+	322	78223134	-	Gmet_1927	-	import inner membrane translocase, subunit Tim44
1907	 50.20	-1	2153688..2154185	+	165	78223135	-	Gmet_1928	-	rubrerythrin
1908	 60.16	0	2154276..2155304	-	342	78223136	-	Gmet_1929	-	cytochrome bd ubiquinol oxidase, subunit II
1909	 57.28	0	2155306..2156658	-	450	78223137	-	Gmet_1930	-	cytochrome bd ubiquinol oxidase, subunit I
1910	 58.58	0	2156815..2157222	-	135	78223138	-	Gmet_1931	-	BadM/Rrf2 family transcriptional regulator
1911	 58.16	0	2157306..2158586	-	426	78223139	-	Gmet_1932	-	peptidase M, neutral zinc metallopeptidase, zinc-binding site
1912	 59.86	0	2158593..2158886	-	97	78223140	-	Gmet_1933	-	heat shock protein DnaJ-like
1913	 62.67	0	2158962..2160839	-	625	78223141	-	Gmet_1934	-	1-deoxy-D-xylulose-5-phosphate synthase
1914	 60.63	0	2160839..2161732	-	297	78223142	-	Gmet_1935	-	farnesyl-diphosphate synthase
1915	 52.81	-1	2161777..2162007	-	76	78223143	-	Gmet_1936	-	exodeoxyribonuclease VII small subunit
1916	 60.77	0	2162062..2162739	-	225	78223144	-	Gmet_1937	-	hypothetical protein
1917	 61.75	0	2162802..2163350	-	182	78223145	-	Gmet_1938	-	orotate phosphoribosyltransferase
1918	 61.96	0	2163368..2164768	-	466	78223146	-	Gmet_1939	-	amidophosphoribosyltransferase
1919	 60.51	0	2164828..2165655	-	275	78223147	-	Gmet_1940	-	phosphoribosylformylglycinamidine synthase I, putative
1920	 62.99	0	2165657..2168647	-	996	78223148	-	Gmet_1941	-	phosphoribosylformylglycinamidine synthase II
1921	 57.53	0	2168648..2169730	-	360	78223149	-	Gmet_1942	-	MscS mechanosensitive ion channel
1922	 59.18	0	2169723..2171018	-	431	78223150	-	Gmet_1943	-	adenylosuccinate lyase
1923	 57.89	0	2171092..2171877	-	261	78223151	-	Gmet_1944	-	Beta-lactamase-like
1924	 49.59	-1	2171991..2174063	-	690	78223152	-	Gmet_1945	-	PAS/PAC sensor signal transduction histidine kinase
1925	 54.92	0	2174289..2175284	+	331	78223153	-	Gmet_1946	-	glyceraldehyde-3-phosphate dehydrogenase
1926	 54.89	0	2175397..2176593	+	398	78223154	-	Gmet_1947	-	phosphoglycerate kinase
1927	 50.66	-1	2176614..2177369	+	251	78223155	-	Gmet_1948	-	triosephosphate isomerase
1928	 55.30	0	2177454..2177849	+	131	78223156	secG	Gmet_1949	-	preprotein translocase subunit SecG
1929	 46.53	-2	2178332..2178634	-	100	78223157	-	Gmet_1950	-	hypothetical protein
1930	 47.62	-2	2178872..2179060	+	62	78223158	-	Gmet_1951	-	hypothetical protein
1931	 55.22	0	2179075..2179668	-	197	78223159	-	Gmet_1952	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1932	 56.05	0	2179681..2180292	-	203	78223160	-	Gmet_1953	-	lytic transglycosylase, catalytic
1933	 56.64	0	2180498..2182093	+	531	78223161	-	Gmet_1954	-	L-aspartate oxidase
1934	 58.59	0	2182106..2182402	+	98	78223162	-	Gmet_1955	-	chorismate mutase
1935	 53.33	-1	2182402..2182611	+	69	78223163	-	Gmet_1956	-	hypothetical protein
1936	 58.71	0	2182661..2183464	-	267	78223164	-	Gmet_1957	-	hypothetical protein
1937	 55.95	0	2183532..2184119	-	195	78223165	-	Gmet_1958	-	condensin subunit ScpB
1938	 56.80	0	2184106..2184906	-	266	78223166	-	Gmet_1959	-	condensin subunit ScpA
1939	 59.98	0	2184903..2185889	-	328	78223167	-	Gmet_1960	-	tryptophanyl-tRNA synthetase
1940	 56.39	0	2185921..2186601	-	226	78223168	-	Gmet_1961	-	peptidase M50
1941	 56.28	0	2186902..2189655	+	917	78223169	-	Gmet_1962	-	hypothetical protein
1942	 61.67	0	2189630..2190529	+	299	78223170	-	Gmet_1963	-	putative signal peptide protein
1943	 59.89	0	2190526..2193360	+	944	78223171	-	Gmet_1964	-	hypothetical protein
59.54	MEAN

5.81	STD DEV
