IslandPath Analysis: Geobacter metallireducens GS-15

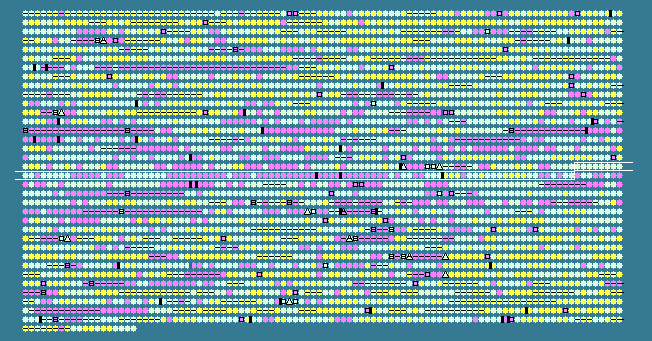

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1793	 58.11	0	2029788..2030243	+	151	78223021	-	Gmet_1814	-	hypothetical protein
1794	 56.30	0	2030553..2031227	-	224	78223022	-	Gmet_1815	-	NAD(P)H dehydrogenase (quinone):NADPH-dependent FMN reductase
1795	 56.82	0	2031224..2031670	-	148	78223023	-	Gmet_1816	-	hypothetical protein
1796	 58.42	0	2031694..2031972	-	92	78223024	-	Gmet_1817	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1797	 58.60	0	2032014..2033315	-	433	78223025	-	Gmet_1818	-	phenylacetate-CoA ligase
1798	 57.93	0	2033329..2034072	-	247	78223026	-	Gmet_1819	-	ABC transporter-related protein
1799	 59.10	0	2034076..2034828	-	250	78223027	-	Gmet_1820	-	ABC transporter-related protein
1800	 56.43	0	2034821..2035807	-	328	78223028	-	Gmet_1821	-	inner-membrane translocator
1801	 57.51	0	2035826..2036710	-	294	78223029	-	Gmet_1822	-	inner-membrane translocator
1802	 57.66	0	2036801..2037943	-	380	78223030	-	Gmet_1823	-	extracellular ligand-binding receptor
1803	 56.02	0	2038020..2038451	-	143	78223031	-	Gmet_1824	-	ACT domain-containing protein
1804	 59.40	0	2038526..2039833	-	435	78223032	-	Gmet_1825	-	phenylacetate-CoA ligase
1805	 57.86	0	2039852..2040430	-	192	78223033	-	Gmet_1826	-	indolepyruvate oxidoreductase subunit B
1806	 60.24	0	2040427..2042184	-	585	78223034	-	Gmet_1827	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
1807	 59.89	0	2042314..2043228	-	304	78223035	-	Gmet_1828	-	Ppx/GppA phosphatase
1808	 57.54	0	2043228..2044859	-	543	78223036	-	Gmet_1829	-	Na+/Pi-cotransporter
1809	 52.90	-1	2044881..2045519	-	212	78223037	-	Gmet_1830	-	putative lipoprotein
1810	 53.15	-1	2045670..2046113	-	147	78223038	-	Gmet_1831	-	hypothetical protein
1811	 55.60	0	2046113..2047684	-	523	78223039	-	Gmet_1832	-	OmpA/MotB
1812	 50.35	-1	2047814..2048095	-	93	78223040	-	Gmet_1833	-	histone-like DNA-binding protein
1813	 54.61	0	2048206..2049225	-	339	78223041	-	Gmet_1834	-	hypothetical protein
1814	 59.11	0	2049288..2050610	-	440	78223042	-	Gmet_1835	-	23S rRNA methyltransferase/RumA
1815	 52.13	-1	2050603..2051001	-	132	78223043	-	Gmet_1836	-	hypothetical protein
1816	 51.60	-1	2051238..2051456	+	72	78223044	-	Gmet_1837	-	translation initiation factor 1
1817	 55.67	0	2051757..2052320	+	187	78223045	-	Gmet_1838	-	translation elongation factor P (EF-P)
1818	 59.31	0	2052325..2053248	+	307	78223046	-	Gmet_1839	-	tRNA synthetase, class II (D, K and N)
1819	 60.97	0	2053261..2054295	-	344	78223047	-	Gmet_1840	-	L-lysine 2,3-aminomutase
1820	 59.69	0	2054377..2055294	-	305	78223048	-	Gmet_1841	-	dihydroorotate oxidase B, catalytic subunit
1821	 60.54	0	2055305..2056120	-	271	78223049	-	Gmet_1842	-	dihydroorotate oxidase B, electron transfer subunit
1822	 57.37	0	2056110..2056604	-	164	78223050	-	Gmet_1843	-	SSU ribosomal protein S18P alanine acetyltransferase
1823	 57.69	0	2056726..2057772	+	348	78223051	-	Gmet_1844	-	phosphoribosylaminoimidazole synthetase
1824	 57.81	0	2057786..2058406	+	206	78223052	-	Gmet_1845	-	phosphoribosylglycinamide formyltransferase
1825	 50.18	-1	2058491..2058763	+	90	78223053	-	Gmet_1846	-	cytochrome c3
1826	 51.38	-1	2058844..2059170	-	108	78223054	-	Gmet_1847	-	hypothetical protein
1827	 55.80	0	2059258..2060619	-	453	78223055	-	Gmet_1848	-	exodeoxyribonuclease VII large subunit
1828	 55.25	0	2060715..2062124	+	469	78223056	-	Gmet_1849	-	ParA family protein
1829	 54.72	0	2062135..2063097	-	320	78223057	-	Gmet_1850	-	protein of unknown function DUF610, YibQ
1830	 51.39	-1	2063213..2064868	-	551	78223058	-	Gmet_1851	-	pentapeptide repeat-containing protein
1831	 48.51	-1	2065231..2065869	-	212	78223059	-	Gmet_1852	-	SARP family transcriptional regulator
1832	 50.98	-1	2066018..2067349	-	443	78223060	-	Gmet_1853	-	peptidase S41A, C-terminal protease
1833	 51.56	-1	2067377..2068561	-	394	78223061	-	Gmet_1854	-	peptidase M23B
1834	 51.84	-1	2068558..2069508	-	316	78223062	-	Gmet_1855	-	cell division protein FtsX
1835	 56.99	0	2069495..2070166	-	223	78223063	-	Gmet_1856	-	cell division ATP-binding protein FtsE
1836	 51.77	-1	2070218..2070640	-	140	78223064	-	Gmet_1857	-	N-terminal methylation
1837	 52.88	-1	2070642..2071127	-	161	78223065	-	Gmet_1858	-	N-terminal methylation
1838	 53.44	-1	2071154..2073739	-	861	78223066	-	Gmet_1859	-	type II and III secretion system protein
1839	 56.75	0	2073768..2074382	-	204	78223067	-	Gmet_1860	-	hypothetical protein
1840	 50.92	-1	2074379..2074924	-	181	78223068	-	Gmet_1861	-	putative type IV pilus assembly protein PilO
1841	 50.56	-1	2074921..2075460	-	179	78223069	-	Gmet_1862	-	fimbrial assembly
1842	 53.12	-1	2075460..2076389	-	309	78223070	-	Gmet_1863	-	putative type IV pilus assembly protein PilM
1843	 55.05	0	2076422..2078143	-	573	78223071	-	Gmet_1864	-	type II secretion system protein E
1844	 51.78	-1	2078196..2079404	-	402	78223072	-	Gmet_1865	-	type II secretion system protein
1845	 53.61	-1	2079506..2079934	-	142	78223073	-	Gmet_1866	-	hypothetical protein
1846	 47.92	-2	2079955..2081058	-	367	78223074	-	Gmet_1867	-	cytochrome c family protein
1847	 49.15	-1	2081069..2081833	-	254	78223075	-	Gmet_1868	-	cytochrome c family protein
1848	 51.88	-1	2081830..2082891	-	353	78223076	-	Gmet_1869	-	NHL repeat-containing protein
1849	 51.69	-1	2083063..2083803	-	246	78223077	-	Gmet_1870	-	glycosyl transferase family protein
1850	 51.74	-1	2084434..2086851	-	805	78223078	-	Gmet_1871	-	Lon-A peptidase
1851	 50.88	-1	2086865..2088118	-	417	78223079	clpX	Gmet_1872	-	ATP-dependent protease ATP-binding subunit
1852	 51.67	-1	2088115..2088714	-	199	78223080	-	Gmet_1873	-	ATP-dependent Clp protease proteolytic subunit ClpP
1853	 50.61	-1	2088739..2090040	-	433	78223081	-	Gmet_1874	-	trigger factor
1854	 50.76	-1	2090602..2091192	-	196	78223082	-	Gmet_1875	-	Ham1-like protein
1855	 53.84	0	2091189..2091905	-	238	78223083	-	Gmet_1876	-	ribonuclease PH
1856	 49.49	-1	2091990..2093072	-	360	78223084	-	Gmet_1877	-	phosphoesterase, RecJ-like
1857	 49.05	-1	2093445..2094023	-	192	78223085	-	Gmet_1878	-	DNA uptake protein and related DNA-binding proteins-like
1858	 53.81	0	2094020..2095606	-	528	78223086	-	Gmet_1879	-	alpha-isopropylmalate/homocitrate synthase family transferase
1859	 54.27	0	2095712..2096929	-	405	78223087	-	Gmet_1880	-	aspartate kinase
1860	 49.69	-1	2096987..2097469	-	160	78223088	-	Gmet_1881	-	hypothetical protein
1861	 51.11	-1	2097476..2097925	-	149	78223089	-	Gmet_1882	-	CBS domain-containing protein
1862	 59.81	0	2097946..2099490	-	514	78223090	-	Gmet_1883	-	hypothetical protein
1863	 54.86	0	2099487..2099867	-	126	78223091	-	Gmet_1884	-	phosphopantethiene-protein transferase
1864	 58.75	0	2099875..2100594	-	239	78223092	-	Gmet_1885	-	pyridoxal phosphate biosynthetic protein PdxJ
1865	 58.41	0	2100595..2101950	-	451	78223093	-	Gmet_1886	-	phosphoglucosamine mutase
1866	 55.39	0	2101974..2102381	-	135	78223094	-	Gmet_1887	-	hypothetical protein
1867	 54.95	0	2102366..2103133	-	255	78223095	-	Gmet_1888	-	hypothetical protein
1868	 58.88	0	2103196..2104068	-	290	78223096	-	Gmet_1889	-	dihydropteroate synthase
1869	 58.46	0	2104068..2105894	-	608	78223097	-	Gmet_1890	-	FtsH peptidase
1870	 60.20	0	2105996..2107402	-	468	78223098	-	Gmet_1891	-	tRNA(Ile)-lysidine synthetase-like
1871	 63.47	0	2107631..2109415	-	594	78223099	-	Gmet_1892	-	DNA helicase/exodeoxyribonuclease V, alpha subunit
1872	 63.78	0	2109402..2113004	-	1200	78223100	-	Gmet_1893	-	DNA helicase/exodeoxyribonuclease V, beta subunit
1873	 66.95	+1	2113008..2116190	-	1060	78223101	-	Gmet_1894	-	exodeoxyribonuclease V, RecC subunit
1874	 51.21	-1	2116507..2116959	+	150	78223102	-	Gmet_1895	-	MarR family transcriptional regulator
1875	 56.51	0	2116956..2118314	+	452	78223103	-	Gmet_1896	-	dihydrolipoamide dehydrogenase
1876	 57.67	0	2118509..2118886	+	125	78223104	-	Gmet_1897	-	phosphoribosyl-AMP cyclohydrolase
1877	 63.24	0	2118883..2119758	+	291	78223105	hisG	Gmet_1898	-	ATP phosphoribosyltransferase
1878	 58.36	0	2119820..2120614	-	264	78223106	-	Gmet_1899	-	ABC transporter-related protein
1879	 59.29	0	2120611..2121369	-	252	78223107	-	Gmet_1900	-	binding-protein dependent transport system inner membrane protein
1880	 57.45	0	2121374..2122339	-	321	78223108	-	Gmet_1901	-	twin-arginine translocation pathway signal
1881	 65.47	+1	2122357..2124366	-	669	78223109	-	Gmet_1902	-	carbon-monoxide dehydrogenase, catalytic subunit
1882	 66.28	+1	2124732..2125763	-	343	78223110	-	Gmet_1903	-	sulphate transport system permease protein 1
1883	 64.28	0	2125799..2126635	-	278	78223111	-	Gmet_1904	-	Sulfate ABC transporter, permease protein CysW
1884	 66.07	+1	2126651..2127487	-	278	78223112	-	Gmet_1905	-	Sulfate ABC transporter, permease protein CysT
1885	 62.82	0	2127648..2128661	-	337	78223113	-	Gmet_1906	-	thiosulphate-binding protein
1886	 59.31	0	2128730..2129191	-	153	78223114	-	Gmet_1907	-	BadM/Rrf2 family transcriptional regulator
1887	 52.99	-1	2129505..2129972	-	155	78223115	-	Gmet_1908	-	bacterioferritin
1888	 55.47	0	2130203..2130595	+	130	78223116	-	Gmet_1909	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1889	 56.07	0	2130608..2131447	-	279	78223117	-	Gmet_1910	-	ribonucleotide reductase large subunit
1890	 55.65	0	2131606..2132304	-	232	78223118	-	Gmet_1911	-	ribonucleotide reductase large subunit
1891	 60.73	0	2132484..2135027	-	847	78223119	-	Gmet_1912	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1892	 60.06	0	2135237..2136478	-	413	78223120	hisS	Gmet_1913	-	histidyl-tRNA synthetase
59.54	MEAN

5.81	STD DEV
