IslandPath Analysis: Geobacter metallireducens GS-15

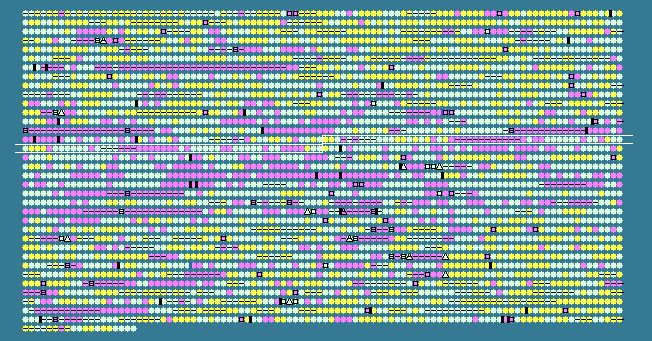

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1451	 64.27	0	1648909..1649826	+	305	78222679	-	Gmet_1467	-	peptidase M28
1452	 64.74	0	1650083..1651018	+	311	78222680	-	Gmet_1468	-	Alpha/beta hydrolase fold
1453	 60.89	0	1651182..1652999	+	605	78222681	-	Gmet_1469	-	AMP-dependent synthetase and ligase
1454	 53.85	0	1653221..1653532	-	103	78222682	-	Gmet_1470	-	anti-sigma-factor antagonist domain-containing protein
1455	 58.41	0	1653598..1654566	-	322	78222683	-	Gmet_1471	-	hypothetical protein
1456	 55.14	0	1654569..1655783	-	404	78222684	-	Gmet_1472	-	serine phosphatase
1457	 59.81	0	1656147..1656671	+	174	78222685	-	Gmet_1473	-	hypothetical protein
1458	 58.14	0	1657130..1657891	+	253	78222686	-	Gmet_1474	-	hypothetical protein
1459	 60.86	0	1658153..1665037	+	2294	78222687	-	Gmet_1475	-	YD repeat-containing protein
1460	 57.39	0	1665443..1666261	+	272	78222688	-	Gmet_1476	-	hypothetical protein
1461	 61.03	0	1666289..1667371	+	360	78222689	-	Gmet_1477	-	hypothetical protein
1462	 61.99	0	1667368..1668951	+	527	78222690	-	Gmet_1478	-	GH3 auxin-responsive promoter
1463	 63.77	0	1668981..1671152	-	723	78222691	-	Gmet_1479	-	hypothetical protein
1464	 63.06	0	1671170..1673581	-	803	78222692	-	Gmet_1480	-	glycosyl transferase, group 1:PHP-like
1465	 56.99	0	1673675..1674232	-	185	78222693	-	Gmet_1481	-	hypothetical protein
1466	 65.61	+1	1674548..1675591	-	347	78222694	-	Gmet_1482	-	hypothetical protein
1467	 62.96	0	1675609..1676607	-	332	78222695	-	Gmet_1483	-	phosphatidylserine decarboxylase-related protein
1468	 64.45	0	1676604..1679042	-	812	78222696	-	Gmet_1484	-	hypothetical protein
1469	 55.97	0	1679128..1679370	+	80	78222697	-	Gmet_1485	-	hypothetical protein
1470	 62.34	0	1679853..1680845	+	330	78222698	-	Gmet_1486	-	UDP-galactose 4-epimerase
1471	 65.52	+1	1680833..1682662	+	609	78222699	-	Gmet_1487	-	glutamine--fructose-6-phosphate transaminase
1472	 55.52	0	1682727..1683776	+	349	78222700	-	Gmet_1488	-	GDP-mannose 4,6-dehydratase
1473	 53.04	-1	1683769..1684935	+	388	78222701	-	Gmet_1489	-	UDP-N-acetylglucosamine 2-epimerase
1474	 49.72	-1	1685046..1686485	+	479	78222702	-	Gmet_1490	-	polysaccharide biosynthesis protein
1475	 51.91	-1	1686457..1687242	+	261	78222703	-	Gmet_1491	-	hypothetical protein
1476	 49.02	-1	1687254..1688375	+	373	78222704	-	Gmet_1492	-	glycosyl transferase, group 1
1477	 50.87	-1	1688360..1689220	+	286	78222705	-	Gmet_1493	-	glycosyl transferase family protein
1478	 41.59	-2	1689347..1690594	+	415	78222706	-	Gmet_1494	-	hypothetical protein
1479	 45.97	-2	1690548..1691789	+	413	78222707	-	Gmet_1495	-	hypothetical protein
1480	 41.51	-2	1691786..1692910	+	374	78222708	-	Gmet_1496	-	glycosyl transferase, group 1
1481	 45.49	-2	1692922..1693908	+	328	78222709	-	Gmet_1497	-	glycosyl transferase family protein
1482	 38.77	-2	1693917..1695038	+	373	78222710	-	Gmet_1498	-	glycosyl transferase, group 1
1483	 47.80	-2	1695059..1696150	+	363	78222711	-	Gmet_1499	-	glycosyl transferase, group 1
1484	 51.12	-1	1696155..1698380	+	741	78222712	-	Gmet_1500	-	hypothetical protein
1485	 56.64	0	1698392..1700077	+	561	78222713	-	Gmet_1501	-	heparinase II/III-like
1486	 56.06	0	1700231..1701493	+	420	78222714	-	Gmet_1502	-	glycosyl transferase, group 1
1487	 54.46	0	1701614..1703194	+	526	78222715	-	Gmet_1503	-	hypothetical protein
1488	 60.05	0	1703273..1704421	+	382	78222716	-	Gmet_1504	-	UDP-N-acetylglucosamine 2-epimerase
1489	 60.56	0	1704425..1706062	+	545	78222717	-	Gmet_1505	-	glycosyl transferase family protein
1490	 59.04	0	1706070..1708259	+	729	78222718	-	Gmet_1506	-	tetratricopeptide TPR_4
1491	 59.68	0	1708413..1710200	-	595	78222719	-	Gmet_1507	-	Beta-lactamase
1492	 56.80	0	1710379..1711179	-	266	78222720	-	Gmet_1508	-	4Fe-4S ferredoxin, iron-sulfur binding protein
1493	 60.53	0	1711208..1711696	-	162	78222721	-	Gmet_1509	-	YbaK/prolyl-tRNA synthetase associated region
1494	 51.61	-1	1711699..1711884	-	61	78222722	-	Gmet_1510	-	4-oxalocrotonate tautomerase
1495	 59.13	0	1711934..1712782	-	282	78222723	-	Gmet_1511	-	hypothetical protein
1496	 60.65	0	1712792..1713688	-	298	78222724	-	Gmet_1512	-	Beta-lactamase-like
1497	 53.04	-1	1713807..1714547	+	246	78222725	-	Gmet_1513	-	LuxR family transcriptional regulator
1498	 63.94	0	1714667..1715911	-	414	78222726	-	Gmet_1514	-	hypothetical protein
1499	 59.36	0	1715908..1716714	-	268	78222727	-	Gmet_1515	-	hypothetical protein
1500	 56.13	0	1716770..1717177	-	135	78222728	-	Gmet_1516	-	hypothetical protein
1501	 62.25	0	1717197..1719752	-	851	78222729	-	Gmet_1517	-	hypothetical protein
1502	 64.34	0	1719749..1720435	-	228	78222730	-	Gmet_1518	-	ABC transporter-related protein
1503	 63.50	0	1720455..1721906	-	483	78222731	-	Gmet_1519	-	hypothetical protein
1504	 64.26	0	1721896..1722519	-	207	78222732	-	Gmet_1520	-	TetR family transcriptional regulator
1505	 52.06	-1	1723392..1724630	+	412	78222733	-	Gmet_1521	-	L-carnitine dehydratase/bile acid-inducible protein F
1506	 60.16	0	1724614..1725843	+	409	78222734	-	Gmet_1522	-	L-carnitine dehydratase/bile acid-inducible protein F
1507	 60.99	0	1725877..1727109	+	410	78222735	-	Gmet_1523	-	Acyl-CoA dehydrogenase-like
1508	 61.35	0	1727154..1727924	+	256	78222736	-	Gmet_1524	-	short chain enoyl-CoA hydratase
1509	 58.47	0	1727935..1728690	+	251	78222737	-	Gmet_1525	-	electron transfer flavoprotein subunit beta
1510	 62.05	0	1728687..1729574	+	295	78222738	-	Gmet_1526	-	electron transfer flavoprotein subunit alpha
1511	 60.87	0	1729576..1731540	+	654	78222739	-	Gmet_1527	-	hypothetical protein
1512	 51.47	-1	1731592..1732032	+	146	78222740	-	Gmet_1528	-	hypothetical protein
1513	 59.93	0	1732058..1733230	+	390	78222741	-	Gmet_1529	-	thiolase
1514	 57.43	0	1733278..1734024	+	248	78222742	-	Gmet_1530	-	Short-chain dehydrogenase/reductase SDR
1515	 58.40	0	1734053..1734802	+	249	78222743	-	Gmet_1531	-	3-oxoacyl-[acyl-carrier-protein] reductase
1516	 57.04	0	1735067..1735492	+	141	78222744	-	Gmet_1532	-	cyclic nucleotide-binding domain-containing protein
1517	 55.62	0	1735571..1737028	-	485	78222745	-	Gmet_1533	-	fumarate reductase/succinate dehydrogenase flavoprotein-like
1518	 55.56	0	1737123..1737914	-	263	78222746	-	Gmet_1534	-	hypothetical protein
1519	 54.92	0	1737984..1739345	-	453	78222747	-	Gmet_1535	-	aromatic hydrocarbon degradation membrane protein
1520	 52.51	-1	1739416..1741125	-	569	78222748	-	Gmet_1536	-	hypothetical protein
1521	 52.99	-1	1741122..1742006	-	294	78222749	-	Gmet_1537	-	ATPase
1522	 55.17	0	1742148..1742408	-	86	78222750	-	Gmet_1538	-	hypothetical protein
1523	 53.42	-1	1742442..1745030	-	862	78222751	-	Gmet_1539	-	formate C-acetyltransferase glycine radical:pyruvate formate-lyase, PFL
1524	 44.83	-2	1745056..1745229	-	57	78222752	-	Gmet_1540	-	hypothetical protein
1525	 50.33	-1	1745289..1746335	-	348	78222753	-	Gmet_1541	-	glycyl-radical activating protein
1526	 51.16	-1	1746931..1748691	+	586	78222754	-	Gmet_1542	-	Fis family transcriptional regulator
1527	 56.94	0	1748725..1749372	-	215	78222755	-	Gmet_1543	-	YHS
1528	 55.63	0	1749409..1749834	-	141	78222756	-	Gmet_1544	-	hypothetical protein
1529	 57.73	0	1749857..1750762	-	301	78222757	-	Gmet_1545	-	hypothetical protein
1530	 56.11	0	1750836..1751318	-	160	78222758	-	Gmet_1546	-	hypothetical protein
1531	 61.60	0	1751396..1754533	-	1045	78222759	-	Gmet_1547	-	heavy metal efflux pump CzcA
1532	 61.96	0	1754572..1755972	-	466	78222760	-	Gmet_1548	-	secretion protein HlyD
1533	 59.72	0	1756046..1757326	-	426	78222761	-	Gmet_1549	-	Outer membrane efflux protein
1534	 54.81	0	1757586..1757720	-	44	78222762	-	Gmet_1550	-	hypothetical protein
1535	 53.04	-1	1757776..1758186	-	136	78222763	-	Gmet_1551	-	response regulator receiver domain-containing protein
1536	 62.76	0	1758186..1758851	-	221	78222764	-	Gmet_1552	-	ABC transporter-related protein
1537	 62.19	0	1758907..1760067	-	386	78222765	-	Gmet_1553	-	hypothetical protein
1538	 56.55	0	1760092..1760625	-	177	78222766	-	Gmet_1554	-	hypothetical protein
1539	 59.29	0	1760640..1761059	-	139	78222767	-	Gmet_1555	-	heavy metal transport/detoxification protein
1540	 62.24	0	1761085..1761513	-	142	78222768	-	Gmet_1556	-	heavy metal transport/detoxification protein
1541	 35.62	-2	1761597..1761902	-	101	78222769	-	Gmet_1557	-	hypothetical protein
1542	 60.11	0	1762700..1763629	+	309	78222770	-	Gmet_1558	-	cysteine synthase
1543	 60.62	0	1763686..1764264	+	192	78222771	-	Gmet_1559	-	peptidase M23B
1544	 54.30	0	1764329..1765282	+	317	78222772	-	Gmet_1560	-	metal dependent phosphohydrolase
1545	 51.22	-1	1765445..1765813	+	122	78222773	-	Gmet_1561	-	hypothetical protein
1546	 52.02	-1	1766121..1766441	-	106	78222774	-	Gmet_1562	-	hypothetical protein
1547	 48.43	-1	1768107..1768424	-	105	78222775	-	Gmet_1565	-	hypothetical protein
1548	 63.69	0	1768827..1770071	+	414	78222776	-	Gmet_1566	-	Cys/Met metabolism pyridoxal-phosphate-dependent enzyme
1549	 56.81	0	1770084..1770296	+	70	78222777	-	Gmet_1567	-	ThiS, thiamine-biosynthesis
1550	 61.11	0	1770296..1771105	+	269	78222778	-	Gmet_1568	-	UBA/THIF-type NAD/FAD binding fold:MoeZ/MoeB
59.54	MEAN

5.81	STD DEV
