IslandPath Analysis: Geobacter metallireducens GS-15

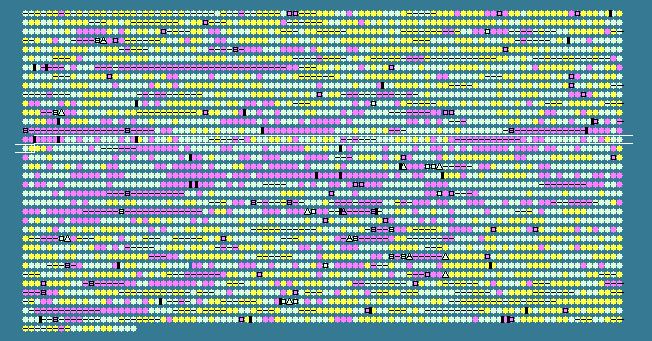

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1403	 55.34	0	1587092..1587850	+	252	78222631	-	Gmet_1419	-	exopolyphosphatase / 5'-nucleotidase / 3'-nucleotidase
1404	 52.23	-1	1587966..1588616	+	216	78222632	-	Gmet_1420	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
1405	 50.15	-1	1588651..1589631	+	326	78222633	-	Gmet_1421	-	sigma 28 (flagella/sporulation)
1406	 49.81	-1	1589661..1590176	+	171	78222634	-	Gmet_1422	-	adenine phosphoribosyltransferase
1407	 50.31	-1	1590480..1590797	+	105	78222635	-	Gmet_1423	-	hypothetical protein
1408	 58.34	0	1590776..1593394	+	872	78222636	-	Gmet_1424	-	DNA mismatch repair protein
1409	 57.70	0	1593396..1594667	+	423	78222637	-	Gmet_1425	-	cell wall hydrolase/autolysin
1410	 55.89	0	1594680..1597379	+	899	78222638	-	Gmet_1426	-	UTP-GlnB (protein PII) uridylyltransferase, GlnD
1411	 59.12	0	1597387..1598274	+	295	78222639	-	Gmet_1427	-	tyrosine recombinase XerD subunit
1412	 59.75	0	1598322..1599521	+	399	78222640	-	Gmet_1428	-	cofactor-independent phosphoglycerate mutase
1413	 52.36	-1	1599590..1600162	-	190	78222641	-	Gmet_1429	-	Outer membrane lipoprotein Slp
1414	 58.24	0	1600403..1601755	+	450	78222642	-	Gmet_1430	-	UDP-glucose/GDP-mannose dehydrogenase
1415	 57.75	0	1601768..1602709	+	313	78222643	-	Gmet_1431	-	NAD-dependent epimerase/dehydratase
1416	 56.46	0	1602724..1603056	+	110	78222644	-	Gmet_1432	-	cell division protein FtsB
1417	 53.85	0	1603107..1603262	+	51	78222645	-	Gmet_1433	-	hypothetical protein
1418	 56.78	0	1603259..1604968	+	569	78222646	argS	Gmet_1434	-	arginyl-tRNA synthetase
1419	 53.23	-1	1604981..1605784	+	267	78222647	-	Gmet_1435	-	sporulation-related protein
1420	 63.18	0	1606123..1607469	+	448	78222648	-	Gmet_1436	-	hypothetical protein
1421	 56.32	0	1607769..1608338	+	189	78222649	-	Gmet_1437	-	hypothetical protein
1422	 55.17	0	1608477..1608737	+	86	78222650	-	Gmet_1438	-	excinuclease ABC subunit C
1423	 62.38	0	1608980..1609585	+	201	78222651	-	Gmet_1439	-	SOS-response transcriptional repressor, LexA
1424	 61.96	0	1609589..1609843	+	84	78222652	-	Gmet_1440	-	hypothetical protein
1425	 63.24	0	1609858..1611081	+	407	78222653	-	Gmet_1441	-	UMUC-like DNA-repair protein
1426	 53.67	-1	1611315..1611968	+	217	78222654	-	Gmet_1442	-	NADPH-dependent FMN reductase
1427	 57.02	0	1611995..1612564	+	189	78222655	-	Gmet_1443	-	flavin reductase-like, FMN-binding
1428	 59.29	0	1613644..1614402	+	252	78222656	-	Gmet_1444	-	polysaccharide export protein
1429	 60.83	0	1614428..1615660	+	410	78222657	-	Gmet_1445	-	hypothetical protein
1430	 61.09	0	1615683..1617242	+	519	78222658	-	Gmet_1446	-	lipopolysaccharide biosynthesis
1431	 61.83	0	1617287..1618465	+	392	78222659	-	Gmet_1447	-	ATPase involved in chromosome partitioning-like
1432	 62.09	0	1618473..1619456	+	327	78222660	-	Gmet_1448	-	hypothetical protein
1433	 63.83	0	1619388..1620728	-	446	78222661	-	Gmet_1449	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
1434	 59.16	0	1620874..1621419	-	181	78222662	-	Gmet_1450	-	hypothetical protein
1435	 61.00	0	1621498..1622802	-	434	78222663	-	Gmet_1451	-	hypothetical protein
1436	 55.69	0	1622864..1623601	-	245	78222664	-	Gmet_1452	-	hypothetical protein
1437	 56.38	0	1623760..1624002	-	80	78222665	-	Gmet_1453	-	hypothetical protein
1438	 53.09	-1	1624134..1624376	-	80	78222666	-	Gmet_1454	-	hypothetical protein
1439	 64.07	0	1624761..1625570	+	269	78222667	-	Gmet_1455	-	hypothetical protein
1440	 62.49	0	1625591..1626811	+	406	78222668	-	Gmet_1456	-	peptidylprolyl isomerase, FKBP-type
1441	 61.33	0	1626860..1628527	+	555	78222669	-	Gmet_1457	-	surface antigen (D15)
1442	 63.06	0	1628543..1638442	+	3299	78222670	-	Gmet_1458	-	filamentous haemagglutinin-like
1443	 63.85	0	1638442..1640253	+	603	78222671	-	Gmet_1459	-	MotA/TolQ/ExbB proton channel
1444	 60.54	0	1640250..1640657	+	135	78222672	-	Gmet_1460	-	biopolymer transport protein ExbD/TolR
1445	 63.92	0	1640671..1641399	+	242	78222673	-	Gmet_1461	-	TonB-dependent receptor, putative
1446	 55.03	0	1641445..1643412	+	655	78222674	-	Gmet_1462	-	hypothetical protein
1447	 62.92	0	1643440..1644720	+	426	78222675	-	Gmet_1463	-	ATP-binding region, ATPase-like
1448	 62.26	0	1644717..1645670	+	317	78222676	-	Gmet_1464	-	response regulator receiver domain-containing protein
1449	 63.04	0	1646188..1647978	-	596	78222677	-	Gmet_1465	-	hypothetical protein
1450	 60.89	0	1648261..1648641	+	126	78222678	-	Gmet_1466	-	hypothetical protein
1451	 64.27	0	1648909..1649826	+	305	78222679	-	Gmet_1467	-	peptidase M28
1452	 64.74	0	1650083..1651018	+	311	78222680	-	Gmet_1468	-	Alpha/beta hydrolase fold
1453	 60.89	0	1651182..1652999	+	605	78222681	-	Gmet_1469	-	AMP-dependent synthetase and ligase
1454	 53.85	0	1653221..1653532	-	103	78222682	-	Gmet_1470	-	anti-sigma-factor antagonist domain-containing protein
1455	 58.41	0	1653598..1654566	-	322	78222683	-	Gmet_1471	-	hypothetical protein
1456	 55.14	0	1654569..1655783	-	404	78222684	-	Gmet_1472	-	serine phosphatase
1457	 59.81	0	1656147..1656671	+	174	78222685	-	Gmet_1473	-	hypothetical protein
1458	 58.14	0	1657130..1657891	+	253	78222686	-	Gmet_1474	-	hypothetical protein
1459	 60.86	0	1658153..1665037	+	2294	78222687	-	Gmet_1475	-	YD repeat-containing protein
1460	 57.39	0	1665443..1666261	+	272	78222688	-	Gmet_1476	-	hypothetical protein
1461	 61.03	0	1666289..1667371	+	360	78222689	-	Gmet_1477	-	hypothetical protein
1462	 61.99	0	1667368..1668951	+	527	78222690	-	Gmet_1478	-	GH3 auxin-responsive promoter
1463	 63.77	0	1668981..1671152	-	723	78222691	-	Gmet_1479	-	hypothetical protein
1464	 63.06	0	1671170..1673581	-	803	78222692	-	Gmet_1480	-	glycosyl transferase, group 1:PHP-like
1465	 56.99	0	1673675..1674232	-	185	78222693	-	Gmet_1481	-	hypothetical protein
1466	 65.61	+1	1674548..1675591	-	347	78222694	-	Gmet_1482	-	hypothetical protein
1467	 62.96	0	1675609..1676607	-	332	78222695	-	Gmet_1483	-	phosphatidylserine decarboxylase-related protein
1468	 64.45	0	1676604..1679042	-	812	78222696	-	Gmet_1484	-	hypothetical protein
1469	 55.97	0	1679128..1679370	+	80	78222697	-	Gmet_1485	-	hypothetical protein
1470	 62.34	0	1679853..1680845	+	330	78222698	-	Gmet_1486	-	UDP-galactose 4-epimerase
1471	 65.52	+1	1680833..1682662	+	609	78222699	-	Gmet_1487	-	glutamine--fructose-6-phosphate transaminase
1472	 55.52	0	1682727..1683776	+	349	78222700	-	Gmet_1488	-	GDP-mannose 4,6-dehydratase
1473	 53.04	-1	1683769..1684935	+	388	78222701	-	Gmet_1489	-	UDP-N-acetylglucosamine 2-epimerase
1474	 49.72	-1	1685046..1686485	+	479	78222702	-	Gmet_1490	-	polysaccharide biosynthesis protein
1475	 51.91	-1	1686457..1687242	+	261	78222703	-	Gmet_1491	-	hypothetical protein
1476	 49.02	-1	1687254..1688375	+	373	78222704	-	Gmet_1492	-	glycosyl transferase, group 1
1477	 50.87	-1	1688360..1689220	+	286	78222705	-	Gmet_1493	-	glycosyl transferase family protein
1478	 41.59	-2	1689347..1690594	+	415	78222706	-	Gmet_1494	-	hypothetical protein
1479	 45.97	-2	1690548..1691789	+	413	78222707	-	Gmet_1495	-	hypothetical protein
1480	 41.51	-2	1691786..1692910	+	374	78222708	-	Gmet_1496	-	glycosyl transferase, group 1
1481	 45.49	-2	1692922..1693908	+	328	78222709	-	Gmet_1497	-	glycosyl transferase family protein
1482	 38.77	-2	1693917..1695038	+	373	78222710	-	Gmet_1498	-	glycosyl transferase, group 1
1483	 47.80	-2	1695059..1696150	+	363	78222711	-	Gmet_1499	-	glycosyl transferase, group 1
1484	 51.12	-1	1696155..1698380	+	741	78222712	-	Gmet_1500	-	hypothetical protein
1485	 56.64	0	1698392..1700077	+	561	78222713	-	Gmet_1501	-	heparinase II/III-like
1486	 56.06	0	1700231..1701493	+	420	78222714	-	Gmet_1502	-	glycosyl transferase, group 1
1487	 54.46	0	1701614..1703194	+	526	78222715	-	Gmet_1503	-	hypothetical protein
1488	 60.05	0	1703273..1704421	+	382	78222716	-	Gmet_1504	-	UDP-N-acetylglucosamine 2-epimerase
1489	 60.56	0	1704425..1706062	+	545	78222717	-	Gmet_1505	-	glycosyl transferase family protein
1490	 59.04	0	1706070..1708259	+	729	78222718	-	Gmet_1506	-	tetratricopeptide TPR_4
1491	 59.68	0	1708413..1710200	-	595	78222719	-	Gmet_1507	-	Beta-lactamase
1492	 56.80	0	1710379..1711179	-	266	78222720	-	Gmet_1508	-	4Fe-4S ferredoxin, iron-sulfur binding protein
1493	 60.53	0	1711208..1711696	-	162	78222721	-	Gmet_1509	-	YbaK/prolyl-tRNA synthetase associated region
1494	 51.61	-1	1711699..1711884	-	61	78222722	-	Gmet_1510	-	4-oxalocrotonate tautomerase
1495	 59.13	0	1711934..1712782	-	282	78222723	-	Gmet_1511	-	hypothetical protein
1496	 60.65	0	1712792..1713688	-	298	78222724	-	Gmet_1512	-	Beta-lactamase-like
1497	 53.04	-1	1713807..1714547	+	246	78222725	-	Gmet_1513	-	LuxR family transcriptional regulator
1498	 63.94	0	1714667..1715911	-	414	78222726	-	Gmet_1514	-	hypothetical protein
1499	 59.36	0	1715908..1716714	-	268	78222727	-	Gmet_1515	-	hypothetical protein
1500	 56.13	0	1716770..1717177	-	135	78222728	-	Gmet_1516	-	hypothetical protein
1501	 62.25	0	1717197..1719752	-	851	78222729	-	Gmet_1517	-	hypothetical protein
1502	 64.34	0	1719749..1720435	-	228	78222730	-	Gmet_1518	-	ABC transporter-related protein
59.54	MEAN

5.81	STD DEV
