IslandPath Analysis: Geobacter metallireducens GS-15

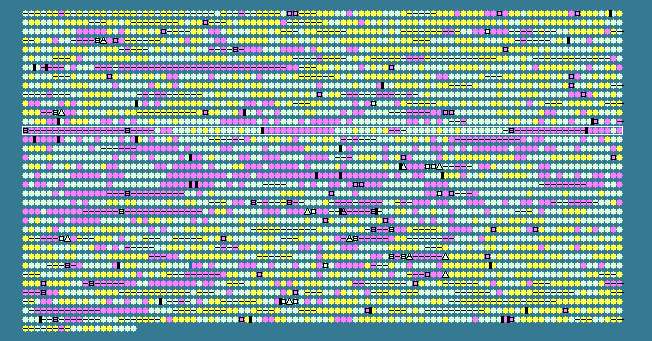

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1301	 53.25	-1	1475970..1477139	-	389	78222529	-	Gmet_1315	-	transposase IS4
1302	 46.98	-2	1477315..1477761	+	148	78222530	-	Gmet_1316	-	nucleotidyltransferase
1303	 44.12	-2	1477761..1478177	+	138	78222531	-	Gmet_1317	-	hypothetical protein
1304	 53.99	0	1478531..1478806	+	91	78222532	-	Gmet_1319	-	hypothetical protein
1305	 42.68	-2	1478842..1479162	+	106	78222533	-	Gmet_1320	-	DNA polymerase, beta-like region
1306	 45.45	-2	1479367..1479597	+	76	78222534	-	Gmet_1321	-	hypothetical protein
1307	 49.35	-1	1479599..1479829	+	76	78222535	-	Gmet_1322	-	YcfA-like
1308	 53.33	-1	1479851..1480075	+	74	78222536	-	Gmet_1323	-	hypothetical protein
1309	 49.46	-1	1480322..1481251	+	309	78222537	-	Gmet_1324	-	WxcM-like protein
1310	 46.07	-2	1481248..1482354	+	368	78222538	-	Gmet_1325	-	DegT/DnrJ/EryC1/StrS aminotransferase
1311	 40.90	-2	1482351..1483619	+	422	78222539	-	Gmet_1326	-	lipopolysaccharide biosynthesis protein
1312	 29.21	-2	1483641..1484876	+	411	78222540	-	Gmet_1327	-	hypothetical protein
1313	 40.00	-2	1485079..1485963	+	294	78222541	-	Gmet_1328	-	glycosyl transferase family protein
1314	 36.29	-2	1485942..1487294	+	450	78222542	-	Gmet_1329	-	hypothetical protein
1315	 29.31	-2	1487369..1488487	+	372	78222543	-	Gmet_1330	-	hypothetical protein
1316	 32.69	-2	1488513..1489592	+	359	78222544	-	Gmet_1331	-	hypothetical protein
1317	 33.23	-2	1489652..1490641	+	329	78222545	-	Gmet_1332	-	hypothetical protein
1318	 53.59	-1	1490891..1492144	+	417	78222546	-	Gmet_1333	-	IS204/IS1001/IS1096/IS1165 transposase
1319	 38.10	-2	1492253..1493155	+	300	78222547	-	Gmet_1334	-	glycosyl transferase family protein
1320	 51.52	-1	1493177..1494193	+	338	78222548	-	Gmet_1335	-	NAD-dependent epimerase/dehydratase
1321	 54.85	0	1494288..1495472	+	394	78222549	-	Gmet_1336	-	hypothetical protein
1322	 52.58	-1	1495498..1496058	+	186	78222550	-	Gmet_1337	-	sugar transferase
1323	 57.91	0	1496100..1498040	+	646	78222551	-	Gmet_1338	-	polysaccharide biosynthesis protein CapD
1324	 55.19	0	1498144..1498413	+	89	78222552	-	Gmet_1339	-	AbrB family transcriptional regulator
1325	 50.85	-1	1498389..1498799	+	136	78222553	-	Gmet_1340	-	PilT protein-like
1326	 61.79	0	1499016..1500695	+	559	78222554	-	Gmet_1341	-	hypothetical protein
1327	 62.86	0	1500964..1502382	-	472	78222555	-	Gmet_1343	-	Beta-lactamase-like:RNA-metabolising metallo-beta-lactamase
1328	 62.68	0	1502588..1503865	+	425	78222556	-	Gmet_1344	-	polysaccharide export protein
1329	 63.56	0	1503856..1505562	+	568	78222557	-	Gmet_1345	-	polysaccharide biosynthesis/export domain-containing protein
1330	 59.45	0	1505575..1506780	+	401	78222558	-	Gmet_1346	-	lipopolysaccharide biosynthesis
1331	 63.36	0	1506811..1507989	+	392	78222559	-	Gmet_1347	-	phosphoesterase, PA-phosphatase related
1332	 62.85	0	1508061..1508741	+	226	78222560	-	Gmet_1348	-	HAD family hydrolase
1333	 66.71	+1	1508874..1511402	+	842	78222561	-	Gmet_1349	-	ATP-dependent helicase HrpB
1334	 62.10	0	1511428..1512150	-	240	78222562	-	Gmet_1350	-	peptidase M23B
1335	 57.52	0	1512484..1512822	+	112	78222563	-	Gmet_1351	-	nitrogen regulatory protein P-II
1336	 59.59	0	1512872..1514284	+	470	78222564	-	Gmet_1352	-	L-glutamine synthetase
1337	 63.48	0	1514414..1515481	+	355	78222565	-	Gmet_1353	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1338	 61.59	0	1515493..1517205	+	570	78222566	-	Gmet_1354	-	prolyl-tRNA synthetase
1339	 60.42	0	1517233..1517952	+	239	78222567	-	Gmet_1355	-	orotidine-5'-phosphate decarboxylase
1340	 60.16	0	1517972..1518724	+	250	78222568	-	Gmet_1356	-	RNA methyltransferase TrmH, group 3
1341	 53.67	-1	1519234..1521018	+	594	78222569	aspS	Gmet_1357	-	aspartyl-tRNA synthetase
1342	 55.56	0	1521033..1521725	+	230	78222570	-	Gmet_1358	-	peptidoglycan-binding LysM
1343	 52.41	-1	1521978..1524200	+	740	78222571	-	Gmet_1359	-	isocitrate dehydrogenase NADP-dependent, monomeric type
1344	 54.09	0	1524251..1525204	+	317	78222572	-	Gmet_1360	-	malate dehydrogenase (NAD)
1345	 47.69	-2	1525401..1525595	+	64	78222573	-	Gmet_1361	-	Iron-sulfur cluster-binding protein
1346	 56.00	0	1525620..1526753	+	377	78222574	-	Gmet_1362	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1347	 55.80	0	1526756..1527574	+	272	78222575	-	Gmet_1363	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1348	 53.55	-1	1527605..1528153	+	182	78222576	-	Gmet_1364	-	2-oxoglutarate ferredoxin oxidoreductase, gamma subunit
1349	 51.50	-1	1528304..1529470	+	388	78222577	-	Gmet_1365	-	metal dependent phosphohydrolase
1350	 54.68	0	1529556..1530506	+	316	78222578	-	Gmet_1366	-	hypothetical protein
1351	 53.39	-1	1530546..1531283	+	245	78222579	-	Gmet_1367	-	hypothetical protein
1352	 55.87	0	1531365..1532003	+	212	78222580	-	Gmet_1368	-	hypothetical protein
1353	 61.45	0	1532028..1532774	+	248	78222581	-	Gmet_1369	-	RNA methyltransferase TrmH, group 1
1354	 60.38	0	1532771..1533088	+	105	78222582	-	Gmet_1370	-	hypothetical protein
1355	 60.17	0	1533085..1533669	+	194	78222583	-	Gmet_1371	-	hypothetical protein
1356	 65.52	+1	1533681..1534553	+	290	78222584	-	Gmet_1372	-	hypothetical protein
1357	 62.74	0	1534575..1535210	+	211	78222585	-	Gmet_1373	-	hypothetical protein
1358	 60.94	0	1535207..1536760	-	517	78222586	-	Gmet_1374	-	EmrB/QacA family drug resistance transporter
1359	 64.89	0	1536773..1537897	-	374	78222587	-	Gmet_1375	-	secretion protein HlyD
1360	 62.92	0	1537900..1539207	-	435	78222588	-	Gmet_1376	-	Outer membrane efflux protein
1361	 63.33	0	1539404..1541563	-	719	78222589	-	Gmet_1377	-	lytic transglycosylase, catalytic
1362	 54.70	0	1541771..1542430	-	219	78222590	-	Gmet_1378	-	response regulator receiver domain-containing protein
1363	 52.13	-1	1542427..1544166	-	579	78222591	-	Gmet_1379	-	histidine kinase
1364	 56.61	0	1544746..1545411	+	221	78222592	-	Gmet_1380	-	DSBA oxidoreductase
1365	 58.62	0	1545438..1546133	+	231	78222593	-	Gmet_1381	-	putative disulfide oxidoreductase
1366	 56.87	0	1546191..1548068	+	625	78222594	-	Gmet_1382	-	arylsulfotransferase
1367	 62.33	0	1548165..1548671	+	168	78222595	-	Gmet_1383	-	thioredoxin family protein
1368	 58.27	0	1548685..1549434	+	249	78222596	-	Gmet_1384	-	cytochrome c biogenesis protein, transmembrane region
1369	 56.50	0	1549548..1550462	+	304	78222597	-	Gmet_1385	-	hypothetical protein
1370	 64.78	0	1550693..1552972	+	759	78222598	-	Gmet_1386	-	3'-5' exoribonuclease, VacB and RNase II:ribonuclease R
1371	 59.58	0	1553226..1554086	+	286	78222599	-	Gmet_1387	-	Sec-independent periplasmic protein translocase
1372	 61.09	0	1554093..1555061	+	322	78222600	-	Gmet_1388	-	riboflavin kinase / FMN adenylyltransferase
1373	 63.40	0	1555058..1556068	+	336	78222601	-	Gmet_1389	-	hypothetical protein
1374	 60.08	0	1556068..1556826	+	252	78222602	-	Gmet_1390	-	SAM-binding motif-containing protein
1375	 60.22	0	1556833..1558692	+	619	78222603	-	Gmet_1391	-	hypothetical protein
1376	 62.72	0	1558696..1559556	+	286	78222604	-	Gmet_1392	-	shikimate dehydrogenase
1377	 60.11	0	1559620..1561326	+	568	78222605	-	Gmet_1393	-	type II secretion system protein E
1378	 61.75	0	1561466..1562563	+	365	78222606	-	Gmet_1394	-	pilus retraction protein PilT
1379	 60.26	0	1562595..1563812	+	405	78222607	-	Gmet_1395	-	type II secretion system protein
1380	 56.87	0	1563822..1565465	+	547	78222608	-	Gmet_1396	-	signal transduction histidine kinase, nitrogen specific, NtrB
1381	 61.22	0	1565515..1566891	+	458	78222609	-	Gmet_1397	-	two component, sigma54 specific, Fis family transcriptional regulator
1382	 53.59	-1	1567009..1568262	+	417	78222610	-	Gmet_1398	-	IS204/IS1001/IS1096/IS1165 transposase
1383	 44.76	-2	1568489..1568698	+	69	78222611	-	Gmet_1399	-	N-terminal methylation
1384	 45.91	-2	1568751..1569092	+	113	78222612	-	Gmet_1400	-	hypothetical protein
1385	 47.67	-2	1569181..1569996	+	271	78222613	-	Gmet_1401	-	hypothetical protein
1386	 48.74	-1	1569993..1570862	+	289	78222614	-	Gmet_1402	-	hypothetical protein
1387	 48.48	-1	1570855..1571745	+	296	78222615	-	Gmet_1403	-	ABC transporter-related protein
1388	 42.89	-2	1571732..1573447	+	571	78222616	-	Gmet_1404	-	hypothetical protein
1389	 47.85	-2	1573431..1574291	+	286	78222617	-	Gmet_1405	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
1390	 38.51	-2	1574281..1575111	+	276	78222618	-	Gmet_1406	-	hypothetical protein
1391	 43.73	-2	1575101..1575802	+	233	78222619	-	Gmet_1407	-	ABC transporter-related protein
1392	 45.54	-2	1575783..1576847	+	354	78222620	-	Gmet_1408	-	glycosyl transferase, group 1
1393	 40.94	-2	1576844..1578118	+	424	78222621	-	Gmet_1409	-	hypothetical protein
1394	 51.99	-1	1578140..1579243	+	367	78222622	-	Gmet_1410	-	glycosyl transferase family protein
1395	 54.80	0	1579409..1581346	+	645	78222623	-	Gmet_1411	-	threonyl-tRNA synthetase / Ser-tRNA(Thr) hydrolase
1396	 50.23	-1	1581445..1581876	+	143	78222624	-	Gmet_1412	-	translation initiation factor 3
1397	 50.00	-1	1581910..1582107	+	65	78222625	rpmI	Gmet_1413	-	50S ribosomal protein L35
1398	 55.37	0	1582260..1582613	+	117	78222626	rplT	Gmet_1414	-	50S ribosomal protein L20
1399	 56.15	0	1582689..1583705	+	338	78222627	-	Gmet_1415	-	phenylalanyl-tRNA synthetase, alpha subunit
1400	 55.32	0	1583776..1586181	+	801	78222628	-	Gmet_1416	-	phenylalanyl-tRNA synthetase beta subunit
59.54	MEAN

5.81	STD DEV
