IslandPath Analysis: Geobacter metallireducens GS-15

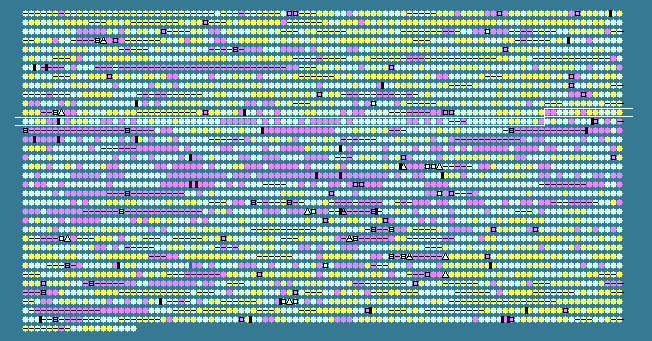

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.54 STD DEV: 5.81
Geobacter metallireducens GS-15, complete genome - 1..3997420
3519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1188	 54.26	0	1348163..1349710	-	515	78222416	-	Gmet_1201	-	pentapeptide repeat-containing protein
1189	 53.19	-1	1349928..1350632	-	234	78222417	-	Gmet_1202	-	hypothetical protein
1190	 57.42	0	1350691..1351155	-	154	78222418	-	Gmet_1203	-	hypothetical protein
1191	 58.33	0	1351196..1351915	-	239	78222419	-	Gmet_1204	-	LrgB-like protein
1192	 58.54	0	1351912..1352280	-	122	78222420	-	Gmet_1205	-	LrgA
1193	 66.92	+1	1352332..1353135	-	267	78222421	-	Gmet_1206	-	DNA-(apurinic or apyrimidinic site) lyase / formamidopyrimidine-DNA glycosylase
1194	 46.17	-2	1353224..1353862	-	212	78222422	-	Gmet_1207	-	hypothetical protein
1195	 64.17	0	1354252..1354491	-	79	78222423	-	Gmet_1208	-	transglycosylase-associated protein
1196	 64.88	0	1354543..1355832	-	429	78222424	-	Gmet_1209	-	hypothetical protein
1197	 59.18	0	1356219..1357580	+	453	78222425	-	Gmet_1210	-	methylamine utilization protein MauG, putative
1198	 63.00	0	1358065..1359510	+	481	78222426	-	Gmet_1211	-	glyceraldehyde-3-phosphate dehydrogenase
1199	 59.55	0	1359697..1361073	+	458	78222427	-	Gmet_1212	-	PAS/PAC sensor signal transduction histidine kinase
1200	 68.03	+1	1361075..1365325	-	1416	78222428	-	Gmet_1213	-	NACHT nucleoside triphosphatase
1201	 62.88	0	1365322..1365981	-	219	78222429	-	Gmet_1214	-	hypothetical protein
1202	 61.74	0	1366263..1369730	+	1155	78222430	-	Gmet_1215	-	DNA polymerase III, alpha subunit
1203	 63.43	0	1369784..1370740	+	318	78222431	-	Gmet_1216	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
1204	 66.02	+1	1370838..1371614	+	258	78222432	-	Gmet_1217	-	ribosomal large subunit pseudouridine synthase B
1205	 55.28	0	1372309..1375110	+	933	78222433	-	Gmet_1218	-	PAS/PAC sensor signal transduction histidine kinase
1206	 54.49	0	1375112..1376302	+	396	78222434	-	Gmet_1219	-	response regulator receiver sensor signal transduction histidine kinase
1207	 56.25	0	1376613..1377044	-	143	78222435	-	Gmet_1220	-	response regulator receiver domain-containing protein
1208	 55.75	0	1377180..1377701	+	173	78222436	-	Gmet_1221	-	XRE family transcriptional regulator
1209	 63.09	0	1377707..1378489	+	260	78222437	-	Gmet_1222	-	hemolysin A
1210	 63.04	0	1378512..1379642	+	376	78222438	-	Gmet_1223	-	metallophosphoesterase
1211	 63.08	0	1379642..1381813	+	723	78222439	-	Gmet_1224	-	nuclease SbcCD, C subunit, putative
1212	 61.16	0	1381791..1382135	+	114	78222440	-	Gmet_1225	-	histidine triad (HIT) protein
1213	 58.01	0	1382188..1382730	+	180	78222441	-	Gmet_1226	-	hypothetical protein
1214	 55.47	0	1383328..1384113	+	261	78222442	-	Gmet_1227	-	prolipoprotein diacylglyceryl transferase
1215	 54.71	0	1384123..1384557	-	144	78222443	-	Gmet_1228	-	putative anti-sigma regulatory factor (serine/threonine protein kinase)
1216	 59.31	0	1384969..1388271	-	1100	78222444	-	Gmet_1230	-	serine phosphatase
1217	 50.00	-1	1388268..1388525	-	85	78222445	-	Gmet_1231	-	hypothetical protein
1218	 59.25	0	1388516..1390093	-	525	78222446	-	Gmet_1232	-	hypothetical protein
1219	 55.23	0	1390389..1392110	+	573	78222447	-	Gmet_1233	-	intermediate filament protein
1220	 61.60	0	1392107..1393723	+	538	78222448	-	Gmet_1234	-	extracellular solute-binding protein
1221	 61.68	0	1393783..1394784	+	333	78222449	-	Gmet_1235	-	binding-protein dependent transport system inner membrane protein
1222	 63.39	0	1394788..1395642	+	284	78222450	-	Gmet_1236	-	binding-protein dependent transport system inner membrane protein
1223	 57.14	0	1395669..1396193	+	174	78222451	-	Gmet_1237	-	hypothetical protein
1224	 59.14	0	1396172..1397008	+	278	78222452	-	Gmet_1238	-	peptidase M48, Ste24p
1225	 61.97	0	1397005..1397898	+	297	78222453	-	Gmet_1239	-	hypothetical protein
1226	 63.48	0	1398085..1399056	+	323	78222454	-	Gmet_1240	-	hypothetical protein
1227	 59.11	0	1399078..1399368	+	96	78222455	-	Gmet_1241	-	ferredoxin family protein
1228	 58.55	0	1399453..1400154	+	233	78222456	-	Gmet_1242	-	carbonic anhydrase
1229	 56.23	0	1400215..1402179	-	654	78222457	-	Gmet_1243	-	histidine kinase
1230	 56.97	0	1402188..1403198	-	336	78222458	-	Gmet_1244	-	hypothetical protein
1231	 56.99	0	1403629..1405539	+	636	78222459	-	Gmet_1245	-	TonB-dependent receptor, plug
1232	 57.27	0	1405886..1407184	+	432	78222460	-	Gmet_1246	-	radical SAM family protein
1233	 57.31	0	1407236..1408186	-	316	78222461	-	Gmet_1247	-	cell surface receptor IPT/TIG
1234	 54.81	0	1408243..1409322	-	359	78222462	-	Gmet_1248	-	permease YjgP/YjgQ
1235	 54.18	0	1409319..1410575	-	418	78222463	-	Gmet_1249	-	permease YjgP/YjgQ
1236	 53.70	-1	1410694..1411449	+	251	78222464	rpsB	Gmet_1250	-	30S ribosomal protein S2
1237	 55.15	0	1411546..1412196	+	216	78222465	tsf	Gmet_1251	-	elongation factor Ts
1238	 55.69	0	1412292..1413011	+	239	78222466	-	Gmet_1252	-	uridylate kinase
1239	 53.58	-1	1413013..1413570	+	185	78222467	-	Gmet_1253	-	ribosome recycling factor
1240	 56.95	0	1413689..1414429	+	246	78222468	-	Gmet_1254	-	undecaprenyl pyrophosphate synthetase
1241	 53.87	0	1414471..1415259	+	262	78222469	-	Gmet_1255	-	phosphatidate cytidylyltransferase
1242	 59.22	0	1415278..1416432	+	384	78222470	-	Gmet_1256	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1243	 55.99	0	1416465..1417532	+	355	78222471	-	Gmet_1257	-	peptidase RseP
1244	 59.60	0	1417532..1418224	+	230	78222472	-	Gmet_1258	-	peptidase M22, glycoprotease
1245	 60.95	0	1418400..1420061	+	553	78222473	-	Gmet_1259	-	dihydroxy-acid dehydratase
1246	 58.55	0	1420132..1421832	+	566	78222474	-	Gmet_1260	-	acetolactate synthase, large subunit
1247	 55.69	0	1421890..1422381	+	163	78222475	-	Gmet_1261	-	acetolactate synthase 3 regulatory subunit
1248	 57.72	0	1422446..1423462	+	338	78222476	-	Gmet_1262	-	ketol-acid reductoisomerase
1249	 54.64	0	1423613..1424269	+	218	78222477	-	Gmet_1263	-	phosphatidylserine decarboxylase
1250	 55.13	0	1424266..1425045	+	259	78222478	-	Gmet_1264	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1251	 54.78	0	1425537..1427075	+	512	78222479	-	Gmet_1265	-	2-isopropylmalate synthase
1252	 53.23	-1	1427204..1427404	-	66	78222480	-	Gmet_1266	-	cold-shock DNA-binding protein family protein
1253	 51.70	-1	1427611..1428639	-	342	78222481	-	Gmet_1267	-	hypothetical protein
1254	 59.58	0	1428796..1430079	+	427	78222482	-	Gmet_1268	-	3-isopropylmalate dehydratase large subunit
1255	 54.36	0	1430155..1430682	+	175	78222483	-	Gmet_1269	-	3-isopropylmalate dehydratase, small subunit
1256	 56.13	0	1430844..1432361	+	505	78222484	-	Gmet_1270	-	hypothetical protein
1257	 56.90	0	1432367..1433134	+	255	78222485	-	Gmet_1271	-	hypothetical protein
1258	 56.80	0	1433225..1434268	+	347	78222486	-	Gmet_1272	-	virulence factor MCE-like protein-related protein
1259	 57.36	0	1434362..1435231	+	289	78222487	-	Gmet_1273	-	hypothetical protein
1260	 61.76	0	1435253..1436047	-	264	78222488	-	Gmet_1274	-	purine phosphorylase family protein 1
1261	 56.86	0	1436258..1437022	+	254	78222489	-	Gmet_1275	-	3-deoxy-manno-octulosonate cytidylyltransferase
1262	 59.25	0	1437106..1438722	+	538	78222490	-	Gmet_1276	-	CTP synthetase
1263	 60.32	0	1438750..1439568	+	272	78222491	-	Gmet_1277	-	2-dehydro-3-deoxyphosphooctonate aldolase
1264	 60.77	0	1439647..1440612	+	321	78222492	-	Gmet_1278	-	KpsF/GutQ
1265	 54.26	0	1440612..1441127	+	171	78222493	-	Gmet_1279	-	phosphatase kdsC
1266	 53.47	-1	1441483..1442058	+	191	78222494	-	Gmet_1280	-	hypothetical protein
1267	 56.08	0	1442060..1442569	+	169	78222495	-	Gmet_1281	-	OstA-like protein
1268	 55.06	0	1442550..1443290	+	246	78222496	-	Gmet_1282	-	ABC transporter-related protein
1269	 56.13	0	1443385..1444836	+	483	78222497	-	Gmet_1283	-	sigma-54 (RpoN)
1270	 54.21	0	1444956..1445501	+	181	78222498	-	Gmet_1284	-	SSU ribosomal protein S30P / sigma 54 modulation protein
1271	 56.15	0	1445584..1446543	+	319	78222499	-	Gmet_1285	-	HPr kinase/phosphorylase
1272	 58.16	0	1446547..1447404	+	285	78222500	-	Gmet_1286	-	hypothetical protein
1273	 58.52	0	1447409..1447801	+	130	78222501	-	Gmet_1287	-	PTS system fructose subfamily IIA component
1274	 55.06	0	1447823..1448089	+	88	78222502	-	Gmet_1288	-	HPrNtr
1275	 57.44	0	1448070..1449836	+	588	78222503	-	Gmet_1289	-	phosphoenolpyruvate--protein phosphotransferase
1276	 61.28	0	1449945..1451114	+	389	78222504	-	Gmet_1290	-	S-adenosylmethionine synthetase
1277	 60.58	0	1451204..1451926	-	240	78222505	-	Gmet_1291	-	two component transcriptional regulator
1278	 59.16	0	1451923..1452948	-	341	78222506	-	Gmet_1292	-	histidine kinase
1279	 59.76	0	1453010..1454095	+	361	78222507	-	Gmet_1293	-	2-nitropropane dioxygenase, NPD
1280	 62.82	0	1454255..1455685	+	476	78222508	-	Gmet_1294	-	S-adenosyl-L-homocysteine hydrolase
1281	 61.94	0	1455763..1457601	-	612	78222509	-	Gmet_1295	-	peptidase M3B, oligoendopeptidase-related clade 3
1282	 63.74	0	1457674..1457946	+	90	78222510	-	Gmet_1296	-	Smr protein/MutS2-like
1283	 63.57	0	1458039..1460267	-	742	78222511	-	Gmet_1297	-	ribonucleotide-diphosphate reductase subunit alpha
1284	 56.97	0	1460524..1461585	+	353	78222512	-	Gmet_1298	-	diguanylate cyclase with GAF sensor
1285	 62.26	0	1461582..1462919	+	445	78222513	-	Gmet_1299	-	putative lipoprotein
1286	 64.83	0	1462945..1464090	+	381	78222514	-	Gmet_1300	-	cysteine desulphurase-like protein
1287	 55.19	0	1464167..1464436	+	89	78222515	-	Gmet_1301	-	hypothetical protein
59.54	MEAN

5.81	STD DEV
