IslandPath Analysis: Geobacter lovleyi SZ

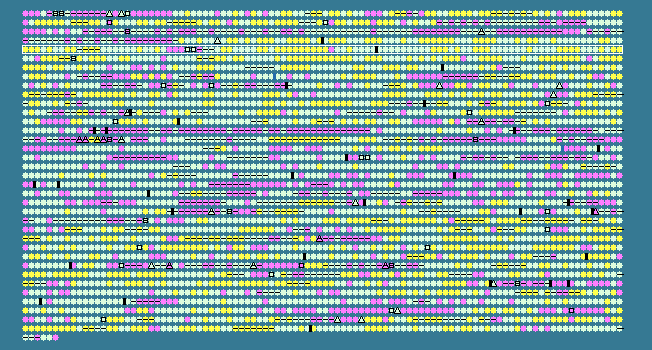

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
401	 58.43	0	394784..395281	-	165	189423483	-	Glov_0412	-	peptidylprolyl isomerase FKBP-type
402	 59.80	+1	395338..395643	-	101	189423484	-	Glov_0413	-	protein of unknown function DUF167
403	 58.89	0	395633..396082	-	149	189423485	-	Glov_0414	-	DivIVA family protein
404	 54.01	0	396089..396412	-	107	189423486	-	Glov_0415	-	protein of unknown function YGGT
405	 60.61	+1	396573..397364	+	263	189423487	-	Glov_0416	-	Inositol-phosphate phosphatase
406	 56.85	0	397361..397696	+	111	189423488	-	Glov_0417	-	hypothetical protein
407	 56.91	0	397774..398757	+	327	189423489	-	Glov_0418	-	3-oxoacyl-(acyl-carrier-protein) synthase III
408	 59.38	0	398904..399452	+	182	189423490	-	Glov_0419	-	response regulator receiver and ANTAR domain protein
409	 59.27	0	399445..400350	-	301	189423491	-	Glov_0420	-	ADP-ribosyl-(dinitrogen reductase) hydrolase
410	 56.92	0	400380..400820	+	146	189423492	-	Glov_0421	-	hypothetical protein
411	 59.85	+1	400984..401805	+	273	189423493	-	Glov_0422	-	Radical SAM domain protein
412	 59.93	+1	401858..402658	+	266	189423494	-	Glov_0423	-	GCN5-related N-acetyltransferase
413	 59.32	0	402675..403817	+	380	189423495	-	Glov_0424	-	homocitrate synthase
414	 56.41	0	403957..404190	+	77	189423496	-	Glov_0425	-	hypothetical protein
415	 52.92	0	404346..404636	+	96	189423497	-	Glov_0426	-	hypothetical protein
416	 57.87	0	404649..405080	+	143	189423498	-	Glov_0427	-	nitrogenase-associated protein
417	 51.95	0	405274..406401	+	375	189423499	-	Glov_0428	-	hypothetical protein
418	 51.52	0	406437..406733	-	98	189423500	-	Glov_0429	-	hypothetical protein
419	 57.58	0	406730..407158	-	142	189423501	-	Glov_0430	-	peptidylprolyl isomerase FKBP-type
420	 61.11	+1	407155..407478	-	107	189423502	-	Glov_0431	-	hypothetical protein
421	 57.72	0	407613..408182	+	189	189423503	-	Glov_0432	-	hypothetical protein
422	 56.93	0	408267..408605	-	112	189423504	-	Glov_0433	-	alkylphosphonate utilization operon protein PhnA
423	 64.81	+2	408660..409844	-	394	189423505	-	Glov_0434	-	phosphoribosylglycinamide formyltransferase 2
424	 51.21	0	410145..410681	-	178	189423506	-	Glov_0435	-	Peptidase M23
425	 43.21	-2	410706..411434	-	242	189423507	-	Glov_0436	-	SMC domain protein
426	 48.15	-1	411458..411916	-	152	189423508	-	Glov_0437	-	hypothetical protein
427	 40.92	-2	411993..412625	-	210	189423509	-	Glov_0438	-	hypothetical protein
428	 53.60	0	412752..413861	+	369	189423510	-	Glov_0439	-	transposase IS116/IS110/IS902 family protein
429	 52.54	0	414219..415301	+	360	189423511	-	Glov_0440	-	transposase IS4 family protein
430	 50.85	0	415896..416363	-	155	189423512	-	Glov_0441	-	hypothetical protein
431	 57.77	0	416703..417365	+	220	189423513	-	Glov_0442	-	Methyltransferase type 11
432	 56.86	0	417376..417732	+	118	189423514	-	Glov_0443	-	hypothetical protein
433	 57.43	0	417729..418811	+	360	189423515	-	Glov_0444	-	ABC-type Fe3+ transport system periplasmic component-like protein
434	 58.81	0	418802..419488	+	228	189423516	-	Glov_0445	-	cobalamin synthesis protein P47K
435	 60.78	+1	419494..420495	+	333	189423517	-	Glov_0446	-	ABC transporter related
436	 55.51	0	420782..421588	+	268	189423518	-	Glov_0447	-	transcriptional regulator, ModE family
437	 57.71	0	421627..422631	+	334	189423519	-	Glov_0448	-	modD protein
438	 52.91	0	422659..423414	+	251	189423520	-	Glov_0449	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
439	 52.60	0	423435..424202	+	255	189423521	-	Glov_0450	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
440	 61.36	+1	424205..424882	+	225	189423522	-	Glov_0451	-	molybdate ABC transporter, inner membrane subunit
441	 59.07	0	424889..425941	+	350	189423523	-	Glov_0452	-	molybdate ABC transporter, ATPase subunit
442	 56.90	0	425944..426987	-	347	189423524	-	Glov_0453	-	Ion transport 2 domain protein
443	 61.66	+1	426998..427576	-	192	189423525	-	Glov_0454	-	nuclease (SNase domain protein)
444	 60.48	+1	427684..428847	+	387	189423526	-	Glov_0455	-	aminotransferase class I and II
445	 58.87	0	428894..429496	+	200	189423527	-	Glov_0456	-	small GTP-binding protein
446	 58.80	0	429493..430293	+	266	189423528	-	Glov_0457	-	protein of unknown function DUF198
447	 62.55	+1	430290..431018	+	242	189423529	-	Glov_0458	-	purine or other phosphorylase family 1
448	 59.42	0	431025..431576	-	183	189423530	-	Glov_0459	-	hypothetical protein
449	 58.66	0	431605..432291	-	228	189423531	-	Glov_0460	-	alanine racemase domain protein
450	 59.82	+1	432295..434004	-	569	189423532	-	Glov_0461	-	methyl-accepting chemotaxis sensory transducer
451	 59.50	0	434004..434603	-	199	189423533	-	Glov_0462	-	maf protein
452	 49.10	-1	434590..434868	-	92	189423534	-	Glov_0463	-	hypothetical protein
453	 57.10	0	434858..436258	-	466	189423535	-	Glov_0464	-	FAD linked oxidase domain protein
454	 55.04	0	436363..437772	-	469	189423536	-	Glov_0465	-	PAS/PAC sensor signal transduction histidine kinase
455	 58.35	0	437756..438910	-	384	189423537	-	Glov_0466	-	iron-containing alcohol dehydrogenase
456	 56.60	0	439103..441406	+	767	189423538	-	Glov_0467	-	transcriptional regulator, Fis family
457	 51.37	0	441619..441801	+	60	189423539	-	Glov_0468	-	hypothetical protein
458	 54.17	0	441897..443408	-	503	189423540	-	Glov_0469	-	ribonuclease, Rne/Rng family
459	 57.58	0	443445..445931	-	828	189423541	-	Glov_0470	-	Radical SAM domain protein
460	 57.95	0	446215..447705	-	496	189423542	-	Glov_0471	-	ammonium transporter
461	 51.62	0	447748..448086	-	112	189423543	-	Glov_0472	-	nitrogen regulatory protein P-II
462	 53.67	0	448440..448739	+	99	189423544	-	Glov_0473	-	Rieske (2Fe-2S) domain protein
463	 55.79	0	448726..450177	+	483	189423545	-	Glov_0474	-	phospholipase D/Transphosphatidylase
464	 51.59	0	450276..450872	+	198	189423546	-	Glov_0475	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
465	 57.49	0	450983..453106	+	707	189423547	-	Glov_0476	-	DNA polymerase B, exonuclease
466	 52.70	0	453160..453381	-	73	189423548	-	Glov_0477	-	hypothetical protein
467	 55.78	0	453627..454508	-	293	189423549	-	Glov_0478	-	glucose-1-phosphate thymidylyltransferase
468	 55.33	0	454533..455546	-	337	189423550	-	Glov_0479	-	NAD-dependent epimerase/dehydratase
469	 59.62	0	455552..456772	-	406	189423551	-	Glov_0480	-	threonine dehydratase
470	 59.34	0	456776..458986	-	736	189423552	-	Glov_0481	-	UvrD/REP helicase
471	 59.63	0	459018..459998	-	326	189423553	-	Glov_0482	-	pseudouridine synthase, RluA family
472	 51.52	0	460077..460340	-	87	189423554	-	Glov_0483	-	hypothetical protein
473	 60.33	+1	460420..461586	-	388	189423555	-	Glov_0484	-	2-alkenal reductase
474	 54.21	0	461720..462313	+	197	189423556	-	Glov_0485	-	transcriptional regulator, XRE family
475	 57.95	0	462374..463027	-	217	189423557	-	Glov_0486	-	ThiJ/PfpI domain protein
476	 58.39	0	463024..463941	-	305	189423558	-	Glov_0487	-	NAD-dependent epimerase/dehydratase
477	 60.97	+1	464009..464587	+	192	189423559	-	Glov_0488	-	hypothetical protein
478	 58.99	0	464661..466979	+	772	189423560	-	Glov_0489	-	ATP-dependent protease La
479	 57.88	0	466982..467755	+	257	189423561	-	Glov_0490	-	protein of unknown function DUF140
480	 51.37	0	467772..468320	+	182	189423562	-	Glov_0491	-	hypothetical protein
481	 51.39	0	468310..468525	+	71	189423563	-	Glov_0492	-	hypothetical protein
482	 56.48	0	468529..469284	+	251	189423564	-	Glov_0493	-	ABC transporter related
483	 54.89	0	469290..469790	+	166	189423565	-	Glov_0494	-	hypothetical protein
484	 57.25	0	469820..470902	+	360	189423566	-	Glov_0495	-	Mammalian cell entry related domain protein
485	 60.23	+1	470919..472424	+	501	189423567	-	Glov_0496	-	peptidase M16 domain protein
486	 57.56	0	472421..473836	+	471	189423568	-	Glov_0497	-	peptidase M16 domain protein
487	 54.61	0	473944..474225	+	93	189423569	-	Glov_0498	-	anti-sigma-28 factor, FlgM
488	 53.68	0	474287..475618	+	443	189423570	-	Glov_0499	-	hypothetical protein
489	 55.33	0	475651..476823	+	390	189423571	-	Glov_0500	-	hypothetical protein
490	 62.09	+1	476820..477650	-	276	189423572	-	Glov_0501	-	Uroporphyrinogen-III synthase
491	 60.49	+1	477622..478560	-	312	189423573	-	Glov_0502	-	porphobilinogen deaminase
492	 59.54	0	478585..479889	-	434	189423574	-	Glov_0503	-	glutamyl-tRNA reductase
493	 58.21	0	479901..480716	-	271	189423575	-	Glov_0504	-	cytochrome c-type biogenesis protein CcsB
494	 56.97	0	480930..481259	+	109	189423576	-	Glov_0505	-	thioredoxin
495	 57.58	0	481261..481788	+	175	189423577	-	Glov_0506	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
496	 57.88	0	481819..482694	-	291	189423578	-	Glov_0507	-	UTP-glucose-1-phosphate uridylyltransferase
497	 59.77	+1	482698..483552	-	284	189423579	-	Glov_0508	-	Methenyltetrahydrofolate cyclohydrolase
498	 56.76	0	483781..484002	-	73	189423580	-	Glov_0509	-	regulatory protein, FmdB family
499	 62.79	+1	484055..484777	-	240	189423581	-	Glov_0510	-	Smr protein/MutS2
500	 61.00	+1	484788..486005	-	405	189423582	-	Glov_0511	-	protein of unknown function DUF401
54.66	MEAN

5.02	STD DEV
