IslandPath Analysis: Geobacter lovleyi SZ

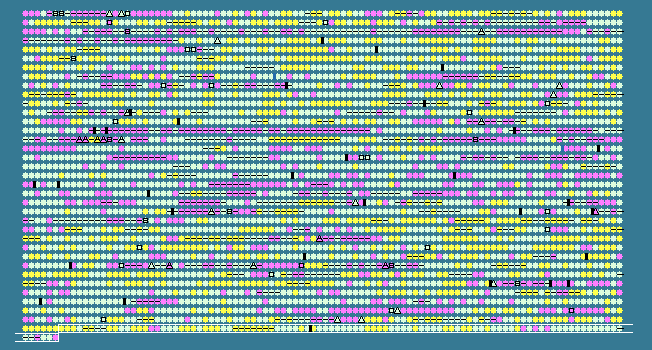

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3507	 60.54	+1	3814902..3816125	+	407	189426589	-	Glov_3545	-	FMN-dependent alpha-hydroxy acid dehydrogenase
3508	 58.51	0	3816153..3817133	+	326	189426590	-	Glov_3546	-	ABC-type phosphate transport system periplasmic component-like protein
3509	 63.08	+1	3817152..3817346	+	64	189426591	-	Glov_3547	-	twin-arginine translocation protein, TatA/E family subunit
3510	 57.36	0	3817416..3818081	-	221	189426592	-	Glov_3548	-	outer membrane chaperone Skp (OmpH)
3511	 58.54	0	3818160..3819341	-	393	189426593	-	Glov_3549	-	methyl-accepting chemotaxis sensory transducer
3512	 60.60	+1	3819406..3821415	-	669	189426594	-	Glov_3550	-	Nitrate reductase
3513	 57.68	0	3821556..3822545	+	329	189426595	-	Glov_3551	-	ADP-L-glycero-D-manno-heptose-6-epimerase
3514	 55.66	0	3822572..3823198	+	208	189426596	-	Glov_3552	-	hypothetical protein
3515	 61.60	+1	3823285..3824232	-	315	189426597	-	Glov_3553	-	cobalamin biosynthesis protein CobD
3516	 60.22	+1	3824229..3826820	-	863	189426598	-	Glov_3554	-	cobyric acid synthase CobQ
3517	 51.74	0	3826846..3827823	-	325	189426599	-	Glov_3555	-	response regulator receiver modulated GAF sensor protein
3518	 57.59	0	3828402..3830306	+	634	189426600	-	Glov_3556	-	TonB-dependent receptor plug
3519	 60.29	+1	3830310..3831140	+	276	189426601	-	Glov_3557	-	periplasmic binding protein
3520	 65.93	+2	3831152..3832102	+	316	189426602	-	Glov_3558	-	transport system permease protein
3521	 60.77	+1	3832099..3832827	+	242	189426603	-	Glov_3559	-	ABC transporter related
3522	 47.24	-1	3832898..3833494	-	198	189426604	-	Glov_3560	-	hypothetical protein
3523	 45.77	-1	3833649..3834251	-	200	189426605	-	Glov_3561	-	hypothetical protein
3524	 54.71	0	3834414..3834848	-	144	189426606	-	Glov_3562	-	hypothetical protein
3525	 57.78	0	3835026..3835565	+	179	189426607	-	Glov_3563	-	YaeQ family protein
3526	 55.28	0	3835572..3835817	+	81	189426608	-	Glov_3564	-	protein of unknown function UPF0270
3527	 61.15	+1	3835845..3837203	-	452	189426609	-	Glov_3565	-	MATE efflux family protein
3528	 59.09	0	3837303..3839981	-	892	189426610	-	Glov_3566	-	pyruvate, phosphate dikinase
3529	 60.91	+1	3840300..3842210	-	636	189426611	-	Glov_3567	-	selenocysteine-specific translation elongation factor
3530	 55.25	0	3842207..3842530	-	107	189426612	-	Glov_3568	-	HNH endonuclease
3531	 62.01	+1	3842533..3843240	-	235	189426613	-	Glov_3569	-	two component transcriptional regulator, winged helix family
3532	 58.37	0	3843233..3844462	-	409	189426614	-	Glov_3570	-	protein of unknown function DUF214
3533	 61.21	+1	3844459..3844989	-	176	189426615	-	Glov_3571	-	Appr-1-p processing domain protein
3534	 52.91	0	3845017..3845394	-	125	189426616	-	Glov_3572	-	PilT protein domain protein
3535	 54.32	0	3845384..3845626	-	80	189426617	-	Glov_3573	-	hypothetical protein
3536	 60.55	+1	3845721..3846488	-	255	189426618	-	Glov_3574	-	RDD domain containing protein
3537	 62.40	+1	3846481..3847488	-	335	189426619	-	Glov_3575	-	protein of unknown function DUF95 transmembrane
3538	 61.80	+1	3847485..3848819	-	444	189426620	-	Glov_3576	-	protein of unknown function DUF58
3539	 61.80	+1	3848816..3849781	-	321	189426621	-	Glov_3577	-	ATPase associated with various cellular activities AAA_3
3540	 59.49	0	3849778..3850947	-	389	189426622	-	Glov_3578	-	hypothetical protein
3541	 59.17	0	3850931..3852571	-	546	189426623	-	Glov_3579	-	hypothetical protein
3542	 58.26	0	3852568..3852888	-	106	189426624	-	Glov_3580	-	rhomboid family protein
3543	 54.71	0	3852885..3853436	-	183	189426625	-	Glov_3581	-	hypothetical protein
3544	 55.00	0	3853433..3854032	-	199	189426626	-	Glov_3582	-	hypothetical protein
3545	 56.98	0	3854032..3854919	-	295	189426627	-	Glov_3583	-	MJ0042 family finger-like protein
3546	 57.45	0	3855051..3855896	-	281	189426628	-	Glov_3584	-	apurinic endonuclease Apn1
3547	 62.54	+1	3855897..3857108	-	403	189426629	-	Glov_3585	-	molybdenum cofactor synthesis domain protein
3548	 57.30	0	3857111..3858028	-	305	189426630	-	Glov_3586	-	quinolinate synthetase complex, A subunit
3549	 58.48	0	3858352..3859035	-	227	189426631	-	Glov_3587	-	hypothetical protein
3550	 56.43	0	3859037..3859417	-	126	189426632	-	Glov_3588	-	hypothetical protein
3551	 53.33	0	3859588..3859842	-	84	189426633	-	Glov_3589	-	ribosomal protein L27
3552	 53.40	0	3859877..3860185	-	102	189426634	-	Glov_3590	-	ribosomal protein L21
3553	 54.19	0	3860464..3861120	-	218	189426635	-	Glov_3591	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
3554	 52.58	0	3861160..3861450	-	96	189426636	-	Glov_3592	-	DNA polymerase beta domain protein region
3555	 52.74	0	3861443..3861844	-	133	189426637	-	Glov_3593	-	nucleotidyltransferase substrate binding protein, HI0074 family
3556	 57.37	0	3861857..3863395	-	512	189426638	-	Glov_3594	-	phosphoglycerate mutase, 2,3-bisphosphoglycerate-independent
3557	 55.64	0	3863411..3864625	-	404	189426639	-	Glov_3595	-	efflux transporter, RND family, MFP subunit
3558	 61.48	+1	3865162..3866202	+	346	189426640	-	Glov_3596	-	translation initiation factor, aIF-2BI family
3559	 58.68	0	3866204..3869407	+	1067	189426641	-	Glov_3597	-	(Glutamate--ammonia-ligase) adenylyltransferase
3560	 58.47	0	3869404..3870660	+	418	189426642	-	Glov_3598	-	gamma-glutamyl phosphate reductase
3561	 59.68	+1	3870819..3872393	-	524	189426643	-	Glov_3599	-	FAD dependent oxidoreductase
3562	 55.31	0	3872399..3872803	-	134	189426644	-	Glov_3600	-	response regulator receiver protein
3563	 57.00	0	3872810..3874009	-	399	189426645	-	Glov_3601	-	response regulator receiver sensor signal transduction histidine kinase
3564	 51.54	0	3874037..3874492	-	151	189426646	-	Glov_3602	-	UspA domain protein
3565	 52.02	0	3874492..3874887	-	131	189426647	-	Glov_3603	-	response regulator receiver protein
3566	 58.66	0	3875012..3875848	-	278	189426648	-	Glov_3604	-	transcriptional regulator, putative
3567	 56.89	0	3875860..3876606	-	248	189426649	-	Glov_3605	-	Tetratricopeptide TPR_2 repeat protein
3568	 57.30	0	3876673..3877590	-	305	189426650	-	Glov_3606	-	PfkB domain protein
3569	 54.62	0	3877603..3878457	-	284	189426651	-	Glov_3607	-	methylthioadenosine phosphorylase
3570	 57.93	0	3878454..3879746	-	430	189426652	-	Glov_3608	-	diguanylate cyclase with PAS/PAC sensor
3571	 58.33	0	3879748..3880275	-	175	189426653	-	Glov_3609	-	4-vinyl reductase 4VR
3572	 58.90	0	3880268..3881323	-	351	189426654	-	Glov_3610	-	radical SAM enzyme, Cfr family
3573	 53.48	0	3881379..3881795	-	138	189426655	-	Glov_3611	-	Nucleoside-diphosphate kinase
3574	 60.36	+1	3881979..3883373	+	464	189426656	-	Glov_3612	-	sun protein
3575	 58.71	0	3883384..3884049	+	221	189426657	-	Glov_3613	-	Ribulose-phosphate 3-epimerase
3576	 57.45	0	3884063..3884995	+	310	189426658	-	Glov_3614	-	response regulator receiver modulated diguanylate cyclase
3577	 56.72	0	3885043..3886500	+	485	189426659	-	Glov_3615	-	transglutaminase domain protein
3578	 59.15	0	3886588..3887865	-	425	189426660	-	Glov_3616	-	peptidase M16 domain protein
3579	 55.40	0	3887862..3888296	-	144	189426661	-	Glov_3617	-	histidine triad (HIT) protein
3580	 56.83	0	3888440..3889384	-	314	189426662	-	Glov_3618	-	integral membrane sensor signal transduction histidine kinase
3581	 52.38	0	3889489..3889971	+	160	189426663	-	Glov_3619	-	hypothetical protein
3582	 56.58	0	3890032..3890586	-	184	189426664	-	Glov_3620	-	hypothetical protein
3583	 60.55	+1	3890631..3893147	-	838	189426665	-	Glov_3621	-	helicase c2
3584	 50.67	0	3893346..3895208	+	620	189426666	-	Glov_3623	-	integral membrane sensor signal transduction histidine kinase
3585	 53.43	0	3895205..3896617	+	470	189426667	-	Glov_3624	-	two component, sigma54 specific, transcriptional regulator, Fis family
3586	 50.47	0	3896885..3898675	+	596	189426668	-	Glov_3625	-	flavocytochrome c
3587	 51.97	0	3898779..3900023	+	414	189426669	-	Glov_3626	-	major facilitator superfamily MFS_1
3588	 44.65	-1	3900062..3901369	+	435	189426670	-	Glov_3627	-	outer membrane porin
3589	 56.67	0	3901475..3903424	-	649	189426671	-	Glov_3628	-	ABC transporter related
3590	 57.68	0	3903428..3904117	-	229	189426672	-	Glov_3629	-	ABC transporter related
3591	 55.84	0	3904120..3904581	-	153	189426673	-	Glov_3630	-	protein of unknown function DUF163
3592	 55.40	0	3904594..3905010	-	138	189426674	-	Glov_3631	-	iojap-like protein
3593	 56.54	0	3905007..3905648	-	213	189426675	-	Glov_3632	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
3594	 54.66	0	3905657..3906697	-	346	189426676	-	Glov_3633	-	NAD-dependent epimerase/dehydratase
3595	 56.97	0	3906714..3907610	-	298	189426677	-	Glov_3634	-	formyl transferase domain protein
3596	 56.87	0	3907607..3908545	-	312	189426678	-	Glov_3635	-	glycosyl transferase family 2
3597	 57.42	0	3908542..3909687	-	381	189426679	-	Glov_3636	-	3'-5' exonuclease
3598	 54.98	0	3909687..3910730	-	347	189426680	-	Glov_3637	-	Radical SAM domain protein
3599	 58.08	0	3910727..3911122	-	131	189426681	-	Glov_3638	-	tol-pal system-associated acyl-CoA thioesterase
3600	 54.17	0	3911341..3911988	-	215	189426682	-	Glov_3639	-	methyltransferase GidB
3601	 55.73	0	3911990..3913864	-	624	189426683	-	Glov_3640	-	glucose inhibited division protein A
3602	 56.25	0	3913895..3915277	-	460	189426684	-	Glov_3641	-	tRNA modification GTPase TrmE
3603	 47.21	-1	3915289..3916881	-	530	189426685	-	Glov_3642	-	60 kDa inner membrane insertion protein
3604	 51.64	0	3916900..3917112	-	70	189426686	-	Glov_3643	-	protein of unknown function DUF37
3605	 52.42	0	3917091..3917462	-	123	189426687	-	Glov_3644	-	ribonuclease P protein component
3606	 48.00	-1	3917480..3917629	-	49	189426688	-	Glov_3645	-	ribosomal protein L34
54.66	MEAN

5.02	STD DEV
