IslandPath Analysis: Geobacter lovleyi SZ

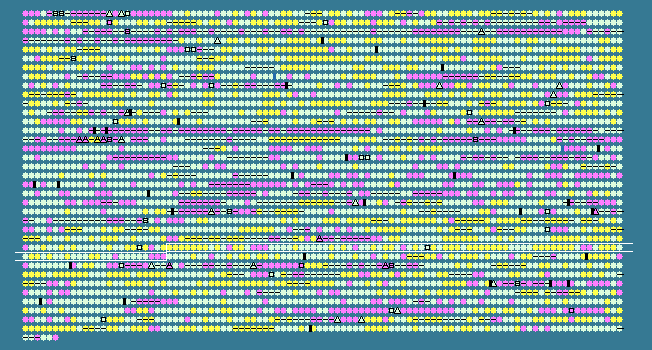

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2625	 60.38	+1	2844143..2844619	+	158	189425707	-	Glov_2651	-	cytochrome c, class I
2626	 61.25	+1	2844619..2848200	+	1193	189425708	-	Glov_2652	-	nitrate reductase, alpha subunit
2627	 60.06	+1	2848205..2849656	+	483	189425709	-	Glov_2653	-	nitrate reductase, beta subunit
2628	 61.61	+1	2849653..2850186	+	177	189425710	-	Glov_2654	-	nitrate reductase molybdenum cofactor assembly chaperone
2629	 60.82	+1	2850180..2850863	+	227	189425711	-	Glov_2655	-	respiratory nitrate reductase, gamma subunit
2630	 58.45	0	2850873..2852126	+	417	189425712	-	Glov_2656	-	major facilitator superfamily MFS_1
2631	 59.75	+1	2852151..2853524	+	457	189425713	-	Glov_2657	-	nitrite transporter
2632	 57.31	0	2853543..2853980	+	145	189425714	-	Glov_2658	-	putative PAS/PAC sensor protein
2633	 60.75	+1	2853981..2854892	-	303	189425715	-	Glov_2659	-	cytochrome b5
2634	 57.12	0	2854981..2855514	+	177	189425716	-	Glov_2660	-	protein of unknown function DUF1130
2635	 47.93	-1	2855710..2856216	-	168	189425717	-	Glov_2661	-	hypothetical protein
2636	 62.06	+1	2856312..2857157	-	281	189425718	-	Glov_2662	-	lipoic acid synthetase
2637	 61.35	+1	2857154..2857981	-	275	189425719	-	Glov_2663	-	biotin/lipoate A/B protein ligase
2638	 54.70	0	2858329..2858871	+	180	189425720	-	Glov_2664	-	flavin reductase domain protein FMN-binding
2639	 31.19	-2	2859048..2859653	+	201	189425721	-	Glov_2665	-	HhH-GPD family protein
2640	 49.27	-1	2860090..2861049	+	319	189425722	-	Glov_2666	-	hypothetical protein
2641	 45.03	-1	2861062..2862360	+	432	189425723	-	Glov_2667	-	hypothetical protein
2642	 52.26	0	2862875..2864359	+	494	189425724	-	Glov_2668	-	hypothetical protein
2643	 57.28	0	2864588..2865322	+	244	189425725	-	Glov_2669	-	methyltransferase
2644	 57.10	0	2865319..2866290	+	323	189425726	-	Glov_2670	-	methyltransferase
2645	 57.68	0	2866587..2868032	-	481	189425727	-	Glov_2671	-	Glycine dehydrogenase (decarboxylating)
2646	 59.24	0	2868023..2869369	-	448	189425728	-	Glov_2672	-	Glycine dehydrogenase (decarboxylating)
2647	 54.67	0	2869379..2869753	-	124	189425729	-	Glov_2673	-	glycine cleavage system H protein
2648	 53.14	0	2869795..2870208	-	137	189425730	-	Glov_2674	-	hypothetical protein
2649	 57.86	0	2870235..2871335	-	366	189425731	-	Glov_2675	-	glycine cleavage system T protein
2650	 54.88	0	2871357..2871797	-	146	189425732	-	Glov_2676	-	hypothetical protein
2651	 55.69	0	2871942..2873189	+	415	189425733	-	Glov_2677	-	metal dependent phosphohydrolase
2652	 59.12	0	2873260..2874279	-	339	189425734	-	Glov_2678	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2653	 54.78	0	2874559..2875938	+	459	189425735	-	Glov_2679	-	diguanylate cyclase
2654	 60.00	+1	2875940..2877604	-	554	189425736	-	Glov_2680	-	DNA repair protein RecN
2655	 55.59	0	2877611..2878468	-	285	189425737	-	Glov_2681	-	ATP-NAD/AcoX kinase
2656	 49.24	-1	2878605..2881088	-	827	189425738	-	Glov_2682	-	integral membrane sensor hybrid histidine kinase
2657	 51.71	0	2881319..2882368	+	349	189425739	-	Glov_2683	-	hypothetical protein
2658	 53.87	0	2882372..2884309	+	645	189425740	-	Glov_2684	-	integral membrane sensor hybrid histidine kinase
2659	 61.87	+1	2884323..2885468	-	381	189425741	-	Glov_2685	-	Glycerate kinase
2660	 57.38	0	2885465..2886013	-	182	189425742	-	Glov_2686	-	NUDIX hydrolase
2661	 64.93	+2	2886048..2887604	-	518	189425743	-	Glov_2687	-	FAD dependent oxidoreductase
2662	 63.98	+1	2887601..2889091	-	496	189425744	-	Glov_2688	-	glycerol kinase
2663	 53.07	0	2889661..2890116	-	151	189425745	-	Glov_2689	-	SsrA-binding protein
2664	 49.58	-1	2890281..2891234	+	317	189425746	-	Glov_2690	-	magnesium and cobalt transport protein CorA
2665	 56.53	0	2891267..2893969	+	900	189425747	-	Glov_2691	-	UTP-GlnB uridylyltransferase, GlnD
2666	 61.94	+1	2893966..2894853	+	295	189425748	-	Glov_2692	-	tyrosine recombinase XerD
2667	 55.90	0	2894921..2895691	+	256	189425749	-	Glov_2693	-	beta-lactamase domain protein
2668	 52.54	0	2895850..2896932	-	360	189425750	-	Glov_2694	-	transposase IS4 family protein
2669	 59.49	0	2897210..2898505	+	431	189425751	-	Glov_2695	-	adenylosuccinate lyase
2670	 55.86	0	2898498..2899607	+	369	189425752	-	Glov_2696	-	MscS Mechanosensitive ion channel
2671	 58.52	0	2899627..2900031	+	134	189425753	-	Glov_2697	-	hypothetical protein
2672	 58.49	0	2900028..2901140	+	370	189425754	-	Glov_2698	-	hypothetical protein
2673	 59.85	+1	2901150..2904140	+	996	189425755	-	Glov_2699	-	phosphoribosylformylglycinamidine synthase II
2674	 55.28	0	2904137..2905111	+	324	189425756	-	Glov_2700	-	diguanylate cyclase with PAS/PAC sensor
2675	 59.90	+1	2905108..2905935	+	275	189425757	-	Glov_2701	-	Phosphoribosylformylglycinamidine synthase
2676	 59.17	0	2905932..2907359	+	475	189425758	-	Glov_2702	-	amidophosphoribosyltransferase
2677	 59.78	+1	2907356..2907907	+	183	189425759	-	Glov_2703	-	orotate phosphoribosyltransferase
2678	 59.73	+1	2907904..2908653	+	249	189425760	-	Glov_2704	-	hemolysin A
2679	 59.42	0	2908650..2908994	+	114	189425761	-	Glov_2705	-	histidine triad (HIT) protein
2680	 58.73	0	2909148..2909336	+	62	189425762	-	Glov_2706	-	hypothetical protein
2681	 60.81	+1	2909329..2909550	+	73	189425763	-	Glov_2707	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
2682	 56.46	0	2909684..2910457	+	257	189425764	-	Glov_2708	-	ribosomal protein S2
2683	 56.62	0	2910527..2911462	+	311	189425765	-	Glov_2709	-	translation elongation factor Ts
2684	 57.22	0	2911582..2912301	+	239	189425766	-	Glov_2710	-	uridylate kinase
2685	 53.41	0	2912304..2912861	+	185	189425767	-	Glov_2711	-	ribosome recycling factor
2686	 58.70	0	2912863..2913603	+	246	189425768	-	Glov_2712	-	undecaprenyl diphosphate synthase
2687	 58.69	0	2913627..2914403	+	258	189425769	-	Glov_2713	-	phosphatidate cytidylyltransferase
2688	 61.55	+1	2914406..2915578	+	390	189425770	-	Glov_2714	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2689	 58.18	0	2915575..2916705	+	376	189425771	-	Glov_2715	-	membrane-associated zinc metalloprotease
2690	 64.64	+1	2916702..2917391	+	229	189425772	-	Glov_2716	-	peptidase M22 glycoprotease
2691	 61.00	+1	2917487..2918650	+	387	189425773	-	Glov_2717	-	succinyl-CoA synthetase, beta subunit
2692	 61.51	+1	2918665..2919537	+	290	189425774	-	Glov_2718	-	succinyl-CoA synthetase, alpha subunit
2693	 53.81	0	2919827..2920207	+	126	189425775	-	Glov_2719	-	hypothetical protein
2694	 40.00	-2	2920510..2920674	+	54	189425776	-	Glov_2720	-	hypothetical protein
2695	 44.59	-2	2920714..2920935	+	73	189425777	-	Glov_2721	-	hypothetical protein
2696	 55.94	0	2920996..2922132	+	378	189425778	-	Glov_2722	-	response regulator receiver modulated metal dependent phosphohydrolase
2697	 60.17	+1	2922316..2925855	+	1179	189425779	-	Glov_2723	-	DNA polymerase III, alpha subunit
2698	 60.88	+1	2926008..2926958	+	316	189425780	-	Glov_2724	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
2699	 58.72	0	2927031..2927420	+	129	189425781	-	Glov_2725	-	protein of unknown function DUF454
2700	 56.86	0	2927417..2927518	+	33	189425782	-	Glov_2726	-	hypothetical protein
2701	 56.48	0	2927522..2927629	+	35	189425783	-	Glov_2727	-	hypothetical protein
2702	 60.85	+1	2927626..2928450	+	274	189425784	-	Glov_2728	-	pseudouridine synthase
2703	 59.12	0	2928463..2929854	+	463	189425785	-	Glov_2729	-	asparaginyl-tRNA synthetase
2704	 57.80	0	2929858..2930139	+	93	189425786	-	Glov_2730	-	protein of unknown function DUF503
2705	 58.57	0	2930237..2932633	+	798	189425787	-	Glov_2731	-	metal dependent phosphohydrolase
2706	 58.14	0	2932620..2933006	+	128	189425788	-	Glov_2732	-	protein of unknown function UPF0054
2707	 55.79	0	2933026..2933880	+	284	189425789	-	Glov_2733	-	CBS domain containing protein
2708	 61.03	+1	2933877..2935454	+	525	189425790	-	Glov_2734	-	apolipoprotein N-acyltransferase
2709	 58.13	0	2935478..2936597	+	372	189425791	-	Glov_2735	-	hypothetical protein
2710	 57.79	0	2936601..2937524	+	307	189425792	-	Glov_2736	-	NLP/P60 protein
2711	 57.81	0	2937540..2938781	+	413	189425793	-	Glov_2737	-	hypothetical protein
2712	 59.14	0	2938923..2939387	+	154	189425794	-	Glov_2738	-	protein of unknown function DUF55
2713	 60.18	+1	2939384..2940370	+	328	189425795	-	Glov_2739	-	hypothetical protein
2714	 51.98	0	2940456..2941463	-	335	189425796	-	Glov_2740	-	PpiC-type peptidyl-prolyl cis-trans isomerase
2715	 51.67	0	2941648..2942007	+	119	189425797	-	Glov_2741	-	response regulator receiver protein
2716	 50.87	0	2942029..2942895	+	288	189425798	-	Glov_2742	-	CheC domain protein
2717	 55.42	0	2942949..2943686	-	245	189425799	-	Glov_2743	-	methyltransferase small
2718	 52.48	0	2943670..2946087	-	805	189425800	-	Glov_2744	-	hypothetical protein
2719	 51.56	0	2946080..2947105	-	341	189425801	-	Glov_2745	-	glycosyl transferase group 1
2720	 53.38	0	2947102..2947884	-	260	189425802	-	Glov_2746	-	glycosyl transferase family 2
2721	 51.31	0	2947887..2949878	-	663	189425803	-	Glov_2747	-	glycosyl transferase family 2
2722	 50.68	0	2949875..2950750	-	291	189425804	-	Glov_2748	-	glycosyl transferase family 11
2723	 50.25	0	2950747..2951532	-	261	189425805	-	Glov_2749	-	protein of unknown function DUF268
2724	 51.07	0	2951532..2952839	-	435	189425806	-	Glov_2750	-	polysaccharide biosynthesis protein
54.66	MEAN

5.02	STD DEV
