IslandPath Analysis: Geobacter lovleyi SZ

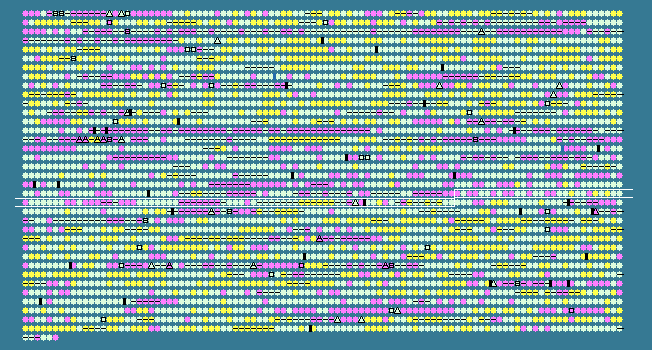

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2073	 47.42	-1	2234569..2234781	-	70	189425155	-	Glov_2096	-	pilin domain protein
2074	 53.38	0	2235180..2236820	-	546	189425156	-	Glov_2097	-	4-phytase
2075	 49.79	0	2236817..2238517	-	566	189425157	-	Glov_2098	-	Tetratricopeptide TPR_2 repeat protein
2076	 48.48	-1	2238701..2238964	+	87	189425158	-	Glov_2099	-	hypothetical protein
2077	 53.25	0	2238961..2242209	+	1082	189425159	-	Glov_2100	-	putative phytochrome sensor protein
2078	 51.19	0	2242227..2242562	+	111	189425160	-	Glov_2101	-	anti-sigma-factor antagonist
2079	 50.93	0	2242585..2243016	+	143	189425161	-	Glov_2102	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
2080	 55.65	0	2243010..2244035	-	341	189425162	-	Glov_2103	-	lysine 2,3-aminomutase YodO family protein
2081	 50.17	0	2244035..2244622	-	195	189425163	-	Glov_2104	-	CDP-diacylglycerol/glycerol-3-phosphate 3-phosphatidyltransferase
2082	 51.02	0	2244627..2245265	-	212	189425164	-	Glov_2105	-	Lytic transglycosylase catalytic
2083	 55.05	0	2245423..2246472	+	349	189425165	-	Glov_2106	-	phosphoribosylformylglycinamidine cyclo-ligase
2084	 54.27	0	2246472..2247092	+	206	189425166	-	Glov_2107	-	phosphoribosylglycinamide formyltransferase
2085	 49.62	-1	2247195..2247458	+	87	189425167	-	Glov_2108	-	ribosomal protein S20
2086	 54.82	0	2247629..2250136	+	835	189425168	-	Glov_2109	-	Spore coat protein CotH
2087	 53.71	0	2250154..2251164	-	336	189425169	-	Glov_2110	-	DNA polymerase III, delta subunit
2088	 50.55	0	2251164..2252342	-	392	189425170	-	Glov_2111	-	diguanylate cyclase
2089	 48.41	-1	2252339..2252716	-	125	189425171	-	Glov_2112	-	hypothetical protein
2090	 52.92	0	2252732..2253262	-	176	189425172	-	Glov_2113	-	hypothetical protein
2091	 53.02	0	2253281..2255281	-	666	189425173	-	Glov_2114	-	protein serine/threonine phosphatase
2092	 59.72	+1	2255307..2255810	-	167	189425174	-	Glov_2115	-	lipoprotein, putative
2093	 56.94	0	2255833..2258310	-	825	189425175	-	Glov_2116	-	leucyl-tRNA synthetase
2094	 56.56	0	2258338..2259396	-	352	189425176	-	Glov_2117	-	response regulator receiver modulated CheB methylesterase
2095	 49.41	-1	2259396..2260247	-	283	189425177	-	Glov_2118	-	MCP methyltransferase, CheR-type
2096	 58.84	0	2260276..2262282	-	668	189425178	-	Glov_2119	-	PBS lyase HEAT domain protein repeat-containing protein
2097	 54.73	0	2262269..2262754	-	161	189425179	-	Glov_2120	-	CheW protein
2098	 58.66	0	2262756..2263517	-	253	189425180	-	Glov_2121	-	CheW protein
2099	 54.06	0	2263517..2264317	-	266	189425181	-	Glov_2122	-	AAA ATPase
2100	 56.46	0	2264321..2266426	-	701	189425182	-	Glov_2123	-	CheA signal transduction histidine kinase
2101	 47.43	-1	2266423..2266791	-	122	189425183	-	Glov_2124	-	response regulator receiver protein
2102	 54.65	0	2266831..2267829	-	332	189425184	-	Glov_2125	-	response regulator receiver protein
2103	 54.67	0	2267908..2269257	-	449	189425185	-	Glov_2126	-	small GTP-binding protein
2104	 53.76	0	2269403..2270293	-	296	189425186	-	Glov_2127	-	GTP-binding protein Era
2105	 56.41	0	2270295..2271971	-	558	189425187	-	Glov_2128	-	glutaminyl-tRNA synthetase
2106	 55.50	0	2271989..2273305	-	438	189425188	-	Glov_2129	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
2107	 55.78	0	2273565..2274437	+	290	189425189	-	Glov_2130	-	Methylenetetrahydrofolate reductase (NAD(P)H)
2108	 47.73	-1	2274511..2274774	+	87	189425190	-	Glov_2131	-	transcriptional regulator, AbrB family
2109	 45.04	-1	2274762..2275154	+	130	189425191	-	Glov_2132	-	PilT protein domain protein
2110	 57.72	0	2275199..2278708	+	1169	189425192	-	Glov_2133	-	methionine synthase
2111	 49.27	-1	2278653..2279612	-	319	189425193	-	Glov_2134	-	hypothetical protein
2112	 48.31	-1	2279753..2285593	+	1946	189425194	-	Glov_2135	-	hypothetical protein
2113	 49.63	-1	2285781..2286050	+	89	189425195	-	Glov_2136	-	hypothetical protein
2114	 47.78	-1	2286061..2286330	+	89	189425196	-	Glov_2137	-	hypothetical protein
2115	 49.24	-1	2286420..2286683	+	87	189425197	-	Glov_2138	-	hypothetical protein
2116	 54.68	0	2286664..2287005	+	113	189425198	-	Glov_2139	-	HicB family protein
2117	 46.04	-1	2287052..2287657	+	201	189425199	-	Glov_2140	-	filamentation induced by cAMP protein Fic
2118	 50.09	0	2287660..2288202	+	180	189425200	-	Glov_2141	-	hypothetical protein
2119	 47.98	-1	2288203..2288400	+	65	189425201	-	Glov_2142	-	hypothetical protein
2120	 54.73	0	2288493..2290427	+	644	189425202	-	Glov_2143	-	heat shock protein Hsp90
2121	 52.45	0	2290506..2290913	-	135	189425203	-	Glov_2144	-	protein of unknown function DUF309
2122	 53.60	0	2291004..2292725	-	573	189425204	-	Glov_2145	-	ribosomal protein S1
2123	 53.74	0	2292820..2293662	-	280	189425205	-	Glov_2146	-	hydroxymethylbutenyl pyrophosphate reductase
2124	 54.22	0	2293659..2294357	-	232	189425206	-	Glov_2147	-	cytidylate kinase
2125	 56.78	0	2294354..2295658	-	434	189425207	-	Glov_2148	-	3-phosphoshikimate 1-carboxyvinyltransferase
2126	 56.52	0	2295690..2296556	-	288	189425208	-	Glov_2149	-	Prephenate dehydrogenase
2127	 50.70	0	2296553..2297629	-	358	189425209	-	Glov_2150	-	chorismate mutase
2128	 44.66	-1	2297794..2298411	-	205	189425210	-	Glov_2151	-	hypothetical protein
2129	 46.30	-1	2298435..2299730	-	431	189425211	-	Glov_2152	-	hypothetical protein
2130	 41.42	-2	2299749..2300156	-	135	189425212	-	Glov_2153	-	hypothetical protein
2131	 41.12	-2	2300119..2300619	-	166	189425213	-	Glov_2154	-	hypothetical protein
2132	 47.40	-1	2300674..2305734	-	1686	189425214	-	Glov_2155	-	Tfp pilus assembly protein tip-associated adhesin PilY1-like protein
2133	 49.33	-1	2305731..2306030	-	99	189425215	-	Glov_2156	-	hypothetical protein
2134	 53.01	0	2306104..2306901	-	265	189425216	-	Glov_2157	-	thiol:disulfide interchange protein DsbC
2135	 56.31	0	2307133..2308494	-	453	189425217	-	Glov_2158	-	two component, sigma54 specific, transcriptional regulator, Fis family
2136	 57.45	0	2308491..2309987	-	498	189425218	-	Glov_2159	-	integral membrane sensor signal transduction histidine kinase
2137	 57.01	0	2309991..2310767	-	258	189425219	-	Glov_2160	-	peptidase A24A domain protein
2138	 48.31	-1	2310770..2311036	-	88	189425220	-	Glov_2161	-	Phosphotransferase system, phosphocarrier protein HPr
2139	 53.44	0	2311050..2311442	-	130	189425221	-	Glov_2162	-	PTS system fructose subfamily IIA component
2140	 56.41	0	2311449..2312306	-	285	189425222	-	Glov_2163	-	hypothetical protein
2141	 56.04	0	2312310..2313269	-	319	189425223	-	Glov_2164	-	HPr kinase
2142	 52.93	0	2313324..2313869	-	181	189425224	-	Glov_2165	-	sigma 54 modulation protein/ribosomal protein S30EA
2143	 55.28	0	2313912..2315360	-	482	189425225	-	Glov_2166	-	RNA polymerase, sigma 54 subunit, RpoN
2144	 57.66	0	2315379..2316122	-	247	189425226	-	Glov_2167	-	ABC transporter related
2145	 55.74	0	2316100..2316648	-	182	189425227	-	Glov_2168	-	lipopolysaccharide transport periplasmic protein LptA
2146	 53.78	0	2316635..2317216	-	193	189425228	-	Glov_2169	-	protein of unknown function DUF1239
2147	 58.77	0	2317300..2317818	-	172	189425229	-	Glov_2170	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase, YrbI family
2148	 59.55	0	2317815..2318783	-	322	189425230	-	Glov_2171	-	KpsF/GutQ family protein
2149	 58.85	0	2318780..2319598	-	272	189425231	-	Glov_2172	-	2-dehydro-3-deoxyphosphooctonate aldolase
2150	 61.75	+1	2319710..2320726	+	338	189425232	-	Glov_2173	-	Holliday junction DNA helicase RuvB
2151	 63.19	+1	2320726..2321415	+	229	189425233	-	Glov_2174	-	Chromosomal replication initiator DnaA
2152	 58.83	0	2321483..2322796	+	437	189425234	-	Glov_2175	-	hypothetical protein
2153	 52.22	0	2323332..2323601	+	89	189425235	-	Glov_2176	-	hypothetical protein
2154	 53.03	0	2323598..2323795	+	65	189425236	-	Glov_2177	-	hypothetical protein
2155	 48.80	-1	2323761..2324303	+	180	189425237	-	Glov_2178	-	hypothetical protein
2156	 52.34	0	2324383..2325897	+	504	189425238	-	Glov_2179	-	Integrase catalytic region
2157	 50.95	0	2325884..2326621	+	245	189425239	-	Glov_2180	-	IstB domain protein ATP-binding protein
2158	 52.43	0	2327393..2327701	-	102	189425240	-	Glov_2181	-	heat shock protein DnaJ domain protein
2159	 55.48	0	2327708..2329585	-	625	189425241	-	Glov_2182	-	deoxyxylulose-5-phosphate synthase
2160	 59.84	+1	2329592..2330485	-	297	189425242	-	Glov_2183	-	Polyprenyl synthetase
2161	 48.72	-1	2330495..2330728	-	77	189425243	-	Glov_2184	-	exodeoxyribonuclease VII, small subunit
2162	 57.38	0	2330872..2332293	+	473	189425244	-	Glov_2185	-	Radical SAM domain protein
2163	 53.91	0	2332287..2332874	+	195	189425245	-	Glov_2186	-	hypothetical protein
2164	 49.66	0	2332886..2333179	-	97	189425246	-	Glov_2187	-	hypothetical protein
2165	 58.41	0	2333183..2335702	-	839	189425247	-	Glov_2188	-	hypothetical protein
2166	 56.65	0	2335713..2336441	-	242	189425248	-	Glov_2189	-	lipoprotein, putative
2167	 56.21	0	2336445..2337056	-	203	189425249	-	Glov_2190	-	outer membrane lipoprotein carrier protein LolA
2168	 59.90	+1	2337053..2337466	-	137	189425250	-	Glov_2191	-	Beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabA/FabZ
2169	 57.59	0	2337432..2338478	-	348	189425251	-	Glov_2192	-	Beta-ketoacyl synthase
2170	 60.24	+1	2338478..2339707	-	409	189425252	-	Glov_2193	-	Beta-ketoacyl synthase
2171	 57.16	0	2339704..2340450	-	248	189425253	-	Glov_2194	-	short-chain dehydrogenase/reductase SDR
2172	 55.46	0	2340612..2341994	-	460	189425254	-	Glov_2195	-	Radical SAM domain protein
54.66	MEAN

5.02	STD DEV
