IslandPath Analysis: Geobacter lovleyi SZ

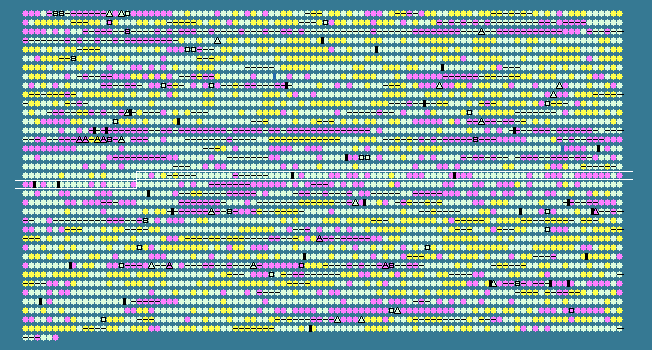

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1820	 56.86	0	1966706..1967317	+	203	189424902	-	Glov_1843	-	Sua5/YciO/YrdC/YwlC family protein
1821	 54.90	0	1967350..1968420	+	356	189424903	-	Glov_1844	-	diguanylate cyclase with GAF sensor
1822	 47.43	-1	1968444..1968812	+	122	189424904	-	Glov_1845	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
1823	 56.86	0	1968787..1969551	+	254	189424905	-	Glov_1846	-	Radical SAM domain protein
1824	 61.43	+1	1969551..1970276	+	241	189424906	-	Glov_1847	-	Creatininase
1825	 55.47	0	1970269..1970661	+	130	189424907	-	Glov_1848	-	hypothetical protein
1826	 58.68	0	1970658..1971971	+	437	189424908	-	Glov_1849	-	RNA methyltransferase, TrmA family
1827	 52.84	0	1972018..1972299	+	93	189424909	-	Glov_1850	-	histone family protein DNA-binding protein
1828	 56.84	0	1972302..1973237	+	311	189424910	-	Glov_1851	-	Ppx/GppA phosphatase
1829	 52.46	0	1973304..1974542	+	412	189424911	-	Glov_1852	-	diguanylate phosphodiesterase
1830	 57.46	0	1974550..1975353	-	267	189424912	-	Glov_1853	-	Tetratricopeptide TPR_2 repeat protein
1831	 51.41	0	1975346..1976302	-	318	189424913	-	Glov_1854	-	Mammalian cell entry related domain protein
1832	 53.57	0	1976299..1976970	-	223	189424914	-	Glov_1855	-	ABC-type transport system involved in resistance to organic solvents ATPase component-like protein
1833	 57.60	0	1977189..1978964	+	591	189424915	-	Glov_1856	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
1834	 56.13	0	1978964..1979542	+	192	189424916	-	Glov_1857	-	Indolepyruvate ferredoxin oxidoreductase
1835	 54.59	0	1979555..1980862	+	435	189424917	-	Glov_1858	-	Phenylacetate--CoA ligase
1836	 48.61	-1	1980874..1981305	+	143	189424918	-	Glov_1859	-	amino acid-binding ACT domain protein
1837	 53.61	0	1981323..1982471	+	382	189424919	-	Glov_1860	-	Extracellular ligand-binding receptor
1838	 52.72	0	1982485..1983624	+	379	189424920	-	Glov_1861	-	Extracellular ligand-binding receptor
1839	 55.71	0	1983832..1984716	+	294	189424921	-	Glov_1862	-	inner-membrane translocator
1840	 52.07	0	1984720..1985685	+	321	189424922	-	Glov_1863	-	inner-membrane translocator
1841	 51.46	0	1985678..1986433	+	251	189424923	-	Glov_1864	-	ABC transporter related
1842	 53.36	0	1986433..1987176	+	247	189424924	-	Glov_1865	-	ABC transporter related
1843	 53.58	0	1987178..1987903	+	241	189424925	-	Glov_1866	-	orotidine 5'-phosphate decarboxylase
1844	 53.71	0	1987900..1988640	+	246	189424926	-	Glov_1867	-	RNA methyltransferase, TrmH family, group 3
1845	 55.21	0	1988637..1990094	+	485	189424927	-	Glov_1868	-	RNA methyltransferase, TrmA family
1846	 51.26	0	1990242..1992182	+	646	189424928	-	Glov_1869	-	threonyl-tRNA synthetase
1847	 49.79	0	1992276..1992749	+	157	189424929	-	Glov_1870	-	translation initiation factor IF-3
1848	 51.52	0	1992799..1992996	+	65	189424930	-	Glov_1871	-	ribosomal protein L35
1849	 53.67	0	1993083..1993436	+	117	189424931	-	Glov_1872	-	ribosomal protein L20
1850	 52.31	0	1993536..1994552	+	338	189424932	-	Glov_1873	-	phenylalanyl-tRNA synthetase, alpha subunit
1851	 51.70	0	1994565..1996970	+	801	189424933	-	Glov_1874	-	phenylalanyl-tRNA synthetase, beta subunit
1852	 46.60	-1	1997061..1997354	+	97	189424934	-	Glov_1875	-	hypothetical protein
1853	 50.04	0	1997422..1998570	-	382	189424935	-	Glov_1876	-	class II aldolase/adducin family protein
1854	 53.77	0	1998570..1999391	-	273	189424936	-	Glov_1877	-	Peptidase M23
1855	 46.25	-1	1999527..2000246	+	239	189424937	-	Glov_1878	-	type IV pilus assembly PilZ
1856	 43.95	-2	2000450..2000788	+	112	189424938	-	Glov_1879	-	nitrogen regulatory protein P-II
1857	 51.38	0	2000819..2002231	+	470	189424939	-	Glov_1880	-	glutamine synthetase, type I
1858	 50.29	0	2002361..2003038	+	225	189424940	-	Glov_1881	-	peptidase M50
1859	 52.38	0	2003062..2004048	+	328	189424941	-	Glov_1882	-	tryptophanyl-tRNA synthetase
1860	 53.28	0	2004051..2004872	+	273	189424942	-	Glov_1883	-	chromosome segregation and condensation protein ScpA
1861	 53.74	0	2004853..2005440	+	195	189424943	-	Glov_1884	-	segregation and condensation protein B
1862	 59.08	0	2005437..2006240	+	267	189424944	-	Glov_1885	-	protein of unknown function DUF52
1863	 57.96	0	2006632..2007573	-	313	189424945	-	Glov_1886	-	Methyltransferase type 11
1864	 57.98	0	2007767..2010298	+	843	189424946	-	Glov_1887	-	aconitate hydratase 2
1865	 46.45	-1	2010601..2010882	+	93	189424947	-	Glov_1888	-	histone family protein DNA-binding protein
1866	 47.86	-1	2010905..2011255	+	116	189424948	-	Glov_1889	-	transcriptional regulator, MerR family
1867	 50.91	0	2011425..2012579	+	384	189424949	-	Glov_1890	-	histidine kinase
1868	 53.07	0	2012742..2014271	+	509	189424950	-	Glov_1891	-	methyl-accepting chemotaxis sensory transducer
1869	 54.75	0	2014285..2016600	+	771	189424951	-	Glov_1892	-	diguanylate cyclase with PAS/PAC sensor
1870	 54.36	0	2016670..2019309	+	879	189424952	-	Glov_1893	-	putative PAS/PAC sensor protein
1871	 55.56	0	2019302..2020255	+	317	189424953	-	Glov_1894	-	type II secretion system protein E
1872	 50.36	0	2020275..2020832	+	185	189424954	-	Glov_1895	-	response regulator receiver protein
1873	 39.06	-2	2021508..2021804	+	98	189424955	-	Glov_1896	-	hypothetical protein
1874	 44.17	-2	2022130..2022609	+	159	189424956	-	Glov_1897	-	hypothetical protein
1875	 48.72	-1	2022634..2022828	+	64	189424957	-	Glov_1898	-	hypothetical protein
1876	 52.62	0	2023146..2024996	+	616	189424958	-	Glov_1899	-	response regulator receiver modulated diguanylate cyclase with PAS/PAC sensor
1877	 55.28	0	2025118..2026584	+	488	189424959	-	Glov_1900	-	inosine-5'-monophosphate dehydrogenase
1878	 52.70	0	2026598..2028151	+	517	189424960	-	Glov_1901	-	GMP synthase, large subunit
1879	 52.69	0	2028176..2030071	+	631	189424961	-	Glov_1902	-	transglutaminase domain protein
1880	 55.56	0	2030073..2030405	+	110	189424962	-	Glov_1903	-	hypothetical protein
1881	 51.42	0	2030434..2030925	+	163	189424963	-	Glov_1904	-	inhibitor of MCP methylation-like protein
1882	 51.75	0	2030925..2031608	+	227	189424964	-	Glov_1905	-	hypothetical protein
1883	 52.96	0	2031587..2032396	+	269	189424965	-	Glov_1906	-	formate/nitrite transporter
1884	 54.35	0	2032442..2033488	+	348	189424966	-	Glov_1907	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthase
1885	 49.74	0	2033507..2033890	+	127	189424967	-	Glov_1908	-	response regulator receiver protein
1886	 52.63	0	2033905..2035635	+	576	189424968	-	Glov_1909	-	prolyl-tRNA synthetase
1887	 52.48	0	2035632..2036942	+	436	189424969	-	Glov_1910	-	Phenylacetate--CoA ligase
1888	 49.38	-1	2037065..2038198	+	377	189424970	-	Glov_1911	-	lipoprotein, putative
1889	 45.21	-1	2038375..2038593	+	72	189424971	-	Glov_1912	-	translation initiation factor IF-1
1890	 46.63	-1	2038697..2039260	+	187	189424972	-	Glov_1913	-	translation elongation factor P
1891	 51.60	0	2039265..2040173	+	302	189424973	-	Glov_1914	-	tRNA synthetase class II (D K and N)
1892	 54.07	0	2040140..2041504	-	454	189424974	-	Glov_1915	-	exodeoxyribonuclease VII, large subunit
1893	 51.00	0	2041572..2042975	+	467	189424975	-	Glov_1916	-	ParA family protein
1894	 50.42	0	2043004..2043477	+	157	189424976	-	Glov_1917	-	GreA/GreB family elongation factor
1895	 47.67	-1	2043464..2043742	-	92	189424977	-	Glov_1918	-	histone family protein DNA-binding protein
1896	 48.76	-1	2043802..2044806	-	334	189424978	-	Glov_1919	-	protein of unknown function DUF610 YibQ
1897	 46.86	-1	2044807..2046174	-	455	189424979	-	Glov_1920	-	carboxyl-terminal protease
1898	 48.87	-1	2046270..2047466	-	398	189424980	-	Glov_1921	-	Peptidase M23
1899	 51.52	0	2047472..2048422	-	316	189424981	-	Glov_1922	-	protein of unknown function DUF214
1900	 50.00	0	2048406..2049095	-	229	189424982	-	Glov_1923	-	cell division ATP-binding protein FtsE
1901	 50.54	0	2049189..2049374	-	61	189424983	-	Glov_1924	-	hypothetical protein
1902	 48.70	-1	2049371..2050099	-	242	189424984	-	Glov_1925	-	glycosyl transferase family 2
1903	 52.33	0	2050524..2050802	-	92	189424985	-	Glov_1926	-	histone family protein DNA-binding protein
1904	 49.52	-1	2050897..2052156	-	419	189424986	-	Glov_1927	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
1905	 55.22	0	2052158..2052751	-	197	189424987	-	Glov_1928	-	ATP-dependent Clp protease, proteolytic subunit ClpP
1906	 51.47	0	2052765..2054087	-	440	189424988	-	Glov_1929	-	trigger factor
1907	 55.80	0	2054262..2057510	-	1082	189424989	-	Glov_1930	-	UvrD/REP helicase
1908	 52.99	0	2057507..2057908	-	133	189424990	-	Glov_1931	-	NUDIX hydrolase
1909	 54.01	0	2058009..2059256	-	415	189424991	-	Glov_1932	-	Glycine hydroxymethyltransferase
1910	 53.78	0	2059351..2059800	-	149	189424992	-	Glov_1933	-	sugar-phosphate isomerase, RpiB/LacA/LacB family
1911	 54.01	0	2059803..2061035	-	410	189424993	-	Glov_1934	-	3-oxoacyl-(acyl-carrier-protein) synthase 2
1912	 48.29	-1	2061126..2061359	-	77	189424994	-	Glov_1935	-	acyl carrier protein
1913	 55.42	0	2061495..2062232	-	245	189424995	-	Glov_1936	-	3-oxoacyl-(acyl-carrier-protein) reductase
1914	 49.32	-1	2062255..2062692	-	145	189424996	-	Glov_1937	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
1915	 55.52	0	2062708..2063631	-	307	189424997	-	Glov_1938	-	malonyl CoA-acyl carrier protein transacylase
1916	 53.76	0	2063663..2064646	-	327	189424998	-	Glov_1939	-	3-oxoacyl-(acyl-carrier-protein) synthase III
1917	 53.66	0	2064717..2065754	-	345	189424999	-	Glov_1940	-	fatty acid/phospholipid synthesis protein PlsX
1918	 55.38	0	2065775..2065960	-	61	189425000	-	Glov_1941	-	ribosomal protein L32
1919	 49.72	0	2065999..2066541	-	180	189425001	-	Glov_1942	-	protein of unknown function DUF177
54.66	MEAN

5.02	STD DEV
