IslandPath Analysis: Geobacter lovleyi SZ

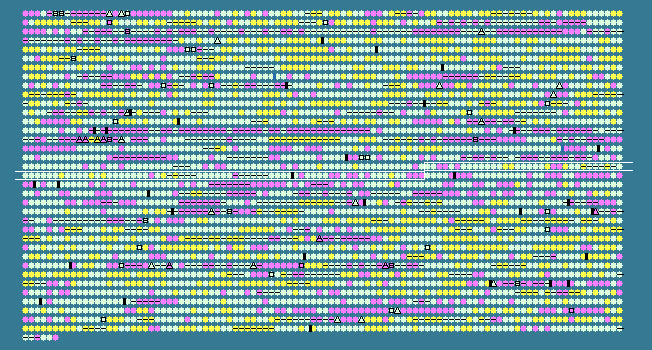

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1768	 53.44	0	1906015..1906740	-	241	189424850	-	Glov_1791	-	hypothetical protein
1769	 51.43	0	1906860..1907312	-	150	189424851	-	Glov_1792	-	ferric uptake regulator, Fur family
1770	 48.10	-1	1907498..1908208	+	236	189424852	-	Glov_1793	-	hypothetical protein
1771	 51.08	0	1908299..1908805	+	168	189424853	-	Glov_1794	-	Rubrerythrin
1772	 57.70	0	1909014..1911221	+	735	189424854	-	Glov_1795	-	catalase/peroxidase HPI
1773	 50.57	0	1911261..1911701	+	146	189424855	-	Glov_1796	-	hypothetical protein
1774	 52.68	0	1911734..1912312	+	192	189424856	-	Glov_1797	-	Rubrerythrin
1775	 56.09	0	1912377..1912877	-	166	189424857	-	Glov_1798	-	hypothetical protein
1776	 53.12	0	1912911..1914194	-	427	189424858	-	Glov_1799	-	hypothetical protein
1777	 53.17	0	1914195..1914920	-	241	189424859	-	Glov_1800	-	hypothetical protein
1778	 55.21	0	1914930..1916168	-	412	189424860	-	Glov_1801	-	protein of unknown function DUF214
1779	 55.60	0	1916161..1916865	-	234	189424861	-	Glov_1802	-	ABC transporter related
1780	 55.61	0	1917033..1918217	-	394	189424862	-	Glov_1803	-	hypothetical protein
1781	 60.15	+1	1918354..1919151	-	265	189424863	-	Glov_1804	-	hypothetical protein
1782	 62.05	+1	1919155..1919934	-	259	189424864	-	Glov_1805	-	ABC transporter related
1783	 56.51	0	1919968..1921335	-	455	189424865	-	Glov_1806	-	heavy metal sensor signal transduction histidine kinase
1784	 56.65	0	1921319..1922017	-	232	189424866	-	Glov_1807	-	two component transcriptional regulator, winged helix family
1785	 51.58	0	1922219..1923040	-	273	189424867	-	Glov_1808	-	HAD-superfamily hydrolase, subfamily IIB
1786	 55.32	0	1923168..1924604	-	478	189424868	-	Glov_1809	-	putative signal-transduction protein with CBS domains
1787	 56.87	0	1924618..1926933	-	771	189424869	-	Glov_1810	-	sodium/hydrogen exchanger
1788	 58.78	0	1927105..1929360	-	751	189424870	-	Glov_1811	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
1789	 44.14	-2	1929461..1930681	-	406	189424871	-	Glov_1812	-	Tetratricopeptide TPR_2 repeat protein
1790	 47.13	-1	1930779..1931336	-	185	189424872	-	Glov_1813	-	peptidoglycan-associated lipoprotein
1791	 59.26	0	1932291..1934951	-	886	189424873	-	Glov_1814	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1792	 54.09	0	1934970..1935311	-	113	189424874	-	Glov_1815	-	hypothetical protein
1793	 54.94	0	1935410..1937200	-	596	189424875	-	Glov_1816	-	glycoside hydrolase 15-related
1794	 58.88	0	1937553..1939106	+	517	189424876	-	Glov_1817	-	Methylmalonyl-CoA carboxytransferase
1795	 54.99	0	1939160..1939570	+	136	189424877	-	Glov_1818	-	hypothetical protein
1796	 55.47	0	1939595..1939996	+	133	189424878	-	Glov_1819	-	biotin/lipoyl attachment domain-containing protein
1797	 54.47	0	1940009..1941139	+	376	189424879	-	Glov_1820	-	sodium ion-translocating decarboxylase, beta subunit
1798	 59.01	0	1941149..1942285	-	378	189424880	-	Glov_1821	-	Na+/H+ antiporter NhaA
1799	 57.70	0	1942399..1943781	-	460	189424881	-	Glov_1822	-	TRAP dicarboxylate transporter, DctM subunit
1800	 56.00	0	1943778..1944452	-	224	189424882	-	Glov_1823	-	Tripartite ATP-independent periplasmic transporter DctQ component
1801	 54.82	0	1944529..1945524	-	331	189424883	-	Glov_1824	-	TRAP dicarboxylate transporter, DctP subunit
1802	 57.27	0	1945747..1946970	-	407	189424884	-	Glov_1825	-	major facilitator superfamily MFS_1
1803	 56.87	0	1946971..1948338	-	455	189424885	-	Glov_1826	-	two component, sigma54 specific, transcriptional regulator, Fis family
1804	 53.69	0	1948348..1948740	-	130	189424886	-	Glov_1827	-	response regulator receiver protein
1805	 53.90	0	1948718..1950229	-	503	189424887	-	Glov_1828	-	multi-sensor signal transduction histidine kinase
1806	 57.54	0	1950291..1952810	-	839	189424888	-	Glov_1829	-	integral membrane sensor signal transduction histidine kinase
1807	 59.58	0	1952909..1954756	+	615	189424889	-	Glov_1830	-	UbiD family decarboxylase
1808	 52.47	0	1954844..1955350	+	168	189424890	-	Glov_1831	-	CheW protein
1809	 56.42	0	1955440..1956561	-	373	189424891	-	Glov_1832	-	methyl-accepting chemotaxis sensory transducer
1810	 57.25	0	1956691..1957656	+	321	189424892	-	Glov_1833	-	periplasmic solute binding protein
1811	 57.20	0	1957644..1958393	+	249	189424893	-	Glov_1834	-	ABC transporter related
1812	 58.63	0	1958395..1959228	+	277	189424894	-	Glov_1835	-	ABC-3 protein
1813	 55.13	0	1959212..1959844	-	210	189424895	-	Glov_1836	-	metal dependent phosphohydrolase
1814	 60.77	+1	1959887..1961140	-	417	189424896	-	Glov_1837	-	major facilitator superfamily MFS_1
1815	 53.48	0	1961133..1961678	-	181	189424897	-	Glov_1838	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1816	 53.96	0	1961765..1963063	+	432	189424898	-	Glov_1839	-	processing peptidase
1817	 54.67	0	1963109..1965034	+	641	189424899	-	Glov_1840	-	integral membrane sensor hybrid histidine kinase
1818	 57.63	0	1965056..1965520	-	154	189424900	-	Glov_1841	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
1819	 51.59	0	1965603..1966703	+	366	189424901	-	Glov_1842	-	peptidase M29 aminopeptidase II
1820	 56.86	0	1966706..1967317	+	203	189424902	-	Glov_1843	-	Sua5/YciO/YrdC/YwlC family protein
1821	 54.90	0	1967350..1968420	+	356	189424903	-	Glov_1844	-	diguanylate cyclase with GAF sensor
1822	 47.43	-1	1968444..1968812	+	122	189424904	-	Glov_1845	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
1823	 56.86	0	1968787..1969551	+	254	189424905	-	Glov_1846	-	Radical SAM domain protein
1824	 61.43	+1	1969551..1970276	+	241	189424906	-	Glov_1847	-	Creatininase
1825	 55.47	0	1970269..1970661	+	130	189424907	-	Glov_1848	-	hypothetical protein
1826	 58.68	0	1970658..1971971	+	437	189424908	-	Glov_1849	-	RNA methyltransferase, TrmA family
1827	 52.84	0	1972018..1972299	+	93	189424909	-	Glov_1850	-	histone family protein DNA-binding protein
1828	 56.84	0	1972302..1973237	+	311	189424910	-	Glov_1851	-	Ppx/GppA phosphatase
1829	 52.46	0	1973304..1974542	+	412	189424911	-	Glov_1852	-	diguanylate phosphodiesterase
1830	 57.46	0	1974550..1975353	-	267	189424912	-	Glov_1853	-	Tetratricopeptide TPR_2 repeat protein
1831	 51.41	0	1975346..1976302	-	318	189424913	-	Glov_1854	-	Mammalian cell entry related domain protein
1832	 53.57	0	1976299..1976970	-	223	189424914	-	Glov_1855	-	ABC-type transport system involved in resistance to organic solvents ATPase component-like protein
1833	 57.60	0	1977189..1978964	+	591	189424915	-	Glov_1856	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
1834	 56.13	0	1978964..1979542	+	192	189424916	-	Glov_1857	-	Indolepyruvate ferredoxin oxidoreductase
1835	 54.59	0	1979555..1980862	+	435	189424917	-	Glov_1858	-	Phenylacetate--CoA ligase
1836	 48.61	-1	1980874..1981305	+	143	189424918	-	Glov_1859	-	amino acid-binding ACT domain protein
1837	 53.61	0	1981323..1982471	+	382	189424919	-	Glov_1860	-	Extracellular ligand-binding receptor
1838	 52.72	0	1982485..1983624	+	379	189424920	-	Glov_1861	-	Extracellular ligand-binding receptor
1839	 55.71	0	1983832..1984716	+	294	189424921	-	Glov_1862	-	inner-membrane translocator
1840	 52.07	0	1984720..1985685	+	321	189424922	-	Glov_1863	-	inner-membrane translocator
1841	 51.46	0	1985678..1986433	+	251	189424923	-	Glov_1864	-	ABC transporter related
1842	 53.36	0	1986433..1987176	+	247	189424924	-	Glov_1865	-	ABC transporter related
1843	 53.58	0	1987178..1987903	+	241	189424925	-	Glov_1866	-	orotidine 5'-phosphate decarboxylase
1844	 53.71	0	1987900..1988640	+	246	189424926	-	Glov_1867	-	RNA methyltransferase, TrmH family, group 3
1845	 55.21	0	1988637..1990094	+	485	189424927	-	Glov_1868	-	RNA methyltransferase, TrmA family
1846	 51.26	0	1990242..1992182	+	646	189424928	-	Glov_1869	-	threonyl-tRNA synthetase
1847	 49.79	0	1992276..1992749	+	157	189424929	-	Glov_1870	-	translation initiation factor IF-3
1848	 51.52	0	1992799..1992996	+	65	189424930	-	Glov_1871	-	ribosomal protein L35
1849	 53.67	0	1993083..1993436	+	117	189424931	-	Glov_1872	-	ribosomal protein L20
1850	 52.31	0	1993536..1994552	+	338	189424932	-	Glov_1873	-	phenylalanyl-tRNA synthetase, alpha subunit
1851	 51.70	0	1994565..1996970	+	801	189424933	-	Glov_1874	-	phenylalanyl-tRNA synthetase, beta subunit
1852	 46.60	-1	1997061..1997354	+	97	189424934	-	Glov_1875	-	hypothetical protein
1853	 50.04	0	1997422..1998570	-	382	189424935	-	Glov_1876	-	class II aldolase/adducin family protein
1854	 53.77	0	1998570..1999391	-	273	189424936	-	Glov_1877	-	Peptidase M23
1855	 46.25	-1	1999527..2000246	+	239	189424937	-	Glov_1878	-	type IV pilus assembly PilZ
1856	 43.95	-2	2000450..2000788	+	112	189424938	-	Glov_1879	-	nitrogen regulatory protein P-II
1857	 51.38	0	2000819..2002231	+	470	189424939	-	Glov_1880	-	glutamine synthetase, type I
1858	 50.29	0	2002361..2003038	+	225	189424940	-	Glov_1881	-	peptidase M50
1859	 52.38	0	2003062..2004048	+	328	189424941	-	Glov_1882	-	tryptophanyl-tRNA synthetase
1860	 53.28	0	2004051..2004872	+	273	189424942	-	Glov_1883	-	chromosome segregation and condensation protein ScpA
1861	 53.74	0	2004853..2005440	+	195	189424943	-	Glov_1884	-	segregation and condensation protein B
1862	 59.08	0	2005437..2006240	+	267	189424944	-	Glov_1885	-	protein of unknown function DUF52
1863	 57.96	0	2006632..2007573	-	313	189424945	-	Glov_1886	-	Methyltransferase type 11
1864	 57.98	0	2007767..2010298	+	843	189424946	-	Glov_1887	-	aconitate hydratase 2
1865	 46.45	-1	2010601..2010882	+	93	189424947	-	Glov_1888	-	histone family protein DNA-binding protein
1866	 47.86	-1	2010905..2011255	+	116	189424948	-	Glov_1889	-	transcriptional regulator, MerR family
1867	 50.91	0	2011425..2012579	+	384	189424949	-	Glov_1890	-	histidine kinase
54.66	MEAN

5.02	STD DEV
