IslandPath Analysis: Geobacter lovleyi SZ

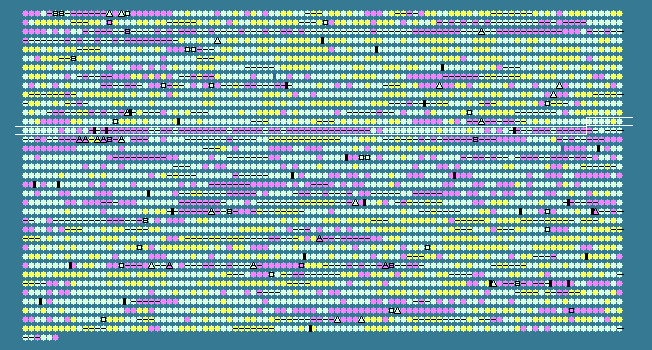

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.66 STD DEV: 5.02
Geobacter lovleyi SZ, complete genome - 1..3917761
3606 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1295	 53.46	0	1358186..1359124	+	312	189424377	-	Glov_1313	-	response regulator receiver modulated diguanylate cyclase
1296	 51.26	0	1359158..1359793	+	211	189424378	-	Glov_1314	-	Fibronectin type III domain protein
1297	 53.57	0	1359991..1360998	-	335	189424379	-	Glov_1315	-	hypothetical protein
1298	 55.92	0	1361187..1362014	+	275	189424380	-	Glov_1316	-	nicotinate-nucleotide pyrophosphorylase
1299	 58.56	0	1362020..1363006	+	328	189424381	-	Glov_1317	-	biotin/acetyl-CoA-carboxylase ligase
1300	 52.68	0	1363031..1363795	+	254	189424382	-	Glov_1318	-	putative transcriptional acitvator, Baf family
1301	 54.68	0	1363844..1365928	+	694	189424383	-	Glov_1319	-	translation elongation factor G
1302	 56.89	0	1366023..1367024	+	333	189424384	-	Glov_1320	-	Sporulation domain protein
1303	 53.85	0	1367036..1367956	+	306	189424385	-	Glov_1321	-	hypothetical protein
1304	 52.03	0	1367981..1368793	+	270	189424386	-	Glov_1322	-	GTP-binding domain protein
1305	 53.86	0	1368790..1369476	+	228	189424387	-	Glov_1323	-	MgtC/SapB transporter
1306	 53.98	0	1369463..1370053	-	196	189424388	-	Glov_1324	-	hypothetical protein
1307	 50.48	0	1370166..1370993	+	275	189424389	-	Glov_1325	-	transport-associated protein
1308	 52.61	0	1370994..1371854	-	286	189424390	-	Glov_1326	-	PHP domain protein
1309	 51.90	0	1371949..1372605	+	218	189424391	-	Glov_1327	-	DNA-(apurinic or apyrimidinic site) lyase
1310	 50.06	0	1372733..1373599	+	288	189424392	-	Glov_1328	-	3-hydroxyisobutyrate dehydrogenase
1311	 54.91	0	1373679..1375277	+	532	189424393	-	Glov_1329	-	acetyl-CoA acetyltransferase-like protein
1312	 50.12	0	1375372..1376229	+	285	189424394	-	Glov_1330	-	RNA polymerase, sigma 32 subunit, RpoH
1313	 55.08	0	1376905..1378095	+	396	189424395	-	Glov_1331	-	translation elongation factor Tu
1314	 38.00	-2	1378171..1378320	+	49	189424396	-	Glov_1332	-	ribosomal protein L33
1315	 45.36	-1	1378484..1378666	+	60	189424397	-	Glov_1333	-	preprotein translocase, SecE subunit
1316	 46.97	-1	1378680..1379207	+	175	189424398	-	Glov_1334	-	NusG antitermination factor
1317	 47.42	-1	1379262..1379687	+	141	189424399	-	Glov_1335	-	ribosomal protein L11
1318	 47.01	-1	1379734..1380435	+	233	189424400	-	Glov_1336	-	ribosomal protein L1
1319	 50.86	0	1380587..1381111	+	174	189424401	-	Glov_1337	-	ribosomal protein L10
1320	 49.87	0	1381168..1381548	+	126	189424402	-	Glov_1338	-	ribosomal protein L7/L12
1321	 50.82	0	1381713..1386206	+	1497	189424403	-	Glov_1339	-	DNA-directed RNA polymerase, beta subunit
1322	 51.52	0	1386284..1390441	+	1385	189424404	-	Glov_1340	-	DNA-directed RNA polymerase, beta' subunit
1323	 51.34	0	1390817..1391188	+	123	189424405	-	Glov_1341	-	ribosomal protein S12
1324	 49.26	-1	1391209..1391679	+	156	189424406	-	Glov_1342	-	ribosomal protein S7
1325	 47.86	-1	1391706..1393784	+	692	189424407	-	Glov_1343	-	translation elongation factor G
1326	 55.08	0	1393820..1395010	+	396	189424408	-	Glov_1344	-	translation elongation factor Tu
1327	 49.51	-1	1395029..1395337	+	102	189424409	-	Glov_1345	-	ribosomal protein S10
1328	 50.00	0	1395365..1396000	+	211	189424410	-	Glov_1346	-	ribosomal protein L3
1329	 46.05	-1	1396020..1396640	+	206	189424411	-	Glov_1347	-	ribosomal protein L4/L1e
1330	 46.32	-1	1396640..1396924	+	94	189424412	-	Glov_1348	-	Ribosomal protein L25/L23
1331	 50.18	0	1396957..1397781	+	274	189424413	-	Glov_1349	-	ribosomal protein L2
1332	 47.67	-1	1397804..1398082	+	92	189424414	-	Glov_1350	-	ribosomal protein S19
1333	 50.88	0	1398099..1398440	+	113	189424415	-	Glov_1351	-	ribosomal protein L22
1334	 47.71	-1	1398456..1399088	+	210	189424416	-	Glov_1352	-	ribosomal protein S3
1335	 52.96	0	1399107..1399529	+	140	189424417	-	Glov_1353	-	ribosomal protein L16
1336	 47.62	-1	1399519..1399707	+	62	189424418	-	Glov_1354	-	ribosomal protein L29
1337	 48.84	-1	1399715..1399972	+	85	189424419	-	Glov_1355	-	ribosomal protein S17
1338	 45.26	-1	1399997..1400365	+	122	189424420	-	Glov_1356	-	ribosomal protein L14
1339	 45.57	-1	1400387..1400713	+	108	189424421	-	Glov_1357	-	ribosomal protein L24
1340	 41.85	-2	1400732..1401271	+	179	189424422	-	Glov_1358	-	ribosomal protein L5
1341	 53.76	0	1401284..1401469	+	61	189424423	-	Glov_1359	-	ribosomal protein S14
1342	 44.36	-2	1401500..1401898	+	132	189424424	-	Glov_1360	-	ribosomal protein S8
1343	 46.11	-1	1401931..1402470	+	179	189424425	-	Glov_1361	-	ribosomal protein L6
1344	 52.03	0	1402500..1402868	+	122	189424426	-	Glov_1362	-	ribosomal protein L18
1345	 50.10	0	1402896..1403384	+	162	189424427	-	Glov_1363	-	ribosomal protein S5
1346	 47.46	-1	1403420..1403596	+	58	189424428	-	Glov_1364	-	ribosomal protein L30
1347	 46.44	-1	1403612..1404061	+	149	189424429	-	Glov_1365	-	ribosomal protein L15
1348	 44.82	-1	1404055..1405368	+	437	189424430	-	Glov_1366	-	preprotein translocase, SecY subunit
1349	 48.99	-1	1405371..1406015	+	214	189424431	-	Glov_1367	-	Adenylate kinase
1350	 47.66	-1	1406018..1406764	+	248	189424432	-	Glov_1368	-	methionine aminopeptidase, type I
1351	 43.86	-2	1406792..1406905	+	37	189424433	-	Glov_1369	-	ribosomal protein L36
1352	 49.05	-1	1406926..1407294	+	122	189424434	-	Glov_1370	-	ribosomal protein S13
1353	 46.82	-1	1407325..1407717	+	130	189424435	-	Glov_1371	-	ribosomal protein S11
1354	 46.89	-1	1407767..1408393	+	208	189424436	-	Glov_1372	-	ribosomal protein S4
1355	 42.03	-2	1408458..1409480	+	340	189424437	-	Glov_1373	-	DNA-directed RNA polymerase, alpha subunit
1356	 47.47	-1	1409529..1409903	+	124	189424438	-	Glov_1374	-	ribosomal protein L17
1357	 45.25	-1	1409979..1410431	-	150	189424439	-	Glov_1375	-	hypothetical protein
1358	 46.39	-1	1410561..1412774	+	737	189424440	-	Glov_1376	-	multi-sensor signal transduction histidine kinase
1359	 51.76	0	1412795..1414183	+	462	189424441	-	Glov_1377	-	two component, sigma54 specific, transcriptional regulator, Fis family
1360	 50.96	0	1414198..1414980	+	260	189424442	-	Glov_1378	-	Enoyl-CoA hydratase/isomerase
1361	 54.95	0	1415066..1416388	-	440	189424443	-	Glov_1379	-	Citrate (Si)-synthase
1362	 53.57	0	1416535..1417725	-	396	189424444	-	Glov_1380	-	creatinase
1363	 53.60	0	1417789..1418385	+	198	189424445	-	Glov_1381	-	ribosomal L11 methyltransferase
1364	 55.35	0	1418386..1419498	-	370	189424446	-	Glov_1382	-	hypothetical protein
1365	 57.82	0	1419514..1420677	-	387	189424447	-	Glov_1383	-	band 7 protein
1366	 53.07	0	1420987..1421883	-	298	189424448	-	Glov_1384	-	transcriptional regulator, MerR family
1367	 53.46	0	1421994..1422470	+	158	189424449	-	Glov_1385	-	cyclase/dehydrase
1368	 53.64	0	1422448..1422708	+	86	189424450	-	Glov_1386	-	hypothetical protein
1369	 52.72	0	1422705..1422998	+	97	189424451	-	Glov_1387	-	hypothetical protein
1370	 59.73	+1	1423003..1424574	+	523	189424452	-	Glov_1388	-	ABC-1 domain protein
1371	 55.76	0	1424647..1426296	-	549	189424453	-	Glov_1389	-	AMP-dependent synthetase and ligase
1372	 56.63	0	1426430..1427605	-	391	189424454	-	Glov_1390	-	Na+/H+ antiporter NhaA
1373	 56.30	0	1427734..1428939	+	401	189424455	-	Glov_1391	-	efflux transporter, RND family, MFP subunit
1374	 57.05	0	1428949..1432098	+	1049	189424456	-	Glov_1392	-	transporter, hydrophobe/amphiphile efflux-1 (HAE1) family
1375	 58.73	0	1432091..1433476	+	461	189424457	-	Glov_1393	-	RND efflux system, outer membrane lipoprotein, NodT family
1376	 52.40	0	1433477..1434934	-	485	189424458	-	Glov_1394	-	putative signal-transduction protein with CBS domains
1377	 53.15	0	1435257..1436033	+	258	189424459	-	Glov_1395	-	transcriptional regulator, IclR family
1378	 48.22	-1	1436138..1436446	+	102	189424460	-	Glov_1396	-	protein of unknown function DUF485
1379	 57.56	0	1436458..1438455	+	665	189424461	-	Glov_1397	-	SSS sodium solute transporter superfamily
1380	 48.22	-1	1438941..1439249	+	102	189424462	-	Glov_1398	-	protein of unknown function DUF485
1381	 57.45	0	1439261..1441246	+	661	189424463	-	Glov_1399	-	SSS sodium solute transporter superfamily
1382	 54.40	0	1441327..1442541	+	404	189424464	-	Glov_1400	-	protein of unknown function DUF294 nucleotidyltransferase putative
1383	 44.55	-2	1442684..1443013	-	109	189424465	-	Glov_1401	-	hypothetical protein
1384	 53.33	0	1443079..1444683	+	534	189424466	-	Glov_1402	-	Recombinase
1385	 51.67	0	1444649..1445515	+	288	189424467	-	Glov_1403	-	parB-like partition protein
1386	 48.43	-1	1445521..1446414	+	297	189424468	-	Glov_1404	-	RepB plasmid partition
1387	 48.94	-1	1446527..1450171	-	1214	189424469	-	Glov_1405	-	Exodeoxyribonuclease V
1388	 48.01	-1	1450217..1452961	-	914	189424470	-	Glov_1406	-	hypothetical protein
1389	 54.07	0	1453040..1454119	-	359	189424471	-	Glov_1407	-	Domain of unknown function DUF1814
1390	 46.94	-1	1454161..1454880	-	239	189424472	-	Glov_1408	-	hypothetical protein
1391	 39.23	-2	1454895..1456115	-	406	189424473	-	Glov_1409	-	hypothetical protein
1392	 46.06	-1	1456119..1457234	-	371	189424474	-	Glov_1410	-	hypothetical protein
1393	 45.86	-1	1457243..1458160	-	305	189424475	-	Glov_1411	-	hypothetical protein
1394	 47.15	-1	1458211..1458456	-	81	189424476	-	Glov_1412	-	hypothetical protein
54.66	MEAN

5.02	STD DEV
