IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

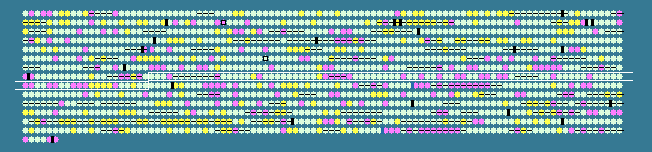

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
722	 32.21	0	987657..988634	+	325	187931635	ispB	FTM_0906	-	octaprenyl-diphosphate synthase
723	 34.32	0	988652..989464	-	270	187931636	-	FTM_0907	-	fkbp-type peptidyl-prolyl cis-trans isomerase family protein
724	 31.59	0	989478..990281	-	267	187931637	-	FTM_0908	-	predicted ATPase of the PP-loop superfamily
725	 29.02	-1	990274..990690	-	138	187931638	-	FTM_0909	-	thioesterase
726	 34.64	0	990706..991317	-	203	187931639	-	FTM_0910	-	hypothetical protein
727	 32.26	0	991318..992721	-	467	187931640	-	FTM_0911	-	serine-type D-Ala-D-Ala carboxypeptidase
728	 35.98	0	992977..993165	+	62	187931641	rpsU3	FTM_0912	-	30S ribosomal protein S21
729	 33.78	0	993240..993686	+	148	187931642	-	FTM_0913	-	GatB/YqeY domain protein
730	 31.08	0	993707..995524	+	605	187931643	dnaG	FTM_0914	-	DNA primase
731	 32.24	0	995549..997282	+	577	187931644	rpoD	FTM_0915	-	RNA polymerase sigma 70 factor RpoD
732	 33.01	0	1002746..1003366	-	206	187931645	lipB	FTM_0919	-	lipoate-protein ligase B
733	 28.42	-1	1003376..1003660	-	94	187931646	-	FTM_0920	-	hypothetical protein
734	 36.03	0	1003693..1005027	-	444	187931647	-	FTM_0921	-	D-alanyl-D-alanine carboxypeptidase
735	 32.18	0	1005184..1005705	+	173	187931648	ppa	FTM_0922	-	inorganic pyrophosphatase
736	 31.88	0	1005796..1006344	+	182	187931649	yrbI	FTM_0923	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
737	 29.82	0	1006352..1006978	+	208	187931650	-	FTM_0924	-	hypothetical protein
738	 30.20	0	1006965..1007795	+	276	187931651	-	FTM_0925	-	hypothetical protein
739	 37.98	+1	1007869..1008600	+	243	187931652	-	FTM_0926	-	ABC transporter, ATP-binding protein
740	 28.45	-1	1008649..1009242	+	197	187931653	-	FTM_0927	-	isomerase
741	 33.22	0	1009255..1011087	+	610	187931654	-	FTM_0928	-	protein of unknown function with predicted hydrolase and phosphorylase activity
742	 33.46	0	1011090..1011866	+	258	187931655	truA	FTM_0929	-	tRNA pseudouridine synthase A
743	 32.10	0	1011922..1013466	+	514	187931656	-	FTM_0930	-	amino acid permease
744	 34.49	0	1013554..1015104	+	516	187931657	guaA	FTM_0931	-	GMP synthase (glutamine-hydrolyzing)
745	 35.06	0	1015186..1017033	+	615	187931658	dxs	FTM_0932	-	1-deoxyxylulose-5-phosphate synthase
746	 31.25	0	1017049..1017384	+	111	187931659	-	FTM_0933	-	hypothetical protein
747	 30.09	0	1017603..1018034	+	143	187931660	-	FTM_0934	-	lipolytic enzyme, GDSL family
748	 30.12	0	1018044..1018634	-	196	187931661	-	FTM_0935	-	CBS domain pair protein
749	 29.89	0	1018752..1019477	+	241	187931662	-	FTM_0936	-	short chain dehydrogenase family protein
750	 37.25	+1	1019541..1020587	+	348	187931663	ruvB	FTM_0937	-	holliday junction DNA helicase RuvB
751	 28.57	-1	1020629..1021216	-	195	187931664	-	FTM_0938	-	peptidoglycan hydrolase
752	 25.93	-2	1021562..1021750	-	62	187931665	-	FTM_0939	-	hypothetical protein
753	 25.49	-2	1021862..1022065	-	67	187931666	-	FTM_0940	-	hypothetical protein
754	 27.93	-1	1022080..1022616	-	178	187931667	-	FTM_0941	-	hypothetical membrane protein
755	 26.91	-1	1022776..1023693	+	305	187931668	-	FTM_0942	-	hypothetical protein
756	 30.08	0	1025130..1026605	+	491	187931669	-	FTM_0944	-	proton-dependent oligopeptide transporter (POT) family protein, di- or tripeptide:H+ symporter
757	 29.75	0	1026630..1027523	+	297	187931670	-	FTM_0945	-	drug/metabolite transporter superfamily protein
758	 33.63	0	1027609..1028622	+	337	187931671	pheS	FTM_0946	-	phenylalanyl-tRNA synthetase, alpha subunit
759	 31.48	0	1028643..1031015	+	790	187931672	pheT	FTM_0947	-	phenylalanyl-tRNA synthetase, beta subunit
760	 29.40	-1	1031058..1031489	-	143	187931673	-	FTM_0948	-	Fe2+/Zn2+ uptake regulator protein
761	 32.68	0	1031631..1032848	+	405	187931674	-	FTM_0949	-	hypothetical protein
762	 31.86	0	1032851..1033597	+	248	187931675	-	FTM_0950	-	zinc (Zn2+)-iron (Fe2+) permease (ZIP) family protein
763	 29.80	0	1033619..1034608	-	329	187931676	-	FTM_0951	-	lipoprotein, putative
764	 29.21	-1	1034777..1036207	-	476	187931677	cls	FTM_0952	-	cardiolipin synthetase
765	 32.40	0	1039091..1039951	+	286	187931678	-	FTM_0955	-	Mrp-like protein
766	 31.92	0	1039963..1040529	+	188	187931679	dcd	FTM_0956	-	deoxycytidine triphosphate deaminase
767	 28.80	-1	1040536..1041726	-	396	187931680	-	FTM_0957	-	small conductance mechanosensitive ion channel (MscS) family protein
768	 31.08	0	1041786..1042361	-	191	187931681	-	FTM_0958	-	rare lipoprotein B family protein
769	 33.01	0	1042369..1044810	-	813	187931682	leuS	FTM_0959	-	leucyl-tRNA synthetase
770	 26.11	-1	1044918..1046813	-	631	187931683	-	FTM_0960	-	hypothetical protein
771	 34.79	0	1047602..1048012	-	136	187931684	-	FTM_0962	-	hypothetical protein
772	 30.77	0	1048014..1048598	-	194	187931685	-	FTM_0963	-	hypothetical protein
773	 23.66	-2	1049234..1049605	-	123	187931686	-	FTM_0965	-	hypothetical protein
774	 24.76	-2	1050622..1051788	-	388	187931687	-	FTM_0967	-	hypothetical protein
775	 29.67	0	1052133..1053362	-	409	187931688	-	FTM_0968	-	hypothetical protein
776	 30.14	0	1053584..1054963	+	459	187931689	-	FTM_0969	-	amino acid transporter (AAT) family protein
777	 24.09	-2	1055005..1055610	+	201	187931690	-	FTM_0970	-	hypothetical membrane protein
778	 28.57	-1	1055614..1055907	+	97	187931691	-	FTM_0971	-	transcriptional regulator, MarR family
779	 31.50	0	1056304..1056630	-	108	187931692	trxA2	FTM_0972	-	thioredoxin
780	 28.70	-1	1056634..1057323	-	229	187931693	-	FTM_0973	-	lipoprotein, putative
781	 29.06	-1	1058279..1059424	-	381	187931694	sufD	FTM_0975	-	SufS activator complex, sufD subunit
782	 33.07	0	1059437..1060186	-	249	187931695	sufC	FTM_0976	-	sufS activator complex, sufC subunit
783	 36.31	+1	1060229..1061671	-	480	187931696	sufB	FTM_0977	-	sufS activator complex, sufB subunit
784	 32.36	0	1061678..1062088	-	136	187931697	-	FTM_0978	-	FeS assembly SUF system regulator
785	 30.49	0	1062241..1063614	+	457	187931698	trkA	FTM_0979	-	trk system potassium uptake protein TrkA
786	 30.73	0	1063673..1065094	+	473	187931699	-	FTM_0980	-	amino acid antiporter
787	 32.88	0	1066056..1066274	-	72	187931700	infA	FTM_0982	-	translation initiation factor IF-1
788	 35.12	0	1066434..1067273	+	279	187931701	-	FTM_0983	-	hypothetical protein
789	 20.97	-2	1067270..1067536	+	88	187931702	-	FTM_0984	-	hypothetical protein
790	 35.66	0	1067617..1068993	+	458	187931703	ffh	FTM_0985	-	signal recognition particle GTPase
791	 33.78	0	1069025..1070137	+	370	187931704	aroG	FTM_0986	-	phospho-2-dehydro-3-deoxyheptonate aldolase
792	 33.97	0	1072848..1073636	+	262	187931705	xthA	FTM_0990	-	exodeoxyribonuclease III
793	 32.91	0	1073657..1074364	+	235	187931706	-	FTM_0991	-	short chain dehydrogenase
794	 30.16	0	1074367..1074870	+	167	187931707	-	FTM_0992	-	putative kinase
795	 27.50	-1	1074870..1075589	+	239	187931708	-	FTM_0993	-	hypothetical membrane protein
796	 36.12	0	1075627..1076988	+	453	187931709	gor	FTM_0994	-	glutathione reductase
797	 33.64	0	1076999..1077319	+	106	187931710	-	FTM_0995	-	hypothetical protein
798	 35.34	0	1077457..1078998	+	513	187931711	-	FTM_0996	-	proton-dependent oligopeptide transporter (POT) family protein, di- or tripeptide:H+ symporter
799	 32.58	0	1078995..1080320	-	441	187931712	-	FTM_0997	-	ATP-dependent RNA helicase
800	 32.05	0	1080447..1081067	+	206	187931713	folE	FTM_0998	-	GTP cyclohydrolase I
801	 27.46	-1	1081914..1082339	+	141	187931714	-	FTM_1000	-	hypothetical protein
802	 28.99	-1	1082417..1083337	+	306	187931715	-	FTM_1001	-	carbon-nitrogen hydrolase family protein
803	 30.81	0	1085715..1086269	-	184	187932319	pabA	FTM_1004	-	para-aminobenzoate synthase component
804	 30.10	0	1086271..1088034	-	587	187931716	-	FTM_1005	-	para-aminobenzoate synthase component I
805	 28.88	-1	1088027..1089397	-	456	187931717	-	FTM_1006	-	AMP-binding enzyme
806	 27.97	-1	1089479..1089832	+	117	187931718	folB	FTM_1007	-	dihydroneopterin aldolase
807	 29.93	0	1089834..1091096	+	420	187931719	-	FTM_1008	-	6-hydroxymethyl-7,8-dihydropterin pyrophosphokinase/dihydropteroate synthase
808	 32.57	0	1091109..1092029	+	306	187931720	-	FTM_1009	-	lipase/esterase
809	 29.14	-1	1092045..1092545	+	166	187931721	-	FTM_1010	-	hypothetical protein
810	 25.90	-2	1093889..1094884	-	331	187931722	-	FTM_1012	-	hypothetical protein
811	 26.81	-1	1096816..1097520	-	234	187931723	-	FTM_1014	-	hypothetical protein
812	 36.34	+1	1097551..1097916	-	121	187931724	rplT	FTM_1015	-	50S ribosomal protein L20
813	 38.38	+1	1097952..1098149	-	65	187931725	rpmI	FTM_1016	-	50S ribosomal protein L35
814	 40.55	+2	1098192..1098704	-	170	187931726	infC	FTM_1017	-	translation initiation factor IF-3
815	 36.48	+1	1098735..1100639	-	634	187931727	thrS	FTM_1018	-	threonyl-tRNA synthetase
816	 25.93	-2	1102955..1103251	-	98	187931728	-	FTM_1020	-	hypothetical protein
817	 32.02	0	1103241..1103621	-	126	187931729	gcvH1	FTM_1021	-	glycine cleavage system H protein
818	 32.71	0	1103725..1104840	+	371	187931730	murG	FTM_1022	-	UDP-N-acetylglucosamine--N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
819	 36.58	+1	1104850..1105188	+	112	187931731	-	FTM_1023	-	hypothetical protein
820	 32.50	0	1105188..1105790	+	200	187931732	recR	FTM_1024	-	RecFOR complex, RecR component
821	 32.58	0	1105798..1107912	-	704	187931733	spoT	FTM_1025	-	GDP diphosphokinase/guanosine-3',5'-bis(diphosphate) 3'-diphosphatase
32.84	MEAN

3.41	STD DEV
