IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

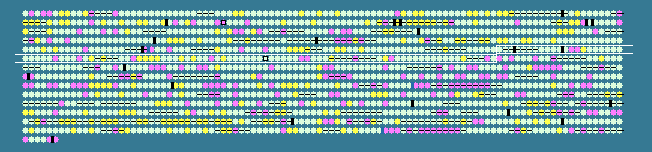

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
480	 35.39	0	667338..669035	-	565	187931393	proS	FTM_0608	-	prolyl-tRNA synthetase
481	 29.82	0	671064..671291	-	75	187931394	-	FTM_0609	-	hypothetical protein
482	 31.47	0	671623..672159	-	178	187931395	-	FTM_0610	-	disulfide bond formation protein, DsbB family
483	 31.89	0	672866..673282	+	138	187931396	sufE	FTM_0612	-	sulfur acceptor protein SufE
484	 29.87	0	673283..674032	+	249	187931397	-	FTM_0613	-	uroporphyrinogen III synthase
485	 30.76	0	673998..675083	+	361	187931398	-	FTM_0614	-	hypothetical membrane protein
486	 29.71	0	675080..676237	+	385	187931399	-	FTM_0615	-	hypothetical membrane protein
487	 30.70	0	676251..677009	+	252	187931400	gloB	FTM_0616	-	hydroxyacylglutathione hydrolase
488	 33.19	0	677087..677794	-	235	187931401	-	FTM_0617	-	hypothetical protein
489	 30.22	0	677903..678127	+	74	187931402	feoA	FTM_0618	-	Fe2+ transport system protein A
490	 31.87	0	678144..679778	+	544	187931403	-	FTM_0619	-	hypothetical protein
491	 32.42	0	680350..681003	-	217	187931404	-	FTM_0623	-	prophage repressor protein
492	 25.32	-2	681172..681558	+	128	187931405	-	FTM_0624	-	hypothetical protein
493	 27.93	-1	681572..682441	-	289	187931406	-	FTM_0625	-	drug/metabolite exporter
494	 37.81	+1	682618..684204	+	528	187931407	gltB	FTM_0626	-	glutamate synthase domain 2
495	 31.73	0	684281..687520	+	1079	187931408	recC	FTM_0627	-	exodeoxyribonuclease V, gamma subunit
496	 32.64	0	687462..688034	+	190	187931409	-	FTM_0628	-	hypothetical protein
497	 30.38	0	688177..689565	+	462	187931410	-	FTM_0629	-	ATP-dependent DNA helicase
498	 32.40	0	689637..693290	+	1217	187931411	recB	FTM_0630	-	exodeoxyribonuclease V, beta subunit
499	 31.25	0	693256..695124	+	622	187931412	recD	FTM_0631	-	exodeoxyribonuclease V, alpha subunit
500	 34.37	0	695133..695903	-	256	187931413	-	FTM_0632	-	regulatory factor, Bvg accessory factor family
501	 32.74	0	695907..696242	-	111	187931414	panD	FTM_0633	-	aspartate 1-decarboxylase
502	 30.15	0	696236..697021	-	261	187931415	panC	FTM_0634	-	pantoate-beta-alanine ligase
503	 34.84	0	697008..697805	-	265	187931416	panB	FTM_0635	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
504	 32.91	0	697807..698523	-	238	187931417	-	FTM_0636	-	hypothetical protein
505	 35.40	0	698831..700867	+	678	187931418	ligA	FTM_0637	-	DNA ligase, NAD-dependent
506	 27.64	-1	702322..702813	+	163	187931419	-	FTM_0639	-	acetyltransferase
507	 30.37	0	702791..704071	-	426	187931420	sun	FTM_0640	-	tRNA and rRNA cytosine-C5-methylase, sun protein
508	 31.69	0	704071..704859	-	262	187931421	-	FTM_0641	-	inositol-1-monophosphatase
509	 32.00	0	705884..707083	-	399	187931422	-	FTM_0643	-	major facilitator superfamily
510	 28.82	-1	707205..707891	+	228	187931423	-	FTM_0644	-	hypothetical protein
511	 32.63	0	707881..708165	-	94	187931424	-	FTM_0645	-	hypothetical protein
512	 38.25	+1	708245..709504	-	419	187931425	fabF	FTM_0646	-	beta-ketoacyl-ACP synthase II
513	 32.98	0	709584..709868	-	94	187931426	acpP	FTM_0647	-	acyl carrier protein
514	 36.56	+1	709964..710707	-	247	187931427	fabG	FTM_0648	-	beta-ketoacyl-ACP reductase
515	 35.40	0	710721..711641	-	306	187931428	fabD	FTM_0649	-	malonyl-CoA:ACP transacylase
516	 35.91	0	711689..712660	-	323	187931429	fabH	FTM_0650	-	3-oxoacyl-[acyl-carrier-protein] synthase 3
517	 33.52	0	712757..713803	-	348	187931430	plsX	FTM_0651	-	fatty acid/phospholipid synthesis protein PlsX
518	 33.33	0	713902..714084	-	60	187931431	rpmF	FTM_0652	-	50S ribosomal protein L32
519	 28.57	-1	714128..714631	-	167	187931432	-	FTM_0653	-	hypothetical protein
520	 37.36	+1	714771..717800	+	1009	187931433	-	FTM_0654	-	fusion protein of transketolase 1, tktA, and Glyceraldehyde-3-phosphate dehydrogenase, gapA
521	 36.47	+1	717819..718997	+	392	187931434	pgk	FTM_0655	-	phosphoglycerate kinase
522	 37.23	+1	719013..720449	+	478	187931435	pyk	FTM_0656	-	pyruvate kinase
523	 39.06	+1	720465..721529	+	354	187931436	fbaA	FTM_0657	-	fructose-bisphosphate aldolase, class II, Calvin cycle subtype
524	 34.76	0	724593..725714	+	373	187931437	potG	FTM_0660	-	ATP-binding cassette putrescine uptake system, ATP-binding protein
525	 32.99	0	725714..726595	+	293	187931438	potH	FTM_0661	-	ATP-binding cassette putrescine uptake system, membrane protein, subunit H
526	 33.09	0	726609..727415	+	268	187931439	potI	FTM_0662	-	ATP-binding cassette putrescine uptake system, membrane protein, subunit I
527	 36.70	+1	728464..729741	+	425	187931440	aroA	FTM_0663	-	3-phosphoshikimate 1-carboxyvinyltransferase
528	 29.44	0	729744..730334	+	196	187931441	-	FTM_0664	-	hypothetical protein
529	 36.82	+1	730309..730767	+	152	187931442	rnhA	FTM_0665	-	Ribonuclease H
530	 33.72	0	730769..731806	+	345	187931443	ansA	FTM_0666	-	L-asparaginase 1
531	 35.37	0	731877..732563	+	228	187931444	cynT	FTM_0667	-	carbonic anhydrase
532	 24.92	-2	732850..733455	-	201	187931445	-	FTM_0668	-	hypothetical membrane protein
533	 31.39	0	733519..734391	-	290	187931446	-	FTM_0669	-	hypothetical protein
534	 39.77	+2	734400..734570	-	56	187931447	rubA	FTM_0670	-	rubredoxin
535	 31.23	0	734657..735274	-	205	187931448	-	FTM_0671	-	hypothetical protein
536	 32.26	0	735386..736777	+	463	187931449	-	FTM_0672	-	hypothetical protein
537	 33.02	0	736809..738083	-	424	187931450	-	FTM_0673	-	dicarboxylate/amino acid:cation (Na+ or H+) symporter
538	 34.11	0	738285..739313	+	342	187931451	-	FTM_0674	-	phosphosugar binding protein
539	 32.41	0	739338..740741	+	467	187931452	-	FTM_0675	-	MFS family major facilitator transporter
540	 31.67	0	740895..741014	+	39	187931453	-	FTM_0676	-	hypothetical protein
541	 33.98	0	741128..741436	+	102	187931454	-	FTM_0677	-	IS1 transposase
542	 30.56	0	743655..743834	+	59	187931455	-	FTM_0679	-	hypothetical protein
543	 36.12	0	745851..747068	+	405	187931456	ispG	FTM_0682	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthase
544	 32.49	0	747083..747790	+	235	187931457	-	FTM_0683	-	hypothetical protein
545	 34.62	0	747809..749602	+	597	187931458	-	FTM_0684	-	X-prolyl aminopeptidase 2
546	 33.05	0	749700..750764	+	354	187931459	-	FTM_0685	-	DNA/RNA endonuclease G
547	 29.17	-1	750755..751618	-	287	187931460	-	FTM_0686	-	beta-lactamase class A
548	 26.19	-1	753187..753606	-	139	187931461	-	FTM_0688	-	hypothetical protein
549	 32.80	0	753852..755342	-	496	187931462	lnt	FTM_0689	-	apolipoprotein N-acyltransferase
550	 30.49	0	755342..756184	-	280	187931463	-	FTM_0690	-	transporter-associated protein, HlyC/CorC family
551	 34.97	0	756174..756662	-	162	187931464	-	FTM_0691	-	hypothetical protein
552	 36.69	+1	756655..757638	-	327	187931465	-	FTM_0692	-	PhoH family protein, putative ATPase
553	 35.44	0	757642..758970	-	442	187931466	miaB	FTM_0693	-	tRNA-methylthiotransferase MiaB protein
554	 35.11	0	759193..759867	+	224	187931467	-	FTM_0694	-	O-methyltransferase family protein
555	 34.01	0	760619..761212	+	197	187931468	tdk	FTM_0696	-	thymidine kinase
556	 28.60	-1	761255..761719	-	154	187931469	-	FTM_0697	-	hypothetical membrane protein
557	 34.24	0	761874..763190	+	438	187931470	tig	FTM_0698	-	trigger factor (TF) protein (peptidyl-prolyl cis/trans isomerase)
558	 34.32	0	763216..763821	+	201	187931471	clpP	FTM_0699	-	ATP-dependent Clp protease, proteolytic subunit ClpP
559	 32.38	0	763845..765098	+	417	187931472	clpX	FTM_0700	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
560	 34.71	0	765123..767447	+	774	187931473	lon	FTM_0701	-	ATP-dependent protease La
561	 36.63	+1	767534..767806	+	90	187931474	hupB	FTM_0702	-	DNA-binding protein HU-beta
562	 28.24	-1	767920..769353	+	477	187931475	-	FTM_0703	-	hypothetical protein
563	 33.12	0	769354..770280	+	308	187931476	miaA	FTM_0704	-	tRNA delta(2)-isopentenylpyrophosphate transferase
564	 30.61	0	770391..770720	+	109	187931477	hfq	FTM_0705	-	host factor I for bacteriophage Q beta replication
565	 33.56	0	770769..772079	+	436	187931478	hflX	FTM_0706	-	protease, GTP-binding subunit
566	 32.15	0	772090..773268	-	392	187931479	-	FTM_0707	-	oxidoreductase
567	 33.90	0	773453..774520	+	355	187931480	hflK	FTM_0708	-	HflK-HflC membrane protein complex, HflK
568	 33.44	0	774522..775448	+	308	187931481	hflC	FTM_0709	-	HflK-HflC membrane protein complex, HflC
569	 35.19	0	775449..775934	+	161	187931482	wzb	FTM_0710	-	low molecular weight (LMW) phosphotyrosine protein phosphatase
570	 32.49	0	775931..776524	+	197	187931483	engB	FTM_0711	-	ATP/GTP-binding protein
571	 30.24	0	777577..778773	-	398	187931484	-	FTM_0712	-	predicted ATPase of the PP-loop superfamily
572	 34.06	0	778774..780009	-	411	187931485	serA	FTM_0713	-	D-3-phosphoglycerate dehydrogenase
573	 34.91	0	780021..780845	-	274	187931486	thyA	FTM_0714	-	thymidylate synthase
574	 36.93	+1	780830..781636	-	268	187931487	lgt	FTM_0715	-	prolipoprotein diacylglyceryl transferase
575	 32.99	0	781651..784308	-	885	187931488	rne	FTM_0716	-	ribonuclease E
576	 35.03	0	784558..785733	+	391	187931489	iscS	FTM_0717	-	cysteine desulfurase
577	 31.52	0	785726..786055	+	109	187931490	-	FTM_0718	-	hypothetical protein
578	 28.47	-1	786039..786737	+	232	187931491	recO	FTM_0719	-	RecFOR complex, RecO component
579	 32.25	0	786813..787460	-	215	187931492	-	FTM_0720	-	DedA family protein
32.84	MEAN

3.41	STD DEV
