IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

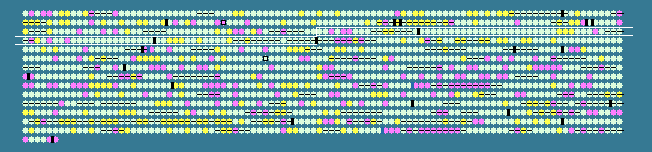

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
250	 33.15	0	346757..347290	+	177	187931163	-	FTM_0312	-	ABC transporter, periplasmic protein
251	 32.43	0	347364..348026	+	220	187931164	-	FTM_0313	-	hypothetical protein
252	 24.49	-2	348026..348319	+	97	187931165	-	FTM_0314	-	hypothetical protein
253	 29.96	0	348336..348572	+	78	187931166	-	FTM_0315	-	BolA family protein
254	 26.35	-1	353138..353638	+	166	187931167	-	FTM_0319	-	hypothetical protein
255	 29.26	-1	353839..356565	+	908	187931168	-	FTM_0320	-	type III restriction enzyme
256	 33.63	0	356562..357224	+	220	187931169	ung	FTM_0321	-	uracil-DNA glycosylase
257	 35.56	0	359184..361790	+	868	187931170	gyrA	FTM_0323	-	DNA gyrase, A subunit
258	 33.33	0	361796..362953	+	385	187931171	dxr	FTM_0324	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
259	 34.30	0	362959..365337	+	792	187931172	-	FTM_0325	-	conserved outer membrane protein of unknown function
260	 31.35	0	365473..365976	+	167	187931173	ompH	FTM_0326	-	outer membrane protein OmpH
261	 36.69	+1	365995..367008	+	337	187931174	lpxD1	FTM_0327	-	UDP-3-O-(3-hydroxy-fatty acid)-glucosamine N-acyltransferase
262	 37.80	+1	367023..367514	+	163	187931175	fabZ	FTM_0328	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
263	 35.38	0	367517..368296	+	259	187931176	lpxA	FTM_0329	-	UDP-N-acetylglucosamine acyltransferase
264	 31.76	0	368296..369438	+	380	187931177	lpxB	FTM_0330	-	lipid A disaccharide synthase
265	 29.76	0	369497..370084	+	195	187931178	-	FTM_0331	-	hypothetical membrane protein
266	 34.13	0	370175..370549	+	124	187931179	-	FTM_0332	-	hypothetical protein
267	 33.70	0	372346..373155	-	269	187931180	-	FTM_0335	-	polyphosphate kinase 2
268	 29.54	0	373225..373989	-	254	187931181	pcs	FTM_0336	-	(CDP-alcohol) phosphatidyltransferase
269	 30.16	0	374037..374918	-	293	187931182	ispA	FTM_0337	-	geranyl diphosphate synthase/farnesyl diphosphate synthase
270	 30.94	0	374915..376210	-	431	187931183	kdtA	FTM_0338	-	3-deoxy-D-manno-octulosonic-acid transferase
271	 33.51	0	376315..376893	-	192	187931184	-	FTM_0339	-	RgdB/HAM1 family protein
272	 31.95	0	377000..377797	+	265	187931185	proC	FTM_0340	-	pyrroline-5-carboxylate reductase
273	 31.88	0	379560..380246	+	228	187931186	-	FTM_0342	-	two-component response regulator
274	 32.99	0	380251..381114	+	287	187931187	lepB	FTM_0343	-	signal peptidase I
275	 33.19	0	381121..381813	+	230	187931188	rnc	FTM_0344	-	ribonuclease III
276	 31.90	0	381800..382708	+	302	187931189	truB	FTM_0345	-	tRNA pseudouridine synthase B
277	 33.90	0	382701..384998	+	765	187931190	rnr	FTM_0346	-	ribonuclease R
278	 32.80	0	385455..386198	-	247	187931191	-	FTM_0348	-	oxidoreductase
279	 29.96	0	386781..387254	-	157	187931192	-	FTM_0350	-	hypothetical protein
280	 34.20	0	392469..393158	-	229	187931193	-	FTM_0355	-	two component response regulator
281	 33.33	0	393301..393840	+	179	187931194	-	FTM_0356	-	hypothetical membrane protein
282	 29.85	0	393958..394359	+	133	187931195	-	FTM_0357	-	hypothetical membrane protein
283	 34.81	0	394534..395142	+	202	187931196	-	FTM_0358	-	lipoprotein, putative
284	 36.06	0	395199..396629	+	476	187931197	-	FTM_0359	-	hypothetical protein
285	 33.84	0	396640..397623	+	327	187931198	-	FTM_0360	-	hypothetical protein
286	 32.97	0	397629..399023	+	464	187931199	-	FTM_0361	-	lipoprotein, putative
287	 31.37	0	399163..400077	+	304	187931200	-	FTM_0362	-	hypothetical protein
288	 33.26	0	401409..402824	+	471	187931201	-	FTM_0364	-	nicotinamide phosphoribosyltransferase
289	 32.92	0	404402..404890	-	162	187931202	-	FTM_0366	-	thioesterase family protein
290	 38.72	+1	404952..406139	-	395	187931203	fadA	FTM_0367	-	acetyl-CoA acetyltransferase
291	 36.34	+1	406152..408848	-	898	187931204	-	FTM_0368	-	bifunctional protein: 3-hydroxacyl-CoA dehydrogenase/acyl-CoA-binding protein
292	 37.53	+1	408921..411161	-	746	187931205	fadE	FTM_0369	-	acyl-coenzyme A dehydrogenase
293	 34.28	0	411199..412887	-	562	187931206	fadD	FTM_0370	-	long chain fatty acid-CoA ligase
294	 30.00	0	413031..413450	+	139	187931207	-	FTM_0371	-	arsenate reductase
295	 35.45	0	413499..415715	+	738	187931208	icd	FTM_0372	-	isocitrate dehydrogenase, NADP-dependent
296	 28.60	-1	415729..416616	+	295	187931209	-	FTM_0373	-	hypothetical membrane protein
297	 32.98	0	416640..420908	+	1422	187931210	hrpA	FTM_0374	-	ATP-dependent helicase HrpA
298	 32.75	0	422409..423092	+	227	187931211	-	FTM_0375	-	hypothetical protein
299	 31.41	0	426155..426727	-	190	187931212	-	FTM_0379	-	methylated DNA protein cysteine methyltransferase
300	 32.36	0	426757..427476	+	239	187931213	-	FTM_0380	-	snare associated golgi protein
301	 33.83	0	427479..428897	+	472	187931214	-	FTM_0381	-	dihydrolipoamide dehydrogenase
302	 29.12	-1	428894..429439	+	181	187931215	-	FTM_0382	-	phosphatidyltransferase
303	 38.19	+1	430639..431565	+	308	187931216	-	FTM_0385	-	subunit of DnaJ/DnaK/GrpE: chaperone with DnaK; heat shock protein
304	 31.98	0	431555..432439	-	294	187931217	-	FTM_0386	-	10 TMS drug/metabolite exporter protein
305	 28.57	-1	433532..433888	+	118	187931218	-	FTM_0388	-	hypothetical protein
306	 34.13	0	434192..436201	+	669	187931219	relA	FTM_0389	-	GDP pyrophosphokinase/GTP pyrophosphokinase
307	 34.44	0	436317..436949	-	210	187931220	-	FTM_0390	-	hypothetical protein
308	 28.46	-1	437695..438309	+	204	187931221	-	FTM_0392	-	hypothetical membrane protein
309	 29.89	0	438316..439041	-	241	187931222	-	FTM_0393	-	hypothetical protein
310	 32.65	0	439041..439919	-	292	187931223	xerC	FTM_0394	-	site-specific recombinase
311	 31.80	0	439929..441101	-	390	187931224	-	FTM_0395	-	hydroxy/aromatic amino acid permease (HAAAP) family protein
312	 30.18	0	442579..443022	-	147	187931225	secB2	FTM_0397	-	preprotein translocase, subunit B
313	 33.33	0	443099..445633	-	844	187931226	mutS	FTM_0398	-	DNA mismatch repair protein MutS
314	 35.65	0	445800..446747	+	315	187931227	accA	FTM_0399	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
315	 33.13	0	446767..447270	+	167	187931228	-	FTM_0400	-	pilus assembly protein
316	 31.36	0	447251..448264	+	337	187931229	-	FTM_0401	-	pilus assembly protein
317	 31.86	0	448273..450237	+	654	187931230	-	FTM_0402	-	hypothetical membrane protein
318	 33.11	0	450234..451118	+	294	187931231	-	FTM_0403	-	glucokinase regulatory protein
319	 33.59	0	451120..451512	+	130	187931232	-	FTM_0404	-	hypothetical protein
320	 32.64	0	454242..455540	-	432	187931233	-	FTM_0406	-	monovalent cation:proton antiporter-1
321	 33.20	0	455550..456275	-	241	187931234	-	FTM_0407	-	hypothetical protein
322	 34.63	0	456277..457281	-	334	187931235	trpS	FTM_0408	-	tryptophanyl-tRNA synthetase
323	 31.06	0	457578..458192	-	204	187931236	coaE	FTM_0411	-	dephospho-CoA kinase
324	 32.45	0	458321..459457	+	378	187931237	-	FTM_0412	-	hypothetical protein
325	 38.26	+1	459757..462438	+	893	187931238	aceE	FTM_0413	-	pyruvate dehydrogenase E1 component, homodimeric type
326	 37.69	+1	462456..464039	+	527	187931239	aceF	FTM_0414	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
327	 39.37	+1	464053..465477	+	474	187931240	lpdA	FTM_0415	-	pyruvate dehydrogenase complex, E3 component, dihydrolipoamide dehydrogenase
328	 29.48	0	466696..467343	+	215	187931241	-	FTM_0416	-	MutT/nudix family protein
329	 32.49	0	467361..467714	+	117	187931242	-	FTM_0417	-	arsenate reductase
330	 37.20	+1	467738..468073	-	111	187931243	-	FTM_0418	-	lipoprotein, putative
331	 33.87	0	468573..469886	-	437	187931244	-	FTM_0419	-	permease
332	 33.77	0	469953..471539	-	528	187931245	-	FTM_0420	-	aminotransferase
333	 31.66	0	474447..475700	-	417	187931246	-	FTM_0423	-	OmpA family protein
334	 34.19	0	475892..476356	+	154	187931247	fkpB	FTM_0424	-	fkbp-type 16 kda peptidyl-prolyl cis-transisomerase
335	 37.10	+1	476337..477293	+	318	187931248	lytB	FTM_0425	-	1-hydroxy-2-methyl-2-(E)-butenyl 4- diphosphate reductase
336	 35.26	0	477295..477657	+	120	187931249	aroH	FTM_0426	-	chorismate mutase
337	 31.87	0	477666..478487	+	273	187931250	pssA	FTM_0427	-	phosphatidylserine synthase
338	 41.78	+2	478492..478716	-	74	187931251	-	FTM_0428	-	lipoprotein, putative
339	 34.89	0	478869..479576	+	235	187931252	tolQ	FTM_0429	-	group A colicin translocation; tolQ protein
340	 34.69	0	479592..480032	+	146	187931253	tolR	FTM_0430	-	group A colicin translocation; tolR protein
341	 33.56	0	480019..480906	+	295	187931254	tolA	FTM_0431	-	group A colicin translocation; tolA protein
342	 32.26	0	480918..482225	+	435	187931255	tolB	FTM_0432	-	group A colicin translocation; tolB protein
343	 35.37	0	482235..482480	+	81	187931256	-	FTM_0433	-	lipoprotein, putative
344	 34.46	0	482499..483122	+	207	187931257	pal	FTM_0434	-	peptidoglycan-associated lipoprotein
345	 35.55	0	484653..485375	+	240	187931258	-	FTM_0436	-	short-chain dehydrogenase/reductase SDR
346	 34.38	0	485438..485629	+	63	187931259	-	FTM_0437	-	hypothetical protein
347	 34.27	0	485610..487109	+	499	187931260	-	FTM_0438	-	deoxyribodipyrimidine photolyase
348	 30.54	0	488896..489825	+	309	187931261	-	FTM_0440	-	bile acid symporter family protein
349	 32.28	0	490519..491277	+	252	187931262	-	FTM_0442	-	domain of unknown function, putative
32.84	MEAN

3.41	STD DEV
