IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

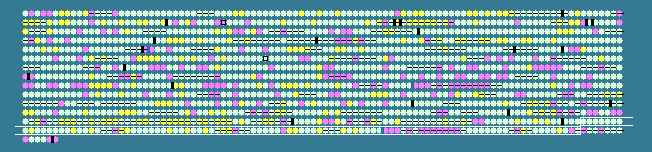

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1294	 33.85	0	1709725..1711269	+	514	187932206	-	FTM_1599	-	acid phosphatase
1295	 35.24	0	1715402..1716238	-	278	187932207	uspA	FTM_1604	-	universal stress protein
1296	 31.47	0	1716314..1719055	-	913	187932208	-	FTM_1605	-	DNA/RNA helicase
1297	 33.33	0	1719039..1719818	-	259	187932209	-	FTM_1606	-	hypothetical protein
1298	 34.57	0	1719891..1720454	-	187	187932210	-	FTM_1607	-	predicted hydrolase of the HAD superfamily
1299	 33.79	0	1721277..1722149	-	290	187932211	-	FTM_1609	-	SAM-dependent methyltransferase
1300	 34.00	0	1722142..1723497	-	451	187932212	murC	FTM_1610	-	UDP-N-acetylmuramate-alanine ligase
1301	 35.14	0	1723564..1724337	-	257	187932213	-	FTM_1611	-	shikimate 5-dehydrogenase
1302	 39.22	+1	1724464..1724922	+	152	187932214	-	FTM_1612	-	hypothetical protein
1303	 36.30	+1	1725014..1725148	+	44	187932215	rpmH	FTM_1613	-	50S ribosomal protein L34
1304	 31.36	0	1725138..1725491	+	117	187932216	rnpA	FTM_1614	-	ribonuclease P protein component
1305	 34.14	0	1725467..1725715	+	82	187932217	-	FTM_1615	-	hypothetical protein
1306	 33.94	0	1725724..1727379	+	551	187932218	-	FTM_1616	-	hypothetical membrane protein
1307	 33.00	0	1727386..1728285	+	299	187932219	-	FTM_1617	-	LPS fatty acid acyltransferase
1308	 33.33	0	1728346..1729269	+	307	187932220	-	FTM_1618	-	LPS fatty acid acyltransferase
1309	 36.52	+1	1729281..1729688	+	135	187932221	pilE	FTM_1619	-	Type IV pili, pilus assembly protein
1310	 34.56	0	1729728..1730297	+	189	187932222	efp	FTM_1620	-	translation elongation factor P
1311	 33.89	0	1730300..1730836	+	178	187932223	orn	FTM_1621	-	oligoribonuclease (3'->5' exoribonuclease)
1312	 37.21	+1	1734512..1737145	-	877	187932224	ppdK	FTM_1625	-	phosphoenolpyruvate synthase/pyruvate phosphate dikinase
1313	 33.29	0	1737972..1740215	-	747	187932225	feoB	FTM_1626	-	ferrous iron transport protein B
1314	 32.17	0	1741641..1743794	-	717	187932226	priA	FTM_1628	-	primosomal protein N'
1315	 30.56	0	1743791..1744366	-	191	187932227	-	FTM_1629	-	nicotinamide ribonucleoside (NR) uptake permease (PnuC) family protein
1316	 29.29	-1	1744385..1745572	-	395	187932228	rbn	FTM_1630	-	tRNA processing ribonuclease BN
1317	 39.70	+2	1745579..1746175	+	198	187932229	wrbA	FTM_1631	-	trp repressor binding protein
1318	 38.49	+1	1746186..1746650	+	154	187932230	-	FTM_1632	-	outer membrane lipoprotein
1319	 32.35	0	1746771..1747994	+	407	187932231	-	FTM_1633	-	major facilitator superfamily (MFS) transport protein
1320	 34.53	0	1748069..1748986	+	305	187932232	-	FTM_1634	-	manganese/Zinc/Iron chelate uptake transporter family protein
1321	 32.30	0	1748987..1749664	+	225	187932233	-	FTM_1635	-	ATP-binding cassette (ABC) superfamily protein
1322	 33.10	0	1749606..1750448	+	280	187932234	-	FTM_1636	-	manganese/zinc/iron chelate uptake transporter (MZT) family protein
1323	 32.21	0	1751270..1751803	-	177	187932235	hpt	FTM_1638	-	hypoxanthine-guanine phosphoribosyltransferase
1324	 35.35	0	1751807..1753093	-	428	187932236	purA	FTM_1639	-	adenylosuccinate synthetase
1325	 36.69	+1	1753270..1754817	+	515	187932237	purH	FTM_1640	-	AICAR transformylase/IMP cyclohydrolase
1326	 32.56	0	1758946..1759464	-	172	187932238	blc	FTM_1643	-	outer membrane lipoprotein blc
1327	 30.78	0	1759550..1760527	+	325	187932239	holA	FTM_1644	-	DNA polymerase III, delta subunit
1328	 38.15	+1	1760647..1761684	+	345	187932240	glnA	FTM_1645	-	glutamine synthetase, catalytic domain
1329	 30.94	0	1764285..1764827	+	180	187932241	-	FTM_1648	-	hypothetical protein
1330	 35.47	0	1765212..1766942	-	576	187932242	lysU	FTM_1649	-	lysyl-tRNA synthetase
1331	 38.75	+1	1767075..1768052	-	325	187932243	prfB	FTM_1650	-	peptide chain release factor 2
1332	 32.85	0	1768325..1769965	+	546	187932244	dnaX	FTM_1651	-	DNA polymerase III subunit gamma/tau
1333	 34.85	0	1769980..1770837	-	285	187932245	lpxC	FTM_1652	-	UDP-3-0-acyl N-acetylglucosamine deacetylase
1334	 38.92	+1	1770863..1772008	-	381	187932246	ftsZ	FTM_1653	-	cell division protein FtsZ
1335	 36.34	+1	1772052..1773314	-	420	187932247	ftsA	FTM_1654	-	cell division protein FtsA
1336	 29.09	-1	1773416..1774099	-	227	187932248	ftsQ	FTM_1655	-	cell division protein FtsQ
1337	 35.28	0	1774991..1775452	-	153	187932249	-	FTM_1657	-	zinc-binding protein
1338	 36.21	0	1775600..1777270	+	556	187932250	rpsA	FTM_1658	-	30S ribosomal protein S1
1339	 30.39	0	1777387..1777929	+	180	187932251	-	FTM_1659	-	Sua5/YciO/YrdC family protein
1340	 29.42	-1	1778027..1778563	+	178	187932252	-	FTM_1660	-	hypothetical protein
1341	 30.19	0	1778960..1779850	-	296	187932253	plsC	FTM_1661	-	1-acylglycerol-3-phosphate acyltransferase
1342	 30.20	0	1782121..1783590	+	489	187932254	rimK	FTM_1663	-	glutathione synthase/ribosomal protein S6 modification enzyme
1343	 34.23	0	1785177..1785959	+	260	187932255	-	FTM_1666	-	ABC-type nitrate/sulfonate/bicarbonate transport system, ATPase component
1344	 28.77	-1	1785953..1786522	-	189	187932256	-	FTM_1667	-	YggT family membrane protein
1345	 39.17	+1	1789187..1793059	-	1290	187932257	purL	FTM_1671	-	phosphoribosylformylglycinamidine synthase
1346	 36.89	+1	1793059..1794549	-	496	187932258	purF	FTM_1672	-	amidophosphoribosyltransferase
1347	 31.78	0	1795999..1796640	-	213	187932259	-	FTM_1674	-	phosphopantetheinyl transferase
1348	 35.95	0	1796649..1798178	-	509	187932260	tolC	FTM_1675	-	outer membrane efflux protein, TolC
1349	 33.66	0	1798187..1798807	-	206	187932261	pcm	FTM_1676	-	protein-L-isoaspartate O-methyltransferase
1350	 37.16	+1	1799127..1800458	+	443	187932262	-	FTM_1677	-	peptidase U32 family
1351	 36.29	+1	1800499..1801680	-	393	187932263	-	FTM_1678	-	drug:H+ antiporter-1 (DHA1) family protein
1352	 35.15	0	1801855..1803282	+	475	187932264	nhaD	FTM_1679	-	Na+:H+ antiporter, NhaD
1353	 33.17	0	1804935..1806809	-	624	187932265	-	FTM_1681	-	amino acid-polyamine-organocation (APC) superfamily protein
1354	 37.31	+1	1806816..1807820	-	334	187932266	-	FTM_1682	-	GTP-binding protein Obg/CgtA family
1355	 32.00	0	1807896..1809092	-	398	187932267	tyrP	FTM_1683	-	tyrosine permease
1356	 38.76	+1	1809539..1810183	-	214	187932268	-	FTM_1684	-	outer membrane associated protein
1357	 33.04	0	1810963..1813644	-	893	187932269	kdpD	FTM_1686	-	two component regulator, sensor histidine kinase KdpD
1358	 33.51	0	1813748..1814302	-	184	187932270	kdpC	FTM_1687	-	potassium-transporting ATPase C chain
1359	 36.13	0	1814319..1816358	-	679	187932271	kdpB	FTM_1688	-	potassium-transporting ATPase B chain
1360	 33.33	0	1816368..1818089	-	573	187932272	kdpA	FTM_1689	-	potassium-ATPase uptake protein, A chain
1361	 27.20	-1	1825027..1827489	+	820	187932273	pdpA2	FTM_1696	-	hypothetical protein
1362	 26.33	-1	1827494..1830775	+	1093	187932274	pdpB2	FTM_1697	-	hypothetical protein
1363	 23.81	-2	1830765..1831142	+	125	187932275	-	FTM_1698	-	lipoprotein, putative
1364	 30.30	0	1831155..1831649	+	164	187932276	-	FTM_1699	-	hypothetical protein
1365	 23.96	-2	1831654..1833318	+	554	187932277	-	FTM_1700	-	hypothetical protein
1366	 33.52	0	1833386..1833907	+	173	187932278	-	FTM_1701	-	hypothetical protein
1367	 26.28	-1	1833920..1835350	+	476	187932279	-	FTM_1702	-	hypothetical protein
1368	 28.16	-1	1835363..1835980	+	205	187932280	-	FTM_1703	-	hypothetical protein
1369	 26.13	-1	1836002..1837153	+	383	187932281	-	FTM_1704	-	hypothetical protein
1370	 23.39	-2	1837119..1837892	+	257	187932282	-	FTM_1705	-	hypothetical protein
1371	 26.51	-1	1837932..1841918	+	1328	187932283	pdpC2	FTM_1706	-	PdpC
1372	 24.83	-2	1841936..1842511	+	191	187932284	-	FTM_1707	-	hypothetical protein
1373	 29.32	-1	1842518..1843714	-	398	187932285	iglD2	FTM_1708	-	intracellular growth locus protein D
1374	 34.76	0	1843735..1844364	-	209	187932286	iglC2	FTM_1709	-	intracellular growth locus protein C
1375	 31.23	0	1844381..1845901	-	506	187932287	iglB2	FTM_1710	-	intracellular growth locus protein B
1376	 31.71	0	1845915..1846469	-	184	187932288	iglA2	FTM_1711	-	intracellular growth locus protein A
1377	 30.04	0	1846550..1850281	-	1243	187932289	pdpD2	FTM_1712	-	hypothetical protein
1378	 34.49	0	1853681..1854889	+	402	187932290	-	FTM_1716	-	metabolite:H+ symporter (MHS) family protein
1379	 35.08	0	1855064..1856842	+	592	187932291	aspS	FTM_1717	-	aspartyl-tRNA synthetase
1380	 35.81	0	1858984..1861080	-	698	187932292	pta	FTM_1720	-	phosphate acetyltransferase
1381	 33.94	0	1861090..1862244	-	384	187932293	ackA	FTM_1721	-	propionate kinase 2 / acetate kinase A
1382	 34.38	0	1862350..1862826	-	158	187932294	ssb	FTM_1722	-	single-strand DNA binding protein
1383	 28.26	-1	1863000..1863452	-	150	187932295	recX	FTM_1723	-	regulatory protein RecX, inhibitor of RecA
1384	 38.33	+1	1863439..1864518	-	359	187932296	recA	FTM_1724	-	recombinase A protein RecA
1385	 35.78	0	1864540..1864989	-	149	187932297	secB1	FTM_1725	-	preprotein translocase, subunit B
1386	 30.26	0	1865016..1865438	-	140	187932298	-	FTM_1726	-	rhodanese-related sulfurtransferase
1387	 36.30	+1	1865574..1866113	-	179	187932299	-	FTM_1727	-	outer membrane protein
1388	 35.06	0	1866203..1867126	-	307	187932300	-	FTM_1728	-	serine peptidase, S49 family
1389	 35.51	0	1867657..1869354	+	565	187932301	idpC	FTM_1730	-	indolepyruvate decarboxylase
1390	 38.21	+1	1871639..1873318	-	559	187932302	-	FTM_1733	-	(putative) drug resistance ATPase-1 (Drug RA1) family protein
1391	 30.11	0	1873531..1874772	+	413	187932303	-	FTM_1734	-	metabolite:H+ symporter (MHS) family protein
1392	 21.43	-2	1875161..1875286	-	41	187932304	-	FTM_1735	-	hypothetical protein
1393	 30.78	0	1875332..1876312	+	326	187932305	-	FTM_1736	-	hypothetical protein
32.84	MEAN

3.41	STD DEV
