IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

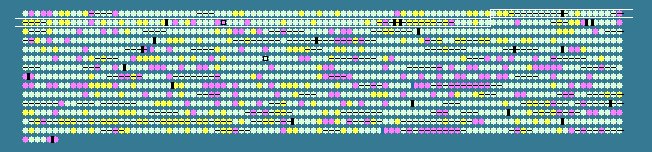

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
79	 35.99	0	105790..106278	+	162	187930992	nuoE	FTM_0098	-	NADH dehydrogenase I, E subunit
80	 40.39	+2	106285..107559	+	424	187930993	nuoF	FTM_0099	-	NADH dehydrogenase I, F subunit
81	 36.46	+1	107577..109943	+	788	187930994	nuoG	FTM_0100	-	NADH dehydrogenase I, G subunit
82	 36.50	+1	109945..110955	+	336	187930995	nuoH	FTM_0101	-	NADH dehydrogenase I, H subunit
83	 35.17	0	110969..111457	+	162	187930996	nuoI	FTM_0102	-	NADH dehydrogenase I, I subunit
84	 34.98	0	111462..112067	+	201	187930997	nuoJ	FTM_0103	-	NADH dehydrogenase I, J subunit
85	 32.08	0	112060..112377	+	105	187930998	nuoK	FTM_0104	-	NADH dehydrogenase I, K subunit
86	 35.02	0	112387..114396	+	669	187930999	nuoL	FTM_0105	-	NADH dehydrogenase I, L subunit
87	 36.29	+1	114422..116011	+	529	187931000	nuoM	FTM_0106	-	NADH dehydrogenase I, M subunit
88	 35.40	0	116027..117478	+	483	187931001	nuoN	FTM_0107	-	NADH dehydrogenase I, N subunit
89	 30.77	0	117554..117748	+	64	187931002	-	FTM_0108	-	hypothetical protein
90	 35.75	0	119311..120345	+	344	187931003	hemE	FTM_0110	-	uroporphyrinogen decarboxylase
91	 35.32	0	120571..121023	+	150	187931004	-	FTM_0112	-	protein Lpl2691
92	 34.49	0	121041..122510	+	489	187931005	nusA	FTM_0113	-	transcription termination factor NusA
93	 38.13	+1	122549..125089	+	846	187931006	infB	FTM_0114	-	translation initiation factor IF-2
94	 32.41	0	125092..125523	+	143	187931007	rbfA	FTM_0115	-	ribosome-binding factor A
95	 34.76	0	125531..126796	+	421	187931008	hisS	FTM_0116	-	histidyl-tRNA synthetase
96	 33.95	0	126803..128101	+	432	187931009	-	FTM_0117	-	major facilitator superfamily
97	 29.59	0	128104..129171	+	355	187931010	-	FTM_0118	-	ATPase
98	 33.98	0	129164..130093	+	309	187931011	rluC	FTM_0119	-	ribosomal large subunit pseudouridine synthase C
99	 35.25	0	130095..131399	-	434	187931012	-	FTM_0120	-	major facilitator superfamily
100	 27.08	-1	131476..131907	+	143	187931013	-	FTM_0121	-	hypothetical membrane protein
101	 36.99	+1	131960..132751	+	263	187931014	atpB	FTM_0122	-	ATP synthase, F0 sector, subunit a
102	 41.18	+2	132802..133107	+	101	187931015	atpE	FTM_0123	-	ATP synthase, F0 sector, subunit c
103	 37.79	+1	133153..133623	+	156	187931016	atpF	FTM_0124	-	ATP synthase, F0 sector, subunit b
104	 32.57	0	133643..134167	+	174	187931017	atpH	FTM_0125	-	ATP synthase, F1 sector, subunit delta
105	 38.46	+1	134186..135727	+	513	187931018	atpA	FTM_0126	-	ATP synthase, F1 sector, subunit alpha
106	 35.12	0	135742..136638	+	298	187931019	atpG	FTM_0127	-	ATP synthase, F1 sector, subunit gamma
107	 38.71	+1	136648..138024	+	458	187931020	atpD	FTM_0128	-	ATP synthase, F1 sector, subunit beta
108	 37.90	+1	138037..138474	+	145	187931021	atpC	FTM_0129	-	ATP synthase, F1 sector, subunit epsilon
109	 32.10	0	138685..141528	+	947	187931022	-	FTM_0130	-	hypothetical protein
110	 35.15	0	141545..141874	-	109	187931023	-	FTM_0131	-	glutaredoxin-related protein
111	 33.85	0	142010..142588	+	192	187931024	sodB	FTM_0132	-	iron/manganese superoxide dismutase family protein
112	 28.57	-1	142600..142788	+	62	187931025	-	FTM_0133	-	hypothetical protein
113	 32.94	0	142793..144058	-	421	187931026	ampG	FTM_0134	-	peptide-acetyl-coenzyme A transporter (PAT) family protein
114	 36.35	+1	144148..145407	-	419	187931027	gltA	FTM_0135	-	citrate synthase I
115	 35.02	0	145665..146138	+	157	187931028	sdhC	FTM_0136	-	succinate dehydrogenase, cytochrome b556 subunit
116	 34.96	0	146114..146482	+	122	187931029	sdhD	FTM_0137	-	succinate dehydrogenase, hydrophobic membrane anchor protein
117	 40.13	+2	146495..148288	+	597	187931030	sdhA	FTM_0138	-	succinate dehydrogenase, flavoprotein subunit
118	 36.32	+1	148306..149007	+	233	187931031	sdhB	FTM_0139	-	succinate dehydrogenase iron-sulfur protein
119	 36.21	0	149037..151850	+	937	187931032	sucA	FTM_0140	-	2-oxoglutarate dehydrogenase, E1 component
120	 37.89	+1	151876..153345	+	489	187931033	sucB	FTM_0141	-	2-oxoglutarate dehydrogenase, E2 component, dihydrolipoamide succinyltransferase
121	 39.02	+1	153385..153912	+	175	187931034	apt	FTM_0142	-	adenine phosphoribosyltransferase
122	 34.76	0	153923..155254	+	443	187931035	mrsA	FTM_0143	-	phosphoglucosamine mutase
123	 34.25	0	155257..156018	+	253	187931036	tpiA	FTM_0144	-	triosephosphate isomerase
124	 38.98	+1	156006..156359	+	117	187931037	secG	FTM_0145	-	preprotein translocase, subunit G, membrane protein
125	 30.53	0	158036..159178	-	380	187931038	hemN	FTM_0149	-	coproporphyrinogen III oxidase, anaerobic
126	 27.25	-1	159183..159560	-	125	187931039	-	FTM_0150	-	GtrA-like protein
127	 31.40	0	159630..160508	+	292	187931040	-	FTM_0151	-	iron-dependent peroxidase
128	 37.31	+1	160613..163426	+	937	187931041	acnA	FTM_0152	-	aconitate hydratase 1
129	 25.06	-2	166432..166878	-	148	187931042	-	FTM_0155	-	hypothetical protein
130	 32.43	0	169467..170348	+	293	187931043	-	FTM_0158	-	NAD dependent epimerase/dehydratase family
131	 31.65	0	170345..171772	-	475	187931044	-	FTM_0159	-	two-component regulator, sensor histidine kinase
132	 31.23	0	174285..174806	+	173	187931045	-	FTM_0162	-	hypothetical protein
133	 27.42	-1	177103..178116	+	337	187931046	-	FTM_0164	-	peptidase, U61 family
134	 27.66	-1	179561..180142	-	193	187931047	-	FTM_0165	-	transposase, IS4 family protein
135	 34.58	0	180384..181664	-	426	187931048	-	FTM_0166	-	major facilitator superfamily
136	 35.87	0	181784..184897	-	1037	187931049	-	FTM_0167	-	transporter, AcrB/AcrD/AcrF family
137	 33.62	0	184897..186270	-	457	187931050	-	FTM_0168	-	membrane fusion protein
138	 29.07	-1	186283..186774	-	163	187931051	dsbB	FTM_0169	-	disulfide bond formation protein
139	 32.59	0	186814..187896	-	360	187931052	cca	FTM_0170	-	CCA-adding enzyme
140	 34.54	0	188001..189830	+	609	187931053	msbA	FTM_0171	-	lipid A export permease/ATP-binding protein MsbA
141	 32.61	0	189836..190804	+	322	187931054	lpxK	FTM_0172	-	tetraacyldisaccharide 4'-kinase
142	 35.04	0	190900..193593	+	897	187931055	polA	FTM_0173	-	DNA polymerase I
143	 34.62	0	193613..194389	+	258	187931056	-	FTM_0174	-	type III pantothenate kinase 1
144	 36.79	+1	194394..195638	+	414	187931057	deoB	FTM_0175	-	phosphopentomutase
145	 33.60	0	195601..196362	+	253	187931058	deoC	FTM_0176	-	deoxyribose-phosphate aldolase
146	 30.58	0	196352..197551	+	399	187931059	nupC1	FTM_0177	-	nucleoside permease NupC
147	 30.67	0	197570..198772	+	400	187931060	nupC	FTM_0178	-	nucleoside permease NupC
148	 32.22	0	198785..199414	+	209	187931061	tmk	FTM_0179	-	thymidylate kinase
149	 36.57	+1	199476..201053	+	525	187931062	prfC	FTM_0180	-	peptide chain release factor 3
150	 33.64	0	201128..202447	+	439	187931063	fimV	FTM_0181	-	type IV pili, pilus assembly protein
151	 35.14	0	202480..203475	+	331	187931064	ftsY	FTM_0182	-	signal recognition particle-docking protein FtsY
152	 33.47	0	203566..205788	+	740	187931065	uvrD	FTM_0183	-	DNA helicase II
153	 34.54	0	205907..207475	+	522	187931066	-	FTM_0184	-	ABC-type oligopeptide transport system, periplasmic component
154	 35.81	0	209380..210348	+	322	187931067	oppD	FTM_0187	-	peptide/opine/nickel uptake transporter (PepT) family protein
155	 30.92	0	211326..212528	-	400	187931068	-	FTM_0189	-	major facilitator superfamily
156	 33.85	0	212662..213243	+	193	187931069	-	FTM_0190	-	hypothetical protein
157	 31.81	0	213342..214655	+	437	187931070	-	FTM_0191	-	sugar transporter, MFS superfamily
158	 38.04	+1	214712..216220	+	502	187931071	glpK	FTM_0192	-	glycerol kinase
159	 33.99	0	217283..218815	+	510	187931072	glpD	FTM_0193	-	glycerol-3-phosphate dehydrogenase
160	 38.69	+1	218825..219589	+	254	187931073	glpF	FTM_0194	-	glycerol uptake facilitator protein
161	 27.73	-1	219593..220306	+	237	187931074	-	FTM_0195	-	hypothetical membrane protein
162	 34.54	0	220284..220781	+	165	187931075	-	FTM_0196	-	small conductance mechanosensitive ion channel (MscS) family protein
163	 42.03	+2	222659..223843	+	394	187931076	tufA	FTM_0201	-	translation elongation factor Tu
164	 34.18	0	224036..224506	+	156	187931077	secE	FTM_0203	-	preprotein translocase, subunit E, membrane protein
165	 38.76	+1	224522..225055	+	177	187931078	nusG	FTM_0204	-	transcription termination/antitermination factor NusG
166	 38.16	+1	225125..225559	+	144	187931079	rplK	FTM_0205	-	50S ribosomal protein L11
167	 37.93	+1	225562..226257	+	231	187931080	rplA	FTM_0206	-	50S ribosomal protein L1
168	 39.31	+1	226427..226945	+	172	187931081	rplJ	FTM_0207	-	50S ribosomal protein L10
169	 38.85	+1	227008..227388	+	126	187931082	rplL	FTM_0208	-	ribosomal protein L7/L12
170	 35.37	0	227542..231618	+	1358	187931083	rpoB	FTM_0209	-	DNA-directed RNA polymerase, beta subunit
171	 36.72	+1	231680..235933	+	1417	187931084	rpoC	FTM_0210	-	DNA-directed RNA polymerase, beta' subunit
172	 29.11	-1	236036..236272	+	78	187931085	-	FTM_0211	-	hypothetical membrane protein
173	 35.61	0	236272..237282	+	336	187931086	gcp	FTM_0212	-	O-sialoglycoprotein endopeptidase
174	 34.02	0	237396..238562	+	388	187931087	-	FTM_0213	-	fatty acid desaturase
175	 35.83	0	238774..239934	-	386	187931088	metK	FTM_0214	-	S-adenosylmethionine synthetase
176	 38.55	+1	240228..240476	+	82	187931089	rpsP	FTM_0215	-	30S ribosomal protein S16
177	 32.16	0	240519..241028	+	169	187931090	rimM	FTM_0216	-	16S rRNA processing protein RimM
178	 35.84	0	241431..242189	+	252	187931091	trmD	FTM_0217	-	tRNA (guanine-N1)-methyltransferase
32.84	MEAN

3.41	STD DEV
