IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

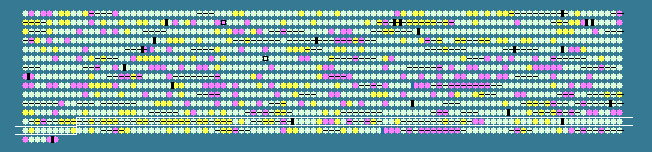

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1210	 35.96	0	1628200..1628313	-	37	187932122	rpmJ	FTM_1506	-	50S ribosomal protein L36
1211	 34.01	0	1628337..1629662	-	441	187932123	secY	FTM_1507	-	preprotein translocase, subunit Y, membrane protein
1212	 37.50	+1	1629673..1630104	-	143	187932124	rplO	FTM_1508	-	50S ribosomal protein L15
1213	 34.95	0	1630111..1630296	-	61	187932125	rpmD	FTM_1509	-	50S ribosomal protein L30
1214	 38.72	+1	1630303..1630803	-	166	187932126	rpsE	FTM_1510	-	30S ribosomal protein S5
1215	 36.44	+1	1630831..1631184	-	117	187932127	rplR	FTM_1511	-	50S ribosomal protein L18
1216	 38.18	+1	1631207..1631743	-	178	187932128	rplF	FTM_1512	-	50S ribosomal protein L6
1217	 36.09	0	1631762..1632160	-	132	187932129	rpsH	FTM_1513	-	30S ribosomal protein S8
1218	 34.31	0	1632177..1632482	-	101	187932130	rpsN	FTM_1514	-	30S ribosomal protein S14
1219	 33.15	0	1632501..1633040	-	179	187932131	rplE	FTM_1515	-	50S ribosomal protein L5
1220	 36.79	+1	1633052..1633369	-	105	187932132	rplX	FTM_1516	-	50S ribosomal protein L24
1221	 39.84	+2	1633391..1633759	-	122	187932133	rplN	FTM_1517	-	50S ribosomal protein L14
1222	 30.56	0	1633850..1634101	-	83	187932134	rpsQ	FTM_1518	-	30S ribosomal protein S17
1223	 29.85	0	1634114..1634314	-	66	187932135	rpmC	FTM_1519	-	50S ribosomal protein L29
1224	 42.51	+2	1634314..1634727	-	137	187932136	rplP	FTM_1520	-	50S ribosomal protein L16
1225	 37.80	+1	1634727..1635398	-	223	187932137	rpsC	FTM_1521	-	30S ribosomal protein S3
1226	 36.61	+1	1635413..1635748	-	111	187932138	rplV	FTM_1522	-	50S ribosomal protein L22
1227	 36.56	+1	1635764..1636042	-	92	187932139	rpsS	FTM_1523	-	30S ribosomal protein S19
1228	 39.52	+1	1636057..1636881	-	274	187932140	rplB	FTM_1524	-	50S ribosomal protein L2
1229	 35.67	0	1636903..1637202	-	99	187932141	rplW	FTM_1525	-	50S ribosomal protein L23
1230	 37.66	+1	1637199..1637822	-	207	187932142	rplD	FTM_1526	-	50S ribosomal protein L4
1231	 39.49	+1	1637855..1638487	-	210	187932143	rplC	FTM_1527	-	50S ribosomal protein L3
1232	 33.33	0	1638591..1638908	-	105	187932144	rpsJ	FTM_1528	-	30S ribosomal protein S10
1233	 40.57	+2	1638929..1641043	-	704	187932145	fusA	FTM_1529	-	translation elongation factor G
1234	 39.24	+1	1641058..1641531	-	157	187932146	rpsG	FTM_1530	-	30S ribosomal protein S7
1235	 42.93	+2	1641570..1641944	-	124	187932147	rpsL	FTM_1531	-	30S ribosomal protein S12
1236	 34.84	0	1642079..1642675	-	198	187932148	pgsA	FTM_1532	-	phosphatidylglycerophosphate synthetase
1237	 37.36	+1	1642679..1643125	-	148	187932149	dut	FTM_1533	-	dUTP pyrophosphatase (Deoxyuridine 5'- triphosphate nucleotidohydrolase
1238	 33.08	0	1643135..1643929	-	264	187932150	cdsA	FTM_1534	-	phosphatidate cytidylyltransferase
1239	 35.55	0	1643943..1644665	-	240	187932151	uppS	FTM_1535	-	undecaprenyl diphosphate synthase
1240	 34.95	0	1644749..1645306	-	185	187932152	frr	FTM_1536	-	ribosome recycling factor
1241	 37.07	+1	1645335..1646084	-	249	187932153	pyrH	FTM_1537	-	uridylate kinase
1242	 38.85	+1	1646088..1646957	-	289	187932154	tsf	FTM_1538	-	translation elongation factor EF-Ts
1243	 35.42	0	1646979..1647698	-	239	187932155	rpsB	FTM_1539	-	30S ribosomal protein S2
1244	 27.62	-1	1647890..1648432	+	180	187932156	folA	FTM_1540	-	dihydrofolate reductase
1245	 33.98	0	1648514..1649437	+	307	187932157	-	FTM_1541	-	hypothetical protein
1246	 30.34	0	1652284..1653252	-	322	187932158	-	FTM_1544	-	hypothetical protein
1247	 35.54	0	1653252..1654658	-	468	187932159	gltX	FTM_1545	-	glutamyl-tRNA synthetase
1248	 35.78	0	1654788..1656179	-	463	187932160	fumC	FTM_1546	-	fumarate hydratase, class II
1249	 32.87	0	1656868..1657521	+	217	187932161	nfnB	FTM_1548	-	dihydropteridine reductase
1250	 36.61	+1	1657548..1658705	+	385	187932162	-	FTM_1549	-	L-lactate dehydrogenase
1251	 27.98	-1	1658702..1659037	-	111	187932163	-	FTM_1550	-	hypothetical membrane protein
1252	 28.23	-1	1659221..1661023	-	600	187932164	-	FTM_1551	-	hypothetical protein
1253	 36.67	+1	1661052..1663811	-	919	187932165	valS	FTM_1552	-	valyl-tRNA synthetase
1254	 31.75	0	1663943..1664383	-	146	187932166	holC	FTM_1553	-	DNA polymerase III, chi subunit
1255	 28.57	-1	1664414..1664896	-	160	187932167	-	FTM_1554	-	hypothetical membrane protein
1256	 35.28	0	1664904..1665572	-	222	187932168	pcp	FTM_1555	-	pyrrolidone carboxylylate peptidase
1257	 32.10	0	1665579..1667204	-	541	187932169	-	FTM_1556	-	hypothetical protein
1258	 29.26	-1	1667194..1668027	-	277	187932170	-	FTM_1557	-	protein of unknown function with TPR repeat region and von Willebrand factor type A domain
1259	 36.54	+1	1668018..1669016	-	332	187932171	-	FTM_1558	-	hypothetical membrane protein with von Willebrand factor type A domain
1260	 34.23	0	1669018..1670019	-	333	187932172	-	FTM_1559	-	protein of unknown function containing a von Willebrand factor type A (vWA) domain
1261	 32.29	0	1670016..1670492	-	158	187932173	-	FTM_1560	-	hypothetical protein
1262	 32.57	0	1670482..1671393	-	303	187932174	-	FTM_1561	-	hypothetical protein
1263	 37.62	+1	1671406..1672362	-	318	187932175	-	FTM_1562	-	MoxR-like ATPase
1264	 30.80	0	1672508..1672942	+	144	187932176	-	FTM_1563	-	lipoprotein, putative
1265	 34.27	0	1672949..1673800	+	283	187932177	pdxY	FTM_1564	-	pyridoxal kinase
1266	 31.03	0	1673800..1674495	+	231	187932178	-	FTM_1565	-	hypothetical protein
1267	 35.73	0	1674570..1675613	+	347	187932179	lpxD2	FTM_1566	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1268	 30.51	0	1675758..1676606	-	282	187932180	cyoE	FTM_1567	-	heme O synthase
1269	 35.44	0	1676637..1676969	-	110	187932181	cyoD	FTM_1568	-	cytochrome bo terminal oxidase subunit IV
1270	 34.16	0	1676971..1677573	-	200	187932182	cyoC	FTM_1569	-	cytochrome bo terminal oxidase subunit III
1271	 37.52	+1	1677570..1679600	-	676	187932183	cyoB	FTM_1570	-	cytochrome bo terminal oxidase subunit I
1272	 35.77	0	1679639..1680541	-	300	187932184	cyoA	FTM_1571	-	cytochrome bo terminal oxidase subunit II
1273	 33.11	0	1680901..1682268	+	455	187932185	-	FTM_1572	-	major facilitator superfamily (MFS) transport protein
1274	 37.04	+1	1682722..1684476	+	584	187932186	cydA	FTM_1573	-	cytochrome bd-I terminal oxidase subunit I
1275	 35.68	0	1684487..1685680	+	397	187932187	cydB	FTM_1574	-	cytochrome bd-I terminal oxidase subunit II
1276	 28.76	-1	1685913..1686611	+	232	187932188	-	FTM_1575	-	polar amino acid uptake transporter
1277	 28.17	-1	1690304..1691272	-	322	187932189	-	FTM_1578	-	hypothetical protein
1278	 33.06	0	1691462..1693318	+	618	187932190	-	FTM_1579	-	ribonuclease II family protein
1279	 33.49	0	1693664..1694317	+	217	187932191	-	FTM_1580	-	acarboxylesterase/phospholipase family protein
1280	 34.55	0	1694314..1695216	+	300	187932192	hemC	FTM_1581	-	hydroxymethylbilane synthase (porphobilinogen deaminase)
1281	 32.06	0	1695217..1695609	+	130	187932193	crcB	FTM_1582	-	CrcB family protein
1282	 32.60	0	1695606..1696013	+	135	187932194	-	FTM_1583	-	hypothetical membrane protein
1283	 36.84	+1	1696156..1696725	+	189	187932195	-	FTM_1584	-	hypothetical membrane protein
1284	 32.76	0	1696722..1696895	-	57	187932196	-	FTM_1585	-	hypothetical protein
1285	 34.11	0	1697025..1698824	+	599	187932197	-	FTM_1586	-	ABC-type anion transport system, duplicated permease component
1286	 37.13	+1	1698843..1700159	+	438	187932198	-	FTM_1587	-	ABC transporter, ATP-binding protein
1287	 32.43	0	1701872..1703758	+	628	187932199	-	FTM_1589	-	monovalent cation:proton antiporter
1288	 36.85	+1	1703743..1704282	+	179	187932200	paaY	FTM_1590	-	carbonic anhydrase/acetyltransferase, isoleucine patch superfamily
1289	 31.47	0	1704233..1704877	+	214	187932201	lolB	FTM_1591	-	outer membrane lipoprotein LolB
1290	 31.16	0	1704865..1705692	+	275	187932202	ispE	FTM_1592	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
1291	 30.23	0	1707223..1707738	-	171	187932203	-	FTM_1596	-	cytochrome b561 family protein
1292	 35.74	0	1707819..1708814	-	331	187932204	-	FTM_1597	-	inorganic phosphate transporter (PiT) family protein
1293	 30.44	0	1708832..1709488	-	218	187932205	-	FTM_1598	-	hypothetical protein
1294	 33.85	0	1709725..1711269	+	514	187932206	-	FTM_1599	-	acid phosphatase
1295	 35.24	0	1715402..1716238	-	278	187932207	uspA	FTM_1604	-	universal stress protein
1296	 31.47	0	1716314..1719055	-	913	187932208	-	FTM_1605	-	DNA/RNA helicase
1297	 33.33	0	1719039..1719818	-	259	187932209	-	FTM_1606	-	hypothetical protein
1298	 34.57	0	1719891..1720454	-	187	187932210	-	FTM_1607	-	predicted hydrolase of the HAD superfamily
1299	 33.79	0	1721277..1722149	-	290	187932211	-	FTM_1609	-	SAM-dependent methyltransferase
1300	 34.00	0	1722142..1723497	-	451	187932212	murC	FTM_1610	-	UDP-N-acetylmuramate-alanine ligase
1301	 35.14	0	1723564..1724337	-	257	187932213	-	FTM_1611	-	shikimate 5-dehydrogenase
1302	 39.22	+1	1724464..1724922	+	152	187932214	-	FTM_1612	-	hypothetical protein
1303	 36.30	+1	1725014..1725148	+	44	187932215	rpmH	FTM_1613	-	50S ribosomal protein L34
1304	 31.36	0	1725138..1725491	+	117	187932216	rnpA	FTM_1614	-	ribonuclease P protein component
1305	 34.14	0	1725467..1725715	+	82	187932217	-	FTM_1615	-	hypothetical protein
1306	 33.94	0	1725724..1727379	+	551	187932218	-	FTM_1616	-	hypothetical membrane protein
1307	 33.00	0	1727386..1728285	+	299	187932219	-	FTM_1617	-	LPS fatty acid acyltransferase
1308	 33.33	0	1728346..1729269	+	307	187932220	-	FTM_1618	-	LPS fatty acid acyltransferase
1309	 36.52	+1	1729281..1729688	+	135	187932221	pilE	FTM_1619	-	Type IV pili, pilus assembly protein
32.84	MEAN

3.41	STD DEV
