IslandPathversion 1.0

IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

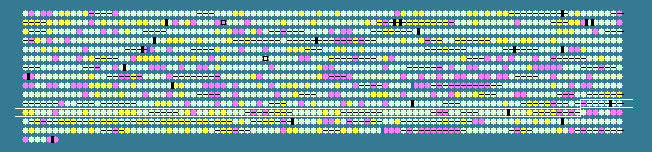

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1094	 27.19	-1	1480493..1481257	-	254	187932006	-	FTM_1375	-	nicotinamide mononucleotide transport (NMT) family protein
1095	 36.18	0	1481277..1482224	-	315	187932007	-	FTM_1376	-	ROK family protein
1096	 34.47	0	1482224..1483189	-	321	187932008	-	FTM_1377	-	ROK family protein
1097	 33.26	0	1483199..1484548	-	449	187932009	-	FTM_1378	-	RNA methyltransferase, trmA family
1098	 32.64	0	1484637..1485209	-	190	187932010	-	FTM_1379	-	hypothetical protein
1099	 31.96	0	1485474..1485692	-	72	187932011	rpoZ	FTM_1381	-	DNA-directed RNA polymerase, omega subunit
1100	 29.73	0	1485685..1486350	-	221	187932012	udk	FTM_1382	-	uridine kinase
1101	 36.59	+1	1486361..1487188	-	275	187932013	kdsA	FTM_1383	-	3-deoxy-D-manno-octulosonic acid 8-phosphate synthase
1102	 36.75	+1	1487219..1487569	-	116	187932014	-	FTM_1384	-	hypothetical protein
1103	 35.98	0	1487575..1489656	-	693	187932015	pnp	FTM_1385	-	polyribonucleotide nucleotidyltransferase
1104	 30.34	0	1489712..1489978	-	88	187932016	rpsO	FTM_1386	-	30S ribosomal protein S15
1105	 35.22	0	1490085..1491779	-	564	187932017	ftsI	FTM_1387	-	cell division protein, peptidoglycan synthetase (PBP)
1106	 29.06	-1	1491772..1492122	-	116	187932018	-	FTM_1388	-	hypothetical protein
1107	 33.44	0	1492119..1493036	-	305	187932019	mraW	FTM_1389	-	S-adenosyl-methyltransferase MraW
1108	 33.10	0	1493042..1495141	-	699	187932020	-	FTM_1390	-	hypothetical protein
1109	 29.70	0	1495235..1496059	+	274	187932021	mutM	FTM_1391	-	Formamidopyrimidine-DNA glycosylase
1110	 32.41	0	1496888..1497427	-	179	187932022	-	FTM_1392	-	glutamine amidotransferase, SNO family
1111	 39.00	+1	1497430..1498293	-	287	187932023	-	FTM_1393	-	pyridoxine/pyridoxal 5-phosphate biosynthesis protein
1112	 34.74	0	1498423..1500834	-	803	187932024	gyrB	FTM_1394	-	DNA gyrase, B subunit
1113	 34.08	0	1501016..1501816	+	266	187932025	-	FTM_1395	-	hypothetical protein
1114	 32.42	0	1501850..1502833	+	327	187932026	-	FTM_1396	-	tRNA-dihydrouridine synthase
1115	 32.55	0	1502840..1503607	-	255	187932027	-	FTM_1397	-	protein-disulfide isomerase
1116	 31.82	0	1504597..1506510	-	637	187932028	-	FTM_1399	-	outer membrane protein of unknown function
1117	 37.97	+1	1506680..1507843	+	387	187932029	sucC	FTM_1400	-	succinyl-CoA synthetase beta chain
1118	 40.09	+2	1507875..1508747	+	290	187932030	sucD	FTM_1401	-	succinyl-CoA ligase [ADP-forming] subunit alpha
1119	 37.32	+1	1508859..1509284	+	141	187932031	-	FTM_1402	-	hypothetical membrane protein
1120	 29.49	0	1509667..1510707	+	346	187932032	-	FTM_1403	-	hypothetical protein
1121	 30.54	0	1510839..1512056	-	405	187932033	-	FTM_1404	-	hypothetical protein
1122	 33.20	0	1512286..1513731	+	481	187932034	-	FTM_1405	-	proton-dependent oligopeptide transporter (POT) family protein, di- or tripeptide:H+ symporter
1123	 36.05	0	1513735..1514655	+	306	187932035	-	FTM_1406	-	asparaginase
1124	 33.93	0	1515432..1515935	-	167	187932036	-	FTM_1408	-	hypothetical protein
1125	 33.47	0	1516268..1516990	+	240	187932037	cutC	FTM_1409	-	copper homeostasis protein CutC family protein
1126	 34.82	0	1517033..1518172	-	379	187932038	araJ	FTM_1410	-	conserved inner membrane protein of unknown function
1127	 31.56	0	1519246..1519920	+	224	187932039	gph	FTM_1412	-	phosphoglycolate phosphatase
1128	 36.91	+1	1521271..1522221	+	316	187932040	trxB	FTM_1414	-	thioredoxin reductase
1129	 26.31	-1	1522329..1523495	+	388	187932041	-	FTM_1415	-	major facilitator superfamily (MFS) transport protein
1130	 34.50	0	1524593..1526395	-	600	187932042	mutL	FTM_1417	-	DNA mismatch repair enzyme with ATPase activity
1131	 33.48	0	1526403..1527065	-	220	187932043	-	FTM_1418	-	hypothetical protein
1132	 38.19	+1	1527133..1527852	-	239	187932044	-	FTM_1419	-	hypothetical protein
1133	 32.32	0	1528006..1528893	+	295	187932045	-	FTM_1420	-	GTPase
1134	 40.07	+2	1529110..1529925	+	271	187932046	-	FTM_1421	-	lipoprotein, putative
1135	 30.20	0	1530178..1531359	-	393	187932047	potF	FTM_1422	-	ATP-binding cassette putrescine uptake system, periplasmic protein
1136	 33.48	0	1531443..1532852	+	469	187932048	-	FTM_1423	-	amino acid-polyamine-organocation (APC) superfamily protein
1137	 29.90	0	1532954..1534060	+	368	187932049	perM	FTM_1424	-	PerM family protein
1138	 33.05	0	1534054..1535796	+	580	187932050	recJ	FTM_1425	-	single-stranded-DNA-specific exonuclease RecJ
1139	 27.71	-1	1535793..1536575	+	260	187932051	-	FTM_1426	-	birA-like protein
1140	 30.95	0	1536572..1537495	+	307	187932052	-	FTM_1427	-	tRNA synthetase class II (D, K and N)
1141	 28.78	-1	1537500..1538618	-	372	187932053	-	FTM_1428	-	mechanosensitive ion channel protein
1142	 29.96	0	1538644..1539324	-	226	187932054	-	FTM_1429	-	hypothetical membrane protein
1143	 36.87	+1	1539418..1540773	-	451	187932055	accC	FTM_1430	-	acetyl-CoA carboxylase, biotin carboxylase subunit
1144	 37.55	+1	1540838..1541311	-	157	187932056	accB	FTM_1431	-	acetyl-CoA carboxylase, biotin carboxy carrier protein subunit
1145	 31.05	0	1541316..1541753	-	145	187932057	aroD	FTM_1432	-	3-dehydroquinate dehydratase
1146	 31.04	0	1541757..1542584	-	275	187932058	apaH	FTM_1433	-	diadenosine tetraphosphatase
1147	 31.05	0	1542596..1543384	-	262	187932059	ksgA	FTM_1434	-	dimethyladenosine transferase
1148	 32.41	0	1543386..1544795	-	469	187932060	-	FTM_1435	-	peptidyl-prolyl cis-trans isomerase (PPIase)
1149	 33.49	0	1544795..1547398	-	867	187932061	ostA1	FTM_1436	-	organic solvent tolerance protein
1150	 34.99	0	1547525..1549270	+	581	187932062	argS	FTM_1437	-	arginyl-tRNA synthetase
1151	 37.53	+1	1549311..1549691	-	126	187932063	-	FTM_1438	-	hypothetical protein
1152	 31.84	0	1551403..1551870	-	155	187932064	-	FTM_1440	-	RNA methyltransferase, SpoU family
1153	 36.92	+1	1551874..1552848	-	324	187932065	hemB	FTM_1441	-	delta-aminolevulinic acid dehydratase
1154	 33.69	0	1552856..1553134	-	92	187932066	yhbY	FTM_1442	-	RNA-binding protein
1155	 29.39	-1	1553145..1554056	-	303	187932067	holB	FTM_1443	-	DNA polymerase III, delta prime subunit
1156	 34.02	0	1554064..1555080	-	338	187932068	sohB	FTM_1444	-	peptidase family S49 protein
1157	 34.12	0	1555092..1555724	-	210	187932069	sspA	FTM_1445	-	stringent starvation protein A, regulator of transcription
1158	 34.92	0	1555805..1556119	+	104	187932070	-	FTM_1446	-	hypothetical protein
1159	 31.44	0	1556140..1556403	+	87	187932071	-	FTM_1447	-	hypothetical protein
1160	 31.18	0	1556495..1558258	+	587	187932072	-	FTM_1448	-	dolichyl-phosphate-mannose-protein mannosyltransferase family protein
1161	 33.96	0	1558650..1559606	-	318	187932073	-	FTM_1449	-	glycosyltransferase
1162	 29.86	0	1559705..1560511	+	268	187932074	-	FTM_1450	-	hypothetical protein
1163	 34.00	0	1560519..1561724	-	401	187932075	ftsW	FTM_1451	-	cell division protein FtsW
1164	 29.50	0	1561734..1562984	-	416	187932076	murD	FTM_1452	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
1165	 33.97	0	1562984..1564081	-	365	187932077	mraY	FTM_1453	-	phospho-N-acetylmuramoyl-pentapeptide- transferase
1166	 32.45	0	1564156..1565748	-	530	187932078	pckA	FTM_1454	-	phosphoenolpyruvate carboxykinase
1167	 34.18	0	1565893..1567539	+	548	187932079	glnS	FTM_1455	-	glutaminyl-tRNA synthetase
1168	 32.19	0	1570527..1572368	-	613	187932080	yjjK	FTM_1458	-	(putative) drug resistance ATPase-1 (Drug RA1) family protein
1169	 34.23	0	1572402..1573628	-	408	187932081	-	FTM_1459	-	drug:H+ antiporter-1 (DHA1) family protein
1170	 29.02	-1	1573711..1574754	-	347	187932082	-	FTM_1460	-	hypothetical protein
1171	 26.12	-1	1576220..1576801	+	193	187932083	-	FTM_1462	-	hypothetical protein
1172	 33.33	0	1577876..1578391	-	171	187932084	-	FTM_1464	-	acetyltransferase
1173	 29.57	0	1578396..1579112	-	238	187932085	-	FTM_1465	-	hypothetical protein
1174	 29.87	0	1579881..1580516	+	211	187932086	rhtB	FTM_1467	-	homoserine/threonine efflux family protein
1175	 34.34	0	1580513..1581403	-	296	187932087	ppnK	FTM_1468	-	NAD kinase
1176	 34.60	0	1581591..1582535	+	314	187932088	gtrB	FTM_1469	-	glycosyl transferase
1177	 32.44	0	1582539..1583318	-	259	187932089	-	FTM_1470	-	ATP-binding cassette (ABC) superfamily protein
1178	 32.68	0	1583327..1584250	-	307	187932090	-	FTM_1471	-	ATP-binding cassette (ABC) superfamily protein
1179	 34.11	0	1585213..1585989	-	258	187932091	-	FTM_1472	-	hypothetical protein
1180	 33.33	0	1586439..1587206	-	255	187932092	-	FTM_1473	-	Mg-dependent DNase
1181	 29.71	0	1588919..1589359	+	146	187932093	bfr	FTM_1475	-	bacterioferritin
1182	 32.81	0	1589977..1590933	-	318	187932094	-	FTM_1477	-	DNA-directed RNA polymerase, alpha subunit/40 kD subunit
1183	 34.84	0	1592487..1593413	-	308	187932095	ppx	FTM_1479	-	exopolyphosphatase
1184	 34.57	0	1593611..1593934	+	107	187932096	trxA1	FTM_1480	-	thioredoxin
1185	 39.75	+2	1593977..1595239	+	420	187932097	rho	FTM_1481	-	transcription termination factor Rho
1186	 35.42	0	1596356..1597840	-	494	187932098	manB	FTM_1482	-	phosphomannomutase
1187	 36.60	+1	1597871..1599277	-	468	187932099	manC	FTM_1483	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1188	 33.62	0	1600425..1601474	-	349	187932100	wbtM	FTM_1484	-	dTDP-glucose 4,6-dehydratase
1189	 38.76	+1	1601992..1602876	-	294	187932101	wbtL	FTM_1485	-	glucose-1-phosphate thymidylyltransferase
1190	 29.04	-1	1602901..1603761	-	286	187932102	wbtK	FTM_1486	-	glycosyltransferase
1191	 30.44	0	1603754..1605241	-	495	187932103	wzx	FTM_1487	-	O-antigen flippase
1192	 28.65	-1	1605246..1605971	-	241	187932104	wbtJ	FTM_1488	-	formyltransferase
1193	 30.47	0	1605968..1607050	-	360	187932105	wbtI	FTM_1489	-	sugar transamine/perosamine synthetase
32.84	MEAN

3.41	STD DEV
