IslandPathversion 1.0

IslandPath Analysis: Francisella tularensis subsp. mediasiatica FSC147

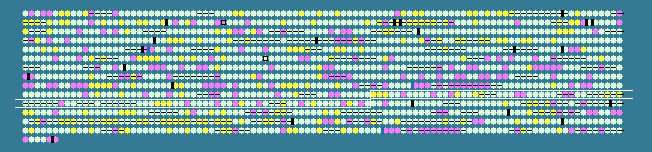

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.84 STD DEV: 3.41
Francisella tularensis subsp. mediasiatica FSC147, complete genome - 1..1893886
1406 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
959	 37.21	+1	1286202..1286717	-	171	187931871	ruvC	FTM_1202	-	crossover junction endodeoxyribonuclease RuvC
960	 37.62	+1	1286814..1287560	-	248	187931872	-	FTM_1203	-	hypothetical protein
961	 36.36	+1	1287576..1288235	-	219	187931873	-	FTM_1204	-	hypothetical protein
962	 35.26	0	1288265..1289248	-	327	187931874	lipA	FTM_1205	-	lipoic acid synthetase
963	 32.53	0	1289455..1289955	+	166	187931875	ftnA	FTM_1206	-	ferric iron binding protein, ferritin-like protein
964	 28.62	-1	1289958..1291526	-	522	187931876	-	FTM_1207	-	proton-dependent oligopeptide transporter (POT) family protein, di- or tripeptide:H+ symporter
965	 29.61	0	1291588..1292232	+	214	187931877	grxB	FTM_1208	-	glutaredoxin 2
966	 33.02	0	1292234..1292863	+	209	187931878	rnfB	FTM_1209	-	iron-sulfur cluster-binding protein
967	 33.49	0	1292856..1293494	+	212	187931879	nth	FTM_1210	-	endonuclease III
968	 32.40	0	1293491..1293919	+	142	187931880	-	FTM_1211	-	hypothetical protein
969	 25.87	-2	1293919..1295178	+	419	187931881	-	FTM_1212	-	hypothetical membrane protein
970	 33.48	0	1295294..1295980	+	228	187931882	-	FTM_1213	-	hypothetical protein
971	 30.56	0	1296025..1299450	+	1141	187931883	mfd	FTM_1214	-	transcription-repair coupling factor
972	 28.93	-1	1300644..1300961	-	105	187931884	ilvN	FTM_1216	-	acetolactate synthase, small subunit
973	 37.31	+1	1302806..1304488	-	560	187931885	ilvD	FTM_1218	-	dihydroxy-acid dehydratase
974	 35.53	0	1307899..1308126	+	75	187931886	-	FTM_1220	-	transcriptional regulator
975	 30.61	0	1308129..1309487	+	452	187931887	-	FTM_1221	-	transcription regulator
976	 37.39	+1	1309509..1310690	-	393	187931888	-	FTM_1222	-	hypothetical protein
977	 38.70	+1	1310705..1310965	-	86	187931889	-	FTM_1223	-	hypothetical protein
978	 30.62	0	1313317..1313574	-	85	187931890	-	FTM_1227	-	hypothetical protein
979	 29.62	0	1313579..1314439	-	286	187931891	rdgC	FTM_1228	-	recombination associated protein
980	 33.74	0	1314629..1315615	+	328	187931892	-	FTM_1229	-	putative rhodanese, sulfurtransferase
981	 31.50	0	1316632..1318647	-	671	187931893	rep	FTM_1231	-	UvrD/REP superfamily I DNA and RNA helicase
982	 31.06	0	1318641..1319387	-	248	187931894	-	FTM_1232	-	hypothetical protein
983	 25.40	-2	1320009..1320512	+	167	187931895	-	FTM_1233	-	isochorismatase hydrolase family protein
984	 25.36	-2	1321200..1321688	+	162	187931896	-	FTM_1235	-	isochorismatase hydrolase family protein
985	 31.59	0	1321838..1322296	-	152	187931897	-	FTM_1236	-	hypothetical protein
986	 32.51	0	1322319..1323284	-	321	187931898	talA	FTM_1237	-	transaldolase
987	 34.49	0	1323422..1324801	-	459	187931899	pepB	FTM_1238	-	cytosol aminopeptidase
988	 32.97	0	1324804..1326186	-	460	187931900	-	FTM_1239	-	putative outer membrane efflux protein
989	 34.37	0	1326194..1328791	-	865	187931901	alaS	FTM_1240	-	alanyl-tRNA synthetase
990	 34.00	0	1328947..1329393	+	148	187931902	-	FTM_1241	-	hypothetical protein
991	 26.49	-1	1331481..1331816	-	111	187931903	-	FTM_1243	-	hypothetical protein
992	 27.94	-1	1331847..1332254	+	135	187931904	-	FTM_1244	-	hypothetical protein
993	 36.27	+1	1333741..1334862	+	373	187931905	-	FTM_1247	-	protein-disulfide isomerase
994	 33.22	0	1336311..1337165	-	284	187931906	-	FTM_1249	-	peptide methionine sulfoxide reductase
995	 34.31	0	1337762..1339714	-	650	187931907	betT	FTM_1251	-	betaine/carnitine/choline transporter (BCCT) family protein
996	 35.19	0	1339856..1340608	+	250	187931908	spoU	FTM_1252	-	rRNA methyltransferase
997	 32.91	0	1340702..1341649	+	315	187931909	-	FTM_1253	-	choloylglycine hydrolase family protein
998	 38.98	+1	1341814..1342167	+	117	187931910	-	FTM_1254	-	hypothetical protein
999	 30.27	0	1343989..1344282	-	97	187931911	-	FTM_1256	-	hypothetical protein
1000	 37.57	+1	1350948..1352126	-	392	187931912	fopA	FTM_1261	-	outer membrane protein FopA
1001	 33.74	0	1352236..1352481	-	81	187931913	-	FTM_1262	-	4Fe-4S ferredoxin
1002	 32.72	0	1352486..1352974	-	162	187931914	coaD	FTM_1263	-	phosphopantetheine adenylyltransferase
1003	 33.88	0	1352986..1353537	-	183	187931915	-	FTM_1264	-	hypothetical protein
1004	 33.33	0	1353551..1353907	-	118	187931916	-	FTM_1265	-	hypothetical protein
1005	 34.48	0	1353928..1355151	-	407	187931917	sufS	FTM_1266	-	selenocysteine lyase
1006	 35.88	0	1355254..1356627	-	457	187931918	sdaA	FTM_1267	-	L-serine dehydratase
1007	 26.91	-1	1356683..1357351	-	222	187931919	-	FTM_1268	-	predicted metal-dependent hydrolase
1008	 31.20	0	1357377..1358219	-	280	187931920	pheA	FTM_1269	-	prephenate dehydratase
1009	 32.24	0	1359994..1361091	-	365	187931921	alr	FTM_1271	-	alanine racemase
1010	 30.92	0	1361104..1362597	-	497	187931922	-	FTM_1272	-	proton-dependent oligopeptide transporter (POT) family protein, di- or tripeptide:H+ symporter
1011	 31.50	0	1362722..1363429	-	235	187931923	-	FTM_1273	-	hypothetical protein
1012	 30.05	0	1363441..1363836	-	131	187931924	-	FTM_1274	-	hypothetical protein
1013	 32.36	0	1363923..1364945	+	340	187931925	-	FTM_1275	-	integral membrane protein
1014	 30.72	0	1364934..1365584	-	216	187931926	serB	FTM_1276	-	phosphoserine phosphatase
1015	 31.00	0	1366198..1367655	+	485	187931927	-	FTM_1277	-	proton-dependent oligopeptide transporter (POT) family protein, di- or tripeptide:H+ symporter
1016	 30.68	0	1367784..1368047	-	87	187931928	-	FTM_1278	-	hypothetical protein
1017	 35.49	0	1368983..1369861	-	292	187931929	rpoH	FTM_1279	-	RNA polymerase sigma-32 factor
1018	 33.74	0	1369885..1370373	-	162	187931930	-	FTM_1280	-	hypothetical protein
1019	 32.70	0	1370447..1371391	-	314	187931931	secF	FTM_1281	-	preprotein translocase, subunit F, membrane protein
1020	 35.35	0	1371410..1373347	-	645	187931932	secD	FTM_1282	-	preprotein translocase, subunit D, membrane protein
1021	 34.45	0	1373404..1373760	-	118	187931933	yajC	FTM_1283	-	preprotein translocase, YajC subunit
1022	 35.08	0	1374316..1374888	-	190	187931934	-	FTM_1284	-	isochorismatase hydrolase family protein
1023	 37.05	+1	1376739..1377842	-	367	187931935	tgt	FTM_1287	-	queuine tRNA-ribosyltransferase
1024	 39.70	+2	1378825..1379091	-	88	187931936	-	FTM_1289	-	hypothetical protein
1025	 37.43	+1	1379247..1379588	-	113	187931937	-	FTM_1290	-	hypothetical protein
1026	 34.15	0	1380224..1380838	+	204	187931938	-	FTM_1291	-	hypothetical protein
1027	 34.76	0	1381854..1383326	+	490	187931939	metIQ	FTM_1293	-	methionine uptake transporter (MUT) family protein, membrane and periplasmic protein
1028	 28.30	-1	1383397..1384608	+	403	187931940	-	FTM_1294	-	hydroxy/aromatic amino acid permease (HAAAP) family protein
1029	 33.86	0	1384683..1385438	+	251	187931941	-	FTM_1295	-	rhodanese-like family protein
1030	 31.67	0	1385445..1385924	+	159	187931942	ispF	FTM_1296	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1031	 34.46	0	1385929..1387614	-	561	187931943	-	FTM_1297	-	Mur ligase family protein
1032	 36.27	+1	1387640..1390462	-	940	187931944	cphA	FTM_1298	-	cyanophycin synthetase
1033	 29.08	-1	1391317..1392069	-	250	187931945	glpQ	FTM_1300	-	glycerophosphoryl diester phosphodiesterase
1034	 34.35	0	1392227..1394005	+	592	187931946	pilB	FTM_1301	-	Type IV pili ATPase
1035	 34.15	0	1394020..1395249	+	409	187931947	pilC	FTM_1302	-	Type IV pili polytopic inner membrane protein
1036	 26.15	-1	1396500..1396889	-	129	187931948	-	FTM_1304	-	hypothetical protein
1037	 37.93	+1	1396852..1397112	-	86	187931949	-	FTM_1305	-	hypothetical protein
1038	 29.44	0	1397246..1398247	+	333	187931950	hemH	FTM_1306	-	ferrochelatase
1039	 34.15	0	1402085..1403923	-	612	187931951	uvrC	FTM_1311	-	excinuclease ABC, C subunit
1040	 28.40	-1	1404032..1405126	+	364	187931952	rnd	FTM_1312	-	ribonuclease D
1041	 32.26	0	1405155..1406369	+	404	187931953	-	FTM_1313	-	drug:H+ antiporter-1 (DHA1) family protein
1042	 35.45	0	1406366..1406743	-	125	187931954	-	FTM_1314	-	hypothetical protein
1043	 36.08	0	1407130..1407384	-	84	187931955	rpmA	FTM_1315	-	ribosomal protein L27
1044	 38.73	+1	1407415..1407729	-	104	187931956	rplU	FTM_1316	-	ribosomal protein L21
1045	 35.02	0	1409797..1412517	-	906	187931957	secA	FTM_1319	-	preprotein translocase, subunit A (ATPase, RNA helicase)
1046	 29.83	0	1412649..1413677	+	342	187931958	-	FTM_1320	-	hypothetical protein
1047	 28.00	-1	1413681..1414130	+	149	187931959	-	FTM_1321	-	hypothetical protein
1048	 33.20	0	1414127..1414849	-	240	187931960	deoD	FTM_1322	-	purine nucleoside phosphorylase
1049	 38.01	+1	1415910..1417856	-	648	187931961	hflB	FTM_1323	-	ATP-dependent metalloprotease
1050	 35.78	0	1419461..1422283	-	940	187931962	uvrA	FTM_1325	-	excinuclease ABC, A subunit
1051	 34.37	0	1422322..1422804	-	160	187931963	greA	FTM_1326	-	transcriptional elongation factor
1052	 35.73	0	1422838..1423422	-	194	187931964	fimT	FTM_1327	-	type IV pili, pilus assembly protein
1053	 32.78	0	1423423..1425045	-	540	187931965	pgi	FTM_1328	-	glucose-6-phosphate isomerase
1054	 28.13	-1	1425032..1425685	-	217	187931966	-	FTM_1329	-	predicted thiamine pyrophosphokinase
1055	 38.74	+1	1425751..1427211	-	486	187931967	guaB	FTM_1330	-	IMP dehydrogenase/GMP reductase
1056	 35.14	0	1427312..1428751	-	479	187931968	pepA	FTM_1331	-	cytosol aminopeptidase
1057	 29.36	-1	1428917..1429999	+	360	187931969	-	FTM_1332	-	hypothetical protein
1058	 31.45	0	1429999..1431060	+	353	187931970	-	FTM_1333	-	permease YjgP/YjgQ family protein
32.84	MEAN

3.41	STD DEV
