IslandPathversion 1.0

IslandPath Analysis: Francisella tularensis subsp. holarctica

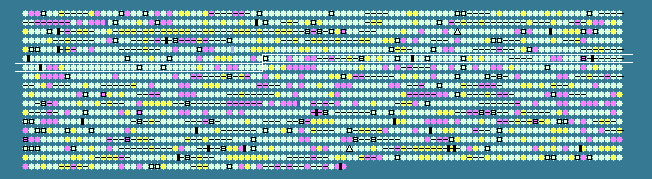

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
541	 29.05	-1	577532..578185	+	217	89255989	isftu2	FTL_0591	-	transposase
542	 33.22	0	578226..579962	+	578	89255990	-	FTL_0592	-	dTDP-glucose 4,6-dehydratase
543	 32.39	0	579955..580587	+	210	89255991	-	FTL_0593	-	galactosyl transferase
544	 29.55	0	580589..581380	+	263	89255992	-	FTL_0594	-	UDP-glucose 4-epimerase
545	 28.75	-1	581370..582461	+	363	89255993	-	FTL_0595	-	galacturonosyl transferase
546	 35.01	0	582479..583789	+	436	89255994	-	FTL_0596	-	UDP-glucose/GDP-mannose dehydrogenase
547	 33.54	0	583789..584760	+	323	89255995	-	FTL_0597	-	NAD dependent epimerase
548	 22.52	-2	584777..586006	+	409	89255996	-	FTL_0598	-	membrane protein/O-antigen protein
549	 26.25	-1	586003..587103	+	366	89255997	-	FTL_0599	-	glycosyl transferase
550	 31.85	0	587103..588989	+	628	89255998	-	FTL_0600	-	asparagine synthase
551	 30.66	0	588982..590064	+	360	89255999	-	FTL_0601	-	sugar transamine/perosamine synthetase
552	 28.37	-1	590061..590786	+	241	89256000	-	FTL_0602	-	hypothetical protein
553	 30.11	0	590791..592278	+	495	89256001	-	FTL_0603	-	O-antigen flippase
554	 29.15	0	592271..593131	+	286	89256002	-	FTL_0604	-	glycosyltransferase
555	 38.19	+1	593156..594040	+	294	89256003	-	FTL_0605	-	glucose-1-phosphate thymidylyltransferase
556	 33.43	0	594587..595603	+	338	89256004	-	FTL_0606	-	dTDP-D-glucose 4,6-dehydratase
557	 31.44	0	595748..596628	+	293	89256005	isftu1	FTL_0607	-	transposase
558	 36.32	+1	596881..598287	+	468	89256006	-	FTL_0608	-	mannose-1-phosphate guanyltransferase
559	 35.42	0	598318..599802	+	494	89256007	-	FTL_0609	-	phosphomannomutase
560	 39.67	+2	600895..602157	-	420	89256008	rho	FTL_0610	-	transcription termination factor Rho
561	 34.57	0	602200..602523	-	107	89256009	-	FTL_0611	-	thioredoxin
562	 34.84	0	602721..603647	+	308	89256010	-	FTL_0612	-	exopolyphosphatase
563	 29.69	0	603576..604262	-	228	89256011	isftu2	FTL_0613	-	transposase
564	 35.55	0	605084..605986	+	300	89256012	-	FTL_0615	-	AAA family ATPase
565	 32.60	0	606074..607027	+	317	89256013	-	FTL_0616	-	DNA-directed RNA polymerase subunit alpha
566	 29.02	-1	607646..608086	-	146	89256014	-	FTL_0617	-	hypothetical protein
567	 32.94	0	609798..610565	+	255	89256015	-	FTL_0620	-	deoxyribonuclease
568	 29.23	0	611800..612432	-	210	89256016	isftu2	FTL_0622	-	transposase
569	 32.14	0	612750..613673	+	307	89256017	-	FTL_0623	-	ABC transporter, ATP-binding protein
570	 32.31	0	613682..614461	+	259	89256018	-	FTL_0624	-	ABC transporter, membrane protein
571	 34.50	0	614465..615409	-	314	89256019	-	FTL_0625	-	glycosyl transferase
572	 34.57	0	615600..616490	+	296	89256020	-	FTL_0626	-	inorganic phosphate/ATP-NAD kinase
573	 30.19	0	616487..617122	-	211	89256021	-	FTL_0627	-	threonine efflux protein
574	 31.56	0	619191..620071	-	293	89256022	isftu1	FTL_0631	-	transposase
575	 36.67	+1	620245..620544	+	99	89256023	-	FTL_0632	-	ArsR family transcriptional regulator
576	 34.10	0	620610..621128	+	172	89256024	-	FTL_0633	-	hypothetical protein
577	 41.27	+2	621153..621278	+	41	89256025	-	FTL_0634	-	NADH oxidase
578	 34.46	0	621339..621959	+	206	89256026	-	FTL_0635	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
579	 34.17	0	622009..622845	+	278	89256027	-	FTL_0636	-	NADH oxidase
580	 35.66	0	622890..623576	+	228	89256028	-	FTL_0637	-	hypothetical protein
581	 34.67	0	623578..624327	+	249	89256029	-	FTL_0638	-	hypothetical protein
582	 29.72	0	624320..624928	-	202	89256030	-	FTL_0639	-	oxidoreductase
583	 32.67	0	624980..625429	-	149	89256031	-	FTL_0640	-	hypothetical protein
584	 34.65	0	625660..626115	-	151	89256032	-	FTL_0641	-	hypothetical protein
585	 32.93	0	626176..626673	-	165	89256033	-	FTL_0642	-	lipoprotein
586	 33.10	0	626753..627178	+	141	89256034	-	FTL_0643	-	N utilisation substance protein B
587	 33.46	0	627162..627932	-	256	89256035	-	FTL_0644	-	carbon-nitrogen hydrolase
588	 32.61	0	628101..628514	+	137	89256036	-	FTL_0645	-	lipoprotein
589	 29.01	-1	628660..629469	-	269	89256037	-	FTL_0646	-	hypothetical protein
590	 27.74	-1	629577..630059	-	160	89256038	-	FTL_0647	-	hypothetical protein
591	 34.60	0	630059..630688	-	209	89256039	-	FTL_0648	-	aminotransferase
592	 34.58	0	630712..631191	-	159	89256040	-	FTL_0649	-	aspartate/tyrosine/aromatic aminotransferase family protein
593	 35.69	0	631337..633034	-	565	89256041	-	FTL_0650	-	prolyl-tRNA synthetase
594	 28.33	-1	633888..634187	-	99	89256042	-	FTL_0651	-	transposase
595	 31.28	0	635603..636139	-	178	89256043	-	FTL_0652	-	hypothetical protein
596	 31.89	0	636846..637262	+	138	89256044	-	FTL_0653	-	hypothetical protein
597	 29.07	-1	637263..638012	+	249	89256045	-	FTL_0654	-	uroporphyrinogen III synthase
598	 30.66	0	637978..639063	+	361	89256046	-	FTL_0655	-	hypothetical protein
599	 29.79	0	639060..640217	+	385	89256047	-	FTL_0656	-	hypothetical protein
600	 30.83	0	640231..640989	+	252	89256048	-	FTL_0657	-	hydroxyacylglutathione hydrolase
601	 33.33	0	641067..641774	-	235	89256049	-	FTL_0659	-	cell division protein
602	 29.33	0	641883..642107	+	74	89256050	-	FTL_0660	-	ferrous iron transport protein A
603	 31.44	0	642124..643758	+	544	89256051	-	FTL_0661	-	hypothetical protein
604	 32.11	0	644330..644983	-	217	89256052	-	FTL_0662	-	prophage repressor protein
605	 25.20	-2	645152..645520	+	122	89256053	-	FTL_0663	-	hypothetical protein
606	 27.49	-1	645551..646423	-	290	89256054	-	FTL_0664	-	hypothetical protein
607	 37.68	+1	646600..648186	+	528	89256055	-	FTL_0665	-	hypothetical protein
608	 31.76	0	648263..651502	+	1079	89256056	-	FTL_0666	-	exodeoxyribonuclease V gamma chain
609	 33.52	0	651486..652016	+	176	89256057	-	FTL_0667	-	hypothetical protein
610	 30.68	0	652159..653589	+	476	89256058	-	FTL_0668	-	ATP-dependent DNA helicase
611	 32.16	0	653661..657314	+	1217	89256059	-	FTL_0669	-	exodeoxyribonuclease V beta chain
612	 31.32	0	657307..659148	+	613	89256060	-	FTL_0670	-	exodeoxyribonuclease V, alpha subunit
613	 34.50	0	659157..659927	-	256	89256061	-	FTL_0671	-	pantothenate kinase
614	 34.06	0	659991..660266	-	91	89256062	-	FTL_0672	-	aspartate alpha-decarboxylase
615	 30.53	0	660260..661045	-	261	89256063	-	FTL_0673	-	pantoate-beta-alanine ligase
616	 33.80	0	661032..661883	-	283	89256064	-	FTL_0674	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
617	 32.49	0	661831..662544	-	237	89256065	-	FTL_0675	-	hypothetical protein
618	 35.20	0	662852..664888	+	678	89256066	-	FTL_0676	-	DNA ligase
619	 30.69	0	664885..665262	+	125	89256067	-	FTL_0677	-	hypothetical protein
620	 31.56	0	665240..666120	-	293	89256068	isftu1	FTL_0678	-	transposase
621	 32.84	0	666344..667150	-	268	89256069	-	FTL_0679	-	polyamine transporter, subunit I, ABC transporter, membrane protein
622	 32.99	0	667164..668045	-	293	89256070	-	FTL_0680	-	polyamine transporter, subunit H, ABC transporter, membrane protein
623	 34.67	0	668045..669166	-	373	89256071	-	FTL_0681	-	polyamine transporter, ABC transporter,ATP-binding protein
624	 31.56	0	669449..670329	-	293	89256072	isftu1	FTL_0682	-	transposase
625	 29.55	0	671099..671521	-	140	89256073	-	FTL_0684	-	hypothetical protein
626	 34.53	0	671625..672374	-	249	89256074	-	FTL_0685	-	NH(3)-dependent NAD(+) synthetase
627	 34.28	0	672503..673975	-	490	89256075	-	FTL_0686	-	outer membrane efflux protein
628	 33.24	0	673985..675007	-	340	89256076	-	FTL_0687	-	HlyD family secretion protein
629	 33.99	0	675029..676558	-	509	89256077	-	FTL_0688	-	major facilitator transporter
630	 37.20	+1	676723..677550	+	275	89256078	-	FTL_0689	-	transcriptional regulator araC family protein
631	 32.39	0	677538..679229	-	563	89256079	-	FTL_0690	-	Acyl-CoA synthetase (long-chain-fatty-acid--CoA ligase)
632	 33.60	0	679337..680818	-	493	89256080	-	FTL_0691	-	proton-dependent oligopeptide transport (POT) family protein
633	 26.75	-1	681054..681782	-	242	89256081	-	FTL_0692	-	hypothetical protein
634	 32.17	0	681853..682539	+	228	89256082	-	FTL_0693	-	hypothetical protein
635	 27.75	-1	682529..683227	-	232	89256083	-	FTL_0694	-	hypothetical protein
636	 28.51	-1	683232..683957	-	241	89256084	-	FTL_0695	-	cell entry (mce) related family protein
637	 32.02	0	683967..684728	-	253	89256085	-	FTL_0696	-	ABC transporter, ATP-binding protein
638	 31.34	0	684743..685843	-	366	89256086	-	FTL_0697	-	ABC transporter, membrane protein
639	 29.63	0	685918..686754	-	278	89256087	-	FTL_0698	-	hypothetical protein
640	 35.04	0	686708..687706	-	332	89256088	-	FTL_0699	-	ribosomal large subunit pseudouridine synthase D
32.49	MEAN

3.39	STD DEV
