IslandPath Analysis: Francisella tularensis subsp. holarctica

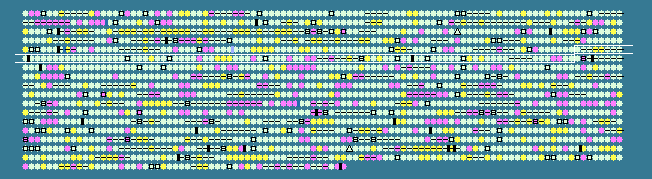

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
493	 33.16	0	516506..517663	+	385	89255941	-	FTL_0534	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
494	 34.13	0	517669..520047	+	792	89255942	-	FTL_0535	-	outer membrane protein
495	 31.15	0	520183..520686	+	167	89255943	-	FTL_0536	-	outer membrane protein OmpH
496	 36.69	+1	520705..521718	+	337	89255944	-	FTL_0537	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
497	 37.60	+1	521733..522224	+	163	89255945	-	FTL_0538	-	(3R)-hydroxymyristoyl-(acyl-carrier protein) dehydratase
498	 35.51	0	522227..523006	+	259	89255946	-	FTL_0539	-	UDP-N-acetylglucosamine acyltransferase
499	 31.58	0	523006..524148	+	380	89255947	-	FTL_0540	-	Lipid-A-disaccharide synthase
500	 30.27	0	524207..524794	+	195	89255948	-	FTL_0541	-	hypothetical protein
501	 33.87	0	524885..525259	+	124	89255949	-	FTL_0542	-	hypothetical protein
502	 33.58	0	527080..527889	-	269	89255950	-	FTL_0544	-	hypothetical protein
503	 29.28	0	527959..528723	-	254	89255951	-	FTL_0545	-	phosphatidylcholine synthase
504	 29.93	0	528771..529652	-	293	89255952	-	FTL_0546	-	geranyltranstransferase
505	 30.79	0	529649..530944	-	431	89255953	-	FTL_0547	-	3-deoxy-D-manno-octulosonic-acid transferase
506	 33.33	0	531049..531627	-	192	89255954	-	FTL_0548	-	HAM1 protein
507	 31.39	0	531734..532558	+	274	89255955	-	FTL_0549	-	pyrroline-5-carboxylate reductase
508	 31.88	0	534316..535002	+	228	89255956	-	FTL_0552	-	two-component response regulator
509	 32.75	0	535007..535870	+	287	89255957	-	FTL_0553	-	signal peptidase I
510	 33.33	0	535877..536569	+	230	89255958	-	FTL_0554	-	ribonuclease III
511	 31.57	0	536556..537464	+	302	89255959	-	FTL_0555	-	tRNA pseudouridine synthetase B
512	 34.18	0	537457..539709	+	750	89255960	-	FTL_0556	-	ribonuclease R
513	 35.05	0	539777..540415	-	212	89255961	-	FTL_0557	-	Delta 9 acyl-lipid fatty acid desaturase
514	 32.12	0	540620..541363	-	247	89255962	-	FTL_0558	-	oxidoreductase
515	 32.97	0	541365..541907	-	180	89255963	-	FTL_0559	-	hypothetical protein
516	 30.20	0	541904..542413	-	169	89255964	-	FTL_0560	-	hypothetical protein
517	 33.88	0	542406..543500	-	364	89255965	-	FTL_0561	-	cyclopropane-fatty-acid-phospholipid synthase
518	 29.28	0	547305..547946	-	213	89255966	isftu2	FTL_0568	-	transposase
519	 33.89	0	548287..548823	+	178	89255967	-	FTL_0569	-	hypothetical protein
520	 29.10	0	548941..549342	+	133	89255968	-	FTL_0570	-	hypothetical protein
521	 34.81	0	549517..550125	+	202	89255969	-	FTL_0571	-	hypothetical protein
522	 36.06	+1	550182..551612	+	476	89255970	-	FTL_0572	-	hypothetical protein
523	 33.64	0	551623..552606	+	327	89255971	-	FTL_0573	-	hypothetical protein
524	 32.90	0	552612..554006	+	464	89255972	-	FTL_0574	-	hypothetical protein
525	 29.60	0	554219..554860	-	213	89255973	isftu2	FTL_0575	-	transposase
526	 31.02	0	555154..555672	+	172	89255974	-	FTL_0576	-	hypothetical protein
527	 34.29	0	555709..555918	+	69	89255975	-	FTL_0577	-	hypothetical protein
528	 35.22	0	556334..557182	+	282	89255976	-	FTL_0578	-	ornithine cyclodeaminase
529	 33.19	0	557253..558668	+	471	89255977	-	FTL_0579	-	putative nicotinate phosphoribosyltransferase
530	 27.63	-1	558753..558980	+	75	89255978	-	FTL_0580	-	hypothetical protein
531	 30.76	0	559130..560410	+	426	89255979	-	FTL_0581	-	sugar transport protein
532	 32.92	0	560403..560891	-	162	89255980	-	FTL_0582	-	hypothetical protein
533	 38.64	+1	560953..562140	-	395	89255981	-	FTL_0583	-	acetyl-CoA acetyltransferase
534	 36.26	+1	562153..564849	-	898	89255982	-	FTL_0584	-	fusion product of 3-hydroxacyl-CoA dehydrogenase and acyl-CoA-binding protein
535	 37.62	+1	564922..567162	-	746	89255983	fadE	FTL_0585	-	acyl-CoA dehydrogenase
536	 34.10	0	567200..568888	-	562	89255984	-	FTL_0586	-	long chain fatty acid CoA ligase
537	 31.32	0	569104..569451	+	115	89255985	-	FTL_0587	-	arsenate reductase
538	 35.45	0	569500..571716	+	738	89255986	-	FTL_0588	-	isocitrate dehydrogenase
539	 28.04	-1	571730..572617	+	295	89255987	-	FTL_0589	-	hypothetical protein
540	 32.76	0	572637..576971	+	1444	89255988	-	FTL_0590	-	ATp-dependent helicase
541	 29.05	-1	577532..578185	+	217	89255989	isftu2	FTL_0591	-	transposase
542	 33.22	0	578226..579962	+	578	89255990	-	FTL_0592	-	dTDP-glucose 4,6-dehydratase
543	 32.39	0	579955..580587	+	210	89255991	-	FTL_0593	-	galactosyl transferase
544	 29.55	0	580589..581380	+	263	89255992	-	FTL_0594	-	UDP-glucose 4-epimerase
545	 28.75	-1	581370..582461	+	363	89255993	-	FTL_0595	-	galacturonosyl transferase
546	 35.01	0	582479..583789	+	436	89255994	-	FTL_0596	-	UDP-glucose/GDP-mannose dehydrogenase
547	 33.54	0	583789..584760	+	323	89255995	-	FTL_0597	-	NAD dependent epimerase
548	 22.52	-2	584777..586006	+	409	89255996	-	FTL_0598	-	membrane protein/O-antigen protein
549	 26.25	-1	586003..587103	+	366	89255997	-	FTL_0599	-	glycosyl transferase
550	 31.85	0	587103..588989	+	628	89255998	-	FTL_0600	-	asparagine synthase
551	 30.66	0	588982..590064	+	360	89255999	-	FTL_0601	-	sugar transamine/perosamine synthetase
552	 28.37	-1	590061..590786	+	241	89256000	-	FTL_0602	-	hypothetical protein
553	 30.11	0	590791..592278	+	495	89256001	-	FTL_0603	-	O-antigen flippase
554	 29.15	0	592271..593131	+	286	89256002	-	FTL_0604	-	glycosyltransferase
555	 38.19	+1	593156..594040	+	294	89256003	-	FTL_0605	-	glucose-1-phosphate thymidylyltransferase
556	 33.43	0	594587..595603	+	338	89256004	-	FTL_0606	-	dTDP-D-glucose 4,6-dehydratase
557	 31.44	0	595748..596628	+	293	89256005	isftu1	FTL_0607	-	transposase
558	 36.32	+1	596881..598287	+	468	89256006	-	FTL_0608	-	mannose-1-phosphate guanyltransferase
559	 35.42	0	598318..599802	+	494	89256007	-	FTL_0609	-	phosphomannomutase
560	 39.67	+2	600895..602157	-	420	89256008	rho	FTL_0610	-	transcription termination factor Rho
561	 34.57	0	602200..602523	-	107	89256009	-	FTL_0611	-	thioredoxin
562	 34.84	0	602721..603647	+	308	89256010	-	FTL_0612	-	exopolyphosphatase
563	 29.69	0	603576..604262	-	228	89256011	isftu2	FTL_0613	-	transposase
564	 35.55	0	605084..605986	+	300	89256012	-	FTL_0615	-	AAA family ATPase
565	 32.60	0	606074..607027	+	317	89256013	-	FTL_0616	-	DNA-directed RNA polymerase subunit alpha
566	 29.02	-1	607646..608086	-	146	89256014	-	FTL_0617	-	hypothetical protein
567	 32.94	0	609798..610565	+	255	89256015	-	FTL_0620	-	deoxyribonuclease
568	 29.23	0	611800..612432	-	210	89256016	isftu2	FTL_0622	-	transposase
569	 32.14	0	612750..613673	+	307	89256017	-	FTL_0623	-	ABC transporter, ATP-binding protein
570	 32.31	0	613682..614461	+	259	89256018	-	FTL_0624	-	ABC transporter, membrane protein
571	 34.50	0	614465..615409	-	314	89256019	-	FTL_0625	-	glycosyl transferase
572	 34.57	0	615600..616490	+	296	89256020	-	FTL_0626	-	inorganic phosphate/ATP-NAD kinase
573	 30.19	0	616487..617122	-	211	89256021	-	FTL_0627	-	threonine efflux protein
574	 31.56	0	619191..620071	-	293	89256022	isftu1	FTL_0631	-	transposase
575	 36.67	+1	620245..620544	+	99	89256023	-	FTL_0632	-	ArsR family transcriptional regulator
576	 34.10	0	620610..621128	+	172	89256024	-	FTL_0633	-	hypothetical protein
577	 41.27	+2	621153..621278	+	41	89256025	-	FTL_0634	-	NADH oxidase
578	 34.46	0	621339..621959	+	206	89256026	-	FTL_0635	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
579	 34.17	0	622009..622845	+	278	89256027	-	FTL_0636	-	NADH oxidase
580	 35.66	0	622890..623576	+	228	89256028	-	FTL_0637	-	hypothetical protein
581	 34.67	0	623578..624327	+	249	89256029	-	FTL_0638	-	hypothetical protein
582	 29.72	0	624320..624928	-	202	89256030	-	FTL_0639	-	oxidoreductase
583	 32.67	0	624980..625429	-	149	89256031	-	FTL_0640	-	hypothetical protein
584	 34.65	0	625660..626115	-	151	89256032	-	FTL_0641	-	hypothetical protein
585	 32.93	0	626176..626673	-	165	89256033	-	FTL_0642	-	lipoprotein
586	 33.10	0	626753..627178	+	141	89256034	-	FTL_0643	-	N utilisation substance protein B
587	 33.46	0	627162..627932	-	256	89256035	-	FTL_0644	-	carbon-nitrogen hydrolase
588	 32.61	0	628101..628514	+	137	89256036	-	FTL_0645	-	lipoprotein
589	 29.01	-1	628660..629469	-	269	89256037	-	FTL_0646	-	hypothetical protein
590	 27.74	-1	629577..630059	-	160	89256038	-	FTL_0647	-	hypothetical protein
591	 34.60	0	630059..630688	-	209	89256039	-	FTL_0648	-	aminotransferase
592	 34.58	0	630712..631191	-	159	89256040	-	FTL_0649	-	aspartate/tyrosine/aromatic aminotransferase family protein
32.49	MEAN

3.39	STD DEV
